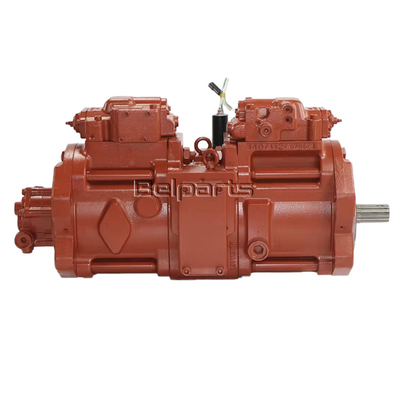

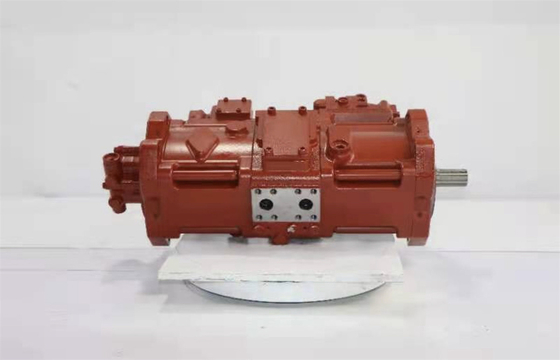

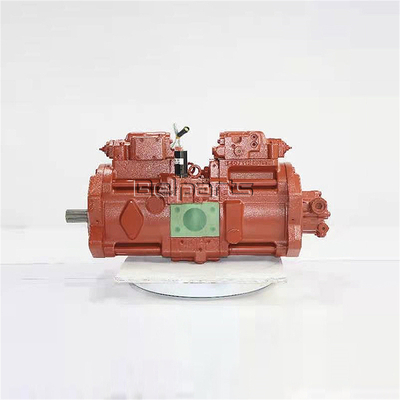

Belparts excavator main pump R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 hydraulic pump 31Q6-10010 31N6-17010 31Q6-10100
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Packing Size:84*38*49
Part number: 31Q6-10010 31N6-17010 31Q6-10100
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 |
| Packing Size | 84*38*49 |
| Part number | 31Q6-10010 31N6-17010 31Q6-10100 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| * | 31Q6-10010 | MAIN PUMP *-1,-2,-3,-4 |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00077 | DRIVE SHAFT(F) | 1 | |
| 113 | XJBN-00078 | DRIVE SHAFT(R) | 1 | |
| 116 | XJBN-01213 | GEAR-1ST | 1 | |
| 123 | XJBN-00950 | BEARING-ROLLER | 2 | |
| 127 | XJBN-00081 | SPACER-BEARING | 4 | |
| NS141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
| NS151 | XJBN-01032 | PISTON | 18 | |
| NS152 | XJBN-01214 | SHOE | 18 | |
| 153 | XJBN-00945 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | PLATE-SHOE | 2 | |
| NS212 | XJBN-00070 | PLATE-SWASH | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00086 | SUPPORT | 2 | |
| 261 | XJBN-00087 | COVER(F)-SEAL | 1 | |
| 271 | XJBN-01034 | CASING-PUMP | 2 | |
| 312 | XJBN-00940 | BLOCK-VALVE | 1 | |
| NS313 | XJBN-01035 | PLATE-VALVE(R) | 1 | |
| NS314 | XJBN-01036 | PLATE-VALVE(L) | 1 | |
| 326 | XJBN-00937 | COVER | 1 | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | 8 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 414 | XJBN-00160 | SCREW-SOCKET | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00936 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 27 | |
| NS531 | XJBN-00358 | PIN-TILTING | 2 | |
| 532 | XJBN-00955 | PISTON-SERVO | 2 | |
| 534 | XJBN-01037 | STOPPER(L) | 2 | |
| 535 | XJBN-00093 | STOPPER(S) | 2 | |
| NS541 | XJBN-00859 | SEAT | 4 | |
| NS543 | XJBN-00860 | STOPPER | 2 | |
| NS544 | XJBN-00861 | STOPPER | 2 | |
| S545 | XJBN-00359 | BALL-STEEL | 4 | |
| NS548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00918 | O-RING | 2 | |
| 710 | XJBN-00095 | O-RING | 2 | |
| 717 | XJBN-00096 | O-RING | 4 | |
| 724 | XJBN-00361 | O-RING | 16 | |
| 725 | XJBN-00362 | O-RING | 6 | |
| 726 | XJBN-00233 | O-RING | 2 | |
| 728 | XJBN-00363 | O-RING | 4 | |
| 732 | XJBN-00912 | O-RING | 2 | |
| 774 | XJBN-00962 | SEAL-OIL | 1 | |
| 789 | XJBN-00099 | RING-BACK UP | 2 | |
| 792 | XJBN-00100 | BACK-UP RING | 2 | |
| 806 | XJBN-00101 | NUT-HEX | 2 | |
| 808 | XJBN-00364 | NUT | 2 | |
| 824 | XJBN-00102 | RING-SNAP | 2 | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00104 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00106 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| *-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
1 | |
| 011 | XJBN-01212 | PISTON SUB ASSY SEE ILLUST |
2 | |
| 013 | XJBN-01040 | CYLINDER SUB ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-01041 | CYLINDER SUB ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-00069 | SWASH PLATE SUB ASSY SEE ILLUST |
2 | |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 SEE ILLUST |
2 | |
| 042 | XJBN-00075 | CHECK VALVE ASSY 2 SEE ILLUST |
2 | |
| 530 | XJBN-00366 | TILTING PIN ASSY SEE ILLUST |
2 |
Model |
Nominal displacement(ml/) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
d | D | L1 | L2 | L3 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||||||||
| CBQLT-F532/F525/F410-AF** | 32/25/10 | 20 | 25 | 1500-2500 | 800-3000 | 92/92/93 | 20 | 25 | 67 | 204.5 | 331.2 | 392 | 17.6 |
| CBQLT-F532/F532/F410-AF** | 40/32/10 | 30 | 69.5 | 212 | 341.5 | 402 | 18.2 | ||||||
| CBQLT-F532/F525/F416-AF** | 40/32/16 | 345 | 409 | 18.5 | |||||||||
| CBQLT-F532/F532/F410-AF** | 50/32/10 | 25 | 73 | 219 | 348.5 | 409 | 18.9 | ||||||
| CBQLT-F532/F532/F416-AF** | 50/32/16 | 352 | 416 | 18.9 | |||||||||
| CBQLT-F532/F540/F410-AF** | 50/40/10 | 221.5 | 353.5 | 414 | 19.2 | ||||||||
| CBQLT-F532/F540/F416-AF** | 50/40/16 | 359 | 423 | 19.9 | |||||||||
