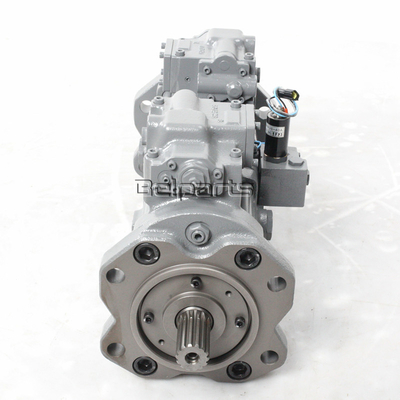

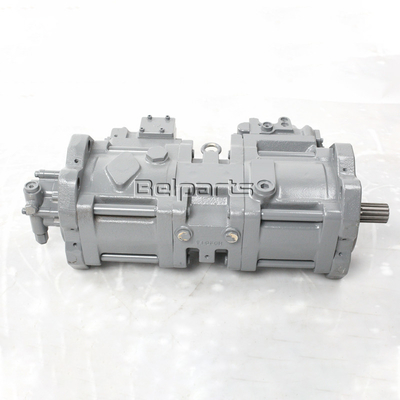

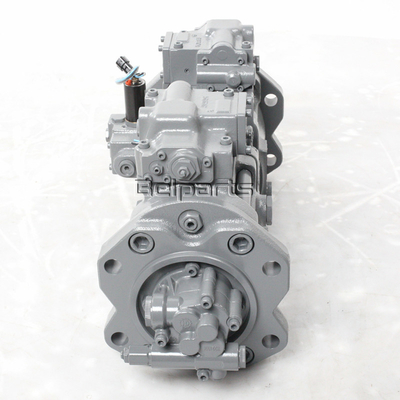

Belparts excavator main pump EW200 EC200 hydraulic pump VOE 14214127 VOE 14344193 VOE 14215385 VOE 14343112
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EW200 EC200
Packing Size:84*38*49
Part number: VOE 14214127 VOE 14344193 VOE 14215385 VOE 14343112
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | EW200 EC200 |
| Packing Size | 84*38*49 |
| Part number | VOE 14214127 VOE 14344193 VOE 14215385 VOE 14343112 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| P1 | ||||
| 1 | VOE 14214127 | Hydraulic Pump P1, SER NO -2781 more |
1 | |
| VOE 14344193 | Hydraulic Pump SER NO 2782- more |
1 | ||
| 2 | VOE 14023392 | O-ring | 1 | |
| 3 | VOE 14211695 | Seal | 2 | |
| 4 | VOE 14211693 | Snap Ring | 1 | |
| 5 | VOE 14211698 | Spacer | 1 | |
| 6 | VOE 14211705 | Key | 1 | |
| 7 | VOE 14211625 | Tube Plug more | 3 | |
| 8 | VOE 14212124 | Nut | 2 | |
| 9 | VOE 11702351 | Control valve | 1 | |
| 10 | VOE 14026437 | O-ring | 1 | |
| 11 | VOE 14211624 | Tube Plug SER NO -2273 more |
2 | |
| 11 | VOE 14212998 | Testing Nipple SER NO 2274- more |
1 | |
| 12 | VOE 14012277 | O-ring | 1 | |
| 13 | VOE 14023176 | O-ring | 1 | |
| 14 | VOE 14212125 | Tube Plug SER NO -2273 more |
1 | |
| 14 | VOE 14212798 | Testing Nipple SER NO 2274- more |
1 | |
| 15 |
VOE 13948699 Replace: VOE 14024290 |
O-ring more | 1 | |
| 16 | VOE 14214179 | O-ring | 1 | |
| 17 | VOE 11702159 | Tube Plug | 1 | |
| 18 | VOE 14211724 | Nut | 1 | |
| 19 | VOE 925260 | O-ring more | 1 | |
| 20 | VOE 14238227 | Cap | 1 | |
| 21 | VOE 14238228 | Gear | 1 | |
| 22 | VOE 14053720 | Washer | 1 | |
| 23 | VOE 14053721 | Striker Plate | 1 | |
| 24 | VOE 13955295 | Screw more | 1 | |
| 25 | VOE 14014659 | Screw | 4 | |
| 26 |
VOE 976945 Replace: VOE 14015098 |
Washer more | 4 |
Model |
Nominal displacement (mr) Fore pump/ hind pump |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) Forepump/ hind pump |
L1 | L2 | L | 法兰 Inlet sidse |
Weight (kg) |
||||||||
| fore pump | hind pump | ||||||||||||||||
Rated |
Max |
Min |
Rated |
Max |
|||||||||||||
| D₁ | a | b | D₂ | C | d | ||||||||||||
| CBTL-F410/F410-AF** | 10/10 | 20/20 | 25/25 | 800 | 2500 | 3000 | 92/92 | 57 | 166 | 226.5 | 23 | 47.6 | 22.2 | 23 | 47.6 | 22.2 | 5.5 |
| CBTL-F416/F410-AF** | 16/10 | 60.3 | 172.5 | 233 | 5.8 | ||||||||||||
| CBTL-F416/F416-AF** | 16/16 | 175.8 | 239.5 | 6.1 | |||||||||||||
| CBTL-F416/F410-AF** | 20/10 | 62.5 | 177 | 237.5 | 26 | 52.4 | 26.2 | 6.0 | |||||||||
| CBTL-F420/F416-AF** | 20/16 | 180.3 | 244 | 6.3 | |||||||||||||
| CBTL-F420/F420-AF** | 20/20 | 16/16 | 20/20 | 600 | 182.5 | 248.5 | 26 | 52.4 | 26.2 | 6.5 | |||||||
| CBTL-F425/F410-AF** | 25/10 | 20/20 | 25/25 | 800 | 65.5 | 175.3 | 244 | 23 | 47.6 | 22.2 | 6.3 | ||||||
| CBTL-F425/F416-AF** | 25/16 | 16/16 | 20/20 | 183.6 | 250.5 | 6.5 | |||||||||||
| CBTL-F425/F420-AF** | 25/20 | 600 | 188.6 | 255 | 26 | 52.4 | 26.2 | 6.7 | |||||||||
| CBTL-F430/F410-AF** | 30/10 | 800 | 67.8 | 187.6 | 248 | 23 | 47.6 | 22.2 | 6.5 | ||||||||
| CBTL-F410/F416-AF** | 30/16 | 193 | 254.5 | 6.7 | |||||||||||||
