Place of Origin	Guangdong，China
Brand Name	Belparts
Model Number	EC700B EC620 EC650
Minimum Order Quantity	1 piece
Price	Negotiable price
Packaging Details	Wooden packing
Delivery Time	1-5days
Payment Terms	T/T, Paypal and Trade Assurance
Supply Ability	1000pieces

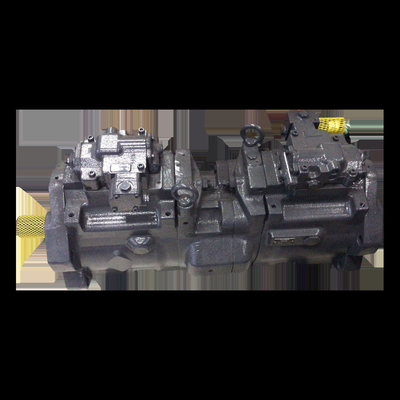

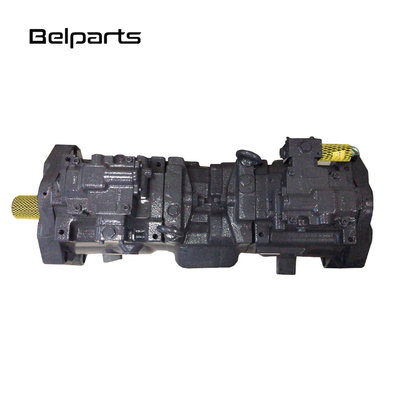

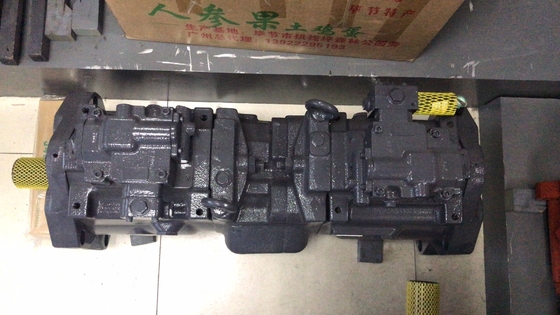

Product Name	Excavator Main Pump	Machine Model	EC700B EC620 EC650
Part Number	VOE 14522561 14250327 14250328 14244106 14245961 14212322 14213401 14214124	Brand	Belparts
Place Of Origin	Guangdong, China
Highlight	EC700B Excavator Main Pump , 14245961 Excavator Main Pump , 14250328 Hydraulic Pump

Product Name	Excavator Hydraulic Pump
Brand	Belparts
Machine model	EC700B EC620 EC650
Packing Size	843849
Part number	VOE 14522561 14250327 14250328 14244106 14245961 14212322 14213401 14214124
Pressure	Standard, High Pressure

#	Part No	Part Name	Qty.	Price request
#	Part No	Part Name	8279230
	VOE 14522561	Pump	1
1	VOE 14535198	Piston	1
2	VOE 14535158	Piston	18
3	VOE 14531598	Case more	18
4	VOE 14531599	Guard	1
5	VOE 14535157	Cylinder Block	1
6	VOE 14535173	Plate	1
7	VOE 14535200	Cylinder	1
8	VOE 14535157	Cylinder Block	1
9	VOE 14535174	Plate	1
10	VOE 14535201	Plate	2
11	VOE 14535164	Plate	2
12	VOE 14535165	Bushing	2
13	SA 8230-32080	Valve more	1
14	VOE 14535150	Shaft	1
15	VOE 14535151	Shaft	1
16	VOE 14535152	Coupling	1
17	VOE 14535153	Bearing	2
18	VOE 14535154	Bearing	2
19	VOE 14535155	Spacer	4
20	VOE 14535156	Booster	1
21	VOE 14535160	Plate	3
22	VOE 14535161	Bushing	2
23	VOE 14535162	Spring	18
24	VOE 14535169	Cover	1
25	VOE 14535163	Plate	2
26	VOE 14535166	Support	2
27	VOE 14535168	Cover	1
28	VOE 14535170	Casing	2
29	VOE 14535171	Cover	1
30	VOE 14535172	Cover	1
31	VOE 14535175	Screw	4
32	VOE 14535176	Screw	4
33	SA 9016-10804	Bolt more	8
34	SA 9415-11021	Plug more	4
35	SA 9415-11051	Plug more	4
36	SA 7242-11040	Plug more	31
37	VOE 14512382	Plug	5
38	VOE 14535202	Pin	2
39	VOE 14535180	Pin	2
40	VOE 14535184	Pin	2
41	VOE 14535181	Piston	2
42	VOE 14535182	Plug	2
43	VOE 14535183	Plug	2
44	VOE 14535185	O-ring	2
45	VOE 14535186	O-ring	1
46	VOE 14535187	O-ring	2
47	VOE 14535188	O-ring	2
48	VOE 14535189	O-ring	1
49	VOE 14534030	O-ring more	15
50	VOE 14534029	O-ring more	10
51	VOE 14535387	O-ring more	4
52	VOE 14534049	O-ring more	2
53	VOE 14535190	Seal	1
54	VOE 14535191	Ring	2
55	VOE 14535192	Ring	2
56	SA 9111-12000	Nut more	4
57	SA 9541-01055	Ring	2
58	VOE 979022	Nut more	2
59	VOE 14535193	Pin	5
60	VOE 14535194	Bolt	2
61	VOE 14535195	Screw	2
62	VOE 14535196	Screw	2
63	VOE 14535167	Washer	8
64	VOE 14535178	Screw	4
65	VOE 14535177	Screw	4
66	VOE 14535197	Screw	8
67	VOE 14535179	Plate	4
100	VOE 14535209	Seal	1

Model	Nominal displacement (ml/r)	Pressure(MPa)		Speed(r/min)			Volumetric efficiency (≥%)	L1	L	A	d	D		Weight (kg)
		Rated	Max	Min	Rated	Max
												Intet	Outlet
CBN-F520-BF**	20	20	25	600	2500	3000	92	66.5	134	48	65	25	20	5.1
CBN-F525-BF**	25							68.5	138					5.3
CBN-F532-BF**	32						93	69	139			30		5.6
CBN-F540-BF**	40							72	145	51	76	35		5.9
CBN-F550-BF**	50							76	153				25	6.3
CBN-F563-BF**	63							81.5	164					6.8

GZ Yuexiang Engineering Machinery Co., Ltd.

Excavator Main Pump EC700B EC620 EC650 Hydraulic Pump VOE 14522561 14250327 14250328 14244106 14245961

EC700B Excavator Main Pump

14245961 Excavator Main Pump

14250328 Hydraulic Pump

Specifiions Of Excavator Hydraulic Pump
