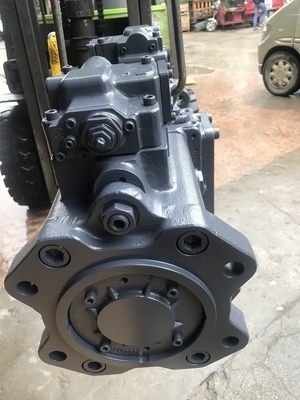

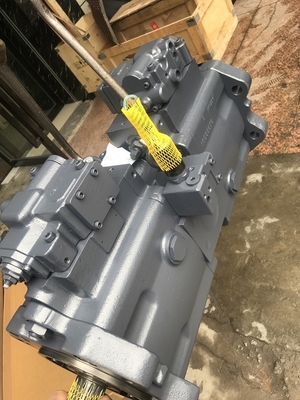

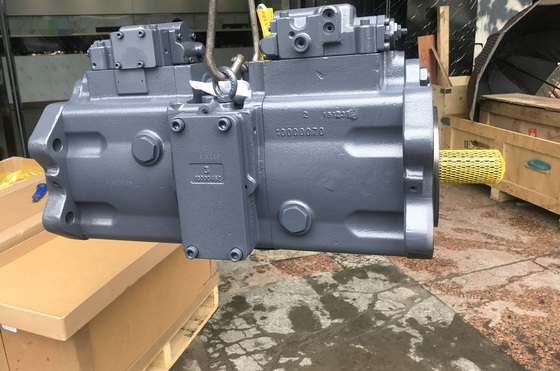

Product Name	Excavator Hydraulic Pump
Brand	Belparts
Machine model	EC360B EC330B EC460B
Packing Size	843849
Part number	VOE 14531412 VOE 14508164 VOE 14531857
Pressure	Standard, High Pressure

#	Part No	Part Name	Qty.	Price request
#	Part No	Part Name	8280299
	VOE 14531412	Pump	1
1	SA 7223-00140	Piston	2
2	VOE 14512923	Piston	9
3	VOE 14502323	Seat, Pad	9
4	SA 7223-00780	Cylinder	1
5	VOE 14502321	Block	1
6	VOE 14502324	Plate	1
7	SA 7223-00790	Cylinder	1
8	VOE 14502321	Block	1
9	VOE 14502325	Plate	1
10	VOE 14502011	Plate	2
11	SA 7223-00220	Plate	1
12	SA 7223-00240	Bushing	1
13	VOE 14511979	Gear	1
14	VOE 14511980	Bearing	2
15	VOE 14511981	Bearing	2
16	SA 7223-00060	Spacer	3
17	SA 8230-09300	Plate	2
18	VOE 14510070	Bushing more	2
19	SA 7223-00180	Spring	18
20	SA 7223-00260	Support	2
21	SA 7223-00210	Plate	2
22	VOE 14535453	Valve more	1
23	VOE 14533606	O-ring more	4
24	VOE 14533608	O-ring more	1
25	SA 7242-11040	Plug more	3
26	SA 8230-25880	Bolt more	3
27	SA 9415-11021	Plug more	1
28	SA 8230-32080	Valve more	1
29	VOE 14535454	O-ring more	1
30	VOE 14535455	O-ring more	1
31	VOE 14535456	O-ring more	1
32	SA 7242-11040	Plug more	24
33	SA 7223-00390	Bolt	8
34	SA 7223-00410	Piston	2
35	SA 7223-00420	Stop	2
36	SA 7223-00430	Stop	2
37	SA 7223-00450	Check valve more	2
38	VOE 14535204	Seat	1
39	VOE 14535205	Stop	1
40	VOE 14880998	Ball more	1
41	VOE 14540760	Check valve	2
42	VOE 14535204	Seat	1
43	VOE 14540758	Stop	1
44	VOE 14880998	Ball more	1
45	VOE 967630	Allen Hd Screw more	8
46	SA 7223-00690	O-ring	2
47	VOE 14533617	O-ring	3
48	VOE 14533034	O-ring	2
49	VOE 14533035	O-ring	2
50	VOE 14533604	O-ring	16
51	VOE 14533606	O-ring more	4
52	VOE 14533612	O-ring	3
53	SA 7223-00700	O-ring	2
54	VOE 14535388	Seal	1
55	SA 7223-00640	Ring	2
56	SA 7223-00650	Ring	2
57	VOE 979022	Nut more	4
58	VOE 914470	Snap Ring more	2
59	SA 7242-10560	Pin	2
60	SA 7223-00660	Spring Pin	4
61	VOE 14880555	Eye Bolt	2
62	SA 7223-00670	Set Screw	2
63	VOE 14511994	Cover	1
64	SA 9016-11206	Bolt more	4
65	VOE 14512382	Plug	12
66	SA 9415-11021	Plug more	2
67	VOE 14540757	O-ring	1
68	SA 7223-00680	Set Screw	2
69	VOE 14512927	Power Take-off	1
70	SA 9415-11051	Plug more	1
71	SA 8240-03470	Bolt	4
72	SA 8240-03450	Bolt	2
73	VOE 983524	O-ring more	1
74	SA 9511-22080	O-ring more	1
75	VOE 14512544	Cover	1
76	VOE 14511977	Shaft	1
77	VOE 14511978	Shaft	1
78	SA 7223-00280	Cover	1
79	VOE 14540759	Casing	2
80	VOE 14511982	Block	1
81	VOE 14506634	Pin	2
82	SA 7223-00400	Pin	1
83	SA 7223-00570	Pin	1
84	SA 9415-11051	Plug more	4
100	VOE 14540777	Sealing Kit	1

Model	Nominal displacement (ml/r)	Pressure(MPa)		Speed(r/min)			Volumetric efficiency (≥%)	L1	L	Weight (kg)
Model	Nominal displacement (ml/r)	Rated	Max	Min	Rated	Max	Volumetric efficiency (≥%)	L1	L	Weight (kg)
CBHZ-F23-AL**	23	20	25	600	2500	3000	92	60	116	4.1
CBHZ-F25-AL**	25							61.5	119	4.3
CBHZ-F26.5-AL**	26.5							62.5	121	4.5
CBHZ-F28.2-AL**	28.2							63.5	123	4.6
CBHZ-F30-AL**	30							64.5	125	4.8
CBHZ-F32-AL**	32							65.5	127	5.0
CBHZ-F36-AL**	36							68	132	5.4
