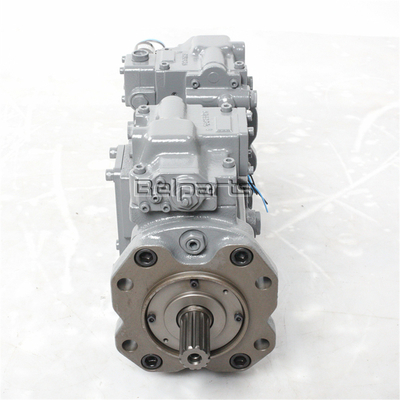

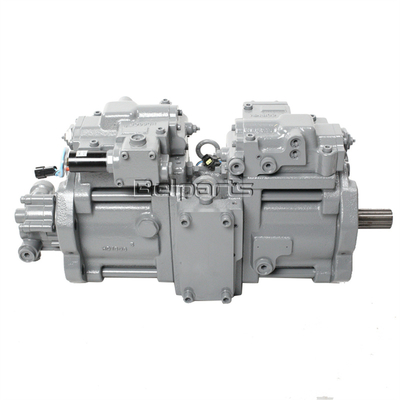

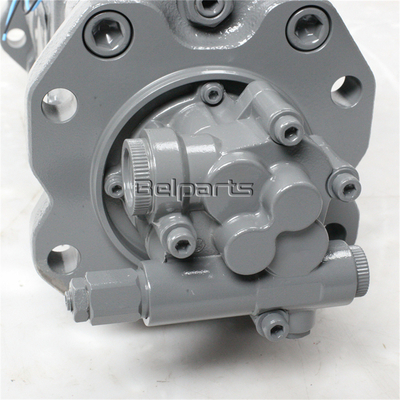

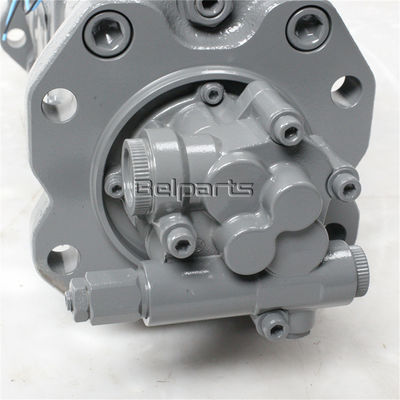

Belparts excavator main pump EC160B EC180B EC135B EC140B hydraulic pump for VOE 14531853 14508514 14508515
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EC160B EC180B EC135B EC140B
Packing Size:84*38*49
Part number: VOE 14531853 14508514 14508515 VOE 14514893 14531854 14533644
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | EC160B EC180B EC135B EC140B |
| Packing Size | 84*38*49 |
| Part number | VOE 14531853 14508514 14508515 VOE 14514893 14531854 14533644 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 8278378 | ||||
| VOE 14514893 | Pump SER NO 10001-10755 more |
1 | ||
| VOE 14531854 | Pump SER NO 10756-10939 more |
1 | ||
| VOE 14533644 | Pump SER NO 10940- more |
1 | ||
| 1 | VOE 14508514 | Piston | 2 | |
| 2 | VOE 14508515 | Piston | 9 | |
| 3 | SA 8230-28650 | Seat | 9 | |
| 4 | VOE 14508516 | Cylinder more | 1 | |
| 5 | VOE 14508523 | Block | 1 | |
| 6 | SA 8230-30550 | Plate | 1 | |
| 7 | VOE 14508522 | Cylinder more | 1 | |
| 8 | VOE 14508523 | Block | 1 | |
| 9 | VOE 14502013 | Plate | 1 | |
| 10 | SA 8230-32190 | Plate | 2 | |
| 11 | Plate | 1 | ||
| 12 | VOE 14501609 | Bushing | 1 | |
| 13 | VOE 14508506 | Shaft | 1 | |
| 14 | VOE 14508510 | Shaft | 1 | |
| 15 | SA 8230-28280 | Splined Sleeve | 1 | |
| 16 | VOE 14501607 | Bearing | 2 | |
| 17 | VOE 14508512 | Needle Bearing | 2 | |
| 18 | VOE 14508513 | Spacer more | 4 | |
| 19 | VOE 14508521 | Plate | 2 | |
| 20 | SA 8230-32080 | Valve more | 1 | |
| 21 | SA 8230-09380 | Spring | 18 | |
| 22 | SA 8230-09420 | Bolt | 2 | |
| 23 | SA 8230-09620 | Plate | 2 | |
| 24 | SA 8230-32180 | Support | 2 | |
| 25 | VOE 14508525 | Cover | 1 | |
| 26 | SA 8230-08910 | Pump Housing | 2 | |
| 27 | SA 8230-08920 | Body | 1 | |
| 28 | SA 8230-09390 | Bolt | 8 | |
| 29 | SA 8230-25840 | Bolt | 4 | |
| 30 | SA 9415-11021 | Plug more | 2 | |
| 31 | SA 8230-26050 | Plug | 4 | |
| 32 | SA 7242-11040 | Plug more | 15 | |
| 33 | VOE 14508526 | Bearing spindle | 2 | |
| 34 | VOE 14508527 | Pin | 1 | |
| 35 | Pin | 1 | ||
| 36 | VOE 14508528 | Piston | 2 | |
| 37 | VOE 14511631 | Stop | 2 | |
| 38 | SA 8230-09410 | Stop | 2 | |
| 39 | SA 9511-22030 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14528251 | O-ring SER NO 10756- more |
2 | ||
| 40 | SA 9511-22085 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14534033 | O-ring SER NO 10756- more |
2 | ||
| 41 | SA 9511-22120 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14534032 | O-ring SER NO 10756- more |
2 | ||
| 42 | SA 9511-22115 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14534031 | O-ring SER NO 10756- more |
2 | ||
| 43 | SA 9511-12008 | O-ring SER NO 10001-10755 more |
18 | |
| VOE 14534030 | O-ring SER NO 10756- more |
18 | ||
| 44 | SA 9511-12011 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14534029 | O-ring SER NO 10756- more |
2 | ||
| 45 | SA 9511-12018 | O-ring SER NO 10001-10755 more |
3 | |
| VOE 14534028 | O-ring SER NO 10756- more |
3 | ||
| 46 | SA 9511-12016 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14528250 | O-ring SER NO 10756- more |
2 | ||
| 47 | SA 8230-26890 | Seal SER NO 10001-10755 more |
1 | |
| VOE 14534027 | Seal SER NO 10756- more |
1 | ||
| 48 | SA 9566-10160 | Ring more | 2 | |
| 49 | SA 9566-20300 | Ring more | 2 | |
| 50 | SA 8230-25620 | Nut | 4 | |
| 51 | SA 8230-25970 | Ring more | 2 | |
| 52 | SA 8230-26400 | Pin | 2 | |
| 53 | SA 7223-00660 | Spring Pin | 4 | |
| 54 | SA 8230-25450 | Eye Bolt | 2 | |
| 55 | SA 8230-26780 | Bolt | 2 | |
| 56 | VOE 14508524 | Bushing | 2 | |
| 100 | VOE 14508612 | Sealing Kit SER NO 10001-10755 more |
1 | |
| VOE 14534508 | Seal SER NO 10756- more |
1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| CBTN-E16*/**** | 16.8 | 16 | 20 | 1500～2500 | 600～3000 | 92 | 2.3 |
Model |
Nominal displacement(ml/r) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
L1 | L2 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
|||||||
| CBHYB-32+3.5/ K3SP36 |
32/3.5 | 25/20 | 28/25 | 1500～2500 | 800～3000 | 92/90 | 118 | 118 | 200 | 6.5 |
