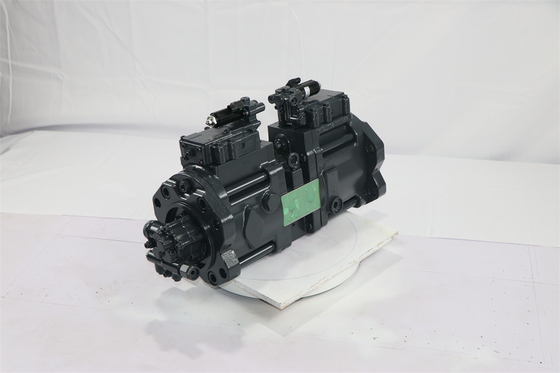

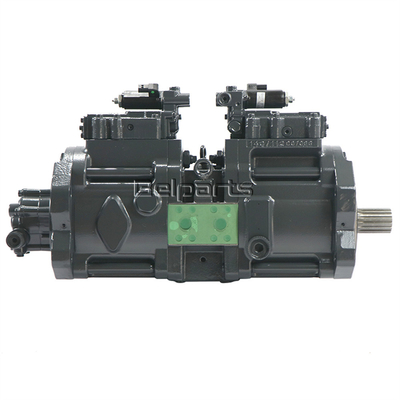

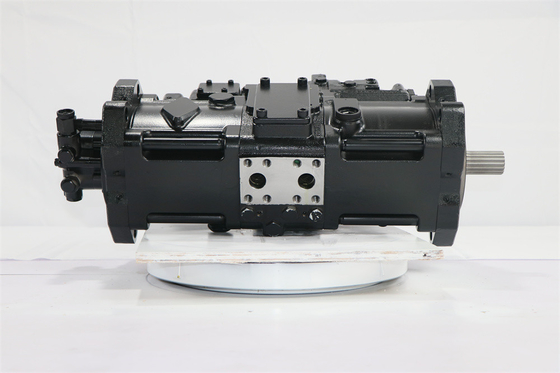

Excavator Main Pump EC230B EC240 EC240B Hydraulic Pump SA 1142-00531 SA 8230-14650 VOE 14343114
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Excavator Main Pump | Machine Model | EC230B EC240 EC240B |
|---|---|---|---|
| Part Number | SA 1142-00531 SA 8230-14650 VOE 14343114 | Brand | Belparts |
| Place Of Origin | Guangdong, China | ||
| Highlight | EC240B Excavator Main Pump,SA 1142-00531 Excavator Main Pump,Excavator Main Pump VOE 14343114 |
||
Product Description
Belparts excavator main pump EC230B EC240 EC240B hydraulic pump SA 1142-00531 SA 8230-14650 VOE 14343114
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EC230B EC240 EC240B
Packing Size:84*38*49
Part number: SA 1142-00531 SA 8230-14650 VOE 14343114
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | EC230B EC240 EC240B |
| Packing Size | 84*38*49 |
| Part number | SA 1142-00531 SA 8230-14650 VOE 14343114 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| SA 1142-00531 | Pump more | 1 | ||
| 1 | SA 8230-14650 | Piston | 2 | |
| 2 | SA 14500003 | Piston | 9 | |
| 3 | SA 14500002 | Seat | 9 | |
| 4 | SA 8230-28580 | Cylinder | 1 | |
| 5 | SA 8230-28560 | Block | 1 | |
| 6 | SA 14500001 | Plate | 1 | |
| 7 | SA 8230-28590 | Cylinder | 1 | |
| 8 | SA 8230-28560 | Block | 1 | |
| 9 | SA 14500000 | Plate | 1 | |
| 10 | SA 8230-09800 | Plate | 2 | |
| 11 | SA 8230-30540 | Plate | 1 | |
| 12 | SA 14500012 | Bushing | 1 | |
| 13 | SA 7223-00450 | Check valve more | 2 | |
| 14 | SA 7223-00500 | Seat | 1 | |
| 15 | SA 7223-00520 | Guard | 1 | |
| 16 | SA 9676-73200 | Ball more | 1 | |
| 17 | SA 7223-00460 | Check valve | 2 | |
| 18 | SA 7223-00500 | Seat | 1 | |
| 19 | SA 7223-00540 | Guard | 1 | |
| 20 | SA 9676-73200 | Ball more | 1 | |
| 21 | SA 8230-09020 | Valve more | 1 | |
| 22 | SA 8230-09100 | Shaft | 1 | |
| 23 | SA 8230-09070 | Shaft | 1 | |
| 24 | SA 8230-09660 | Coupling | 1 | |
| 25 | SA 8230-26610 | Roller Bearing more | 2 | |
| 26 | SA 8230-26700 | Needle Bearing more | 2 | |
| 27 | SA 8230-14530 | Spacer | 4 | |
| 28 | SA 8230-09370 | Plate | 2 | |
| 29 | SA 8230-09680 | Bushing more | 2 | |
| 30 | SA 8230-09710 | Spring | 18 | |
| 31 | SA 8230-09670 | Spacer | 2 | |
| 32 | SA 8230-21920 | Plate | 2 | |
| 33 | SA 8230-08940 | Support | 2 | |
| 34 | SA 8230-09350 | Cover | 1 | |
| 35 | SA 8230-08930 | Body | 1 | |
| 36 | SA 8230-08980 | Valve assembly | 1 | |
| 37 | SA 8230-09690 | Bolt | 8 | |
| 38 | SA 9016-10804 | Bolt more | 4 | |
| 39 | SA 9415-11021 | Plug more | 3 | |
| 40 | SA 9415-11051 | Plug more | 4 | |
| 41 | SA 7242-11040 | Plug more | 21 | |
| 42 | SA 8230-09790 | Pin | 2 | |
| 43 | SA 8230-09320 | Pin | 1 | |
| 44 | SA 7223-00570 | Pin | 1 | |
| 45 | SA 8230-09250 | Piston | 2 | |
| 46 | SA 8230-09640 | Stop | 2 | |
| 47 | SA 8230-09650 | Stop | 2 | |
| 48 | SA 9511-22035 | O-ring more | 2 | |
| 49 | SA 9511-22095 | O-ring more | 1 | |
| 50 | SA 9511-22145 | O-ring more | 4 | |
| 51 | SA 9511-12008 | O-ring more | 16 | |
| 52 | SA 9511-12011 | O-ring more | 8 | |
| 53 | SA 9511-12024 | O-ring more | 4 | |
| 54 | SA 9511-12018 | O-ring more | 2 | |
| 55 | SA 8230-26900 | Seal more | 1 | |
| 56 | SA 9566-10180 | Ring | 2 | |
| 57 | SA 9566-20350 | Ring | 2 | |
| 58 | SA 8230-25620 | Nut | 2 | |
| 59 | SA 9111-12000 | Nut more | 2 | |
| 60 | SA 8230-25980 | Ring | 2 | |
| 61 | SA 8230-26430 | Plate | 2 | |
| 62 | SA 7223-00660 | Spring Pin | 4 | |
| 63 | SA 8230-25450 | Eye Bolt | 2 | |
| 64 | SA 8230-26780 | Bolt | 2 | |
| 65 | SA 8230-09700 | Bolt | 2 | |
| 100 | SA 8148-13080 | Sealing Kit more | 1 |
Model |
Nominal displacement (ml/r) Fore pump hind pump |
Pressure(MPa |
Speed(r/min) |
Volumetric efficiency (≥%) Fore pump hind pump |
L1 | L2 | L | h | D | Weight (kg |
|||||
| Oval | Rectangk | Inlet Fore pump hind pump |
Outlet Fore pump, hind pumg |
||||||||||||
Rated |
Max |
Min |
Rated |
Max |
|||||||||||
| CBOT-E563/F410-*F** | 63/10 | 16/20 | 20/25 | 800 | 2000 | 2500 | 92/91 | 77.5 | 140.5 | 278 | 15 | 23 | 35/23 | 25/20 | 11.2 |
| CBOT-E563/F416-*F** | 63/16 | 143.5 | 285 | 11.4 | |||||||||||
| CBOT-E563/F420-*F** | 63/20 | 600 | 145.5 | 289 | 35/26 | 11.6 | |||||||||
| CBOT-E563/F425-*F** | 63/25 | 148.5 | 295 | 11.9 | |||||||||||
| CBOT-E563/F432-*F** | 63/32 | 92/92 | 152.5 | 303 | 12.1 | ||||||||||
| CBOT-F550/F410-*F** | 50/10 | 20/20 | 25/25 | 800 | 2500 | 3000 | 92/91 | 73 | 136 | 269 | 35/23 | 10.1 | |||
| CBOT-F550/F416-*F** | 50/16 | 139 | 275 | 10.3 | |||||||||||
| CBOT-F550/F420-*F** | 50/20 | 600 | 141 | 280 | 35/26 | 10.5 | |||||||||
| CBOT-F550/F425-*F** | 50 25 | 144 | 286 | 10.9 | |||||||||||
| CBOT-F550/F432-*F** | 50 32 | 92/92 | 148 | 294 | 11.1 | ||||||||||
| CBOT-F540/F410-*F** | 40/10 | 800 | 92/91 | 69.5 | 132.5 | 262 | 35/23 | 20/20 | 9 | ||||||
| CBOT-F540/F416-*F** | 40/16 | 135.5 | 268 | 9.3 | |||||||||||
| CBOT-F540/F420-*F** | 40 20 | 600 | 137.5 | 274 | 35/26 | 9.4 | |||||||||
| CBOT-F540/F425-*F** | 140.5 | 279 | 9.7 | ||||||||||||
| CBOT-F540/F432-*F** | 40 | 92/92 | 144.5 | 287 | 10 | ||||||||||
| CBOT-F532/F410-*F* | 32 | 800 | 92/91 | 67 | 130 | 257 | 30/23 | 8 | |||||||
| CBOT-F532/F416-*F** | 32/16 | 133 | 263 | 8.2 | |||||||||||
| CBOT-F532/F420-*F** | 32 20 | 600 | 135 | 268 | 30/26 | 8.4 | |||||||||
| CBOT-F532/F425-*F** | 32/25 | 138 | 274 | 8.7 | |||||||||||
| CBOT-F532/F432-*F** | 32/32 | 92/92 | 142 | 282 | 8.9 | ||||||||||
| CBOT-F525/F410-*F* | 25/10 | 800 | 92/91 | 64.5 | 127.5 | 252 | 25/23 | 7.1 | |||||||
| CBOT-F525/F416-*F** | 130.5 | 258 | 7.4 | ||||||||||||
| CBOT-F525/F420-*F** | 600 | 132.5 | 263 | 25/26 | 7.7 | ||||||||||
| CBOTF525/5425-*F** | 135.5 | 269 | 7.9 | ||||||||||||
