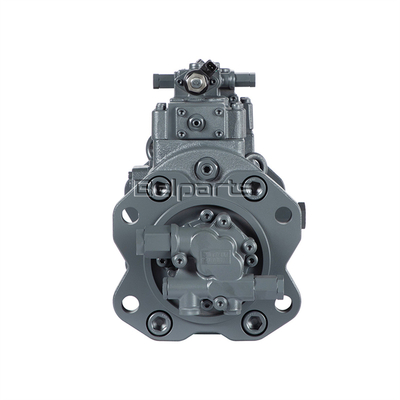

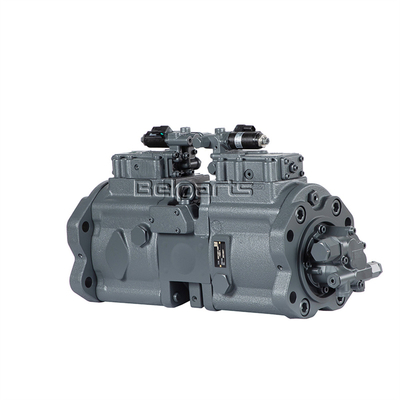

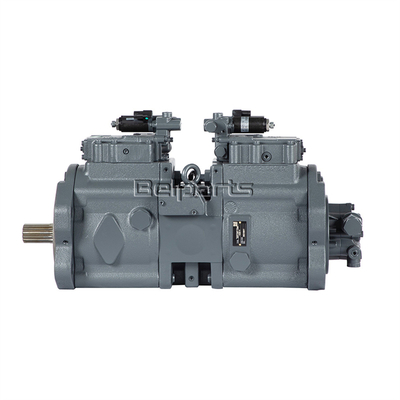

Belparts excavator main pump EC200 EC210 EC210B hydraulic pump for VOE 14214127 VOE 14344193 SA 1142-00012
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EC200 EC210 EC210B
Packing Size:84*38*49
Part number: VOE 14214127 VOE 14344193 SA 1142-00012
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | EC200 EC210 EC210B |
| Packing Size | 84*38*49 |
| Part number | VOE 14214127 VOE 14344193 SA 1142-00012 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| P1 | ||||
| 1 | VOE 14214127 | Hydraulic Pump P1, SER NO -2781 more |
1 | |
| VOE 14344193 | Hydraulic Pump P1,SER NO 2782- more |
1 | ||
| 2 | VOE 14023392 | O-ring | 1 | |
| 3 | VOE 14211695 | Seal | 2 | |
| 4 | VOE 14211693 | Snap Ring | 1 | |
| 5 | VOE 14211698 | Spacer | 1 | |
| 6 | VOE 14211705 | Key | 1 | |
| 7 | VOE 14211625 | Tube Plug more | 3 | |
| 8 | VOE 14212124 | Nut | 2 | |
| 9 | VOE 11702351 | Control valve | 1 | |
| 10 | VOE 14026437 | O-ring | 1 | |
| 11 | VOE 14211624 | Tube Plug SER NO -2273 more |
2 | |
| 11 | VOE 14212998 | Testing Nipple SER NO 2274- more |
1 | |
| 12 | VOE 14012277 | O-ring | 1 | |
| 13 | VOE 14023176 | O-ring | 1 | |
| 14 | VOE 14212125 | Tube Plug SER NO -2273 more |
1 | |
| 14 | VOE 14212798 | Testing Nipple SER NO 2274- more |
1 | |
| 15 |
VOE 13948699 Replace: VOE 14024290 |
O-ring more | 1 | |
| 16 | VOE 14214179 | O-ring | 1 | |
| 17 | VOE 11702159 | Tube Plug | 1 | |
| 18 | VOE 14211724 | Nut | 1 | |
| 19 | VOE 925260 | O-ring more | 1 | |
| 20 | VOE 14238227 | Cap | 1 | |
| 21 | VOE 14238228 | Gear | 1 | |
| 22 | VOE 14053720 | Washer | 1 | |
| 23 | VOE 14053721 | Striker Plate | 1 | |
| 24 | VOE 13955295 | Screw more | 1 | |
| 25 | VOE 14014659 | Screw | 4 | |
| 26 |
VOE 976945 Replace: VOE 14015098 |
Washer more | 4 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Intet | Outlet | Weight (kg) |
|||||||
Rated |
Max |
Min |
Rated |
Max |
||||||||||||
| a | b | D | a | b | D | |||||||||||
| CBHZA-F23-AFφ* | 02 20 |
20 | 25 | 600 | 2500 | 3000 | 92 | 60 | 116 | 25 | 26.2 | 52.4 | 20 | 22.2 | 47.6 | 4.4 |
| CBHZA-F25-AFφ* | 25 | 61.5 | 119 | 4.7 | ||||||||||||
| CBHZA-F28.2-AFφ* | 28.2 | 63.5 | 123 | 4.9 | ||||||||||||
| CBHZA-F30-AFφ* | 30 | 64.5 | 125 | 5.1 | ||||||||||||
| CBHZA-F32-AFφ* | 32 | 65.5 | 127 | 5.3 | ||||||||||||
| CBHZA-F36-AFφ* | 36 | 68 | 132 | 5.7 | ||||||||||||
| CBHZA-F40-AFφ* | 40 | 70.5 | 137 | 28 | 6.1 | |||||||||||
