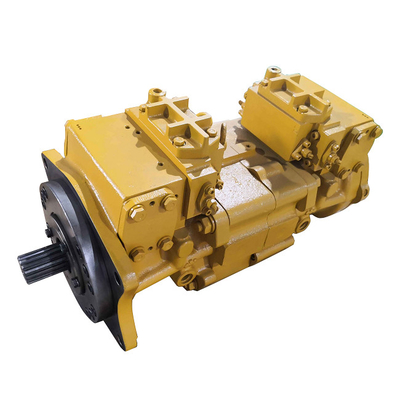

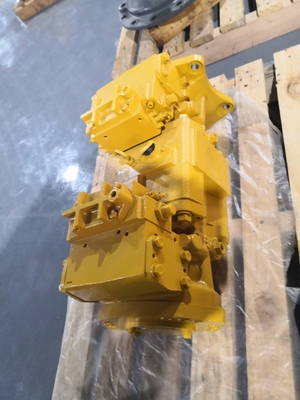

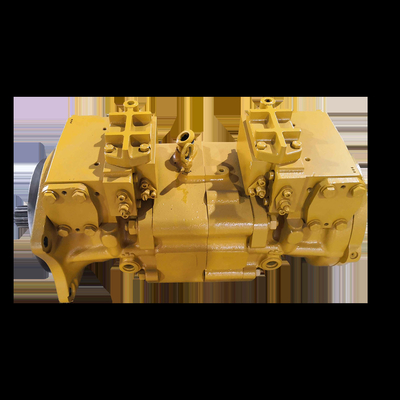

Belparts excavator main pump PC1250-7 PC1250-8 hydraulic pump for komatsu 708-2L-00680 708-2H-00440 708-2L-00610
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC1250-7 PC1250-8
Packing Size:84*38*49
Part number: 708-2L-00680 708-2L-00690 708-2H-00440 708-2L-00610 708-2L-00522 708-2H-00322
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC1250-7 PC1250-8 |
| Packing Size | 84*38*49 |
| Part number | 708-2L-00680 708-2L-00690 708-2H-00440 708-2L-00610 708-2L-00522 708-2H-00322 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-2L-00610 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-14A0 | ||||
| 1 | 708-2L-01632 | PUMP SUB ASS'Y | 1 | |
| 1 | (*708-2L-04950) | CASE ASS'Y,FRONT | 1 | |
| 1 | CASE,FRONT | 1 | ||
| 2 | Plug | 11 | ||
| 3 | 07044-12412 | PLUG,MAGNETIC | 1 | |
| 4 | 07002-62434 | O-RING,(F2370-57A0 -42 ) | 1 | |
| 5 | (*708-2L-04970) | END CAP ASS'Y,FRONT | 1 | |
| 5 | CAP,END | 1 | ||
| 6 | Plug | 1 | ||
| 7 | (*708-2L-32260) | Bearing | 1 | |
| 8 | (*07000-B2135) | O-ring | 1 | |
| 9 | (*6130-21-1910) | PIN, DOWEL | 1 | |
| 10 | (*07000-B2015) | O-ring | 1 | |
| 11 | (*07000-B1009) | O-ring | 3 | |
| 12 | (*07000-B3032) | O-ring | 2 | |
| 13 | (*708-25-12530) | Bolt | 2 | |
| 14 | (*01141-81620) | Stud | 4 | |
| 15 | (*01643-31645) | Washer | 4 | |
| 16 | (*01582-01613) | Nut | 4 | |
| 17 | (*01140-81645) | Stud | 4 | |
| 18 | (*01643-31645) | Washer | 4 | |
| 19 | (*01582-01613) | Nut | 4 | |
| 20 | (*720-68-19610) | PIN,DOWEL | 1 | |
| 21 | 04530-11018 | BOLT,(WITH MAIN CLUTCH COOLER) (D60P) | 1 | |
| 22 | (*708-25-13630) | Ring | 1 |
Model |
Nominal displacement (ml/r) Fore pump hind pump |
Pressure(MPa |
Speed(r/min) |
Volumetric efficiency (≥%) Fore pump hind pump |
L1 | L2 | L | h | D | Weight (kg |
|||||
| Oval | Rectangk | Inlet Fore pump hind pump |
Outlet Fore pump, hind pumg |
||||||||||||
Rated |
Max |
Min |
Rated |
Max |
|||||||||||
| CBOT-E563/F410-*F** | 63/10 | 16/20 | 20/25 | 800 | 2000 | 2500 | 92/91 | 77.5 | 140.5 | 278 | 15 | 23 | 35/23 | 25/20 | 11.2 |
| CBOT-E563/F416-*F** | 63/16 | 143.5 | 285 | 11.4 | |||||||||||
| CBOT-E563/F420-*F** | 63/20 | 600 | 145.5 | 289 | 35/26 | 11.6 | |||||||||
| CBOT-E563/F425-*F** | 63/25 | 148.5 | 295 | 11.9 | |||||||||||
| CBOT-E563/F432-*F** | 63/32 | 92/92 | 152.5 | 303 | 12.1 | ||||||||||
| CBOT-F550/F410-*F** | 50/10 | 20/20 | 25/25 | 800 | 2500 | 3000 | 92/91 | 73 | 136 | 269 | 35/23 | 10.1 | |||
| CBOT-F550/F416-*F** | 50/16 | 139 | 275 | 10.3 | |||||||||||
| CBOT-F550/F420-*F** | 50/20 | 600 | 141 | 280 | 35/26 | 10.5 | |||||||||
| CBOT-F550/F425-*F** | 50 25 | 144 | 286 | 10.9 | |||||||||||
| CBOT-F550/F432-*F** | 50 32 | 92/92 | 148 | 294 | 11.1 | ||||||||||
| CBOT-F540/F410-*F** | 40/10 | 800 | 92/91 | 69.5 | 132.5 | 262 | 35/23 | 20/20 | 9 | ||||||
| CBOT-F540/F416-*F** | 40/16 | 135.5 | 268 | 9.3 | |||||||||||
| CBOT-F540/F420-*F** | 40 20 | 600 | 137.5 | 274 | 35/26 | 9.4 | |||||||||
| CBOT-F540/F425-*F** | 140.5 | 279 | 9.7 | ||||||||||||
| CBOT-F540/F432-*F** | 40 | 92/92 | 144.5 | 287 | 10 | ||||||||||
| CBOT-F532/F410-*F* | 32 | 800 | 92/91 | 67 | 130 | 257 | 30/23 | 8 | |||||||
| CBOT-F532/F416-*F** | 32/16 | 133 | 263 | 8.2 | |||||||||||
| CBOT-F532/F420-*F** | 32 20 | 600 | 135 | 268 | 30/26 | 8.4 | |||||||||
| CBOT-F532/F425-*F** | 32/25 | 138 | 274 | 8.7 | |||||||||||
| CBOT-F532/F432-*F** | 32/32 | 92/92 | 142 | 282 | 8.9 | ||||||||||
| CBOT-F525/F410-*F* | 25/10 | 800 | 92/91 | 64.5 | 127.5 | 252 | 25/23 | 7.1 | |||||||
| CBOT-F525/F416-*F** | 130.5 | 258 | 7.4 | ||||||||||||
| CBOT-F525/F420-*F** | 600 | 132.5 | 263 | 25/26 | 7.7 | ||||||||||
| CBOTF525/5425-*F** | 135.5 | 269 | 7.9 | ||||||||||||
