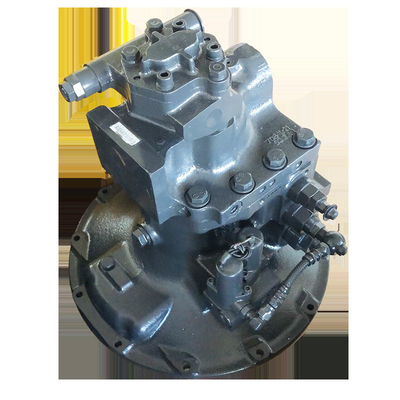

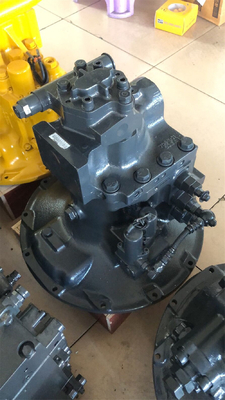

Belparts excavator main pump PC100-5 PC120-5 PC130-5 hydraulic pump 708-23-04014 708-23-04013 708-23-04012 for komatsu
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC100-5 PC120-5 PC130-5
Packing Size:84*38*49
Part number: 708-23-04014 708-23-04013 708-23-04012
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC100-5 PC120-5 PC130-5 |
| Packing Size | 84*38*49 |
| Part number | 708-23-04014 708-23-04013 708-23-04012 |
| Pressure | Standard, High Pressure |

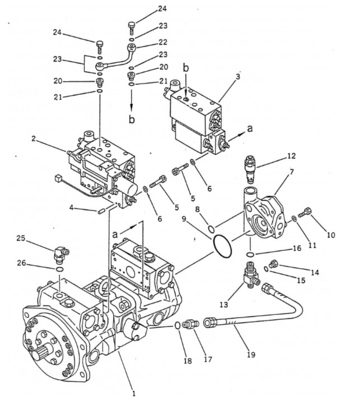

| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-23-04014 | PUMP ASS'Y,HYDRAULIC (HPV55+55) | 1 | |
| 1 | 708-23-04113 | PUMP SUB ASS'Y,HYDRAULIC | 1 | |
| 2 | (708-23-04512) | VALVE ASS'Y,SERVO? FRONT | 1 | |
| 3 | (708-23-04612) | VALVE ASS'Y,SERVO? REAR | 1 | |
| 4 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 5 | 708-25-19130 | Bolt | 8 | |
| 6 | 01643-50823 | WASHER,(FOR SHIPPING) | 8 | |
| 7 | (704-24-26401) | PUMP ASS'Y,(BAR20) | 1 | |
| 8 | 07000-02018 | O-RING,(SEE FIG.1601-29?1602-17) | 1 | |
| 9 | 07000-02075 | O-RING,STEERING OIL FILTER | 1 | |
| 10 | 01010-51085 | BOLT,(FOR 2ND TRAVEL SPEED) (OP) | 3 | |
| 11 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 3 | |
| 12 | (708-23-04311) | VALVE ASS'Y,RELIEF | 1 | |
| 13 | 708-23-19220 | TEE | 1 | |
| 14 | 07040-11007 | PLUG,HOUSING NO.2?3?4?5?6 | 1 | |
| 15 | 07002-01023 | O-RING,(F4320-61A0 -29 ) | 1 | |
| 16 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 17 | 07230-10315 | UNION,(FOR VARIABLE GIANT RIPPER) | 1 | |
| 18 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 | |
| 19 | 07102-20303 | HOSE ASSEMBLY | 1 | |
| 20 | 706-46-53260 | Plug | 2 | |
| 21 | 07002-01423 | O-RING,(CRUSHER?OTHER ATT.FOR PPC CON | 2 | |
| 22 | 708-23-19120 | Tube | 1 | |
| 23 | 07000-02012 | O-RING, BETWEEN VALVE AND PUMP | 4 | |
| 24 | 706-46-53180 | BOLT,JOINT | 2 | |
| 25 | 20S-62-21230 | Elbow | 1 | |
| 26 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 |
Model |
Nominal displacement(ml/r) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
L1 | L2 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
|||||||
| CBHY-G36/F3.5-ATφ* | 36/3.5 | 25/20 | 28/25 | 800 | 2500 | 3000 | 92/85 | 123 | 123 | 205 | 6.8 |
| CBHY-G36/F4.5-ATφ* | 36/4.5 | 92/90 | 208 | 7.0 | |||||||
| CBHY-G32/F3.5-ATφ* | 32/3.5 | 92/85 | 118 | 118 | 200 | 6.5 | |||||
| CBHY-G32/F4.5-ATφ* | 32/4.5 | 92/90 | 203 | 6.7 | |||||||
| CBHY-G30/F3.5-ATφ* | 30/3.5 | 92/85 | 116 | 116 | 198 | 6.1 | |||||
| CBHY-G30/F4.5-ATφ* | 30/4.5 | 92/90 | 201 | 6.4 | |||||||
| CBHY-G28/F3.5-ATφ* | 28/3.5 | 92/85 | 114 | 114 | 196 | 6.1 | |||||
| CBHY-G28/F4.5-ATφ* | 28/4.5 | 92/90 | 199 | 6.2 | |||||||
| CBHY-G25/F3.5-ATφ* | 25/3.5 | 92/85 | 110 | 110 | 192 | 5.8 | |||||
| CBHY-G25/F4.5-ATφ* | 25/4.5 | 92/90 | 195 | 5.9 | |||||||
