| MOQ: | 1 piece |
| Price: | Negotiable price |
| Standard Packaging: | Wooden packing |
| Delivery Period: | 1-5days |
| Payment Method: | T/T, Paypal and Trade Assurance |
| Supply Capacity: | 1000pieces |

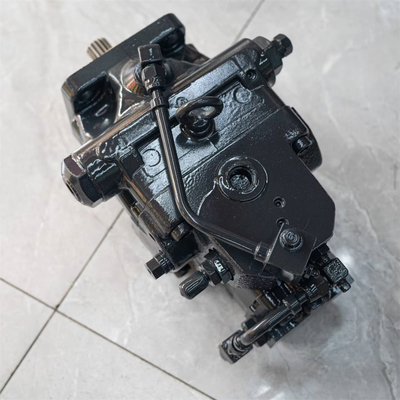

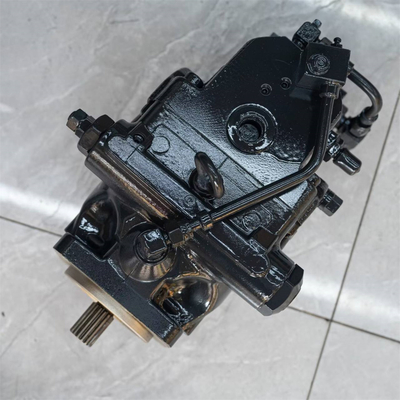

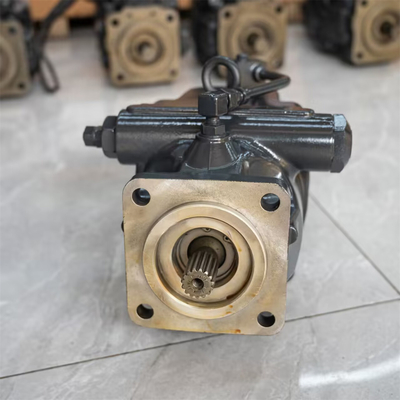

Belparts excavator main pump PC25-1 PC38UU-2 hydraulic pump for komatsu 705-41-08080
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC25-1 PC38UU-2
Packing Size:84*38*49
Part number: 705-41-08080
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC25-1 PC38UU-2 |
| Packing Size | 84*38*49 |
| Part number | 705-41-08080 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 705-41-08080 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A1 TO Y1610-03A1 | ||||
| 1 | 705-41-03060 | PUMP ASS'Y (SBR11) | 1 | |
| 1 | (*705-41-80210) | Bracket | 1 | |
| 1 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 1 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 2 | (*705-40-23011) | CASE,GEAR | 1 | |
| 3 | (*705-41-80310) | Carrier | 1 | |
| 3 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 4 | (*705-40-23342) | GEAR,DRIVE | 1 | |
| 5 | (*705-40-23511) | GEAR,DRIVEN | 1 | |
| 6 | 705-40-80720 | PLATE, SIDE | 2 | |
| 7 | 705-40-80760 | SEAL, RING | 2 | |
| 8 | 04020-00820 | PIN,DOWEL (WELDED) | 4 | |
| 9 | 705-67-01230 | PIN, DOWEL | 2 | |
| 10 | 705-17-02710 | Bolt | 4 | |
| 11 | 01643-51232 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 | |
| 12 | 705-40-80870 | Plate | 1 | |
| 13 | 705-40-80810 | Shaft seal | 1 | |
| 14 | 04065-03515 | RING, SNAP | 1 |
Model |
Nominal displacement(ml/) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
d | D | L1 | L2 | L3 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||||||||
| CBQLT-F532/F525/F410-AF** | 32/25/10 | 20 | 25 | 1500-2500 | 800-3000 | 92/92/93 | 20 | 25 | 67 | 204.5 | 331.2 | 392 | 17.6 |
| CBQLT-F532/F532/F410-AF** | 40/32/10 | 30 | 69.5 | 212 | 341.5 | 402 | 18.2 | ||||||
| CBQLT-F532/F525/F416-AF** | 40/32/16 | 345 | 409 | 18.5 | |||||||||
| CBQLT-F532/F532/F410-AF** | 50/32/10 | 25 | 73 | 219 | 348.5 | 409 | 18.9 | ||||||
| CBQLT-F532/F532/F416-AF** | 50/32/16 | 352 | 416 | 18.9 | |||||||||
| CBQLT-F532/F540/F410-AF** | 50/40/10 | 221.5 | 353.5 | 414 | 19.2 | ||||||||
| CBQLT-F532/F540/F416-AF** | 50/40/16 | 359 | 423 | 19.9 | |||||||||
