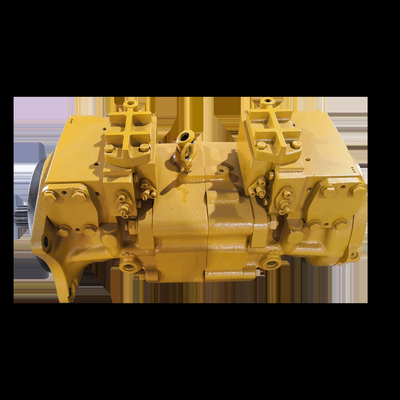

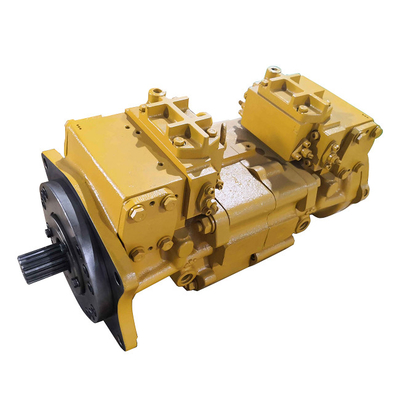

Belparts excavator main pump PC1250-7 hydraulic pump 708-2L-00610 708-2L-00522 708-2H-00322 for komatsu
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC1250-7
Packing Size:84*38*49
Part number: 708-2L-00610 708-2L-00522 708-2H-00322
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC1250-7 |
| Packing Size | 84*38*49 |
| Part number | 708-2L-00610 708-2L-00522 708-2H-00322 |
| Pressure | Standard, High Pressure |

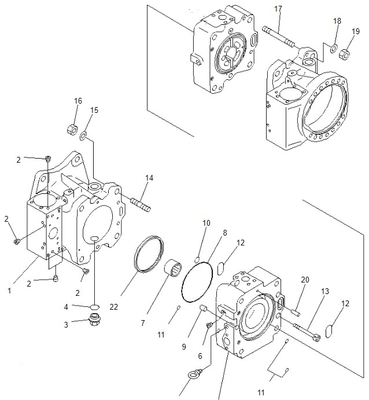

| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-2L-00610 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-14A0 | ||||
| 1 | 708-2L-01632 | PUMP SUB ASS'Y | 1 | |
| 1 | (*708-2L-04950) | CASE ASS'Y,FRONT | 1 | |
| 1 | CASE,FRONT | 1 | ||
| 2 | Plug | 11 | ||
| 3 | 07044-12412 | PLUG,MAGNETIC | 1 | |
| 4 | 07002-62434 | O-RING,(F2370-57A0 -42 ) | 1 | |
| 5 | (*708-2L-04970) | END CAP ASS'Y,FRONT | 1 | |
| 5 | CAP,END | 1 | ||
| 6 | Plug | 1 | ||
| 7 | (*708-2L-32260) | Bearing | 1 | |
| 8 | (*07000-B2135) | O-ring | 1 | |
| 9 | (*6130-21-1910) | PIN, DOWEL | 1 | |
| 10 | (*07000-B2015) | O-ring | 1 | |
| 11 | (*07000-B1009) | O-ring | 3 | |
| 12 | (*07000-B3032) | O-ring | 2 | |
| 13 | (*708-25-12530) | Bolt | 2 | |
| 14 | (*01141-81620) | Stud | 4 | |
| 15 | (*01643-31645) | Washer | 4 | |
| 16 | (*01582-01613) | Nut | 4 | |
| 17 | (*01140-81645) | Stud | 4 | |
| 18 | (*01643-31645) | Washer | 4 | |
| 19 | (*01582-01613) | Nut | 4 | |
| 20 | (*720-68-19610) | PIN,DOWEL | 1 | |
| 21 | 04530-11018 | BOLT,(WITH MAIN CLUTCH COOLER) (D60P) | 1 | |
| 22 | (*708-25-13630) | Ring | 1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
h | D | L1 | L | Weight (kg) |
||||
Rated |
Max |
Optimum speed |
Speed range |
Rectabgle |
Oval |
Inlet |
Outlet |
||||||
| CBQ-G520-*F** | 20 | 25 | 28 | 1500-2500 | 800-3000 | 92 | 23 | 15 | 25 | 20 | 62.5 | 129 | 5.7 |
| CBQ-G525-*F** | 25 | 64.5 | 133 | 6.0 | |||||||||
| CBQ-G532-*F** | 32 | 93 | 30 | 67 | 138 | 6.3 | |||||||
| CBQ-G540-*F** | 40 | 69.5 | 143 | 6.8 | |||||||||
| CBQ-G550-*F** | 50 | 00 20 |
25 | 25 | 73 | 150 | 7.3 | ||||||
| CBQ-G563-*F* | 63 | 77.5 | 159 | 8.0 | |||||||||
