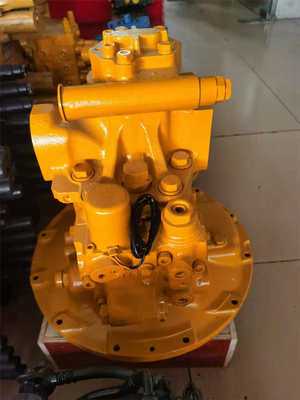

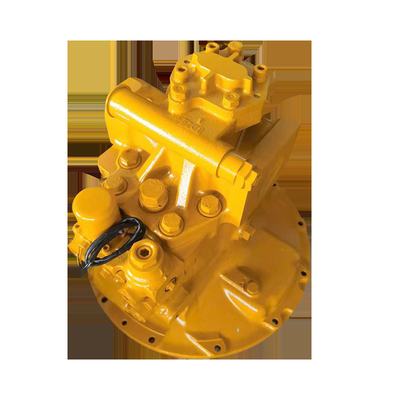

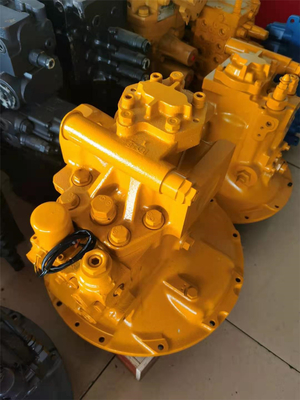

Belparts excavator PC150-3 PC150-5 PC160LC-7 hydraulic pump 708-25-20100 708-25-04032 708-3M-00020 for komatsu
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC150-3 PC150-5 PC160LC-7
Packing Size:84*38*49
Part number: 708-25-20100 708-25-04032 708-25-04031 708-3M-00020 708-3M-00011
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC150-3 PC150-5 PC160LC-7 |
| Packing Size | 84*38*49 |
| Part number | 708-25-20100 708-25-04032 708-25-04031 708-3M-00020 708-3M-00011 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-25-04032 | PUMP ASS'Y | 1 | |
| 1 | 708-25-04031 | PUMP ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-15A0 | ||||
| 1 | (708-25-04132) | PUMP SUB ASS'Y | 1 | |
| 1 | (708-25-04131) | PUMP SUB ASS'Y | 1 | |
| 2 | (708-25-06131) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 3 | (708-25-06231) | SERVO VALVE ASS'Y,REAR | 1 | |
| 4 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 5 | 708-25-19130 | Bolt | 8 | |
| 6 | 01643-50823 | WASHER,(FOR SHIPPING) | 8 | |
| 7 | (704-24-28240) | PUMP ASS'Y | 1 | |
| 8 | 708-25-32730 | Coupling | 1 | |
| 9 | 708-25-22961 | COLLAR | 1 | |
| 10 | 704-28-02710 | O-ring | 1 | |
| 11 | 01010-81260 | BOLT,FOR WEIGHT ADJUSTING BOLT | 2 | |
| 12 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 2 | |
| 13 | (708-25-04311) | RELIEF VALVE ASS'Y | 1 | |
| 14 | 708-25-29220 | TEE | 1 | |
| 15 | 07040-11007 | PLUG,HOUSING NO.2?3?4?5?6 | 1 | |
| 16 | 07002-01023 | O-RING,(F4320-61A0 -29 ) | 1 | |
| 17 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 18 | 708-25-29110 | Hose | 1 | |
| 19 | 07235-10422 | ELBOW,(NOT USED WHEN (B) SPEC.) | 2 | |
| 20 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 2 | |
| 21 | 708-25-19120 | Flange | 1 | |
| 22 | 720-68-15240 | Filter | 1 | |
| 23 | 07000-02021 | O-RING,WATER PIPING | 1 | |
| 24 | 01010-80820 | BOLT, WIRING HARNESS MOUNTING BRACKET | 2 | |
| 25 | 01643-50823 | WASHER,(FOR SHIPPING) | 2 | |
| 26 | 706-46-53260 | Plug | 2 | |
| 27 | 07002-01423 | O-RING,(CRUSHER?OTHER ATT.FOR PPC CON | 2 | |
| 28 | 708-25-29140 | Tube | 1 | |
| 29 | 706-46-53180 | BOLT,JOINT | 2 | |
| 30 | 07000-02012 | O-RING, BETWEEN VALVE AND PUMP | 4 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
A | Outlet | d | Weight (kg) |
|||
Rated |
Max |
0 ptimum speed |
Optimum speed |
||||||||
| d | D | ||||||||||
| CBNZQ-F520-BL** | 20 | 20 | 25 | 1500-2500 | 800-3000 | 92 | 48 | 35 | M22×1.5 | 134 | 5.1 |
| CBNZQ-F525-BL** | 25 | 139 | 5.3 | ||||||||
| CBNZQ-F532-BL** | 32 | 93 | 5.6 | ||||||||
| CBNZQ-F540-BL** | 40 | 51 | 44 | M27×2 | 144 | 5.9 | |||||
| CBNZQ-F550-BL** | 50 | 151 | 6.3 | ||||||||
| CBNZQ-F563-BL** | 63 | 160 | 6.8 | ||||||||
