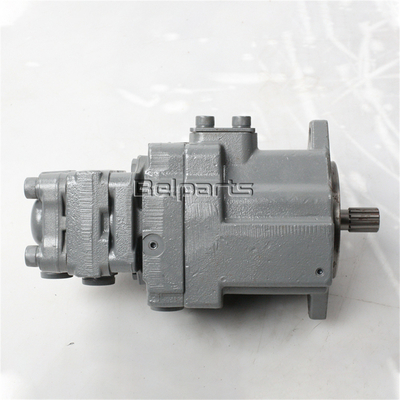

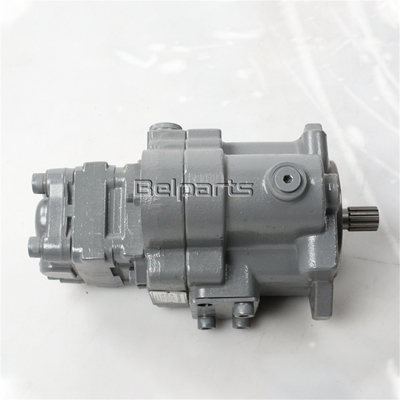

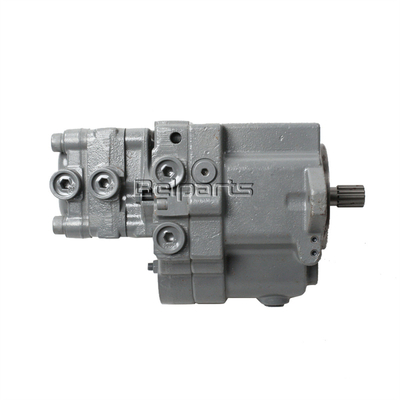

Belparts excavator main pump PC10-7 PC15-3 PC20-7 hydraulic pump 705-41-08070 705-41-03002 705-41-08160 for komatsu
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC10-7 PC15-3 PC20-7
Packing Size:84*38*49
Part number: 705-41-08070 705-41-03002 705-41-08160
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC10-7 PC15-3 PC20-7 |
| Packing Size | 84*38*49 |
| Part number | 705-41-08070 705-41-03002 705-41-08160 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 705-41-08170 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-55A1 TO H0210-58A1 | ||||
| 1 | 705-41-03140 | PUMP ASS'Y (SBR9A) | 1 | |
| 1 | (*705-41-80210) | Bracket | 1 | |
| 1 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 1 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 2 | (*705-41-21010) | CASE,GEAR | 1 | |
| 3 | (*705-41-80310) | Carrier | 1 | |
| 3 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 4 | (*705-41-21340) | GEAR,DRIVE | 1 | |
| 5 | (*705-41-21510) | GEAR,DRIVEN | 1 | |
| 6 | 705-40-83720 | PLATE, SIDE | 2 | |
| 7 | 705-40-80760 | SEAL, RING | 2 | |
| 8 | 04020-00820 | PIN,DOWEL (WELDED) | 4 | |
| 9 | 705-67-01230 | PIN, DOWEL | 2 | |
| 10 | 705-17-02690 | Bolt | 4 | |
| 11 | 01643-51232 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 | |
| 12 | 705-40-80870 | Plate | 1 | |
| 13 | 705-40-80810 | Shaft seal | 1 | |
| 14 | 04065-03515 | RING, SNAP | 1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Intet | Outlet | Weight (kg) |
|||||
Rated |
Max |
Min |
Rated |
Max |
a | b | a | b | ||||||
| CBF-F410-AL** | 10 | 20 | 25 | 800 | 2500 | 3000 | ) J2 |
55 | 114 | M22×1.5 | 50 | M18×1.5 | 45 | 3.2 |
| CBF-F412.5-AL** | 12.5 | 56.3 | 116.5 | 3.3 | ||||||||||
| CBF-F414-AL** | 14 | 57.3 | 118.5 | 3.4 | ||||||||||
| CBF-F416-AL** | 16 | 58.3 | 120 | M27×2 | M22×1.5 | 3.5 | ||||||||
| CBF-F418-AL** | 18 | 600 | 59.5 | 123 | 3.6 | |||||||||
| CBF-F420-AL** | 20 | 93 | 60.5 | 125 | 3.7 | |||||||||
| CBF-F425-AL** | 25 | 63.8 | 131.5 | M33×2 | M27×1.5 | 3.8 | ||||||||
| CBF-F432-AL** | 32 | 67.5 | 139 | 4.1 | ||||||||||
| CBF-E440-AL** | 40 | 72 | 148 | 4.4 | ||||||||||
| CBF-E450-AL** | 50 | 72 | 148 | 4.7 | ||||||||||
