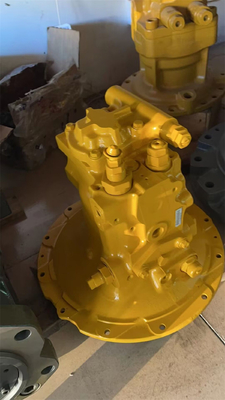

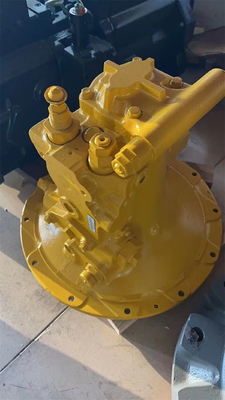

Belparts Excavator main pump PC60-5 PC60-7-B PC60-7 Hydraulic Pump 708-21-01011 708-21-01010 708-21-10601 708-1W-00042
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC60-5 PC60-7-B PC60-7
Packing Size:84*38*49
Part number: 708-21-01011 708-21-01010 708-21-10601 708-1W-00042
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC60-5 PC60-7-B PC60-7 |
| Packing Size | 84*38*49 |
| Part number | 708-21-01011 708-21-01010 708-21-10601 708-1W-00042 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-21-01011 | PUMP ASS'Y,(HPV 35+35) | 1 | |
| 1 | 708-21-01010 | PUMP ASS'Y,(HPV 35+35) | 1 | |
| 1 | (708-21-10601) | PUMP ASS'Y,(HPV 35+35) | 1 | |
| 1 | (708-21-01110) | PUMP SUB ASS'Y,(BAR 16) | 1 | |
| 1 | (708-21-01210) | PUMP SUB ASS'Y | 1 | |
| 1 | (708-21-11100) | PUMP SUB ASS'Y | 1 | |
| 2 | (704-24-24401) | GEAR PUMP ASS'Y | 1 | |
| 2 | (704-24-24400) | GEAR PUMP ASS'Y,(BAR 16) | 1 | |
| 3 | 07000-02085 | O-RING,(WITHOUT FUEL LEVEL GAUGE) | 1 | |
| 4 | 07000-02018 | O-RING,(SEE FIG.1601-29?1602-17) | 1 | |
| 5 | 01010-31080 | BOLT, MOUNT STRAINER FLANGE | 3 | |
| 6 | 01602-01030 | WASHER,SPRING(SANDY?DUSTY TERRAIN S.) | 3 | |
| 7 | (708-23-14801) | VALVE ASS'Y,RELIEF | 1 | |
| 7 | (708-23-14800) | VALVE ASS'Y,RELIEF | 1 | |
| 8 | 708-23-19110 | Elbow | 1 | |
| 9 | 07042-30108 | PLUG,SEE FIG. K4010-63A0 | 1 | |
| 10 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 11 | 07239-12410 | NUT (ITL) | 1 | |
| 12 | 07230-10315 | UNION,(FOR VARIABLE GIANT RIPPER) | 1 | |
| 13 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 | |
| 14 | 07102-20303 | HOSE ASSEMBLY | 1 | |
| 15 | (708-21-07820) | SERVO VALVE ASS'Y | 1 | |
| 15 | 708-21-15901 | SERVO VALVE ASS'Y,FRONT | 1 | |
| 16 | (708-21-07920) | SERVO VALVE ASS'Y | 1 | |
| 16 | 708-21-16901 | SERVO VALVE ASS'Y,REAR | 1 | |
| 17 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 18 | 708-25-19130 | Bolt | 8 | |
| 19 | 01602-20825 | WASHER,SPRING?FOR ADDITIONAL REAR LAM | 8 |
Model | Rotation | Nominal displacement (ml/r) | Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) | Weight (kg) | ||
Rated | Max | Optimum speed | Speed range | |||||
| CBXWJA-F16.2 C4.5-2D28 | clockwise | 16.2/4.5 | 23/5 | 26/8 | 1500～2500 | 600～3000 | 92/92 | 4.5 |
Model | Nominal displacement (ml/r) | Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) | Weight (kg) | ||
Rated | Max | Optimum speed | Speed range | ||||
| 2P2D36-C6.5 | 6.5 | 5 | 6.3 | 1500～2500 | 600～3000 | 90 | 3.2 |
