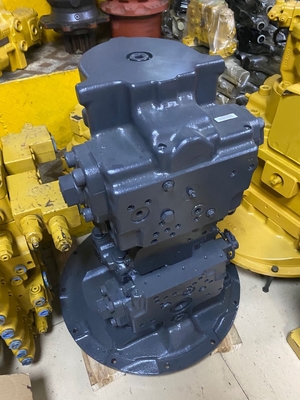

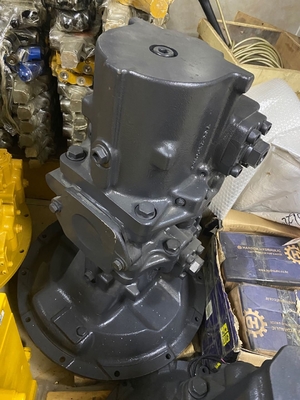

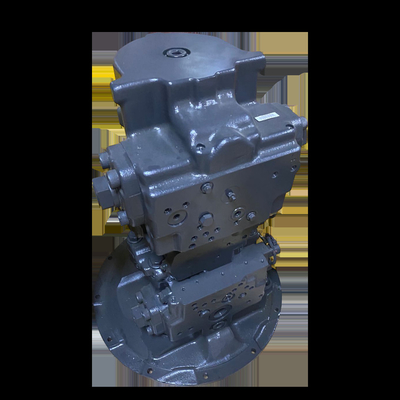

PC450-7 PC450LC-7 Hydraulic Pump Belparts Excavator main pump for komatsu 708-2H-00022
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC450-7 PC450LC-7
Packing Size:84*38*49
Part number: 708-2H-00022
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC450-7 PC450LC-7 |
| Packing Size | 84*38*49 |
| Part number | 708-2H-00022 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-2H-00022 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-11A0 | ||||
| 1 | 708-2H-01022 | PUMP SUB ASS'Y | 1 | |
| 1 | (*708-2H-04610) | CASE ASS'Y,FRONT | 1 | |
| 1 | CASE,FRONT | 1 | ||
| 2 | Plug | 29 | ||
| 3 | 708-8E-16150 | Plug | 3 | |
| 4 | 07002-61023 | O-RING,(F3320-66A2 -26 ) | 3 | |
| 5 | 07000-B2012 | O-ring | 6 | |
| 6 | 04530-11222 | BOLT, EYE - LIFTING | 1 | |
| 7 | 07044-12412 | PLUG,MAGNETIC | 1 | |
| 8 | 07002-62434 | O-RING,(F2370-57A0 -42 ) | 1 | |
| 9 | 07040-12414 | PLUG, (FOR SHIPPING) | 1 | |
| 10 | 07002-62434 | O-RING,(F2370-57A0 -42 ) | 1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| CBXTC-C10-K7V125 | 10 | 3.6 | 6.3 | 1500～2500 | 800～2800 | 90 | 1.5 |
Model |
Rotation |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
|||||
| CBXWJA-F16.2 C4.5-2D28 |
clockwise | 16.2/4.5 | 23/5 | 26/8 | 1500～2500 | 600～3000 | 92/92 | 4.5 |
