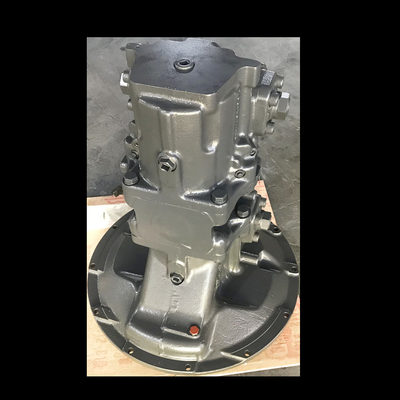

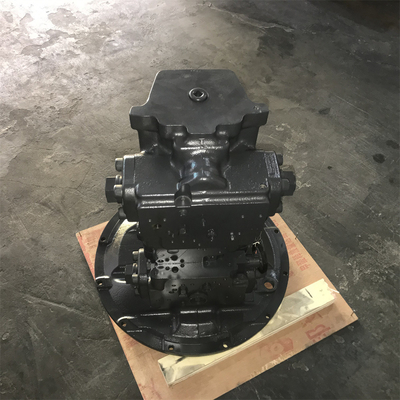

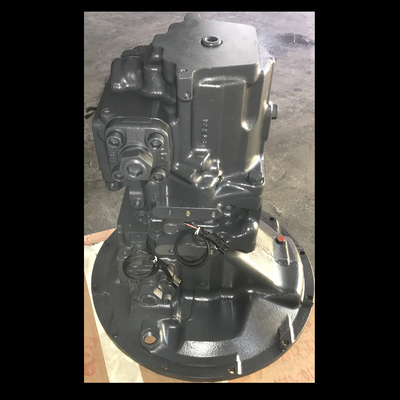

Excavator Hydraulic Pump PC300-6 PC350-6 PC300-8 PC350-8 main pump 708-2H-00110 708-2H-00181 708-2G-00700
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:PC300-6 PC350-6 PC300-8 PC350-8
Packing Size:84*38*49
Part number: 708-2H-00110 708-2H-00181 708-2G-00700
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | PC300-6 PC350-6 PC300-8 PC350-8 |
| Packing Size | 84*38*49 |
| Part number | 708-2H-00110 708-2H-00181 708-2G-00700 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-2H-00110 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-09A0 | ||||
| 1 | (708-2H-01110) | PUMP SUB ASS'Y | 1 | |
| 2 | (704-24-26430) | GEAR PUMP ASS'Y | 1 | |
| 3 | (708-1L-04310) | VALVE ASS'Y,RELIEF | 1 | |
| 4 | 07000-02018 | O-RING,(SEE FIG.1601-29?1602-17) | 1 | |
| 5 | 07000-02070 | O-RING,(FOR INTAKE AIR COVER) | 1 | |
| 6 | 01010-81085 | BOLT, DIVIDER VALVE MOUNTING | 3 | |
| 7 | 01643-51032 | WASHER, (WITHOUT EMERGENCY STEERING) | 3 | |
| 8 | 708-2L-29140 | Coupling | 1 | |
| 9 | 708-2L-29211 | COLLAR | 1 | |
| 10 | 01252-61025 | Screw | 4 | |
| 11 | 01252-61065 | Screw | 8 | |
| 12 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 13 | 07102-20304 | HOSE,SEE FIG. K4010-05A0 | 1 | |
| 14 | 21T-62-29960 | Nipple | 1 | |
| 15 | 207-62-33920 | ELBOW NIPPLE | 1 | |
| 16 | 708-2L-23950 | O-ring | 2 | |
| 17 | (708-2H-03211) | VALVE ASS'Y | 2 |
| Model | Nominal displacement (ml/r) | Pressure(MPa) | Speed(r/min) | Volumetric efficiencf (≥%) | L1 | L2 | L | Weight (kg) | |||
| Rated | Max | Min | Rated | Max. | |||||||
| CBXZ-C20-K3V112* | 20 | 6.3 | 800 | 2200 | 3000 | 90 | 73 | 86 | 110 | 2 | |
| CBXZ-C15-K3V112* | 15 | 65 | 78 | 102 | 1.8 | ||||||
| CBXZ-C10-K3V112* | 10 | 57 | 70 | 91 | 1.6 | ||||||
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
