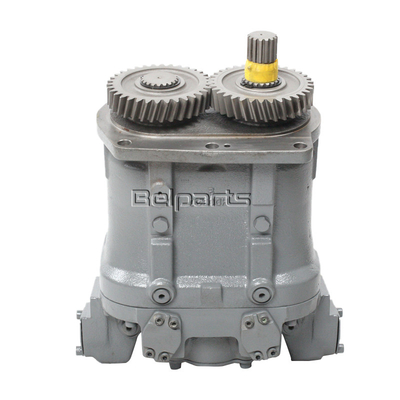

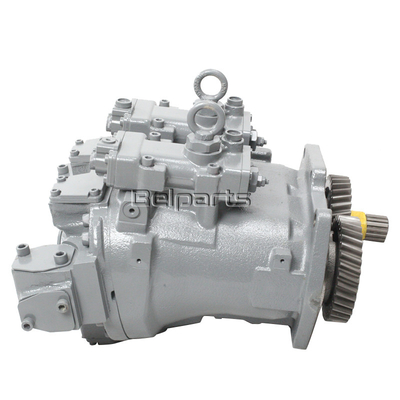

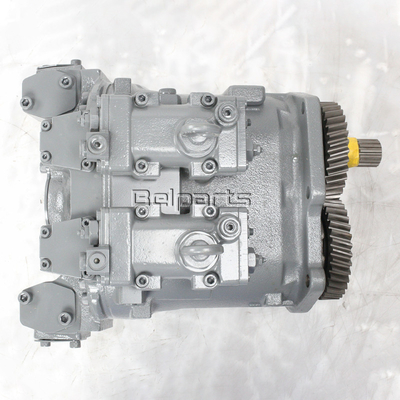

Belparts excavator main pump for hitachi EX200LC-5 EX200-5 EX210H-5 EX210LCH-5 hydraulic pump 9150726 9152668 9065880
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EX200LC-5 EX200-5 EX210H-5 EX210LCH-5
Packing Size:84*38*49
Part number:9150726 9152668 9065880
Pressure:Standard, High Pressure
Product Name | Excavator Hydraulic Pump |
Brand | Belparts |
Machine model | EX200LC-5 EX200-5 EX210H-5 EX210LCH-5 |
Packing Size | 84*38*49 |
Part number | 9150726 9152668 9065880 |
Pressure | Standard, High Pressure |
# | Part No | Part Name | Qty. | Price request |
9150726 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
9152668 | PUMP DEVICE (FOR TRANSPORTATION) | 1 | ||
01 | 1020336 | . CASING; GEAR | 1 | |
03 | 3063840 | . GEAR; PILOT | 1 | |
04 | 3055594 | . SHAFT; GEAR | 1 | |
05 | 958740 | . BRG.; BALL | 2 | |
06 | 962002 | . RING; RETAINING | 1 | |
07 | 991725 | . RING; RETAINING | 1 | |
10 | . PUMP; UNIT | 1 | ||
12 | M492564 | . SCREW; DRIVE | 2 | |
13 | 3075798 | . NAME-PLATE | 1 | |
14 | 3063842 | . GEAR | 1 | |
15 | 3063843 | . GEAR | 1 | |
16 | 4274552 | . RING; RETAINING | 2 | |
18 | 4099290 | . PIN; SPRING | 2 | |
21 | J901645 | . BOLT | 6 | |
22 | A590916 | . WASHER; SPRING | 6 | |
23 | 8058352 | . PACKING | 1 | |
25 | 4310055 | . SEAL; OIL | 1 | |
26 | 991725 | . RING; RETAINING | 1 | |
28 | 4276918 | . PUMP; GEAR | 1 | |
30 | M341028 | . BOLT; SOCKET | 2 | |
31 | 984054 | . WASHER; SPRING | 2 | |
32 | 4114402 | . WASHER | 2 | |
33 | 4277223 | . CAP | 1 | |
34 | 4317633 | . ADAPTER | 2 | |
34 | 4379209 | . ADAPTER | 1 | |
35 | 4055312 | . CLIP; BAND | 1 | |
36 | 4234782 | . PLUG | 1 | |
36 | 4379582 | . CAP | 1 | |
37 | 4340855 | . GAUGE; LEVEL | 1 | |
39 | 9743977 | . PIPE | 1 | |
40 | 9742779 | . PACKING | 1 | |
41 | M340816 | . BOLT; SOCKET | 2 | |
43 | 9134111 | . PLUG | 1 | |
43A | 4509180 | .. O-RING | 1 | |
45 | 4265372 | . SENSOR; REVOL. | 1 | |
46 | 4306888 | . O-RING | 1 | |
47 | A590106 | . WASHER; PLANE | 1 | |
48 | M340616 | . BOLT; SOCKET | 1 | |
50 | 4369148 | . PIPE; E | 1 | |
51 | 4179837 | . FITTING; PIPE | 2 | |
51 | 4293950 | . ELBOW; S | 2 | |
51A | 957366 | .. O-RING | 1 | |
53 | 4278547 | . ADAPTER | 1 | |
53A | 4506418 | .. O-RING | 1 | |
54 | 9134110 | . PLUG | 2 | |
54A | 957366 | .. O-RING | 1 | |
55 | 4179837 | . FITTING; PIPE | 2 | |
55 | 4293950 | . ELBOW; S | 2 | |
55A | 957366 | .. O-RING | 1 | |
56 | 3071564 | . PIPE | 1 | |
57 | 9736515 | . CLAMP | 2 | |
58 | J900830 | . BOLT | 1 | |
59 | A590908 | . WASHER; SPRING | 1 | |
63 | 4310056 | . COUPLING | 1 | |
63A | 4340960 | .. HUB | 1 | |
63B | 4334899 | .. SCREW; SET | 2 | |
63C | 4101345 | .. PIN; SPRING | 4 | |
63D | 4334892 | .. INSERT | 4 | |
63E | 4334894 | .. BOLT; SOCKET | 4 | |
63F | 4334891 | .. ELEMENT | 1 |
