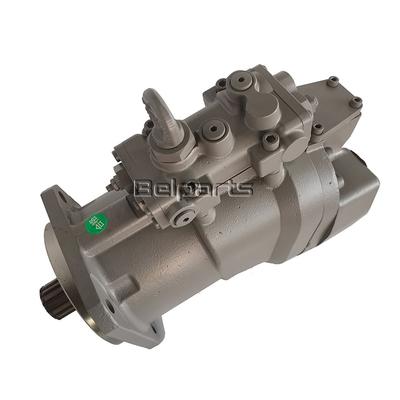

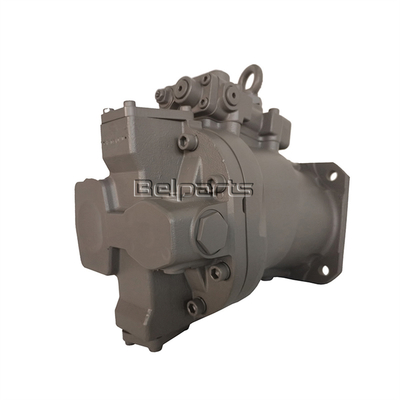

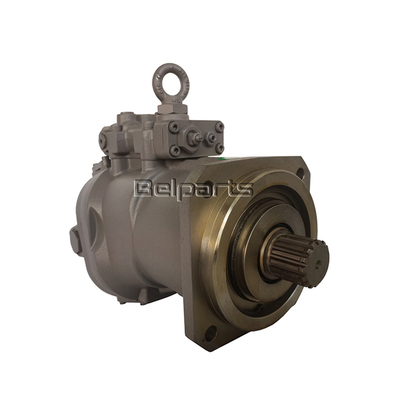

Belparts excavator main pump for hitachi ZAXIS330 ZAXIS330LC ZAXIS370 ZAXIS350LC hydraulic pump 9195241 9195238 9195242
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:ZAXIS330 ZAXIS330LC ZAXIS370 ZAXIS350LC
Packing Size:84*38*49
Part number:9195241 9195238 9195242 9207291
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | ZAXIS330 ZAXIS330LC ZAXIS370 ZAXIS350LC |
| Packing Size | 84*38*49 |
| Part number | 9195241 9195238 9195242 9207291 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 9195241 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9195238) | PUMP DEVICE (FOR TRANSPORTATION) | 1 | ||
| 02 | 1028405 | . CASING; GEAR | 1 | |
| 04 | 3089266 | . GEAR; CENTER | 1 | |
| 05 | 3081085 | . SHAFT; CENTER | 1 | |
| 08 | 4395453 | . BRG.; BALL | 1 | |
| 09 | 4395457 | . BRG.; BALL | 1 | |
| 10 | 4191219 | . RING; RETAINING | 1 | |
| 11 | 4179833 | . SEAL; OIL | 1 | |
| 12 | 3033593 | . COVER; T. MISSION | 1 | |
| 13 | 4179834 | . O-RING | 1 | |
| 14 | 991733 | . RING; RETAINING | 1 | |
| 17 | 4181700 | . PUMP; GEAR | 1 | |
| 18 | M341030 | . BOLT; SOCKET | 2 | |
| 20 | 984054 | . WASHER; SPRING | 2 | |
| 22 | 4114402 | . WASHER | 2 | |
| 23 | 4191974 | . ADAPTER | 1 | |
| 23A | 4506418 | .. O-RING | 1 | |
| 28 | 3035853 | . GEAR; DRIVE | 2 | |
| 29 | 991345 | . RING; RETAINING | 2 | |
| 32 | 9195242 | . PUMP; UNIT (FOR ASSEMBLY OF MACHINE) | 2 | |
| 32 | (9207291) | . PUMP; UNIT (FOR TRANSPORTATION) | 2 | |
| 35 | J901645 | . BOLT | 8 | |
| 36 | 4126090 | . WASHER; SEAL | 4 | |
| 37 | A590916 | . WASHER; SPRING | 4 | |
| 40 | 4234782 | . PLUG | 1 | |
| 50 | 4438889 | . PIPE | 2 | |
| 52 | 4438888 | . PIPE | 1 | |
| 54 | 4203485 | . FITTING; PIPE | 1 | |
| 54A | 957366 | .. O-RING | 1 | |
| 55 | 3089617 | . PIPE | 1 | |
| 56 | 3089618 | . PIPE | 1 | |
| 57 | 4118499 | . FITTING; PIPE | 4 | |
| 57A | 957366 | .. O-RING | 1 | |
| 58 | 4293950 | . ELBOW; S | 5 | |
| 58A | 957366 | .. O-RING | 1 | |
| 59 | 4179843 | . CLAMP | 2 | |
| 60 | J900828 | . BOLT | 1 | |
| 60 | J900830 | . BOLT | 1 | |
| 61 | M500807 | . NUT | 1 | |
| 62 | A590908 | . WASHER; SPRING | 1 | |
| 63 | 4242263 | . GAUGE; LEVEL | 1 | |
| 64 | 4242262 | . PIPE | 1 | |
| 65 | M340816 | . BOLT; SOCKET | 2 | |
| 66 | 9742779 | . PACKING | 1 | |
| 67 | . NAME-PLATE | 1 | ||
| 68 | M492564 | . SCREW; DRIVE | 2 | |
| 69 | 4265372 | . SENSOR; REVOL. | 1 | |
| 70 | 4306888 | . O-RING | 1 | |
| 71 | A590106 | . WASHER; PLANE | 1 | |
| 72 | M340616 | . BOLT; SOCKET | 1 | |
| 73 | 4191663 | . COUPLING | 1 | |
| 73 | 4479978 | . COUPLING | 1 | |
| 73A | 4216945 | .. HUB | 1 | |
| 73A | 4613100 | .. HUB | 1 | |
| 73B | 4183170 | .. SCREW; SET | 2 | |
| 73C | 4101345 | .. PIN; SPRING | 12 | |
| 73D | 4216947 | .. INSERT | 4 | |
| 73E | 4216949 | .. BOLT; SOCKET | 4 | |
| 73F | 4216946 | .. INSERT | 4 | |
| 73G | 4216948 | .. BOLT; SOCKET | 4 | |
| 73H | 4216944 | .. COUPLING | 1 | |
| 76 | 4252767 | . BRACKET | 1 | |
| 77 | M340613 | . BOLT; SOCKET | 1 | |
| 78 | 4169516 | . WASHER; SPRING | 1 | |
| 81 | 4092534 | . PLUG | 1 | |
| 81A | 4509180 | .. O-RING | 1 | |
| 100 | 4471487 | KIT; SEAL | 1 |
