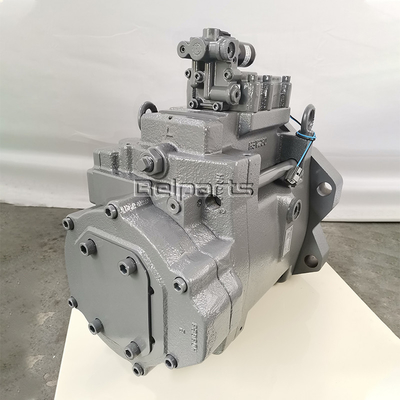

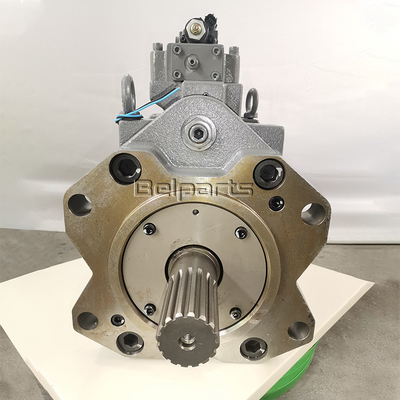

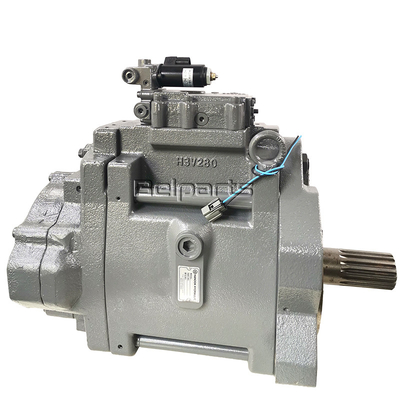

Belparts excavator main pump for hitachi ZAXIS600 ZAXIS600LC ZAXIS650 ZAXIS800 ZAXIS850H hydraulic pump 9197075
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:ZAXIS600 ZAXIS600LC ZAXIS650 ZAXIS800 ZAXIS850H
Packing Size:84*38*49
Part number:9197075
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | ZAXIS600 ZAXIS600LC ZAXIS650 ZAXIS800 ZAXIS850H |
| Packing Size | 84*38*49 |
| Part number | 9197075 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 9197075 | PUMP; PISTON | 1 | ||
| 001 | 4473273 | . REGULATOR | 1 | |
| 011 | 0718001 | . PISTON ASS'Y | 1 | |
| 011A | .. PISTON | 9 | ||
| 011B | .. SHOE | 9 | ||
| 014 | 0703002 | . CYL. ASS'Y | 1 | |
| 014A | .. BLOCK; CYL. | 1 | ||
| 014B | .. PLATE; VALVE | 1 | ||
| 030 | 0719701 | . PLATE | 1 | |
| 030A | .. PLATE | 1 | ||
| 030B | .. BUSHING | 1 | ||
| 030C | .. LEVER | 1 | ||
| 030D | 0703004 | .. BOLT | 1 | |
| 030E | 0218839 | .. PIN | 1 | |
| 030F | 0703005 | .. PIN | 1 | |
| 111 | 0682301 | . SHAFT; DRIVE | 1 | |
| 123 | 0682302 | . BRG.; ROL. | 1 | |
| 124 | 0682303 | . BRG.; NEEDLE | 1 | |
| 127 | 0339809 | . SPACER | 1 | |
| 130 | 0682304 | . BOOSTER | 1 | |
| 153 | 0718002 | . RETAINER | 1 | |
| 156 | 0828401 | . BUSHING | 1 | |
| 157 | 0682307 | . SPRING | 9 | |
| 211 | 0682309 | . PLATE | 1 | |
| 251 | 0815301 | . SUPPORT | 1 | |
| 253 | 0737002 | . WASHER | 4 | |
| 261 | 0682311 | . COVER | 1 | |
| 263 | 0682312 | . COVER | 1 | |
| 271 | 0828402 | . CASING; PUMP | 1 | |
| 312 | 0682314 | . COVER | 1 | |
| 325 | 0682315 | . COVER | 1 | |
| 401 | 0682316 | . BOLT; SOCKET | 4 | |
| 402 | 0237902 | . BOLT; SOCKET | 2 | |
| 403 | 0111530 | . BOLT; SOCKET | 6 | |
| 406 | M340820 | . BOLT; SOCKET | 4 | |
| 408 | 0102411 | . BOLT; SOCKET | 3 | |
| 414 | 0134701 | . BOLT; SOCKET | 2 | |
| 466 | 0236014 | . PLUG | 2 | |
| 468 | 0175233 | . PLUG | 2 | |
| 490 | 0263019 | . PLUG | 27 | |
| 491 | 0451027 | . SCREW | 2 | |
| 492 | 0451028 | . PLUG | 2 | |
| 530 | 0800706 | . PIN ASS'Y | 1 | |
| 530A | .. PIN | 1 | ||
| 530B | .. PIN | 1 | ||
| 532 | 0800707 | . PISTON; SERVO | 1 | |
| 534 | 0682319 | . STOPPER | 1 | |
| 535 | 0682320 | . STOPPER | 1 | |
| 702 | 4292386 | . O-RING | 1 | |
| 706 | 0443413 | . O-RING | 1 | |
| 710 | 0682321 | . O-RING | 1 | |
| 717 | 0682322 | . O-RING | 2 | |
| 719 | 0682323 | . O-RING | 1 | |
| 724 | 0443801 | . O-RING | 10 | |
| 725 | 4297379 | . O-RING | 4 | |
| 728 | 0443408 | . O-RING | 2 | |
| 732 | 0682324 | . O-RING | 1 | |
| 774 | 0682325 | . SEAL; OIL | 1 | |
| 789 | 0682326 | . RING; BACK-UP | 1 | |
| 792 | 0682327 | . RING; BACK-UP | 1 | |
| 803 | 4366339 | . UNIT (TILTING-PROBING) | 1 | |
| 808 | 0451038 | . NUT | 2 | |
| 824 | 960323 | . RING; RETAINING | 1 | |
| 885 | 0313404 | . PIN | 1 | |
| 887 | 4144353 | . PIN; SPRING | 2 | |
| 901 | 0134458 | . BOLT; EYE | 2 | |
| 953 | 0339847 | . SCREW | 1 | |
| 954 | 0682328 | . SCREW; SET | 1 | |
| 974 | 0451204 | . WASHER | 2 | |
| 981 | . NAME-PLATE | 1 | ||
| 983 | . PIN | 2 | ||
| 995 | 9102385 | . SENSOR; ANGLE | 1 | |
| 995 | 4444902 | . SENSOR; ANGLE | 1 | |
| 996 | 4255077 | . SPRING; PLATE | 1 | |
| 997 | 4274371 | . O-RING | 1 |
