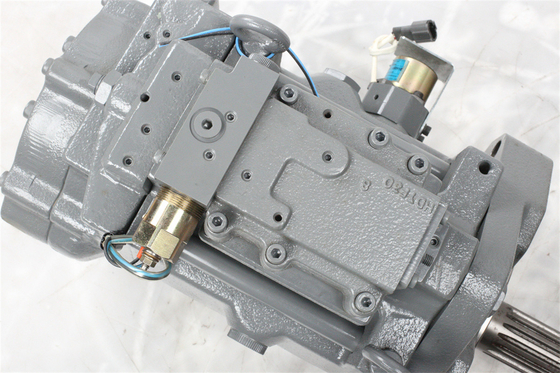

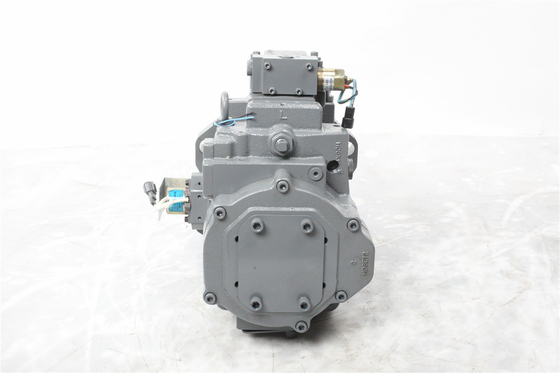

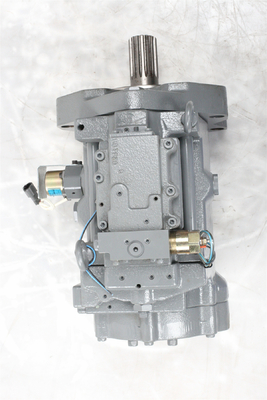

EX750-5 EX800H-5 hydraulic pump Belparts excavator main pump for hitachi 9139426 9168965 9169241 9184005
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:EX750-5 EX800H-5
Packing Size:84*38*49
Part number:9139426 9168965 9169241 9184005
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | EX750-5 EX800H-5 |
| Packing Size | 84*38*49 |
| Part number | 9139426 9168965 9169241 9184005 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 9139426 | PUMP; PISTON | 1 | ||
| 001 | 4391503 | . REGULATOR | 2 | |
| 011 | 4312157 | . PISTON ASS'Y | 2 | |
| 011 | 0718001 | . PISTON ASS'Y | 2 | |
| 011A | .. PISTON | 9 | ||
| 011B | .. SHOE | 9 | ||
| 013 | 0703001 | . CYL. ASS'Y | 1 | |
| 013A | .. BLOCK; CYL. | 1 | ||
| 013B | .. PLATE; VALVE | 1 | ||
| 014 | 0703002 | . CYL. ASS'Y | 1 | |
| 014A | .. BLOCK; CYL. | 1 | ||
| 014B | .. PLATE; VALVE | 1 | ||
| 030 | 0703003 | . PLATE ASS'Y | 2 | |
| 030 | 0719701 | . PLATE ASS'Y | 2 | |
| 030A | .. PLATE | 1 | ||
| 030B | .. BUSHING | 1 | ||
| 030C | .. LEVER | 1 | ||
| 030D | 0703004 | .. BOLT | 1 | |
| 030E | 0218839 | .. PIN | 1 | |
| 030F | 0703005 | .. PIN | 1 | |
| 111 | 0703006 | . SHAFT | 1 | |
| 113 | 0703007 | . SHAFT | 1 | |
| 114 | 0703008 | . COUPLING | 1 | |
| 123 | 0703009 | . BRG. | 2 | |
| 124 | 0682303 | . BRG.; NEEDLE | 2 | |
| 127 | 0339809 | . SPACER | 4 | |
| 130 | 0703010 | . BOOSTER | 1 | |
| 153 | 0682305 | . RETAINER | 2 | |
| 153 | 0718002 | . RETAINER | 2 | |
| 156 | 0682306 | . BUSHING | 2 | |
| 157 | 0682307 | . SPRING | 18 | |
| 158 | 0682308 | . SPACER | 2 | |
| 211 | 0682309 | . PLATE | 2 | |
| 251 | 0703011 | . SUPPORT | 2 | |
| 251 | 0703011 | . SUPPORT | ||
| 261 | 0682311 | . COVER | 1 | |
| 263 | 0703012 | . COVER | 1 | |
| 271 | 0703013 | . CASING; PUMP | 2 | |
| 311 | 0703014 | . COVER; VALVE | 1 | |
| 312 | 0703015 | . COVER; VALVE | 1 | |
| 401 | 0682316 | . BOLT; SOCKET | 4 | |
| 402 | 0703016 | . BOLT; SOCKET | 4 | |
| 403 | 0237902 | . BOLT; SOCKET | 2 | |
| 406 | M340820 | . BOLT; SOCKET | 8 | |
| 414 | 0150809 | . BOLT; SOCKET | 2 | |
| 466 | 0236014 | . PLUG | 3 | |
| 468 | 0175233 | . PLUG | 4 | |
| 490 | 0263019 | . PLUG | 31 | |
| 491 | 0451027 | . SCREW | 4 | |
| 492 | 0451028 | . PLUG | 5 | |
| 493 | 0682317 | . RESTORICTOR | 2 | |
| 530 | 0703017 | . PIN | 2 | |
| 532 | 0682318 | . PISTON; SERVO | 2 | |
| 534 | 0682319 | . STOPPER | 2 | |
| 535 | 0682320 | . STOPPER | 2 | |
| 702 | 4292386 | . O-RING | 2 | |
| 706 | 0703018 | . O-RING | 1 | |
| 710 | 0682321 | . O-RING | 2 | |
| 717 | 0682322 | . O-RING | 4 | |
| 718 | 0703019 | . O-RING | 1 | |
| 724 | 0443801 | . O-RING | 19 | |
| 725 | 4297379 | . O-RING | 3 | |
| 728 | 0443408 | . O-RING | 4 | |
| 732 | 0682324 | . O-RING | 2 | |
| 774 | 0682325 | . SEAL; OIL | 1 | |
| 789 | 0682326 | . RING; BACK-UP | 2 | |
| 792 | 0682327 | . RING; BACK-UP | 2 | |
| 803 | 4366339 | . UNIT (TILTING-PROBING) | 2 | |
| 808 | 0451038 | . NUT | 4 | |
| 824 | 960323 | . RING; RETAINING | 2 | |
| 885 | 0313404 | . PIN | 2 | |
| 886 | 4144353 | . PIN; SPRING | 5 | |
| 901 | 0177612 | . BOLT; EYE | 2 | |
| 953 | 0339847 | . SCREW | 2 | |
| 954 | 0682328 | . SCREW; SET | 2 | |
| 974 | 0451203 | . WASHER | 2 | |
| 974 | 0451204 | . WASHER | 2 | |
| 981 | . NAME-PLATE | 1 | ||
| 983 | . PIN | 2 | ||
| 995 | 9102385 | . SENSOR; ANGLE | 1 | |
| 996 | 4255077 | . SPRING; PLATE | 1 | |
| 997 | 4274371 | . O-RING | 1 |
FAQ
Q1: How does your factory do refarding quality control? And how long is the quality guarantee?
A1: 12 month warranty. And all our products are 100% inspected and tested before selling.
Q2: When can I get the price?
A2:Usually we quote within 24 hours after your inquiry.
Q3: How long is the deliver time?
A3. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.
Q4:What is the price of shipping?
A4: Depending upon the port of delivery, prices varies.
Q5. Could you accept OEM?
A5. Yes, Our company are available for Retail & Wholesale & OEM & ODM.
