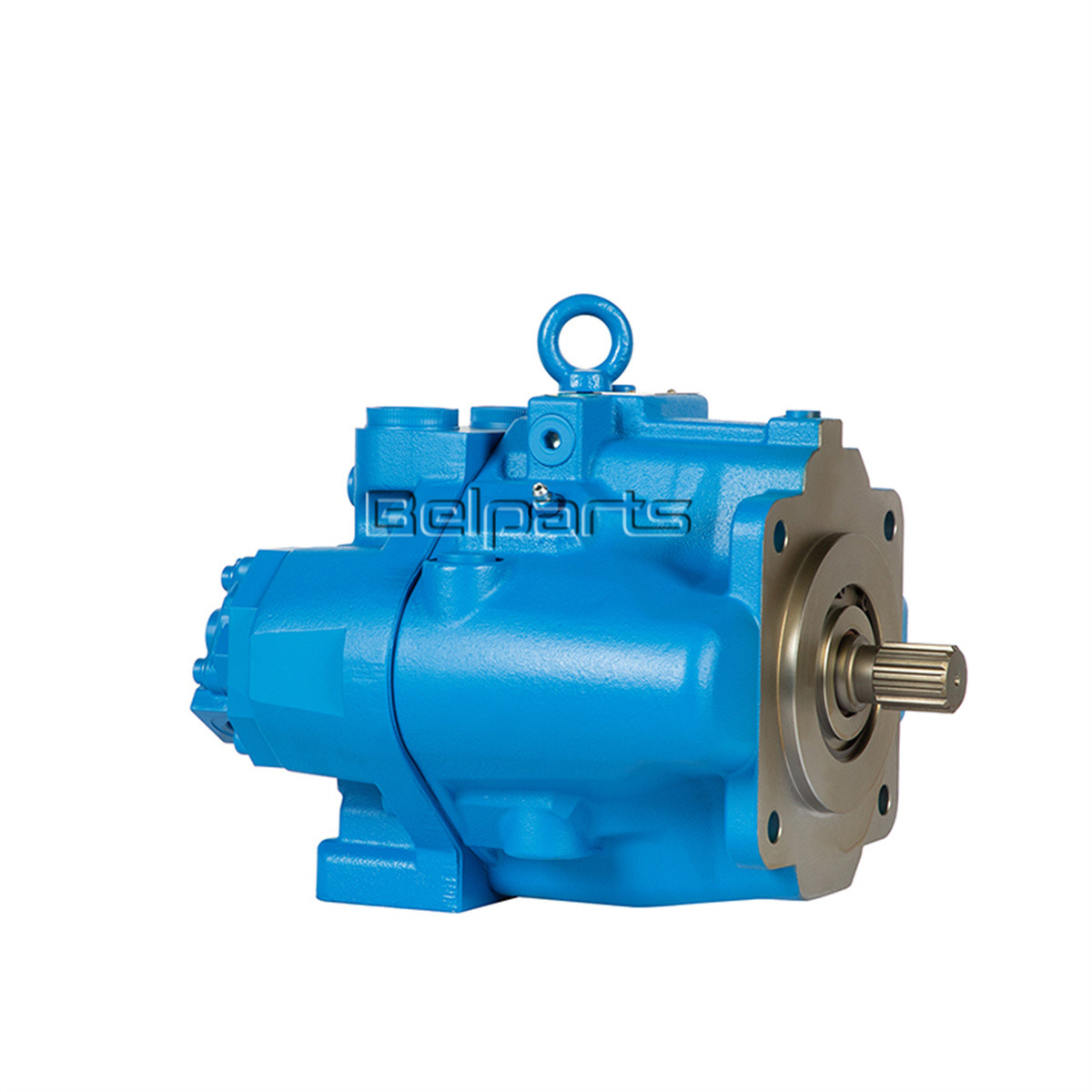

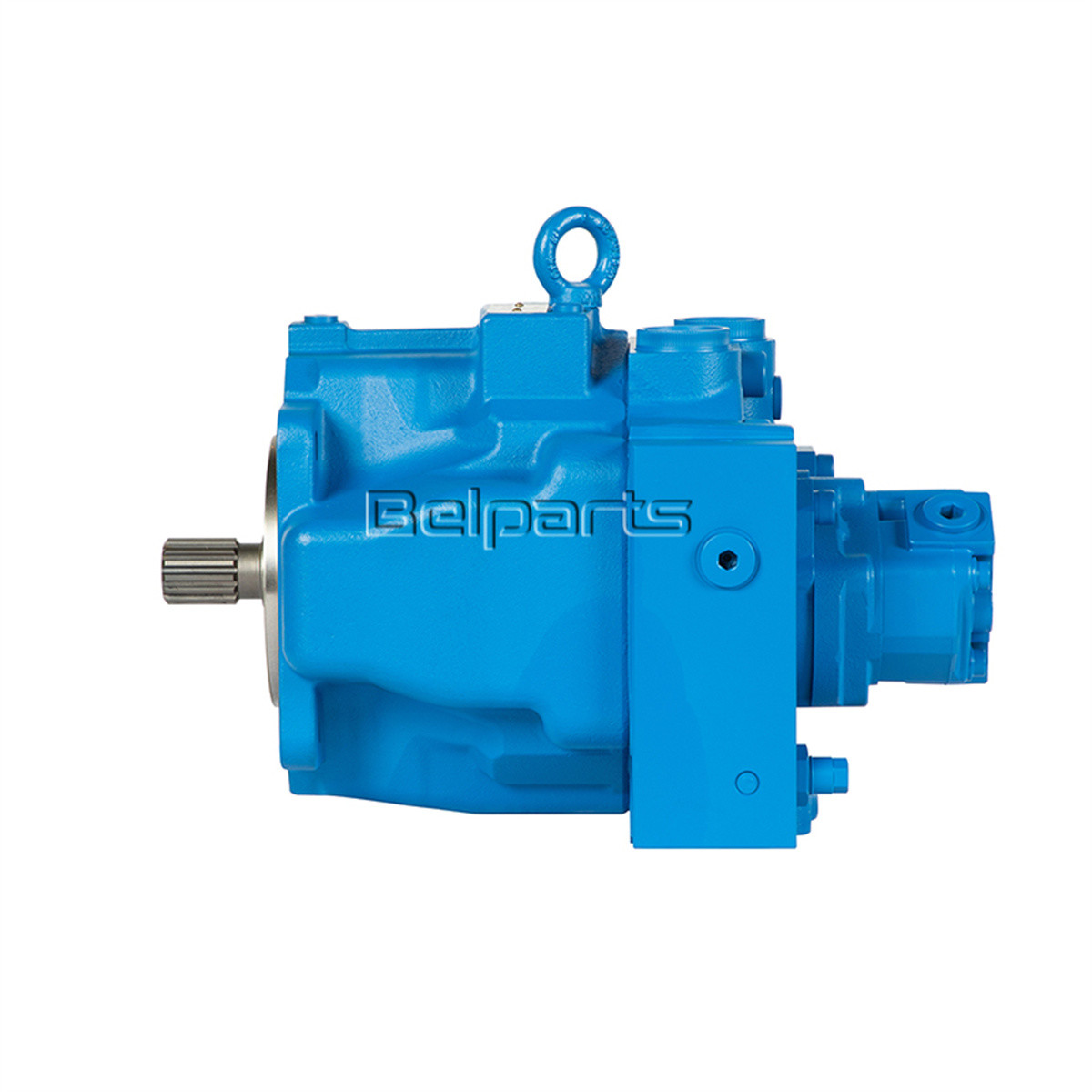

R80 Belparts Excavator For hyundai 80 rolex excavator hydraulic pump 31N1-10010
Introducing the R80 Hydraulic Pump: The Powerhouse for Unmatched Performance
Are you in search of a hydraulic pump that can deliver exceptional performance and reliability under the toughest conditions? Look no further than the R80 Hydraulic Pump, the ultimate solution for all your hydraulic needs.
Designed and manufactured to the highest standards, the R80 Hydraulic Pump is engineered to provide unparalleled efficiency, durability, and performance. With its state-of-the-art technology and innovative design, this pump is the perfect choice for a wide range of applications, including construction equipment, agricultural machinery, and industrial machinery.
Quick Detail of Excavator Hydraulic Pump
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:31N1-10010
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | R80 |
| Pump Number | / |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | 31N1-10010 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| * | 31N1-10010 | MAIN PUMP | 1 | |
| 1 | XJDD-00002 | SHAFT ASSY | 1 | |
| 1-1 | XJDD-00024 | SHAFT | 1 | |
| 1-2 | XJDD-00025 | RETAINER-SEAL | 1 | |
| 1-3 | XJDD-00026 | BEARING | 1 | |
| 1-4 | XJDD-00027 | RING-RETAINING | 2 | |
| 1-5 | XJDD-00028 | SEAL-OIL | 1 | |
| 1-6 | XJDD-00029 | O-RING | 1 | |
| 1-7 | XJDD-00030 | RING-RETAINING | 1 | |
| 2 | XJDD-00003 | SWASH PLATE ASSY | 1 | |
| 2-1 | XJDD-00031 | HANGER | 1 | |
| 2-2 | XJDD-00032 | GUIDE | 1 | |
| 2-4 | XJDD-00033 | GUIDE | 1 | |
| 2-6 | XJDD-00034 | O-RING | 1 | |
| 2-7 | XJDD-00035 | RING-BACK UP | 1 | |
| 2-8 | XJDD-00036 | PLUG | 2 | |
| 2-9 | XJDD-00037 | PIN | 1 | |
| 2-10 | XJDD-00038 | BUSHING | 1 | |
| 3 | XJDD-00004 | ROTARY GROUP | 1 | |
| 3-1 | XJDD-00039 | PISTON | 10 | |
| 3-2 | XJDD-00040 | BLOCK-CYLINDER | 1 | |
| 3-3 | XJDD-00041 | RETAINER | 1 | |
| 3-5 | XJDD-00042 | GUIDE | 1 | |
| 3-6 | XJDD-00043 | SPRING | 1 | |
| 3-7 | XJDD-00044 | PIN-PARALLEL | 3 | |
| 3-8 | XJDD-00045 | SPACER-SPRING | 2 | |
| 3-9 | XJDD-00046 | RING-RETAINING | 1 | |
| 5 | XJDD-00006 | CONTROL SPRING ASSY | 1 | |
| 5-1 | XJDD-00056 | SPACER-SPRING | 1 | |
| 5-2 | XJDD-00057 | SPACER-SPRING | 1 | |
| 5-3 | XJDD-00058 | COVER | 1 | |
| 5-4 | XJDD-00059 | SCREW-ADJUST | 1 | |
| 5-5 | XJDD-00060 | SPRING | 1 | |
| 5-6 | XJDD-00061 | SPRING | 1 | |
| 5-7 | XJDD-00062 | O-RING | 1 | |
| 5-8 | XJDD-00063 | BOLT | 2 | |
| 5-9 | XJDD-00064 | NUT | 1 | |
| 5-10 | XJDD-00065 | GUIDE | 1 | |
| 5-34 | XJDD-00066 | SHIM(0.3T) | 2 | |
| 5-44 | XJDD-00067 | SHIM(0.5T) | 2 | |
| 5-54 | XJDD-00068 | SHIM(1.0T) | 2 | |
| 6 | XJDD-00007 | CONTROL SPRING ASSY | 1 | |
| 6-1 | XJDD-00069 | CYLINDER | 1 | |
| 6-2 | XJDD-00070 | PISTON | 1 | |
| 6-3 | XJDD-00071 | PISTON | 1 | |
| 6-4 | XJDD-00072 | SPRING-PLATE | 4 | |
| 6-5 | XJDD-00073 | SPACER | 1 | |
| 6-6 | XJDD-00074 | SPACER | 1 | |
| 6-7 | XJDD-00075 | SPACER | 1 | |
| 6-8 | XJDD-00076 | SPACER | 1 | |
| 8 | XJDD-00009 | HOUSING | 1 | |
| 9 | XJDD-00010 | VALVE-AIR VENT | 1 | |
| 10 | XJDD-00011 | BUSHING | 1 | |
| 11 | XJDD-00012 | BALL-STEEL | 1 | |
| 12 | XJDD-00013 | PLUG | 1 | |
| 13 | XJDD-00014 | PLUG | 1 | |
| 14 | XJDD-00015 | PACKING | 1 | |
| 15 | XJDD-00016 | SHIM | 1 | |
| 16 | XJDD-00017 | PLUG | 1 | |
| 17 | XJDD-00018 | NAME PLATE ASSY | 1 | |
| 19 | XJDD-00020 | PLUG | 1 | |
| 22 | XJDD-00021 | PLUG ASSY | 1 | |
| 23 | XJDD-00022 | ORIFICE | 1 | |
| 25 | 1800174537 | 2 |
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
