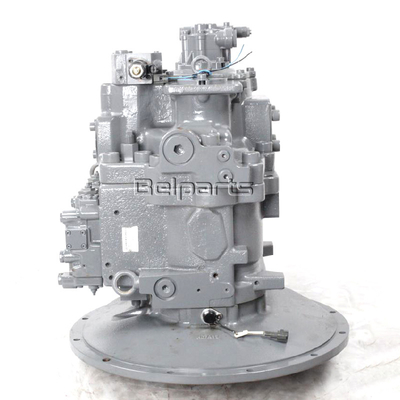

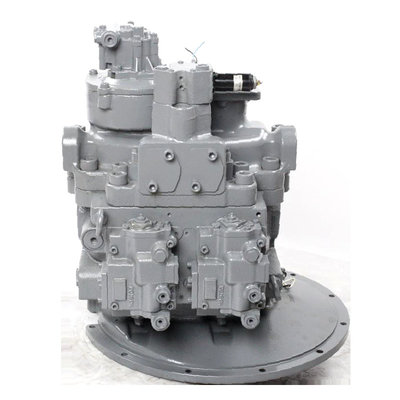

R450LC Belparts Excavator For hyundai r450lc hydraulic pump 31NB-10010 31NB-10020 31NB-10022
Quick Detail of Excavator Hydraulic Pump
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:31NB-10010 31NB-10020 31NB-10022
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | r450lc |
| Pump Number | / |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | 31NB-10010 31NB-10020 31NB-10022 |
| Pressure | Standard, High Pressure |

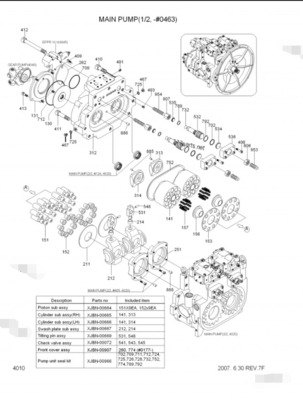

| # | Part No | Part Name | Qty. | Price request |
| * | 31NB-10020 | MAIN PUMP *-1,-2 |
1 | |
| * | 31NB-10022 | MAIN PUMP *-1,-2 |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| S012 | XJBN-00680 | BLOCK-CYLINDER | 2 | |
| 111 | XJBN-00976 | SHAFT-DRIVE(F) | 1 | |
| 113 | XJBN-00977 | SHAFT-DRIVE(R) | 1 | |
| 114 | XJBN-00572 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00571 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00978 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00569 | SPACER-BEARING | 3 | |
| 130 | XJBN-00568 | BOOSTER | 1 | |
| S151 | XJBN-00681 | PISTON | 18 | |
| S152 | XJBN-00682 | SHOE | 18 | |
| 153 | XJBN-00683 | PLATE-SET | 2 | |
| 156 | XJBN-00564 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00541 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | PLATE-SHOE | 2 | |
| S212 | XJBN-00012 | PLATE-SWASH | 2 | |
| S214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00560 | SUPPORT-S.P. | 2 | |
| 261 | XJBN-00025 | COVER(FR)-SEAL | 1 | |
| 263 | XJBN-00979 | COVER(RR)-SEAL | 1 | |
| 271 | XJBN-00980 | CASING-PUMP | 2 | |
| 271 | XJBN-01524 | CASING-PUMP | 2 | |
| 311 | XJBN-00559 | COVER-VALVE(F) | 1 | |
| 312 | XJBN-00558 | COVER-VALVE(R) | 1 | |
| S313 | XJBN-00557 | PLATE-VALVE(R) | 1 | |
| S314 | XJBN-00556 | PLATE-VALVE(L) | 1 | |
| 401 | XJBN-00028 | SCREW | 4 | |
| 402 | XJBN-00555 | SCREW-HEX SOC HD | 4 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 8 | |
| 466 | XJBN-00356 | PLUG | 4 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 32 | |
| 492 | XJBN-00234 | PLUG | 5 | |
| S531 | XJBN-00981 | PIN-TILTING | 2 | |
| 532 | XJBN-00703 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER(L) | 2 | |
| 535 | XJBN-00035 | STOPPER(S) | 2 | |
| S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00040 | O-RING | 2 | |
| 706 | XJBN-00982 | O-RING | 1 | |
| 710 | XJBN-00983 | O-RING | 2 | |
| 717 | XJBN-00984 | O-RING | 2 | |
| 719 | XJBN-00985 | O-RING | 3 | |
| 724 | XJBN-00902 | O-RING | 15 | |
| 725 | XJBN-00903 | O-RING | 10 | |
| 728 | XJBN-00905 | O-RING | 4 | |
| 732 | XJBN-00047 | O-RING | 2 | |
| 774 | XJBN-00906 | SEAL-OIL | 1 | |
| 789 | XJBN-00049 | RING-BACK UP | 2 | |
| 792 | XJBN-00050 | RING-BACK UP | 2 | |
| 808 | XJBN-00364 | NUT | 4 | |
| 824 | XJBN-00052 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 5 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00056 | SCREW-SET | 2 | |
| 954 | XJBN-00553 | SCREW-SET | 2 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| 984 | XJBN-01181 | SCREW-SET | 8 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
1 | |
| S011 | XJBN-00664 | PISTON ASSY SEE ILLUST |
2 | |
| S013 | XJBN-00665 | CYLINDER ASSY-RH SEE ILLUST |
1 | |
| S014 | XJBN-00666 | CYLINDER ASSY-LH SEE ILLUST |
1 | |
| S030 | XJBN-00011 | SWASH PLATE ASSY SEE ILLUST |
2 | |
| S530 | XJBN-00986 | TILTING PIN ASSY SEE ILLUST |
2 |
Key Features:
1. High Efficiency: The R450LC Hydraulic Pump boasts a high flow rate and low power consumption, ensuring maximum efficiency and reduced operating costs. Its advanced design allows for smooth operation even under heavy loads, making it ideal for demanding applications.
2. Unmatched Durability: Made from high-quality materials and subjected to rigorous testing, the R450LC Hydraulic Pump is built to withstand the harshest environments and prolonged use. Its robust construction ensures long-lasting performance and minimal maintenance requirements.
3. Versatile Applications: The R450LC Hydraulic Pump is suitable for a wide range of applications, thanks to its versatile design and customizable features. Whether you need a pump for your excavator, backhoe, or any other heavy-duty machinery, the R450LC has you covered.
4. Easy Installation and Maintenance: The R450LC Hydraulic Pump features an easy-to-install design and requires minimal maintenance. Its compact size and lightweight construction make it easy to handle and install, while its simple design ensures hassle-free maintenance.
5. Environmentally Friendly: The R450LC Hydraulic Pump is designed with the environment in mind. Its energy-efficient design reduces fuel consumption and emissions, making it an eco-friendly choice for businesses looking to reduce their carbon footprint.
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
