EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 Belparts Excavator Boom Arm Bucket Cylinder Assy for hitachi 4309332
Productions

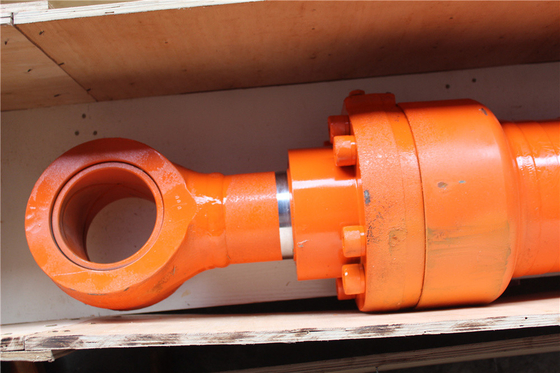

Part Name:Cylinder Assy
Used For:EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5
Part Number:4309332 4309333 4309334 4309335 4338133 4352759
Weight:270KG
Stock Condition:In Stock
Packing:Wooden Box
Finish:Smooth
Package:As Required
|
Part Name |
Cylinder Assy |
|
Used For |
EX550 EX550-3 EX550LC EX550LC-3 EX550-5 EX550LC-5 |
|
Part Number |
4309332 4309333 4309334 4309335 4338133 4352759 |
|
Weight |
270KG |
|
Stock Condition |
In Stock |
|
Packing |
Wooden Box |
|
Finish |
Smooth |
|
Package |
As Required |

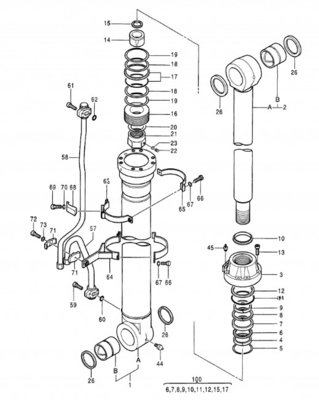

| # | Part No | Part Name | Qty. | Price request |
| 4309332 | CYL.; BOOM (R) | 1 | ||
| 145 | 4354802 | . CYL. (PIPELESS) | 1 | |
| 1 | 0643001 | .. TUBE; CYL. ASS'Y | 1 | |
| 1A | ... TUBE; CYL. | 1 | ||
| 1B | 0643002 | ... BUSHING; PIN | ||
| 2 | 0643003 | .. ROD; PISTON ASS'Y | ||
| 2A | ... ROD; PISTON | 1 | ||
| 2B | 0643004 | ... BUSHING; PIN | ||
| 3 | 0643005 | .. HEAD; CYL. | ||
| 4 | 0643006 | .. BUSHING | ||
| 5 | 0133709 | .. RING; RETAINING | ||
| 6 | 0643007 | .. RING | ||
| 7 | 0643008 | .. PACKING; U-RING | ||
| 8 | 0643009 | .. RING; BACK-UP | ||
| 9 | 0643010 | .. RING; SLIDE | ||
| 10 | 0643011 | .. RING; WIPER | ||
| 11 | A811170 | .. O-RING | 1 | |
| 12 | 0332704 | .. RING; BACK-UP | ||
| 13 | 0417606 | .. BOLT; SOCKET | ||
| 14 | 0643012 | .. BRG.; CUSHION | ||
| 15 | 0643013 | .. SEAL; CUSHION | ||
| 16 | 0643014 | .. PISTON | ||
| 17 | 0332706 | .. RING; SEAL ASSY | ||
| 18 | 0643015 | .. RING; SLIDE | ||
| 19 | 0332708 | .. RING; SLIDE | ||
| 20 | 0353010 | .. SHIM | ||
| 21 | 0353009 | .. NUT | ||
| 22 | 0353012 | .. SCREW; SET | ||
| 23 | 0353011 | .. BALL; STEEL | ||
| 26 | 4205000 | .. SEAL; DUST | ||
| 44 | J75481 | .. FITTING; GREASE | 1 | |
| 45 | 0643016 | .. BLEEDER; AIR | ||
| 57 | 0643017 | . PIPE | ||
| 58 | 0643018 | . PIPE | ||
| 59 | 0309020 | . BOLT; SOCKET | 4 | |
| 60 | 984614 | . O-RING | 1 | |
| 61 | 0643019 | . BOLT; SOCKET | ||
| 62 | 955612 | . O-RING | 1 | |
| 63 | 0643020 | . BAND | ||
| 64 | 0643021 | . BAND | ||
| 65 | 0417613 | . BAND | ||
| 66 | 0408815 | . BOLT | ||
| 67 | 0325913 | . WASHER | ||
| 68 | 0309219 | . CLAMP; PIPE | ||
| 69 | 0237417 | . BOLT | ||
| 70 | 0208516 | . WASHER; SPRING | ||
| 71 | 0236915 | . HOLDER | ||
| 72 | 0236916 | . BOLT | 1 | |
| 73 | A590914 | . WASHER; SPRING | 1 | |
| 100 | 4348853 | KIT; SEAL | 1 |

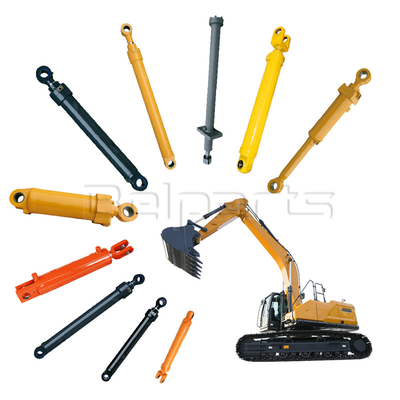

What's Cylinder ?
1. Suitable for most of the excavator brands, such as Hyundai, Kobelco, and so on.
2. All the models have the bucket hydraulic cylinder, Arm hydraulic cylinder and Boom hydraulic cylinder
3. All the components are standard as OEM, strict quality control.
4. The selection of high quality hydraulic components.
5. Production of non-standard hydraulic cylinder according to customer request.
Key Features:
1. Superior Construction: Crafted from durable, high-strength materials, the EX550 Series Hydraulic Cylinders are built to withstand the most demanding working conditions. Their robust construction ensures longevity and reliability, making them an excellent investment for any excavator owner.
2. Cutting-Edge Hydraulic Technology: Equipped with state-of-the-art hydraulic technology, the EX550 Series assemblies deliver precise control and maximum power output. Their advanced design allows for seamless operation and efficient fluid flow, ensuring optimal performance in all applications.
3. Versatile Applications: The EX550 Series Hydraulic Cylinders are compatible with a wide range of excavator models and sizes. Their versatile design makes them suitable for various tasks, including digging, lifting, and material handling. Whether you're working on a construction site or in a mining environment, the EX550 Series assemblies are up to the task.
4. Hassle-Free Installation and Maintenance: Designed with user convenience in mind, the EX550 Series Hydraulic Cylinders feature an easy-to-install design and require minimal maintenance. Their compact size and lightweight construction make them simple to install, while their low-maintenance requirements ensure that downtime is kept to a minimum.
