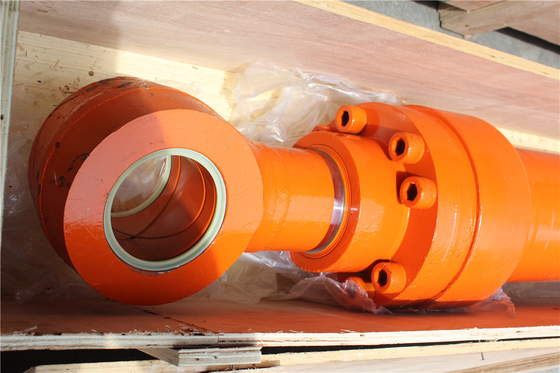

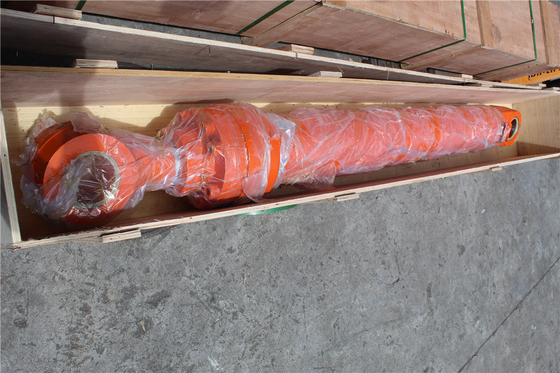

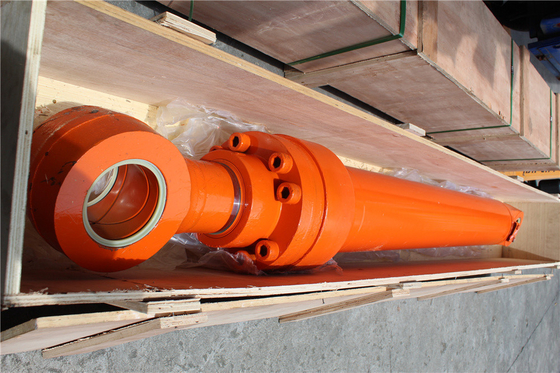

EX200-3 EX200LC-3 EX200-2 EX200LC-2 Belparts Excavator hydraulic Boom Arm Bucket Cylinder Assy for hitachi 4250223 42502
Introducing the EX200-3, EX200LC-3, EX200-2, and EX200LC-2 Hydraulic Cylinder Assemblies: Unmatched Performance and Durability
Key Features:
1. Superior Quality: Made from high-grade materials and manufactured to strict industry standards, the EX200-3, EX200LC-3, EX200-2, and EX200LC-2 hydraulic cylinder assemblies ensure long-lasting performance and consistent results.
2. Precision Engineering: The advanced design of these cylinders allows for precise control and accurate positioning, making them ideal for applications that require high levels of accuracy and repeatability.
3. High Capacity: With a maximum load capacity of 200 tons (EX200-3 and EX200-2) and 250 tons (EX200LC-3 and EX200LC-2), these cylinders can handle even the most demanding lifting tasks with ease.
4. Easy Installation and Maintenance: Designed with user convenience in mind, the EX200-3, EX200LC-3, EX200-2, and EX200LC-2 hydraulic cylinder assemblies feature easy-to-use components and simple maintenance procedures, reducing downtime and maximizing productivity.
5. Versatile Applications: Ideal for use in a variety of industries, including construction, manufacturing, transportation, and more, these cylinders can be customized to meet the specific needs of your application.
6. Safety First: Equipped with advanced safety features such as pressure relief valves and overload protection, the EX200-3, EX200LC-3, EX200-2, and EX200LC-2 hydraulic cylinder assemblies ensure safe operation in all conditions.
7. Environmentally Friendly: Manufactured using eco-friendly processes and materials, these cylinders are designed to minimize their impact on the environment while delivering outstanding performance.
Productions
Part Name:Cylinder Assy
Used For:EX200-3 EX200LC-3 EX200-2 EX200LC-2
Part Number:4250223 4250224 4314778 4250225 4287889
Weight:270KG
Stock Condition:In Stock
Packing:Wooden Box
Finish:Smooth
Package:As Required
|
Part Name |
Cylinder Assy |
|
Used For |
EX200-3 EX200LC-3 EX200-2 EX200LC-2 |
|
Part Number |
4250223 4250224 4314778 4250225 4287889 |
|
Weight |
270KG |
|
Stock Condition |
In Stock |
|
Packing |
Wooden Box |
|
Finish |
Smooth |
|
Package |
As Required |
| # | Part No | Part Name | Qty. | Price request |
| 4250225 | CYL.; BUCKET | 1 | ||
| 139 | 4286781 | . CYL. (PIPELESS) | 1 | |
| 1 | 4286782 | .. TUBE; CYL. ASS'Y | ||
| 1A | 0410001 | ... TUBE; CYL. | ||
| 1B | 0140808 | ... BUSHING | ||
| 2 | 4286783 | .. ROD; PISTON ASS'Y | 1 | |
| 2A | 0410002 | ... ROD; PISTON | ||
| 2B | 0208326 | ... BUSHING; PIN | ||
| 3 | 0410003 | .. HEAD; CYL. | ||
| 4 | 0310504 | .. BUSHING | ||
| 5 | 0240904 | .. RING; RETAINING | ||
| 6 | 0409605 | .. RING | ||
| 7 | 0240911 | .. U-RING | ||
| 8 | 0240912 | .. RING; BACK-UP | ||
| 9 | 0409613 | .. RING; WIPER | 1 | |
| 9 | 0409614 | .. RING; WIPER | ||
| 10 | A811105 | .. O-RING | 1 | |
| 11 | 0298904 | .. RING; BACK-UP | ||
| 12 | 0408805 | .. BOLT; SOCKET | ||
| 13 | 0410004 | .. BRG.; CUSHION | ||
| 14 | 0409110 | .. BOLT | ||
| 15 | 0409007 | .. PISTON | ||
| 16 | 0240915 | .. RING; SEAL ASS'Y | ||
| 17 | 0409008 | .. RING; BACK-UP | ||
| 18 | 0410005 | .. RING | ||
| 19 | 0298907 | .. RING | ||
| 20 | 0409010 | .. SHIM | ||
| 21 | 0409011 | .. NUT | ||
| 22 | 0309011 | .. SCREW; SET | ||
| 23 | 0111707 | .. BALL; STEEL | ||
| 37 | J75481 | .. FITTING; GREASE | 2 | |
| 38 | 4084578 | .. SEAL; DUST | 2 | |
| 39 | 4067902 | .. SEAL; DUST | 2 | |
| 56 | 0309312 | . JOINT | ||
| 57 | 0410006 | . PIPE | 1 | |
| 58 | 4506430 | . O-RING | 2 | |
| 59 | 0158855 | . BOLT; SOCKET | ||
| 60 | 0409018 | . BAND | ||
| 61 | 0327410 | . BAND | ||
| 62 | 0408815 | . BOLT | ||
| 63 | 0325913 | . WASHER | ||
| 64 | 0309021 | . CLAMP; PIPE | ||
| 65 | 0309022 | . BOLT | ||
| 66 | 0208516 | . WASHER; SPRING | ||
| 100 | 4321000 | KIT; SEAL | ||
| 100 | 4369890 | KIT; SEAL |
What's Cylinder ?
1. Suitable for most of the excavator brands, such as Hyundai, Kobelco, and so on.
2. All the models have the bucket hydraulic cylinder, Arm hydraulic cylinder and Boom hydraulic cylinder
3. All the components are standard as OEM, strict quality control.
4. The selection of high quality hydraulic components.
5. Production of non-standard hydraulic cylinder according to customer request.
