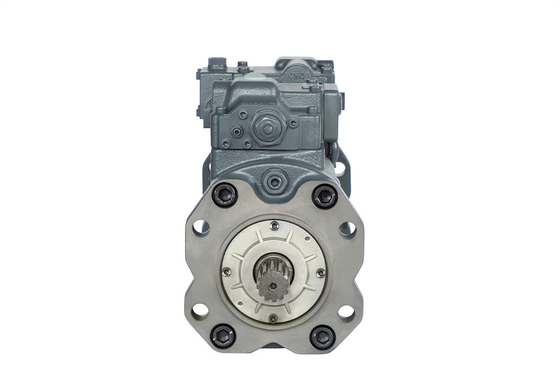

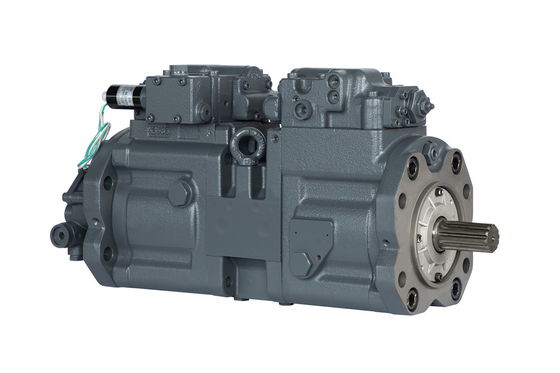

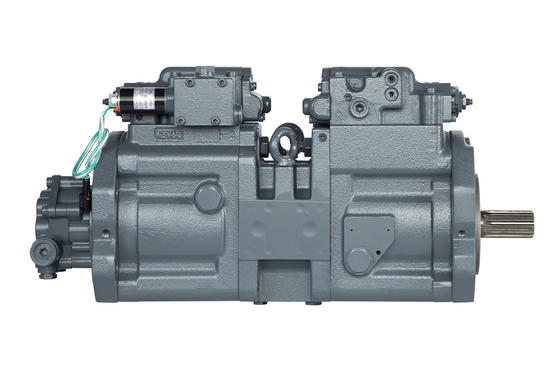

dx140 K1024107A 2401-9236B Belparts excavator main pump for doosan 140 hydraulic pump
Quick Detail of Excavator Hydraulic Pump
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:K1024107A 2401-9236B
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | dx140 |
| Pump Number | / |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | K1024107A 2401-9236B |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Comment | Qty. | Price request |
| 153 | K9005451 | PLATE, PUSH | 2 | ||
| 156 | K9005443 | BUSH, SPHERICAL | 2 | ||
| 157 | K9005442 | SPRING, CYLINDER | 18 | ||
| 211 | 1.412-00104 | PLATE, SHOE | 2 | ||
| 212 | K9005446 | SWASH PLATE ASS'Y | 1 kg | 2 | |
| - | K1024107A | PUMP, MAIN | 141 kg | 1 | |
| 13 | 410-00009 | CYLINDER BLOCK ASS'Y(R.H) | 3 kg | 1 | |
| 14 | 410-00010 | CYLINDER BLOCK ASS'Y(L.H) | 3 kg | 1 | |
| 111 | K9005440 | SHAFT, DRIVE(FRONT) | 1 kg | 1 | |
| 113 | K9005441 | SHAFT, DRIVE(REAR) | 2 kg | 1 | |
| 114 | 414-00039 | COUPLING, SPLINE | 1 | ||
| 123 | 1.109-00075 | BEARING, ROLLER | 2 | ||
| 124 | 1.109-00048 | BEARING, NEEDLE | 2 | ||
| 127 | 114-00343 | SPACER, BEARING | 4 | ||
| 151 | K9005444 | PISTON & SHOE ASS'Y | 2 SET | ||
| 251 | 1.197-00012 | SUPPORT, SWASH | 6 kg | 2 | |
| 261 | 462-00025 | COVER, SEAL(F) | 1 kg | 1 | |
| 271 | 1.402-00089 | CASING, PUMP | 11 kg | 2 | |
| 312 | 1.451-00084 | BLOCK, VALVE | 1 | ||
| 401 | 120-00188 | BOLT, HEX SOCKET | 8 | ||
| 406 | S2204663 | BOLT, HEX SOCKET HEAD | 4 | ||
| 467 | 2181-1950D3 | PLUG, RECHECK | 3 | ||
| 469 | 1.181-00146 | PLUG, VP | 2 | ||
| 490 | 181-00519 | PLUG | NPTF1 1/16 | 15 | |
| 530 | K9005445 | TILTING PIN ASS`Y | 2 | ||
| 532 | 409-00044 | PISTON, SERVO | 2 | ||
| 534 | 416-00010 | STOPPER(L) | 2 | ||
| 535 | 416-00011 | STOPPER(R) | 2 | ||
| 548 | 1.123-00006 | PIN | 2 | ||
| 702 | S8010305 | O-RING 4DG-30 | 2 | ||
| 710 | S8010855 | O-RING 1BG-85 | 2 | ||
| 717 | S8011201 | O-RING | 2 | ||
| 719 | S8011151 | O-RING | 2 | ||
| 724 | S8000081 | O-RING | 16 | ||
| 726 | S8000111 | O-RING | 1BP11 | 2 | |
| 728 | S8000181 | O-RING | 1BP18 | 3 | |
| 732 | S8000165 | O-RING | 2 | ||
| 774 | 180-00383 | SEAL, OIL | 1 | ||
| 789 | S8060161 | RING, BACK-UP | 5 kg | 2 | |
| 792 | S8060301 | RING, BACK-UP | 2 | ||
| 808 | S4012933 | NUT (M16X2.0) | 4 | ||
| 824 | S6500350 | RING, RETAINING | 2 | ||
| 885 | S5710881 | PIN, PARALLEL | 2 | ||
| 886 | S5740870 | PIN, SPRING | 4 | ||
| 901 | S3140025 | BOLT, EYE | 2 | ||
| 953 | S3527808 | SCREW, SET M16X30L | 2 | ||
| 954 | 120-00187 | SCREW, ADJUSTING | 2 | ||
| * | 2401-9236AKT | SEAL KIT, PUMP | 1 |
Highest standard to suit western country operators' use
ISO quality control manufacturing
Free and efficient communiion
Quick and professional response
Patient and responsible before-sale and after-sale services
Over 40 years experiences on metal fabriion, hydraulics apply and control and consultancy in Australia
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
