Dh220lc-7 Belparts Excavator Main Pump For Doosan 2401-9225 K1000698E Hydraulic Pump

Dh220lc-7 Belparts Excavator Main Pump For Doosan 2401-9225 K1000698E Hydraulic Pump

  • High Light

    Dh220lc-7 Belparts Excavator Main Pump

    ,

    2401-9225 Excavator Main Pump

    ,

    K1000698E Hydraulic Pump

  • Product Name
    Excavator Main Pump
  • Machine Model
    Dh220lc-7
  • Part Number
    2401-9225 K1000698E
  • Brand
    Belparts
  • Place Of Origin
    Guangdong, China
  • Place of Origin
    Guangdong,China
  • Brand Name
    Belparts
  • Model Number
    dh220lc-7
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable price
  • Packaging Details
    Wooden packing
  • Delivery Time
    1-5days
  • Payment Terms
    T/T, Paypal and Alibaba Trade Assurance
  • Supply Ability
    1000pieces

Dh220lc-7 Belparts Excavator Main Pump For Doosan 2401-9225 K1000698E Hydraulic Pump

dh220lc-7 Belparts excavator main pump for doosan 2401-9225 K1000698E hydraulic pump​




Quick Detail of Excavator Hydraulic Pump

Material:Steel

Product Name: Excavator Main Hydraulic Pump

Applicable Industries:Machinery Repair Shops, Manufacturing Plant

Dimension(L*W*H):35*51*52

Part number:2401-9225 K1000698E

Package Details:Export Wooden Box

Weight:130KG

Surface treatment:Heat resistance paint

Pressure:Standard, High Pressure



Specifiions Of Excavator Hydraulic Pump

Product Name Excavator Hydraulic Pump
Brand Belparts
Machine model dh220lc-7
Pump Number /
N.W/KG 130KG
G.W/KG 140KG
Packing Size 84*38*49
Part number 2401-9225 K1000698E
Pressure Standard, High Pressure



# Part No Part Name Comment Qty. Price request
325 120592 CASING, VALVE   1
401 113797 BOLT, HEX SOCKET HEAD   8
406 200846 BOLT, HEX SOCKET HEAD   4
469 108848 PLUG(PF3/8)   2
490 224308 PLUG   21
* 717005 TILTING PIN ASS'Y   2
407 200838 BOLT, SOCKET M6X1.0X65   3
468 108847 PLUG PF3/4   3
531 113807 PIN, TILTING   1
548 113380 PIN, FEEDBACK   1
532 113798 PISTON, SERVO   2
534 113799 STOPPER(L)   2
535 113800 STOPPER(S)   2
* 704550A CHECK 1 ASS'Y   2
541 113706 SEAT   2
543 113705 STOPPER(1)   2
545 200166 BALL, STEEL   2
* 704544A CHECK 2 ASS'Y   2
541 113706 SEAT   2
544 113703 STOPPER 2   2
545 200166 BALL, STEEL   2
702 220019 O-RING 1BG35   2
710 204452 O-RING 1BG95   2
717 201639 O-RING 1BG145   4
724 201765 O-RING 1BP8   16
725 201689 O-RING 1BP11   5
726 S8000141 O-RING 1BP14 2
728 201721 O-RING 1BP24   3
732 220016 O-RING 1BP18   3
774 212231 SEAL, OIL TCV40V   1
789 203480 RING, BACK-UP T2P18   2
792 203418 RING, BACK-UP T2G45   2
806 201557 NUT, HEX (ORNM16   2
808 102048 NUT=ORMN20   2
824 202606 RING, SNAP C-40S   2
885 113801 PIN D8X12L   2
886 200678 PIN, SPRING D6X14 2 kg 2
901 212033 BOLT, EYE   2
953 118892 SCREW, SET M16X30L   2
954 113803 SCREW, ADJUST   2
* 2401-9225KT SEAL KIT, BODY+REG.   1
- 2401-9225 PUMP   1
- 2401-9225A PUMP   1
- 2401-9225B PUMP   1
- 2401-9225C PUMP, MAIN 128 kg 1
79 707847 VALVE, ELECTRO PROPORTIONAL   1
111 124568 SHAFT, DRIVING(F)   1
113 124569 SHAFT, DRIVING(R) 2 kg 1
114 113783 COUPLING, SPLINE   1
123 219362 BEARING, ROLLER   2
124 219363 BEARING, SPACER   2
127 113784 BEARING, SPACER   4
* 704545-PH CYLINDER ASS'Y(R)   1
141 113804 BLOCK, CYLINDER 6 kg 1 KIT
313 115798 PLATE, VALVE(R)   1
* 704548-PH CYLINDER ASS'Y(L)   1
141 113804 BLOCK, CYLINDER 6 kg 1 KIT
314 115799 PLATE, VALVE(L)   1
* 704543A PISTON & SHOE ASS'Y   2 SET
151 113778 PISTON   18
152 113779 SHOE, TRACK   18
153 115786 PLATE, PUSH   2
156 121437 BUSH, SPHERICAL   2
157 113787 SPRING, CYLINDER   18
158 113789 SPACER   2
211 113790 PLATE, SHOE   2
* 717008 SWASH PLATE ASS'Y   2
212 113780 PLATE, SWASH   1
214 113624 BUSH, TILTING   1
250 718424 SUPPORT KIT   1
251 113791 SUPPORT   2
261 113792 COVER, SEAL(F) 1 kg 1
271 113794 CASING, PUMP   2
310 707849 VALVE BLOCK KIT 21 kg 1
312 113795 BLOCK, VALVE   1

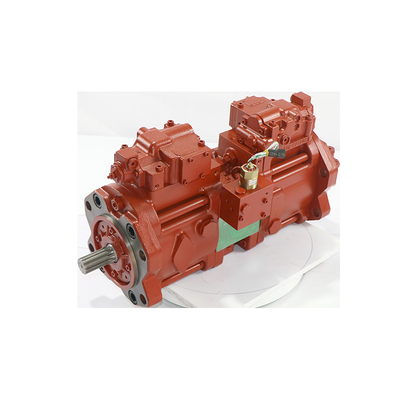

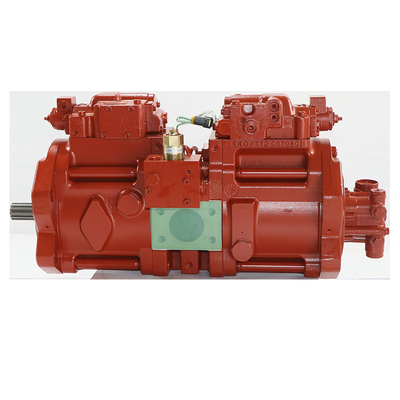

Dh220lc-7 Belparts Excavator Main Pump For Doosan 2401-9225 K1000698E Hydraulic Pump 0Dh220lc-7 Belparts Excavator Main Pump For Doosan 2401-9225 K1000698E Hydraulic Pump 1Dh220lc-7 Belparts Excavator Main Pump For Doosan 2401-9225 K1000698E Hydraulic Pump 2Dh220lc-7 Belparts Excavator Main Pump For Doosan 2401-9225 K1000698E Hydraulic Pump 3
