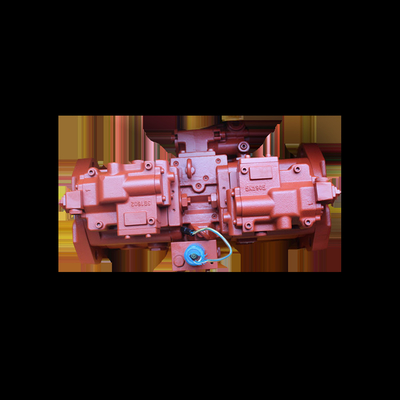

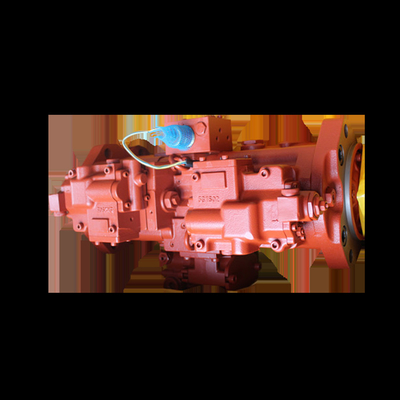

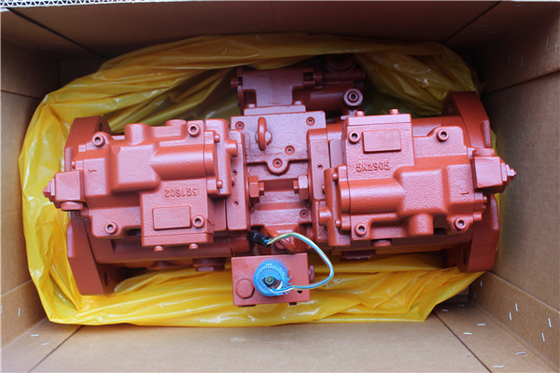

Belparts Excavator hydraulic pump for hitachi ex 200-3 main pump 9262319 9262320
Quick Detail of Excavator Hydraulic Pump
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:9262319 9262320
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | ex 200-3 |
| Pump Number | / |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | 9262319 9262320 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| 9262319 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9262320) | PUMP DEVICE (FOR TRANSPORTATION) | 1 | ||
| 01 | 1033158 | . CASING; GEAR | 1 | |
| 05 | 3063840 | . GEAR; PILOT | 1 | |
| 06 | 3055594 | . SHAFT; GEAR | 1 | |
| 10 | 958740 | . BRG.; BALL | 2 | |
| 11 | 962002 | . RING; RETAINING | 1 | |
| 12 | 991725 | . RING; RETAINING | 1 | |
| 34 | 4099290 | . PIN; SPRING | 2 | |
| 43 | 4310055 | . SEAL; OIL | 1 | |
| 44 | 991725 | . RING; RETAINING | 1 | |
| 61 | 4438059 | . GAUGE; LEVEL | 1 | |
| 62 | 9743977 | . PIPE; GAUGE | 1 | |
| 63 | 9742779 | . PACKING | 1 | |
| 64 | M340816 | . BOLT; SOCKET | 2 | |
| 83 | 94-0649 | . ELBOW | 1 | |
| 84 | 4645330 | . PLUG | 1 | |
| 86 | 4234782 | . PLUG | 1 | |
| 87 | 4092534 | . PLUG | 1 | |
| 87A | 4509180 | .. O-RING | 1 | |
| 103 | . PUMP; UNIT | 1 | ||
| 112 | . NAME-PLATE | 1 | ||
| 113 | M492564 | . SCREW; DRIVE | 2 | |
| 117 | 9256847 | . PUMP; REGULATOR (1) | 1 | |
| 118 | 9256848 | . PUMP; REGULATOR (2) | 1 | |
| 119 | 9218005 | . PUMP; GEAR | 1 | |
| 121 | M341030 | . BOLT; SOCKET | 2 | |
| 122 | 984054 | . WASHER; SPRING | 2 | |
| 123 | 4114402 | . WASHER | 2 | |
| 127 | 4631943 | . PIPE | 1 | |
| 130 | 4293950 | . ELBOW; S | 2 | |
| 130A | 957366 | .. O-RING | 1 | |
| 133 | 4641504 | . COUPLING | 1 | |
| 133A | 4463992 | .. HUB | 1 | |
| 133B | 4334899 | .. SCREW; SET | 2 | |
| 133C | 4101345 | .. PIN; SPRING | 4 | |
| 133D | 4463993 | .. INSERT | 4 | |
| 133E | 4334894 | .. BOLT; SOCKET | 4 | |
| 133F | 4654760 | .. ELEMENT | 1 | |
| 136 | 8058352 | . PACKING | 1 | |
| 137 | J901645 | . BOLT | 6 | |
| 138 | A590916 | . WASHER; SPRING | 6 | |
| 200 | 4451036 | KIT; SEAL | 1 |
Service
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts,
hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or
video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
