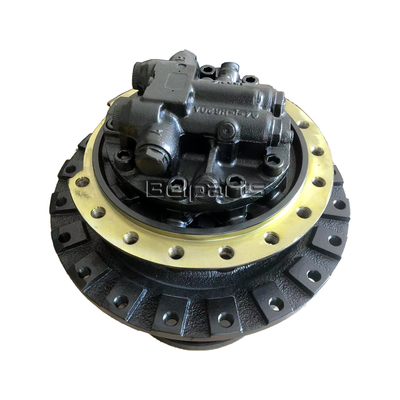

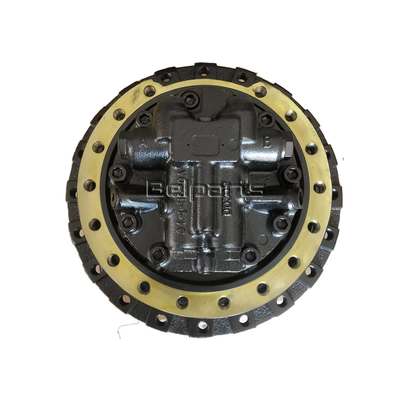

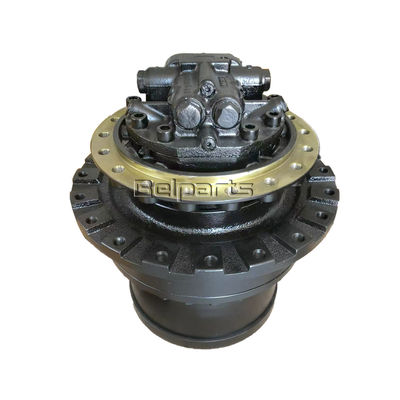

Belparts Excavator travel motor assy for hitachi ZX200 ZX210 ZX230 ZX240 final drive assy 9170996 9233687 9195447
Appliion:Excavator machine
Part name:travel motor
Model: ZX200 ZX210 ZX230 ZX240
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
| Appliion | Crawler Excavator |
| Part name | travel motor assy |
| Part number | 9180731 9181123 |
| Model | ZX200 ZX210 ZX230 ZX240 |
| MOQ | 1PC |
| Brand | Belparts |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |
| # | Part No | Part Name | Qty. | Price request |
| 9170996 | TRAVEL DEVICE | 2 | ||
| 9233687 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9195447 | TRAVEL DEVICE | 2 | ||
| 9233688 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
| 00 | 9168003 | . MOTOR; OIL | 1 | |
| 00 | 9234034 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9195451 | . MOTOR; OIL | 1 | |
| 00 | 9237802 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 4114753 | . SEAL; GROUP | 1 | |
| 02 | 4634693 | . SEAL; GROUP | 1 | |
| 03 | 4246793 | . BRG.; ROL. | 2 | |
| 04 | 1025833 | . DRUM | 1 | |
| 05 | 1018740 | . SPROCKET | 1 | |
| 06 | J932055 | . BOLT | 16 | |
| 07 | A590920 | . WASHER; SPRING | 16 | |
| 08 | 3086531 | . NUT | 1 | |
| 10 | 4436242 | . PIN; KNOCK | 1 | |
| 12 | 1025875 | . CARRIER | 1 | |
| 14 | 4438593 | . BRG.; NEEDLE | 6 | |
| 15 | 4284521 | . PLATE; THRUST | 6 | |
| 16 | 4315838 | . PIN | 3 | |
| 17 | 4116309 | . PIN; SPRING | 3 | |
| 18 | 3082156 | . GEAR; SUN | 1 | |
| 19 | 3084353 | . GEAR; PLANETARY | 3 | |
| 20 | 1025787 | . GEAR; RING | 1 | |
| 21 | J931640 | . BOLT | 24 | |
| 23 | 2042432 | . CARRIER | 1 | |
| 24 | 4401293 | . SPACER | 2 | |
| 25 | 3082155 | . GEAR; PLANETARY | 3 | |
| 26 | 4438592 | . BRG.; NEEDLE | 3 | |
| 27 | 4192982 | . PLATE; THRUST | 6 | |
| 28 | 4402086 | . PIN | 3 | |
| 29 | 4192020 | . PIN; SPRING | 3 | |
| 30 | 3082149 | . GEAR; SUN | 1 | |
| 32 | 1025826 | . CARRIER | 1 | |
| 33 | 3082148 | . GEAR; PLANETARY | 3 | |
| 34 | 4387383 | . BRG.; NEEDLE | 3 | |
| 35 | 4192910 | . PLATE; THRUST | 6 | |
| 36 | 4210853 | . PIN | 3 | |
| 37 | 4173093 | . PIN; SPRING | 3 | |
| 38 | 2042351 | . SHAFT; PROP. | 1 | |
| 38 | 2049585 | . SHAFT; PROP. | 1 | |
| 40 | 2034833 | . COVER | 1 | |
| 41 | 4285323 | . PIN; STOPPER | 1 | |
| 41 | 4478346 | . PIN; STOPPER | 1 | |
| 42 | J011230 | . BOLT; SEMS | 12 | |
| 42 | 4609016 | . BOLT; SEMS | 12 | |
| 43 | 4245797 | . PLUG | 3 | |
| 46 | 3053559 | . NAME-PLATE | 1 | |
| 47 | M492564 | . SCREW; DRIVE | 2 |
1.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the
order.
2.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
