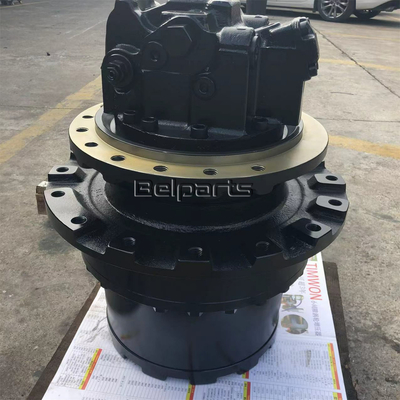

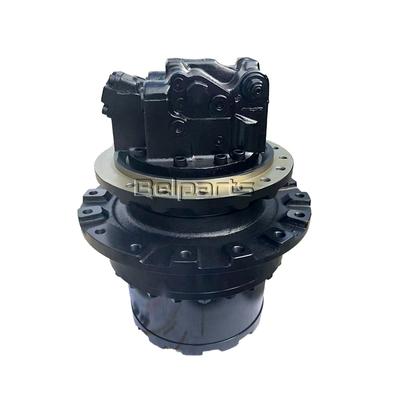

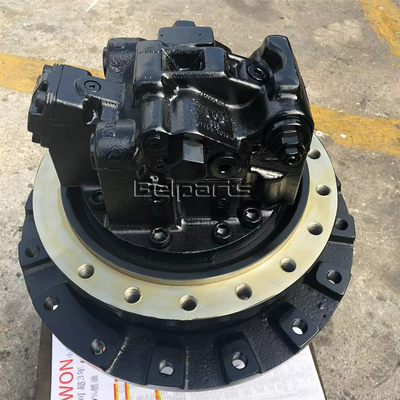

Belparts Excavator travel motor assy for hitachi EX200-3-5 final drive assy 9119377 9132405
Appliion:Excavator machine
Part name:travel motor
Model: EX200-3-5
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
| Appliion | Crawler Excavator |
| Part name | travel motor assy |
| Part number | 9119377 9132405 |
| Model | EX200-3-5 |
| MOQ | 1PC |
| Brand | Belparts |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |
| # | Part No | Part Name | Qty. | Price request |
| 0048 | 9119377 | TRAVEL DEVICE ASS'Y (FOR ASSEMBLY OF MACHINE) | 2 | |
| 0048 | (9132405) | TRAVEL DEVICE ASS'Y (FOR TRANSPORTATION) | 2 | |
| 00 | 9120000 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | (9131678) | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 4114753 | . SEAL; GROUP | 1 | |
| 03 | 4246793 | . BRG.; ROL. | 2 | |
| 04 | 1018736 | . DRUM | 1 | |
| 05 | 1018740 | . SPROCKET | 1 | |
| 06 | J932055 | . BOLT | 16 | |
| 07 | A590920 | . WASHER; SPRING | 16 | |
| 08 | 3047448 | . HUB | 1 | |
| 09 | 3057125 | . NUT | 1 | |
| 10 | 4246783 | . PIN; KNOCK | 1 | |
| 12 | 1019147 | . CARRIER | 1 | |
| 13 | 3063957 | . GEAR; PLANETARY | 3 | |
| 14 | 4317122 | . BRG.; NEEDLE | 6 | |
| 15 | 4284521 | . PLATE; THRUST | 6 | |
| 16 | 4315838 | . PIN | 3 | |
| 17 | 4116309 | . PIN; SPRING | 3 | |
| 18 | 3063959 | . GEAR; SUN | 1 | |
| 20 | 1018789 | . GEAR; RING | 1 | |
| 21 | J931640 | . BOLT | 24 | |
| 23 | 2034836 | . CARRIER | 1 | |
| 24 | 4192979 | . SPACER | 2 | |
| 25 | 3063956 | . GEAR; PLANETARY | 3 | |
| 26 | 4317121 | . BRG.; NEEDLE | 3 | |
| 27 | 4210851 | . PLATE; THRUST | 6 | |
| 28 | 4309995 | 3 | ||
| 29 | 4192020 | . PIN; SPRING | 3 | |
| 30 | 3063958 | . GEAR; SUN | 1 | |
| 32 | 2034835 | . CARRIER | 1 | |
| 33 | 3063955 | . GEAR; PLANETARY | 3 | |
| 34 | 4317120 | . BRG.; NEEDLE | 3 | |
| 35 | 4192910 | . PLATE; THRUST | 6 | |
| 36 | 4210853 | . PIN | 3 | |
| 37 | 4173093 | . PIN; SPRING | 3 | |
| 38 | 2034834 | . SHAFT; PROP. | 1 | |
| 40 | 2034833 | . COVER | 1 | |
| 41 | 4285323 | . PIN; STOPPER | 1 | |
| 42 | J011230 | . BOLT; SEMS | 12 | |
| 43 | 4245797 | . PLUG | 3 | |
| 47 | M492564 | . SCREW; DRIVE | 2 | |
| 48 | 3053559 | . NAME-PLATE | 1 | |
| 132 | 4248607 | BOLT | 28 | |
| 133 | 4018545 | WASHER | 28 |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
