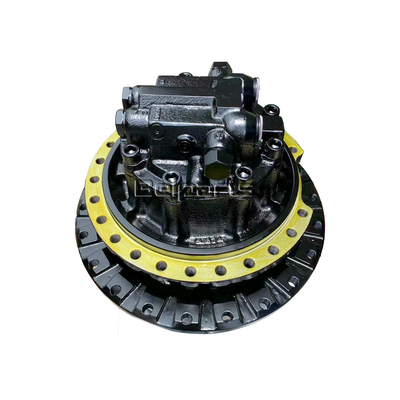

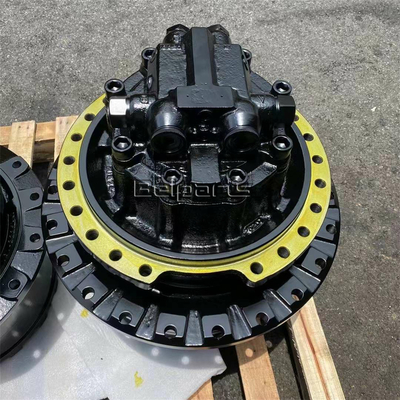

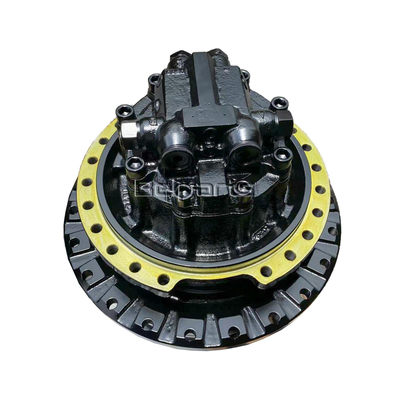

Belparts Excavator travel motor assy for hitachi zx330 zx350 zx360 final drive assy 9190221 9212584 9190222 9232360
Appliion:Excavator machine
Part name:travel motor
Model: zx330 zx350 zx360
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
| Appliion | Crawler Excavator |
| Part name | travel motor assy |
| Part number | 9190221 9212584 9190222 9232360 |
| Model | zx330 zx350 zx360 |
| MOQ | 1PC |
| Brand | Belparts |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express, or as required |
| # | Part No | Part Name | Qty. | Price request |
| 9190221 | TRAVEL DEVICE | 2 | ||
| 9212584 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9190222 | TRAVEL DEVICE | 2 | ||
| 9232360 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
| 00 | 9190296 | . MOTOR; OIL | 1 | |
| 00 | 9213431 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9195488 | . MOTOR; OIL | 1 | |
| 00 | 9231673 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 1022194 | . HOUSING | 1 | |
| 03 | 4066695 | . SEAL; GROUP | 1 | |
| 04 | 4192975 | . BRG.; ROL. | 2 | |
| 05 | 1022179 | . DRUM | 1 | |
| 06 | 1022168 | . SPROCKET | 1 | |
| 07 | A590920 | . WASHER; SPRING | 20 | |
| 08 | J932060 | . BOLT | 20 | |
| 10 | 3036256 | . NUT | 1 | |
| 10 | 3094717 | . NUT | 1 | |
| 11 | 4192974 | . PLATE; LOCK | 1 | |
| 11 | 4470326 | . PLATE; LOCK | 1 | |
| 12 | J901222 | . BOLT | 2 | |
| 12 | J901225 | . BOLT | 2 | |
| 14 | 1022198 | . CARRIER | 1 | |
| 15 | 4401293 | . SPACER | 3 | |
| 16 | 3075003 | . GEAR; PLANETARY | 3 | |
| 18 | 4269470 | . PLATE; THRUST | 6 | |
| 19 | 4269452 | . PIN | 3 | |
| 20 | 4192021 | . PIN; SPRING | 3 | |
| 21 | 3075005 | . GEAR; SUN | 1 | |
| 22 | 4455088 | . BRG.; NEEDLE | 6 | |
| 23 | 1022195 | . GEAR; RING | 1 | |
| 24 | J931640 | . BOLT | 28 | |
| 26 | 1022197 | . CARRIER | 1 | |
| 27 | 3075002 | . GEAR; PLANETARY | 3 | |
| 28 | 4455099 | . BRG.; NEEDLE | 3 | |
| 29 | 4284521 | . PLATE; THRUST | 6 | |
| 30 | 4269451 | . PIN | 3 | |
| 31 | 4197763 | . PIN; SPRING | 3 | |
| 32 | 3074989 | . GEAR; SUN | 1 | |
| 34 | 1022196 | . CARRIER | 1 | |
| 36 | 3075001 | . GEAR; PLANETARY | 3 | |
| 37 | 4455098 | . BRG.; NEEDLE | 3 | |
| 38 | 4284520 | . PLATE; THRUST | 6 | |
| 39 | 4269472 | . PIN | 3 | |
| 40 | 4192020 | . PIN; SPRING | 3 | |
| 41 | 2038915 | . SHAFT; PROP. | 1 | |
| 41 | 2048000 | . SHAFT; PROP. | 1 | |
| 43 | 2045031 | . COVER | 1 | |
| 44 | 4277474 | . PIN; STOPPER | 1 | |
| 45 | 4278168 | . BRG.; BALL | 1 | |
| 46 | 930451 | . RING; RETAINING | 1 | |
| 47 | J011230 | . BOLT; SEMS | 16 | |
| 47 | 4609016 | . BOLT; SEMS | 16 | |
| 48 | 4245797 | . PLUG | 3 | |
| 50 | 4269473 | . O-RING | 1 | |
| 51 | 4287213 | . WASHER; SPRING | 4 | |
| 52 | M341885 | . BOLT; SOCKET | 4 | |
| 54 | 3053559 | . NAME-PLATE | 1 | |
| 55 | M492564 | . SCREW; DRIVE | 2 |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
