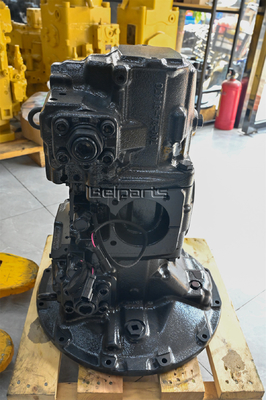

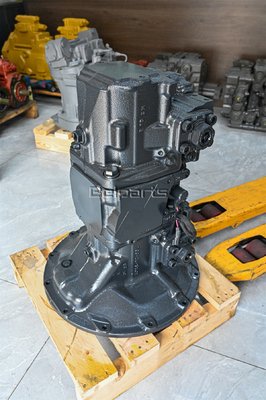

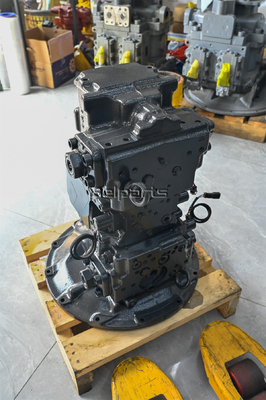

Belparts Excavator main pump PC200 PC220 PC240 PC270-8MO hydraulic main pump 708-2L-00600 708-25-01074 708-25-01073
Appliion:Excavator
Part name:hydarulic pump
Part number:708-2L-00600 708-25-01074 708-25-01073
Model:PC200 PC220 PC240 PC270-8MO
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | 708-2L-00600 708-25-01074 708-25-01073 |
| Model | PC200 PC220 PC240 PC270-8MO |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-25-01074 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01073 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01072 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01071 | PUMP ASS'Y | 1 | |
| 1 | 708-25-01070 | PUMP ASS'Y | 1 | |
| 1 | 708-25-30100 | HYDRAULIC PUMP ASS'Y | 1 | |
| 1 | (708-25-11100) | PUMP SUB ASS'Y | 1 | |
| 2 | (704-24-28201) | PUMP ASS'Y | 1 | |
| 3 | (708-23-14800) | VALVE ASS'Y,RELIEF | 1 | |
| 4 | (708-25-35100) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 5 | (708-25-36100) | SERVO VALVE ASS'Y,REAR | 1 | |
| 6 | (01010-31260) | Bolt | 2 | |
| 7 | (01602-01236) | WASHER,SPRING (SEE FIG.0202) | 2 | |
| 8 | 708-25-05030 | SHIM KIT | 1 | |
| 8 | Shim | 2 | ||
| 8 | Shim | 2 | ||
| 8 | Shim | 1 | ||
| 9 | 708-25-19111 | JOINT | 1 | |
| 10 | 07042-20108 | PLUG,(FOR W/O. CORROSION RESISTOR) | 1 | |
| 11 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 5 | |
| 12 | 07239-12410 | NUT (ITL) | 1 | |
| 13 | 07230-10422 | UNION,(WITH POWER TILT) | 1 | |
| 14 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 2 | |
| 15 | 07102-20404 | HOSE,INLET | 1 | |
| 16 | 07231-20422 | Elbow | 1 | |
| 17 | 07239-12009 | NUT,(FOR LONG LEVER CONTROL) | 1 | |
| 18 | 708-25-19120 | Flange | 1 | |
| 19 | 720-68-15240 | Filter | 1 | |
| 20 | 07000-02021 | O-RING,WATER PIPING | 1 | |
| 21 | 01010-30820 | BOLT,(SANDY? DUSTY TERRAIN SPEC.) | 2 | |
| 22 | 01602-00825 | WASHER,SPRING?(SANDY AND DUSTY SPEC.) | 2 | |
| 23 | 07044-02412 | PLUG,MAGNETIC | 3 | |
| 24 | 706-46-53260 | Plug | 2 | |
| 25 | 07002-01423 | O-RING,(CRUSHER?OTHER ATT.FOR PPC CON | 2 | |
| 26 | 708-25-19140 | Tube | 1 | |
| 27 | 706-46-53180 | BOLT,JOINT | 2 | |
| 28 | 07000-02012 | O-RING, BETWEEN VALVE AND PUMP | 4 | |
| 29 | (708-25-19130) | Bolt | 8 | |
| 30 | (01602-00825) | WASHER,SPRING (SEE FIG.0331 OR 0331A) | 8 | |
| 31 | (04020-00616) | PIN,SEE FIG. K4010-71A0 | 4 | |
| 32 | (07000-03048) | O-ring | 2 | |
| 33 | 08036-21814 | CLIP,(FOR SLAG HANDLING) (FOR USA) | 1 | |
| 34 | 04530-01018 | BOLT, EYE | 2 | |
| 35 | 07042-20108 | PLUG,(FOR W/O. CORROSION RESISTOR) | 1 | |
| 36 | 01010-31016 | BOLT,(SANDY AND DUSTY SPEC.) | 1 | |
| 37 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 1 |
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-2L-00600 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-11A0 | ||||
| 1 | 708-2L-01600 | PUMP SUB ASS'Y | 1 | |
| 1 | (*708-2L-06440) | ASS'Y,FRONT | 1 | |
| 1 | ,FRONT | 1 | ||
| 2 | Plug | 32 | ||
| 3 | 07000-B1009 | O-ring | 1 | |
| 4 | 07044-12412 | PLUG,MAGNETIC | 1 | |
| 5 | 07002-62434 | O-RING,(F2370-57A0 -42 ) | 1 | |
| 6 | 04530-11222 | BOLT, EYE - LIFTING | 1 | |
| 7 | 708-8E-16150 | Plug | 3 | |
| 8 | 07002-61023 | O-RING,(F3320-66A2 -26 ) | 3 |
