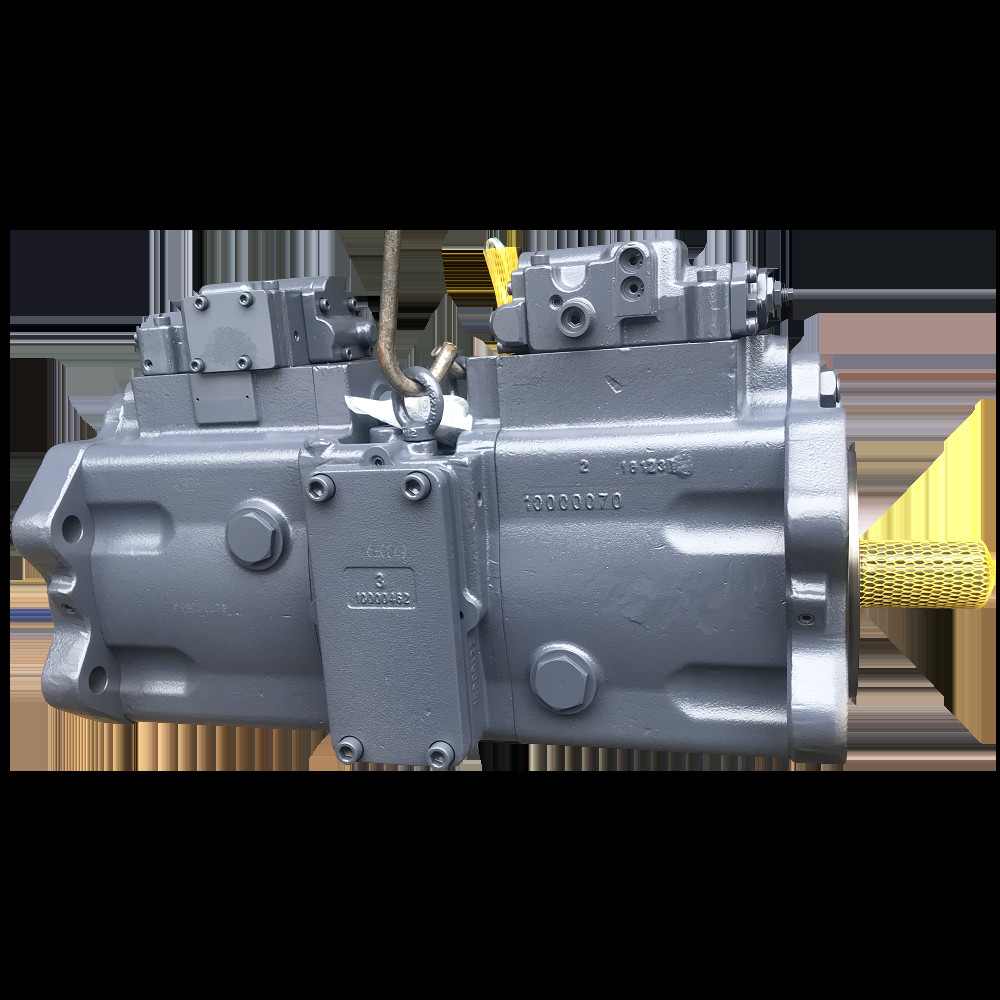

Belparts Excavator main pump ec330 ec330b hydraulic pump VOE 14531412
Appliion:Excavator
Part name:hydarulic pump
Part number:VOE 14531412
Model:ec330 ec330b
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | VOE 14531412 |
| Model | ec330 ec330b |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |

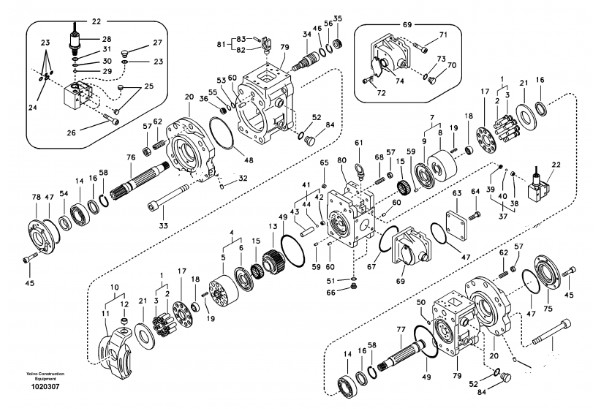

| # | Part No | Part Name | Qty. | Price request |
| 8280299 | ||||
| VOE 14531412 | Pump | 1 | ||
| 1 | SA 7223-00140 | Piston | 2 | |
| 2 | VOE 14512923 | Piston | 9 | |
| 3 | VOE 14502323 | Seat, Pad | 9 | |
| 4 | SA 7223-00780 | Cylinder | 1 | |
| 5 | VOE 14502321 | Block | 1 | |
| 6 | VOE 14502324 | Plate | 1 | |
| 7 | SA 7223-00790 | Cylinder | 1 | |
| 8 | VOE 14502321 | Block | 1 | |
| 9 | VOE 14502325 | Plate | 1 | |
| 10 | VOE 14502011 | Plate | 2 | |
| 11 | SA 7223-00220 | Plate | 1 | |
| 12 | SA 7223-00240 | Bushing | 1 | |
| 13 | VOE 14511979 | Gear | 1 | |
| 14 | VOE 14511980 | Bearing | 2 | |
| 15 | VOE 14511981 | Bearing | 2 | |
| 16 | SA 7223-00060 | Spacer | 3 | |
| 17 | SA 8230-09300 | Plate | 2 | |
| 18 | VOE 14510070 | Bushing more | 2 | |
| 19 | SA 7223-00180 | Spring | 18 | |
| 20 | SA 7223-00260 | Support | 2 | |
| 21 | SA 7223-00210 | Plate | 2 | |
| 22 | VOE 14535453 | Valve more | 1 | |
| 23 | VOE 14533606 | O-ring more | 4 | |
| 24 | VOE 14533608 | O-ring more | 1 | |
| 25 | SA 7242-11040 | Plug more | 3 | |
| 26 | SA 8230-25880 | Bolt more | 3 | |
| 27 | SA 9415-11021 | Plug more | 1 | |
| 28 | SA 8230-32080 | Valve more | 1 | |
| 29 | VOE 14535454 | O-ring more | 1 | |
| 30 | VOE 14535455 | O-ring more | 1 | |
| 31 | VOE 14535456 | O-ring more | 1 | |
| 32 | SA 7242-11040 | Plug more | 24 | |
| 33 | SA 7223-00390 | Bolt | 8 | |
| 34 | SA 7223-00410 | Piston | 2 | |
| 35 | SA 7223-00420 | Stop | 2 | |
| 36 | SA 7223-00430 | Stop | 2 | |
| 37 | SA 7223-00450 | Check valve more | 2 | |
| 38 | VOE 14535204 | Seat | 1 | |
| 39 | VOE 14535205 | Stop | 1 | |
| 40 | VOE 14880998 | Ball more | 1 | |
| 41 | VOE 14540760 | Check valve | 2 | |
| 42 | VOE 14535204 | Seat | 1 | |
| 43 | VOE 14540758 | Stop | 1 | |
| 44 | VOE 14880998 | Ball more | 1 | |
| 45 | VOE 967630 | Allen Hd Screw more | 8 | |
| 46 | SA 7223-00690 | O-ring | 2 | |
| 47 | VOE 14533617 | O-ring | 3 | |
| 48 | VOE 14533034 | O-ring | 2 | |
| 49 | VOE 14533035 | O-ring | 2 | |
| 50 | VOE 14533604 | O-ring | 16 | |
| 51 | VOE 14533606 | O-ring more | 4 | |
| 52 | VOE 14533612 | O-ring | 3 | |
| 53 | SA 7223-00700 | O-ring | 2 | |
| 54 | VOE 14535388 | Seal | 1 | |
| 55 | SA 7223-00640 | Ring | 2 | |
| 56 | SA 7223-00650 | Ring | 2 | |
| 57 | VOE 979022 | Nut more | 4 | |
| 58 | VOE 914470 | Snap Ring more | 2 | |
| 59 | SA 7242-10560 | Pin | 2 | |
| 60 | SA 7223-00660 | Spring Pin | 4 | |
| 61 | VOE 14880555 | Eye Bolt | 2 | |
| 62 | SA 7223-00670 | Set Screw | 2 | |
| 63 | VOE 14511994 | Cover | 1 | |
| 64 | SA 9016-11206 | Bolt more | 4 | |
| 65 | VOE 14512382 | Plug | 12 | |
| 66 | SA 9415-11021 | Plug more | 2 | |
| 67 | VOE 14540757 | O-ring | 1 | |
| 68 | SA 7223-00680 | Set Screw | 2 | |
| 69 | VOE 14512927 | Power Take-off | 1 | |
| 70 | SA 9415-11051 | Plug more | 1 | |
| 71 | SA 8240-03470 | Bolt | 4 | |
| 72 | SA 8240-03450 | Bolt | 2 | |
| 73 | VOE 983524 | O-ring more | 1 | |
| 74 | SA 9511-22080 | O-ring more | 1 | |
| 75 | VOE 14512544 | Cover | 1 | |
| 76 | VOE 14511977 | Shaft | 1 | |
| 77 | VOE 14511978 | Shaft | 1 | |
| 78 | SA 7223-00280 | Cover | 1 | |
| 79 | VOE 14540759 | Casing | 2 | |
| 80 | VOE 14511982 | Block | 1 | |
| 81 | VOE 14506634 | Pin | 2 | |
| 82 | SA 7223-00400 | Pin | 1 | |
| 83 | SA 7223-00570 | Pin | 1 | |
| 84 | SA 9415-11051 | Plug more | 4 | |
| 100 | VOE 14540777 | Sealing Kit | 1 |
The main machine model as below:
| Brand | Model |
|
PC40, PC60-5-6-7, PC100, PC120, PC130, PC240, PC270, PC300,PC360,PC400,PC450,PC650,PC1250 PC200-1-3-5-6, PC220-1-3-5, PC300-3-5, PC400-1-3-5, D20, D30, D31, D50, D60, D75, D80 (D85), D155 |
|
| Hitachi |
EX40, EX60, EX150, EX100M, EX100, EX120, EX150, EX200-1-2-3, EX300-1-3-5, EX400, ZX450,ZX470,ZX870,ZX1200 |
| EC55/60, EC140,EC210, EC240, EC290, EC360, EC460, EC700 | |
| Doosan | DH215, DH220, DH260, DH280, DH300, DH370, DH420, DH450, DH500 |
| Hyundai | R200, R210, R225, R265, R335, R455, R505 |
| Kato | HD250, HD400 (HD450), HD500, HD550, HD700 (HD770), HD800, HD820, HD850, DH880, HD1020, HD1220 (HD1250), HD1430, DH1880 |
| Kobelco | SK200,SK210, SK220,SK260, SK300, SK330, SK350, SK450,SK460,SK480,SK800 |
| Sumitomo | SH120, SH200, SH280, SH300, SH350, SH400, SH450, SH460, SH700 |
More machine model are available as below:
excavator hydraulic main pump, excavator main pump, piston pump for excavator: PC20,PC25,PC18,PC30,PC40,PC55,PC50UR,PC60,PC75,PC78,PC90,PC100,PC110,PC120,PC130-6,PC140,PC150-5,PC160,PC180,PC200-6,
Sumitomo hydraulic pump, sumitomo excavator main pump: SH55,SH60,SH75,SH90,SH100,SH120-1/2/3/5,SH160,SH180,SH200-1/A3 SH220 SH300-2 LS2650FJ-2 LS2800CJ/DJ/EJ/FJ-2 LS2800FJ2 LS2800F2 LS3400EA LS3400FJ LS5800FJ
Kato main hydraulic pump, crane hydraulic pump parts: HD250SE-2,HD250-5/7,KD400SE-2,HD400SEN2,HD400-5/7 HD450-5/7,HD510,HD512,HD550-5/7,HD700-2/5,HD700-7,HD770-1,HD770-2,HD800-5,HD800-7,HD820-1/2/3,HD880,HD850,HD900-5/7,HD1023,HD1220SE-2,HD1250-5,HD1430,HD1880-7,HD900-7,HD1880
excavator piston pump, hydraulic pump:EC55,EC60,EC70,EC75,EC90,EC110,EC120,EC130,EC160,EC210B,EC240B,EC240B,EC260B,EC280,EC290B,EC320,EC360B,EC380,EC420,EC460B
doosan hydraulic pump, doosan hydraulic pump for excavator: Solar S55 DH55-5, S60, SOLAR 130, SOLAR140,SOLAR160, DH220-2 DH220-3 DH220-5 DH225-7 DH280-3 DH320 DH320-2/3 DH450 DH130-7 DH280
Bob hydraulic pump, final drive for bob :MX331,MX337,MX341,E50,E32,E35,E43,E80,MX325,MX328,MX334,MX430,E26,E62,E45,E38,MXE32
IHI excavator complete final drive:IHI25,IHI35,IHI45,IHI55,IHI60,IHI80,IHI75,IHI100,IHI120,IHI140,IHI160,IHI175,IHI185
