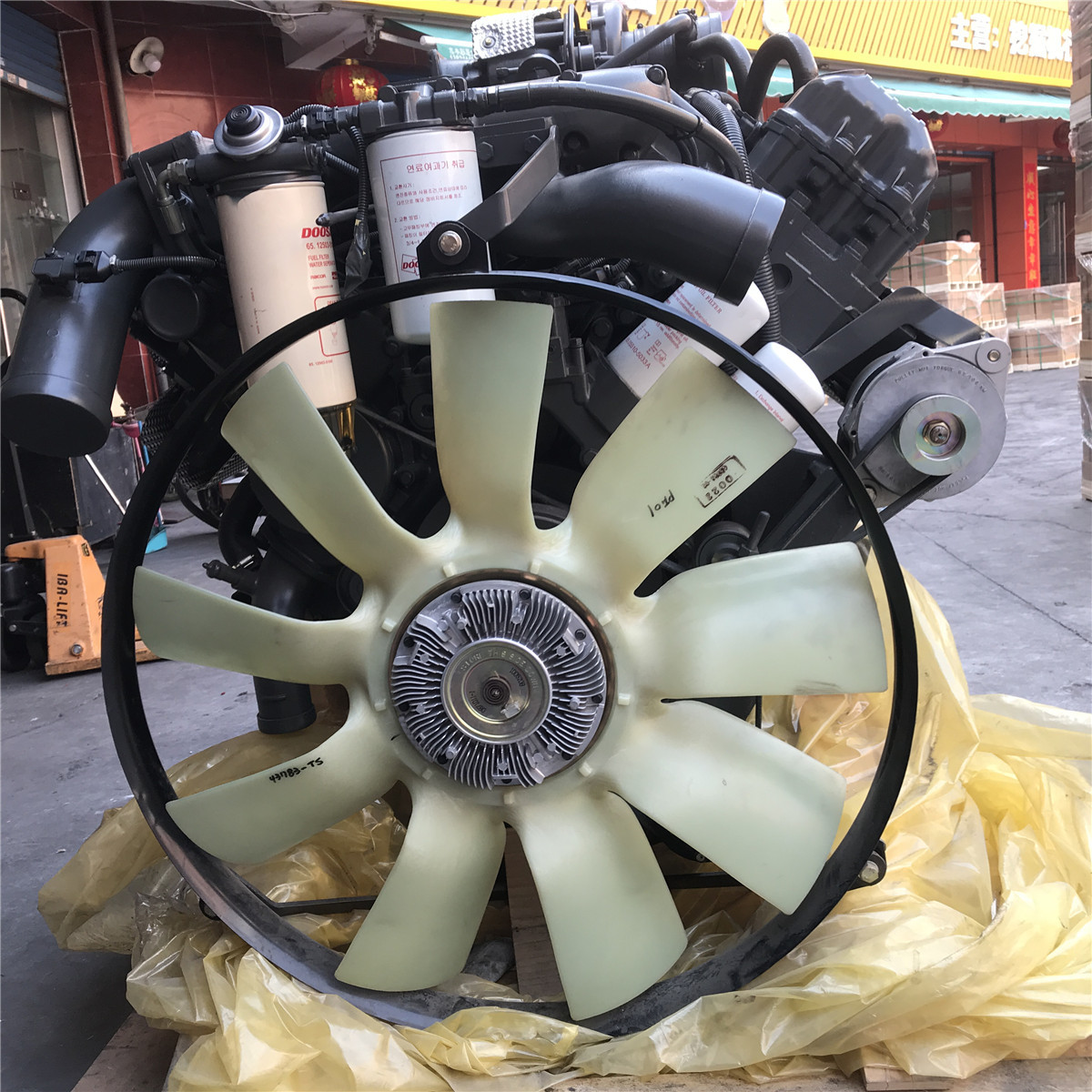

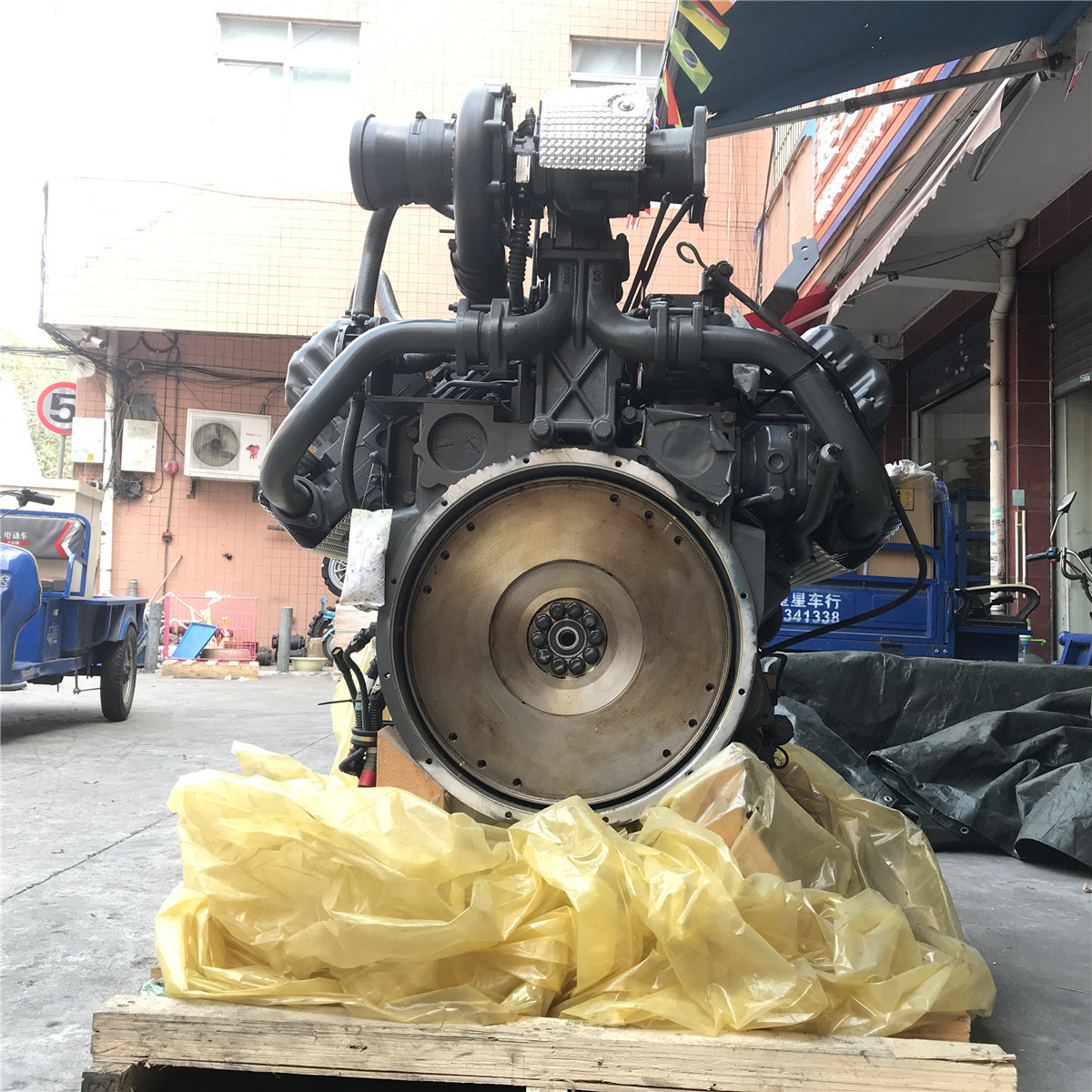

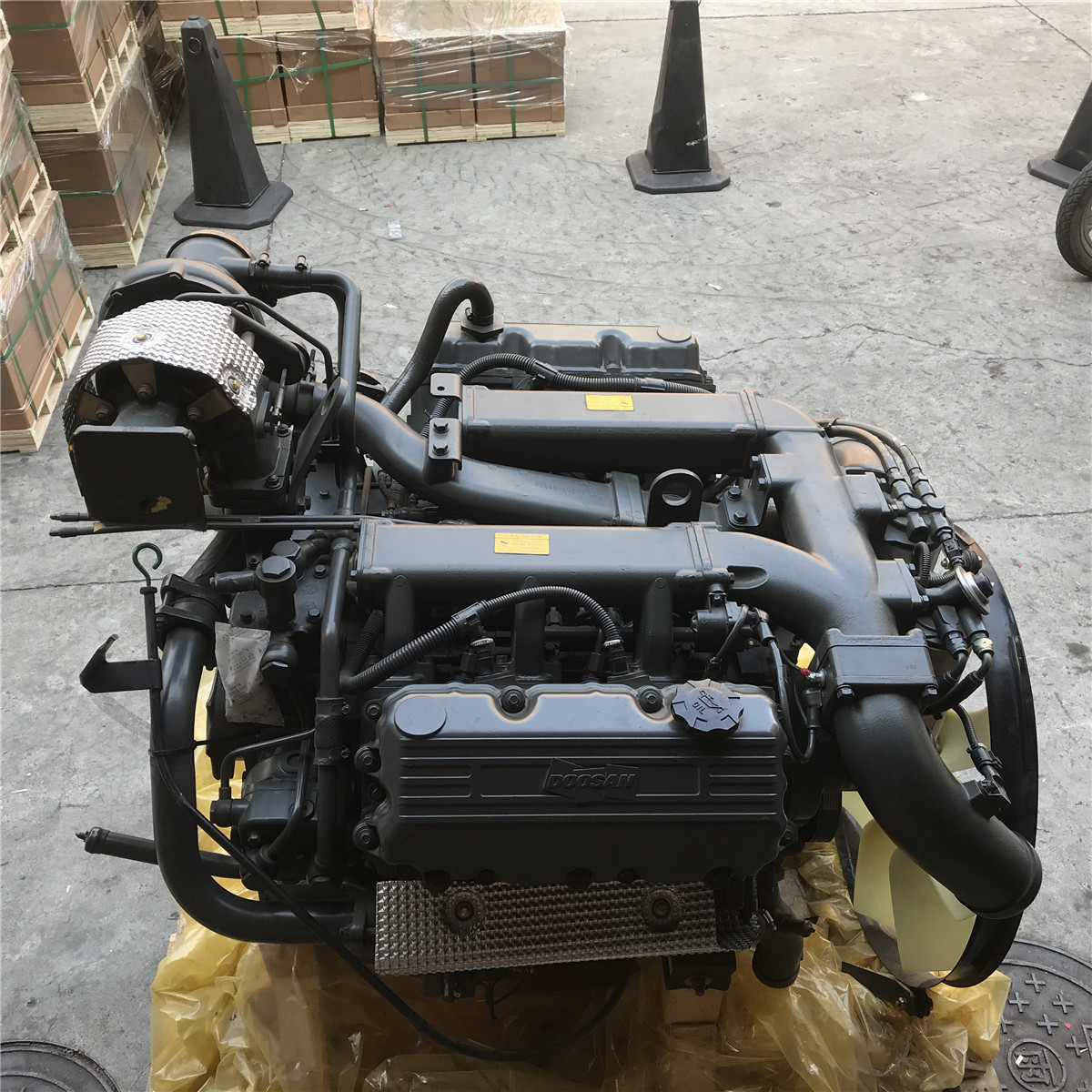

Product Name:Engine Assembly
Brand:Belparts
Machine model:DX480
Part Number:K1005735B
N.W/KG:130KG
G.W/KG:140KG
Packing Size:84*38*49
Part number:/
Pressure:Standard, High Pressure
| Product Name | Engine Assembly |
| Brand | Belparts |
| Machine model | DX480 |
| Part Number | K1005735B |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | / |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Comment | Qty. | Price request |
| 12 | 553-00001D6 | CABLE, ENGINE EARTH | 1 | ||
| - | K1005735B | ASSEMBLY, ELECTRIC, ENGINE | |||
| 1 | 544-00007 | RELAY, PREHEAT | 1 | ||
| 1A | 527-00005 | FUSE , PREHEAT RELAY | 1 | ||
| 2 | S0504403 | BOLT (M6X1.0X12) | 2 | ||
| 3 | S5102303 | WASHER, SPRING | 2 | ||
| 4 | K1002467 | BRACKET | 1 | ||
| 5 | 2197-1661 | BRACKET, HOUSING | 1 | ||
| 6 | 2120-2187 | BOLT, STUD | 3 | ||
| 7 | S5102503 | WASHER, SPRING | 3 | ||
| 8 | 124-00208D7 | CLIP | 1 | ||
| 9 | K1002533B | HARNESS, ENGINE | 2 kg | 1 | |
| 9 | K1002533C | HARNESS, ENGINE | 1 | ||
| 10 | 124-00208D3 | CLIP | 5 | ||
| 11 | K1001029 | BOLT | 3 | ||
| 13 | S5010613 | WASHER, PLAIN(M10) | 1 | ||
| 14 | S5102603 | WASHER, SPRING, M10 | 1 | ||
| 15 | S0511853 | BOLT(M10X1.5-20) | 1 | ||
| 16 | 2124-1353D3 | CLIP | 1 |
