Material:Steel
Product Name: Excavator Hydraulic Cylinder Assy
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Part number:31N6-60110
Package Details:Export Wooden Box
Weight:110KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Product Name | Arm cylinder assy |
| Brand | Belparts |
| Machine model | R210-7 R210LC-7 |
| Part Number | 31N6-60110 |
| N.W/KG | 110KG |
| G.W/KG | 110KG |
| Packing Size | 84*38*49 |
| Part number | 31N6-60110 |
| Pressure | Standard, High Pressure |

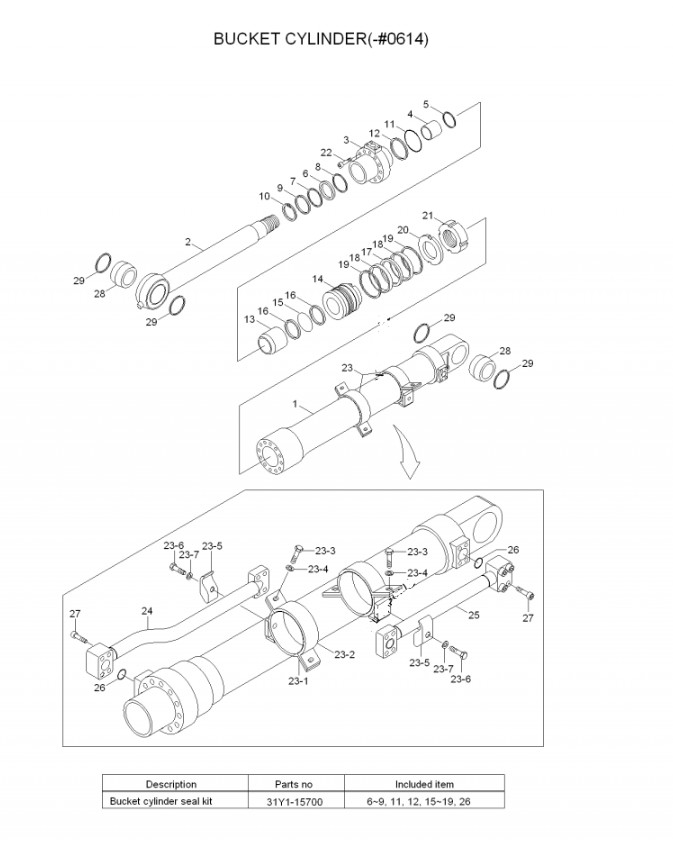

| # | Part No | Part Name | Qty. | Price request |
| * | 31N6-60110 | CYLINDER ASS'Y | 1 | |
| *-1 | 31Y1-15550 | BUCKET CYL SUB ASSY WITHOUT PIPE |
1 | |
| 1 | 31Y1-15560 | TUBE ASSY | 1 | |
| 2 | 31Y1-15610 | ROD ASSY | 1 | |
| 3 | 31Y1-15640 | GLAND | 1 | |
| 4 | S732-085030 | BUSHING-DD2 | 1 | |
| 5 | Y191-092000 | RING-SNAP | 1 | |
| K6 | Y220-085011 | SEAL-ROD | 1 | |
| K7 | Y180-085020 | RING-BACK UP | 1 | |
| K8 | Y240-085013 | RING-BUFFER | 1 | |
| K9 | Y110-085011 | WIPER-DUST,DKBI,DLW | 1 | |
| 10 | Y190-099000 | RING-SNAP | 1 | |
| K11 | S631-115004 | O-RING | 1 | |
| K12 | S641-115003 | RING-BACK UP | 1 | |
| 13 | 31YC-23020 | RING-CUSHION | 1 | |
| 14 | 31Y1-15650 | PISTON | 1 | |
| K15 | S632-075004 | O-RING | 1 | |
| K16 | S642-075003 | RING-BACK UP | 2 | |
| K17 | Y420-125000 | SEAL-PISTON | 1 | |
| K18 | Y310-125000 | RING-WEAR | 2 | |
| K19 | Y440-125000 | RING-DUST | 2 | |
| 20 | 31YC-66041 | WASHER-LOCK | 1 | |
| 21 | 31YC-61243 | NUT-LOCK | 1 | |
| 22 | S109-160804 | BOLT-SOCKET | 12 | |
| 28 | 31YC-11240 | BUSHING-PIN | 2 | |
| 29 | Y000-080200 | SEAL-DUST | 4 | |
| 23 | 31Y1-15660 | BAND ASSY | 2 | |
| 23-1 | 31Y1-15670 | BAND SUB ASS'Y | 1 | |
| 23-2 | 31YC-31120 | BAND | 1 | |
| 23-3 | S011-100352 | BOLT-HEX | 2 | |
| 23-4 | S411-100002 | WASHER-SPRING | 2 | |
| 23-5 | 31YC-36010 | CLAMP-PIPE | 1 | |
| 23-6 | S015-120502 | BOLT-HEX | 1 | |
| 23-7 | S411-120002 | WASHER-SPRING | 1 | |
| 24 | 31Y1-15680 | PIPE ASSY-R | 1 | |
| 25 | 31Y1-15690 | PIPE ASSY-B | 1 | |
| K26 | Y171-019004 | O-RING(AN ??) | 2 | |
| 27 | S107-100454 | BOLT-SOCKET HEAD | 8 | |
| K | 31Y1-15700 | SEAL KIT SEE ILLUST |
1 |

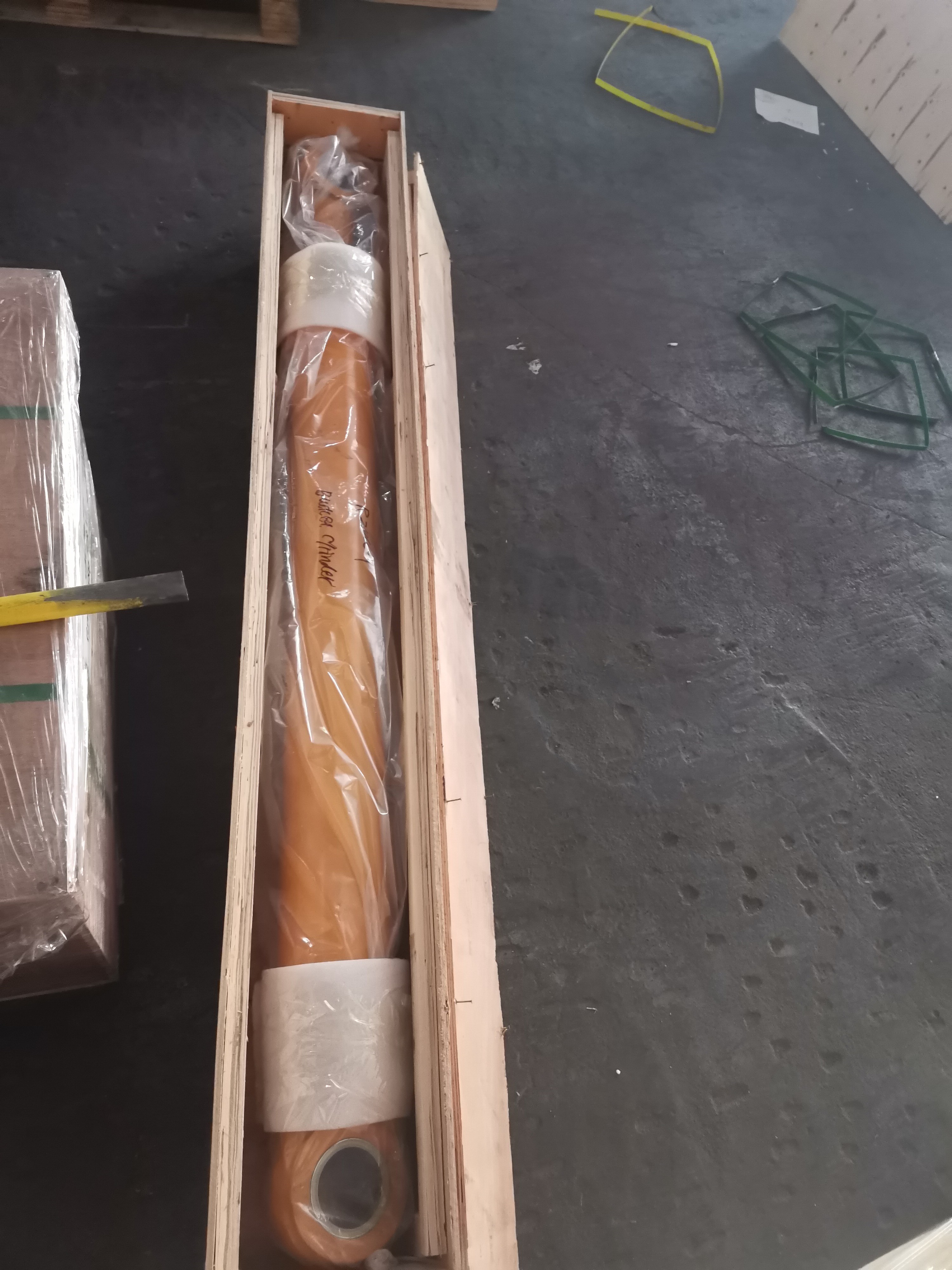

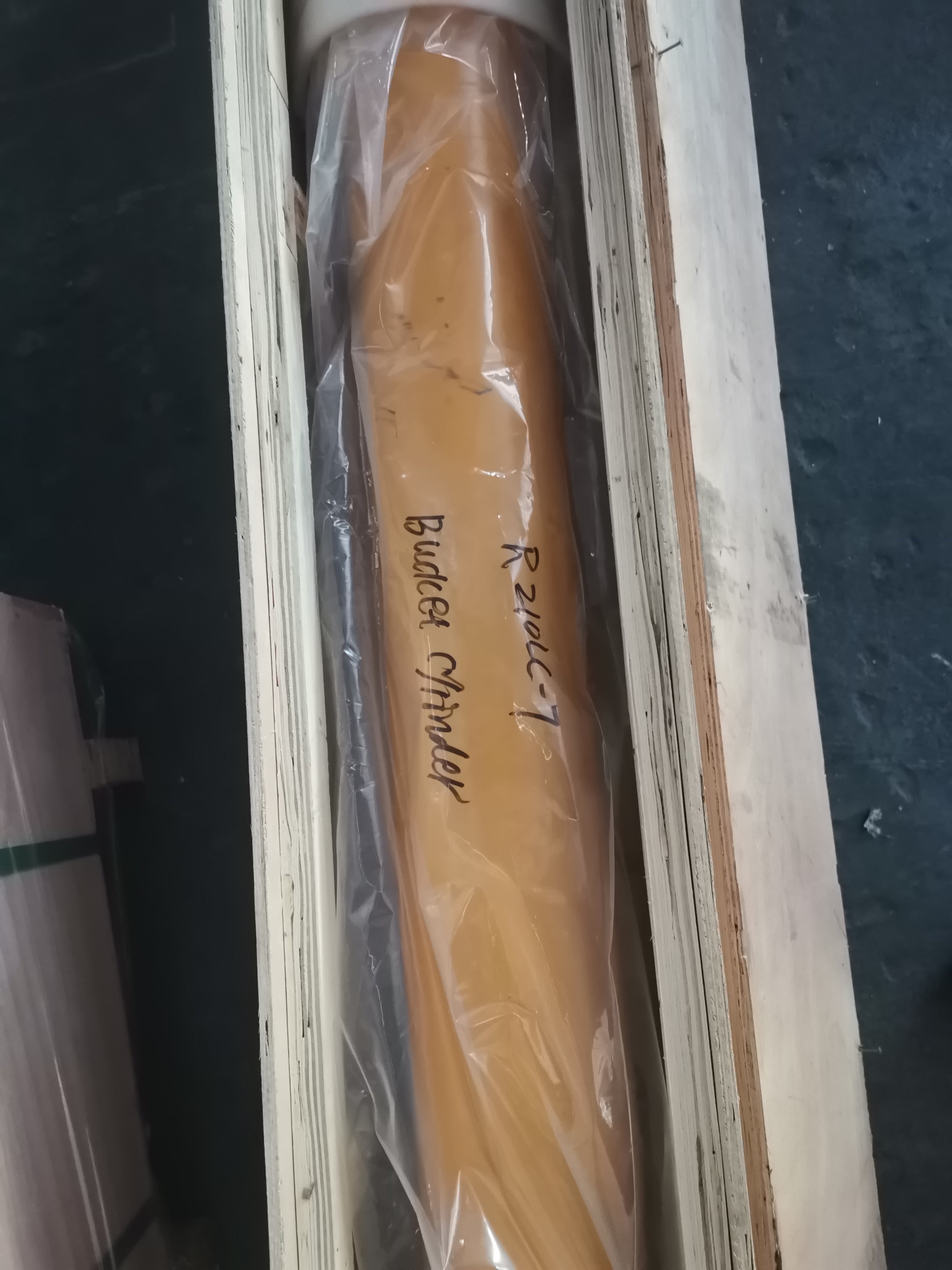

1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. goods is packed by oil paper and plastic bags inside
6.using wooden package.
7.we support the custom-made demand for package
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
