Material:Steel

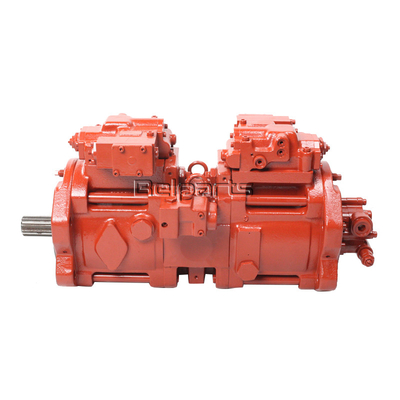

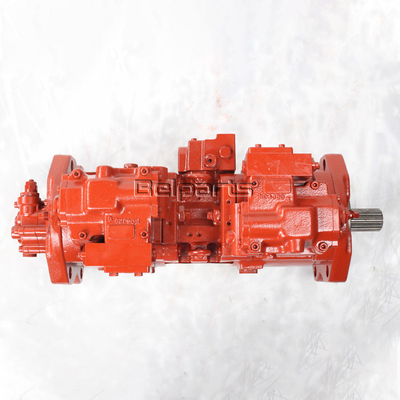

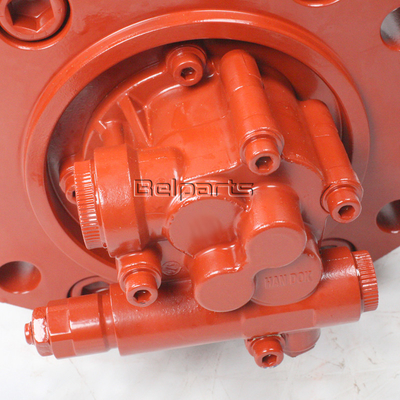

Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:708-25-04051
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | komatsu |
| Machine model | pc200-5 |
| Pump Number | / |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | 708-25-04051 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| G-1 | (20Y-60-X1261) | PUMP GROUP | 1 | |
| ==================== | ||||
| 1 | (708-25-04051) | PUMP ASS'Y | 1 | |
| 1 | 708-25-04014 | PUMP ASS'Y | 1 | |
| 1 | (708-25-04013) | PUMP ASS'Y | 1 | |
| 1 | (708-25-04012) | PUMP ASS'Y | 1 | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 TO 6151 | ||||
| 1 | (708-25-04151) | PUMP SUB ASS'Y | 1 | |
| 1 | 708-25-04112 | PUMP SUB ASS'Y | 1 | |
| 1 | (708-25-04111) | PUMP SUB ASS'Y | 1 | |
| 2 | (704-24-28230) | PUMP ASS'Y | 1 | |
| 3 | (708-25-04311) | RELIEF VALVE ASS'Y | 1 | |
| 4 | 01010-31260 | BOLT, TRUNNION CAP | 2 | |
| 5 | 01643-31232 | WASHER,(NOT USED WITH EMERGENCY STR.) | 2 | |
| 6 | 708-25-19220 | TEE | 1 | |
| 7 | 07040-11007 | PLUG,HOUSING NO.2?3?4?5?6 | 1 | |
| 8 | 07002-01023 | O-RING,(F4320-61A0 -29 ) | 1 | |
| 9 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 10 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 | |
| 11 | 07102-20404 | HOSE,INLET | 1 | |
| 12 | 07235-10422 | ELBOW,(NOT USED WHEN (B) SPEC.) | 1 | |
| 13 | 708-25-19120 | Flange | 1 | |
| 14 | 720-68-15240 | Filter | 1 | |
| 15 | 07000-02021 | O-RING,WATER PIPING | 1 | |
| 16 | 01010-30820 | BOLT,(SANDY? DUSTY TERRAIN SPEC.) | 2 | |
| 17 | 01643-50823 | WASHER,(FOR SHIPPING) | 2 | |
| 18 | (708-25-04521) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 18 | 708-25-04520 | SERVO VALVE ASS'Y,FRONT | 1 | |
| (708-25-04521{708-25-04613)} | ||||
| 19 | (708-25-04613) | SERVO VALVE ASS'Y,REAR | 1 | |
| 19 | 708-25-04612 | SERVO VALVE ASS'Y,REAR | 1 | |
| (708-25-04613{708-25-04521)} | ||||
| 20 | 706-46-53260 | Plug | 2 | |
| 21 | 07002-01423 | O-RING,(CRUSHER?OTHER ATT.FOR PPC CON | 2 | |
| 22 | 708-25-19140 | Tube | 1 | |
| 23 | 706-46-53180 | BOLT,JOINT | 2 | |
| 24 | 07000-02012 | O-RING, BETWEEN VALVE AND PUMP | 4 | |
| 25 | 708-25-19130 | Bolt | 8 | |
| 26 | 01602-00825 | WASHER,SPRING?(SANDY AND DUSTY SPEC.) | 8 | |
| 27 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 28 | 708-25-32730 | Coupling | 1 | |
| 29 | 704-28-02710 | O-ring | 1 |
Highest standard to suit western country operators' use
ISO quality control manufacturing
Free and efficient communiion
Quick and professional response
Patient and responsible before-sale and after-sale services
Over 40 years experiences on metal fabriion, hydraulics apply and control and consultancy in Australia
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
FAQ
