Material:Steel

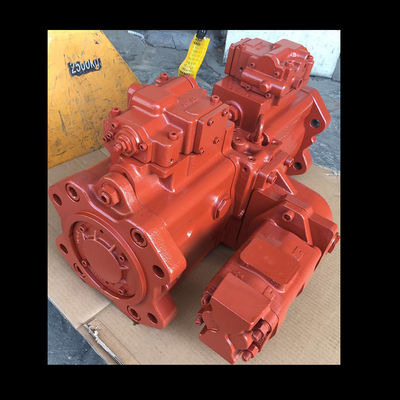

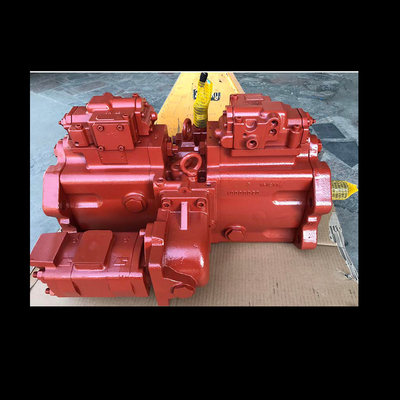

Product Name: Excavator Main Hydraulic Pump
Part number:SA 7220-00700
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
Brand:
Product Name | Excavator Hydraulic Pump |
Brand | Belparts |
Machine model | ec360 ec210blc ec460 |
Pump Number | / |
N.W/KG | 130KG |
G.W/KG | 140KG |
Packing Size | 84*38*49 |
Part number | SA 7220-00700 |
Pressure | Standard, High Pressure |
# | Part No | Part Name | Qty. | Price request |
SA 7220-00700 | Pump | 1 | ||
1 | SA 7223-00140 | Piston | 2 | |
2 | SA 7223-00150 | Piston | 9 | |
3 | SA 7223-00160 | Pad | 9 | |
4 | SA 7223-00780 | Cylinder | 1 | |
5 | SA 7223-00090 | Block | 1 | |
6 | SA 7223-00360 | Plate | 1 | |
7 | SA 7223-00790 | Cylinder | 1 | |
8 | SA 7223-00090 | Block | 1 | |
9 | SA 7223-00370 | Plate | 1 | |
10 | SA 7223-00820 | Valve more | 1 | |
11 | SA 7223-00010 | Shaft | 1 | |
12 | SA 7223-00020 | Shaft | 1 | |
13 | SA 7223-00030 | Connector | 1 | |
14 | SA 7223-00040 | Roller Bearing | 2 | |
15 | SA 7223-00050 | Needle Bearing | 2 | |
16 | SA 7223-00060 | Spacer | 3 | |
17 | SA 7242-10210 | Plate | 2 | |
18 | SA 7242-10150 | Bushing | 2 | |
19 | SA 7223-00180 | Spring | 18 | |
20 | SA 7223-00200 | Spacer | 2 | |
21 | SA 7223-00210 | Plate | 2 | |
22 | SA 14506635 | Plate | 2 | |
23 | SA 7223-00220 | Plate | 1 | |
24 | SA 7223-00240 | Bushing | 1 | |
25 | SA 7223-00280 | Cover | 1 | |
26 | SA 7223-00290 | Casing more | 2 | |
27 | SA 7223-00310 | Block | 1 | |
28 | VOE 14506634 | Pin | 2 | |
29 | SA 7223-00400 | Pin | 1 | |
30 | SA 7223-00570 | Pin | 1 | |
31 | SA 9415-11051 | Plug more | 3 | |
32 | SA 7242-11040 | Plug more | 29 | |
33 | SA 7223-00390 | Bolt | 8 | |
34 | SA 7223-00410 | Piston | 2 | |
35 | SA 7223-00420 | Stop | 2 | |
36 | SA 7223-00430 | Stop | 2 | |
37 | SA 7223-00480 | Check valve | 2 | |
38 | SA 7223-00510 | Seat | 1 | |
39 | SA 7223-00530 | Stop | 1 | |
40 | SA 9676-73200 | Ball more | 1 | |
41 | SA 7223-00490 | Check valve | 2 | |
42 | SA 7223-00510 | Seat | 1 | |
43 | SA 7223-00550 | Stop | 1 | |
44 | SA 9676-73200 | Ball more | 1 | |
45 | SA 9016-10804 | Bolt more | 4 | |
46 | SA 7223-00690 | O-ring | 2 | |
47 | SA 9511-22105 | O-ring more | 1 | |
48 | SA 7223-00590 | O-ring | 2 | |
49 | SA 7223-00600 | O-ring | 2 | |
50 | SA 9511-12008 | O-ring more | 16 | |
51 | SA 9511-12011 | O-ring more | 3 | |
52 | SA 9511-12024 | O-ring more | 3 | |
53 | SA 7223-00700 | O-ring | 2 | |
54 | SA 7223-00710 | Seal | 1 | |
55 | SA 7223-00640 | Ring | 2 | |
56 | SA 7223-00650 | Ring | 2 | |
57 | SA 9111-12000 | Nut more | 4 | |
58 | SA 9541-01045 | Snap Ring more | 2 | |
59 | SA 7242-10560 | Pin | 2 | |
60 | SA 7223-00660 | Spring Pin | 4 | |
61 | SA 9031-11200 | Eye Bolt more | 2 | |
62 | SA 7223-00670 | Set Screw | 2 | |
63 | SA 7223-00680 | Set Screw | 2 | |
64 | SA 7223-00260 | Support | 2 | |
65 | SA 9415-11021 | Plug more | 1 | |
100 | SA 8148-15050 | Sealing Kit more | 1 |
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
