Product Description
| Part |
hydraulic main control valve |
| Model |
SK250 |
| Part number |
/ |
| Product Name |

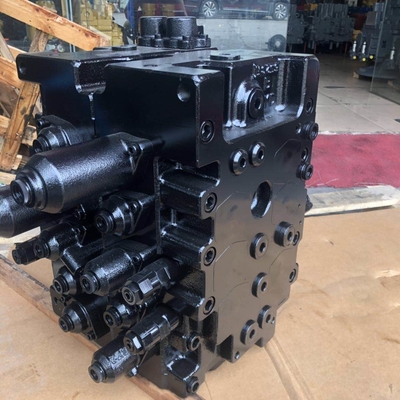

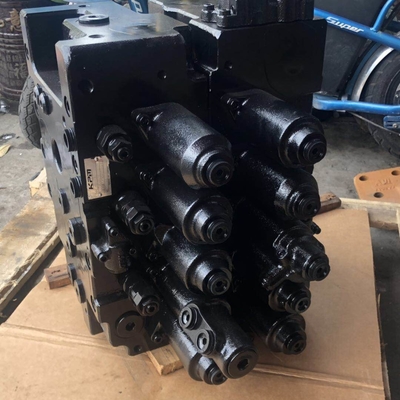

Kobelco excavator hydraulic main control valve |
| Brand |
kebelco |
| Package |
58*54*68 |
| Shipment |
by sea, by air, by express or as required |
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 2436U2816F2 | [1] | CONTROL VALVE | KOB ASSY, CONSISTS OF THE FOLLOWING PARTS: |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CON BLOCK, TRAVEL |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 103. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 152. | 2436U1165S152 | [27] | PLUG | KOB |
| 153. | 2441U732S461 | [3] | PLUG | KOB PLUG Superseded by part number: 2436U2080S8 |
| 154. | 2436U1165S154 | [6] | PLUG | KOB |
| 156. | 2436U1165S156 | [4] | PLUG | KOB |
| 157. | 2436U1165S157 | [2] | PLUG | KOB Superseded by part number: 2436U1265S157 |
| 158. | 2436U1207S155 | [5] | PLUG | KOB |
| 161. | ZD12P03800 | [8] | O-RING | KOB ID 37.70 ± 0.37 x OD 44.7mm |
| 162. | 2436U1345S162 | [6] | O-RING | KOB |
| 163. | ZD12P01500 | [2] | O-RING | KOB ID 14.80 ± 0.20 x OD 19mm |
| 164. | ZD12P01400 | [7] | O-RING | KOB ID 13.80 ± 0.19 x OD 18mm |
| 166. | ZD12P01100 | [3] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 168. | ZD12P00800 | [5] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 171. | 2436U1219S153 | [1] | PLUG | KOB |
| 172. | ZD12P01800 | [1] | O-RING | KOB ID 17.8mm x OD 20.2mm |
| 201. | 2436U1165S201 | [3] | COVER | KOB |
| 202. | 2436U1434S202 | [2] | COVER | COVER |
| 203. | 2436U1165S203 | [2] | COVER | KOB |
| 205. | 2436U1165S205 | [1] | COVER | KOB |
| 206. | 2436U1165S206 | [1] | COVER | KOB |
| 207. | 2436U2598S207 | [2] | COVER | KOB |
| 251. | 2436U1165S251 | [5] | PLUG | KOB |
| 261. | 2436U1372S261 | [3] | O-RING | KOB Superseded by part number: YN30V00079S261 |
| 263. | ZD12G04500 | [3] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOB ID 44.40 ± 0.41 x OD 50mm |
| 264. | ZD12P00800 | [3] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 265. | ZD12G02500 | [5] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOB ID 24.4 ± 0.25 x OD 30mm |
| 266. | 2436U1457S162 | [4] | O-RING,2mm Thk x 39.5mm ID, 90 Duro | KOB |
| 273. | ZS23C08025 | [20] | SCREW,Hex Socket Head, M8 x 25mm | KOB M08x1.25x25mm |
| 301. | 2436U2624S19 | [2] | SPOOL | KOB |
| 302. | 2436U2521S302 | [1] | SPOOL | KOB |
| 303. | 2436U2521S303 | [1] | SPOOL | KOB ASSY. |
| 304. | 2436U2521S304 | [1] | SPOOL | KOB |
| 305. | 2436U1312S305 | [1] | SPOOL | KOB |
| 306. | 2436U2521S306 | [2] | SPOOL | KOB |
| 307. | 2436U1231S16 | [1] | SPOOL | KOB |
| 308. | 2436U2585F1 | [1] | VALVE PRESSURE RELIE | KOB SEQUENCE, SEE P. 2436U2585-1 |
| 322. | 2436U1165S371 | [1] | SPRING | KOB |
| 323. | 2436U1231S323 | [1] | SPRING | KOB |
| 324. | 2436U1165S324 | [1] | SPRING | KOB |
| 325. | 2436U1165S325 | [1] | SPRING | KOB |
| 326. | 2436U1165S373 | [2] | SPRING | KOB |
| 327. | 2436U1231S18 | [2] | SPRING | KOB |
| 328. | 2436U2624S328 | [2] | SPRING | KOB |
| 329. | 2436U2624S329 | [2] | SPRING | KOB |
| 331. | 2436U1434S331 | [4] | SPRING SEAT | KOB |
| 332. | 2436U1165S332 | [6] | SPRING SEAT | KOB Superseded by part number: 2436U1443S332 |
| 333. | 2436U1434S333 | [2] | SET SCREW | KOB |
| 334. | 2436U1434S338 | [2] | STOP | KOB |
| 335. | 2436U1165S335 | [2] | STOP | KOB PIPE |
| 336. | 2436U1165S336 | [3] | BOLT | KOB |
| 337. | 2436U1165S337 | [5] | ROD | KOB |
| 338. | 2436U1165S338 | [1] | STOP | KOB |
| 351. | 2436R885S13 | [4] | ORIFICE | KOB |
| 353. | 2436U1165S353 | [1] | PISTON | KOB PISTON |
| 354. | 2436U1165S354 | [1] | SPRING | KOB |
| 355. | 2436U1165S355 | [1] | PISTON | KOB PISTON Superseded by part number: 2436U1265S355 |
| 371. | 2436U1165S371 | [2] | SPRING | KOB |
| 372. | 2436U1165S372 | [2] | SPRING | KOB |
| 374. | 2436U1165S374 | [2] | SPRING | KOB |
| 377. | 2436U1231S373 | [1] | SPRING | KOB |
| 378. | 2436U2597S14 | [1] | SPRING | SPRING |
| 391. | 2436U1231S391 | [1] | SPOOL | KOB |
| 511. | 2436U1165S511 | [8] | POPPET | KOB |
| 512. | 2483U172S19 | [6] | BALL | KOB |
| 513. | 2436U1304S513 | [1] | POPPET | KOB |
| 521. | 2436U1165S521 | [9] | SPRING | KOB |
| 541. | 2436U1165S541 | [1] | SEAT/SLOT | KOB |
| 542. | 2436U1265S542 | [1] | SEAT/SLOT | KOB |
| 543. | 2436U1304S543 | [1] | SEAT/SLOT | KOB |
| 544. | 2436U1265S543 | [1] | SEAT/SLOT | KOB |
| 551. | 2436U1165S551 | [1] | PLUG | KOB |
| 552. | 2436U1304S552 | [1] | PLUG | KOB Superseded by part number: 2436U1165S552 |
| 561. | ZD12P02400 | [1] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 562. | ZD12P01000 | [1] | O-RING | KOB ID 09.80 ± 0.17 x OD 13mm |
| 601. | 2436U1306F2 | [1] | VALVE PRESSURE RELIE | KOB RELIEF, SEE P. 2436R752-1, 2 |
| 602. | 2436R683F3 | [1] | VALVE | KOB VALVE, RELIEF, SEE P. 2436R683-1 |
| 603. | 2436R837F3 | [1] | VALVE PRESSURE RELIE | KOB SEE P. 2436R837-1 |
| 611. | 2436R685F3 | [1] | VALVE PRESSURE RELIE | KOB RELIEF, SEE P. 2436R685-1 |
| 612. | 2436U1454S612 | [1] | POPPET | KOB |
| 711. | 2436U1207S851 | [1] | PLUG | KOB |
| 712. | ZD12P02400 | [1] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 971. | 2436U1443S971 | [1] | CAPSCREW | |
| 972. | 2436U1165S972 | [1] | CAPSCREW | |
| 973. | 2436U1443S973 | [1] | SCREW | KOB CAP Superseded by part number: 2436U1165S973 |
| 974. | 2436U1165S974 | [1] | SCREW | KOB |
| 975. | NSS | [1] | NOT SOLD SEPARAT | CON NAME PLATE |
