Product Description
| Part |

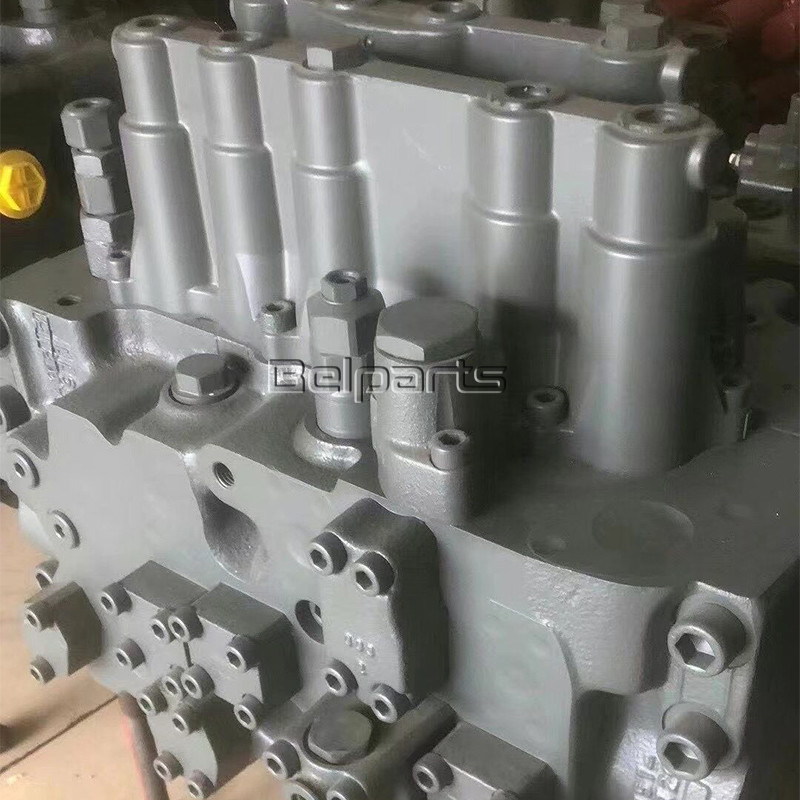

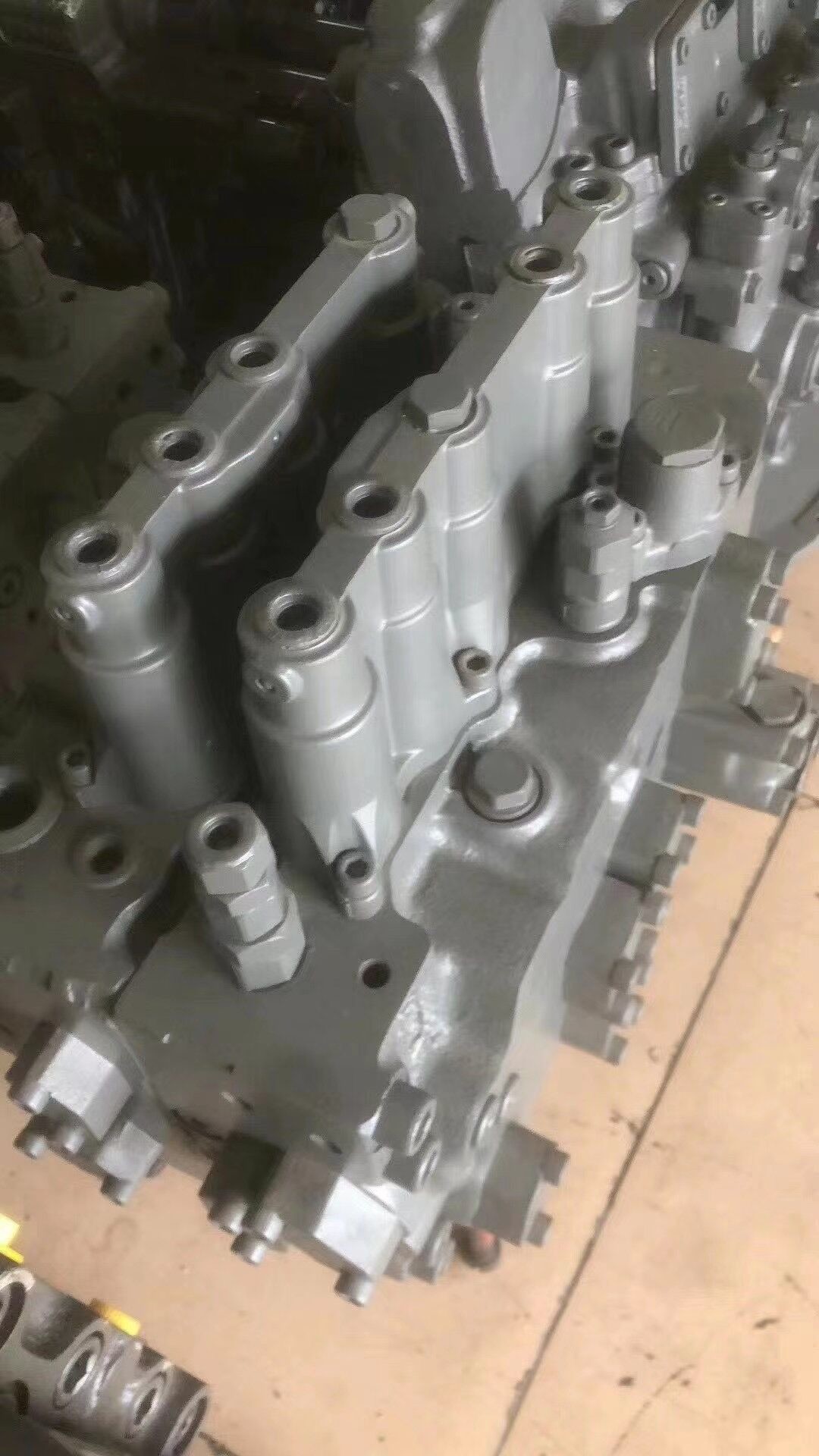

hydraulic main control valve |
| Model | ZX330-5G |
| Part number |
4625137 |
| Product Name |
Control Valve Ass'y |
| Weight216 |
216KG |
| Package |
89*98*77 |
| Shipment |
by sea, by air, by express or as required |
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 4433970 | VALVE; CONTROL (1/6) | 1 | |
| 101 | . CASING | 1 | |
| 102 | . CASING | 1 | |
| 154 | 0718901 | . PLUG | 1 |
| 160 | 0263019 | . PLUG | 6 |
| 164 | 4509180 | . O-RING | 6 |
| 201 | 0718902 | . COVER | 1 |
| 202 | 0718903 | . COVER | 1 |
| 203 | 0718904 | . COVER | 5 |
| 204 | 0718905 | . COVER | 2 |
| 205 | 0718906 | . COVER | 1 |
| 208 | 0718907 | . COVER | 1 |
| 252 | 0816301 | . VALVE | 2 |
| 257 | 0718909 | . PLATE | 1 |
| 261 | A811055 | . O-RING | 10 |
| 263 | 4506407 | . O-RING | 11 |
| 264 | A811040 | . O-RING | 8 |
| 273 | 0130520 | . BOLT; SOCKET | 32 |
| 301 | . SPOOL | 1 | |
| 302 | . SPOOL | 1 | |
| 303 | . SPOOL | 1 | |
| 304 | . SPOOL | 1 | |
| 305 | . SPOOL | 1 | |
| 306 | . SPOOL | 1 | |
| 307 | . SPOOL | 1 | |
| 308 | . SPOOL | 1 | |
| 309 | . SPOOL | 1 | |
| 310 | . SPOOL | 1 | |
| 328 | . SPRING | 2 | |
| 329 | . SPRING | 2 | |
| 331 | . SEAT; SPRING | 4 | |
| 332 | . SEAT; SPRING | 16 | |
| 333 | . BOLT | 2 | |
| 334 | . STOPPER | 2 | |
| 335 | . STOPPER | 7 | |
| 336 | . BOLT | 8 | |
| 339 | . STOPPER | 1 | |
| 371 | . SPRING | 7 | |
| 372 | . SPRING | 7 | |
| 373 | . SPRING | 1 | |
| 374 | . SPRING | 1 | |
| 553 | 0718910 | . PLUG | 1 |
| 555 | 0718911 | . PLUG | 1 |
| 556 | 0718912 | . PLUG | 1 |
| 559 | 0718913 | . PLUG | 1 |
| 560 | 4154233 | . O-RING | 1 |
| 620 | 0384401 | . BOLT; SOCKET | 4 |
| 621 | M340650 | . BOLT; SOCKET | 4 |
| 622 | 0232126 | . O-RING | 9 |
