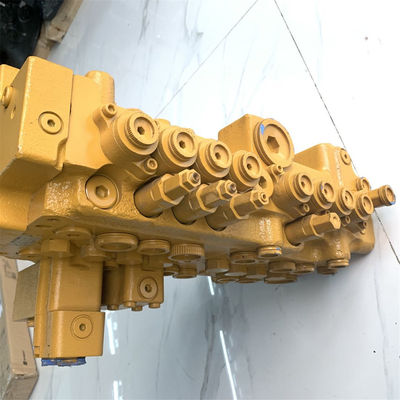

Product Description
| Part |
hydraulic main control valve |
| Model |
E308 |
| Part number |
1907717 |
| Product Name |
Control Valve Ass'y |
| Weight |
300KG |
| Package |
89*98*77 |
| Shipment |
by sea, by air, by express or as required |
| Part No | Part Name | Price request |
|---|---|---|
| 1907717 | VALVE GROUP-MAIN CONTROL |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 1 | |||
| 2 | 1 | |||
| 3 | 1 | |||
| 4 | 1 | |||
| 5 | 1 | |||
| 6 | 1 | |||
| 7 | 1 | |||
| 8 | 1 | |||
| 9 | 1 | |||
| 10 | 1 | |||
| 16 | 1850560 | PLUG AS | 17 | |
| 17 | 8T0269 | BOLT-SOCKET HD (M6 X 1.0 X 20) | 44 | |
| 18 | 6V8653 | BOLT-SOCKET HD (M6 X 1.0 X 40) | 4 | |
| 19 | 1474245 | PLUG ASSEM. | 5 | |
| 20 | 8T9515 | BOLT-SOCKET HEAD (M10X1.5X40-MM) | 4 | |
| 21 | 1907689 | COVER | 1 | |
| 22 | 1506354 | PLUG | 2 | |
| 23 | 0966027 | SEAL-O-RING (ID=17.18mm) | 2 | |
| 24 | 0951578 | SEAL-O-RING (ID=9.80mm) | 2 | |
| 25 | 0951586 | SEAL - O-RING (19.80 MM ID) | 1 | |
| 26 | 6V7659 | SEAL-O-RING (ID=74.40mm) | 1 | |
| 27 | 1474235 | PLUG | 2 | |
| 28 | 1850544 | COVER | 1 | |
| 29 | 1850542 | COVER | 9 | |
| 30 | 0951528 | SEAL-O-RING (ID=25.70mm) | 20 | |
| 31 | 1048130 | SHEET | 20 | |
| 32 | 1048050 | SPRING | 7 | |
| 33 | 1850545 | ROD | 10 | |
| 34 | 1850541 | COVER | 9 | |
| 35 | 1850543 | COVER | 1 | |
| 36 | 1048049 | SPRING | 2 | |
| 37 | 1400727 | VALVE GROUP-RELIEF (LINE)(WORK TOOL) | 5 | |
| 38 | 0951585 | SEAL- -O-RING (17.80 MM ID) | 9 | |
| 39 | 1474237 | PLUG | 6 | |
| 40 | 0935515 | SPRING | 8 | |
| 41 | 1474236 | VALVE | 7 | |
| 42 | 1850556 | VALVE GROUP-RELIEF (LINE, STICK II) | 2 | |
| 43 | 1850558 | PLUG AS | 1 | |
| 44 | 1907688 | SLEEVE | 1 | |
| 45 | 1850559 | VALVE | 1 | |
| 46 | 1500885 | SEAL | 2 | |
| 47 | 1850553 | PLATE | 1 | |
| 48 | 1850551 | RING-BACKUP | 2 | |
| 49 | 1850550 | SEAL-O-RING | 2 | |
| 50 | 1850549 | SPACER | 2 | |
| 51 | 1474240 | VALVE | 1 | |
| 52 | 1474241 | SPRING | 1 | |
| 53 | 0951592 | SEAL-O-RING (ID=23.70mm) | 1 | |
| 54 | 1850561 | PLUG | 1 | |
| 55 | 0956623 | SPRING | 1 | |
| 56 | 0956622 | POPPET | 1 | |
| 57 | 1474242 | SLEEVE | 1 | |
| 58 | 1048051 | SPRING | 1 | |
| 59 | 1850555 | VALVE AS-MANUAL (SHUTOFF)(WORK TOOL) | 2 | |
| 60 | 2154850 | VALVE AS (LOAD CONTROL) | 1 | |
| 61 | 1120029 | SPRING | 1 | |
| 62 | 1850548 | VALVE | 1 | |
| 63 | 1850557 | PLUG | 1 | |
| 64 | 1048079 | VALVE | 2 | |
| 65 | 1048080 | SPRING | 2 | |
| 66 | 0951582 | SEAL-O-RING (ID=13.80mm) | 2 | |
| 67 | 1519615 | PLUG | 2 | |
| 68 | 1048053 | VALVE | 1 | |
| 69 | 1048065 | SPRING | 1 | |
| 70 | 1048054 | SEAL-O-RING (ID=4.80mm) | 1 | |
| 71 | 1048055 | RING-BACK UP | 1 | |
| 72 | 1850546 | SEAT-SPRING | 1 | |
| 73 | 1850547 | PLUG | 1 | |
| 74 | 1211559 | VALVE GROUP (MAIN RELIEF) | 1 | |
| 0933328 | SEAL-O-RING | 1 | ||
| METRIC PART | ||||
| NOT SERVICED SEPARATELY |
