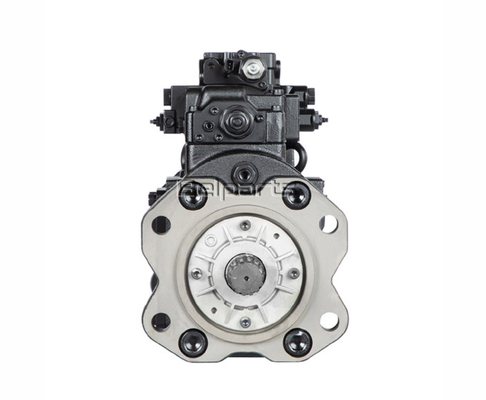

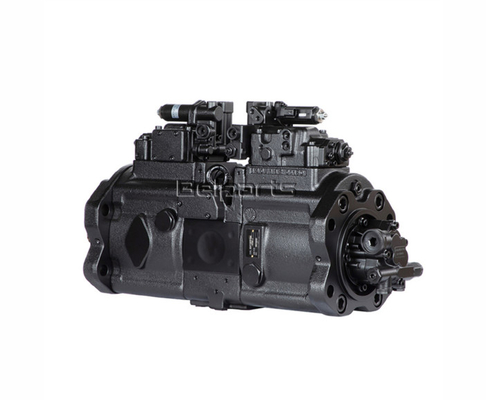

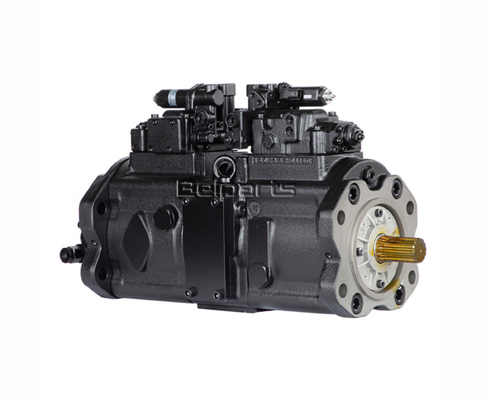

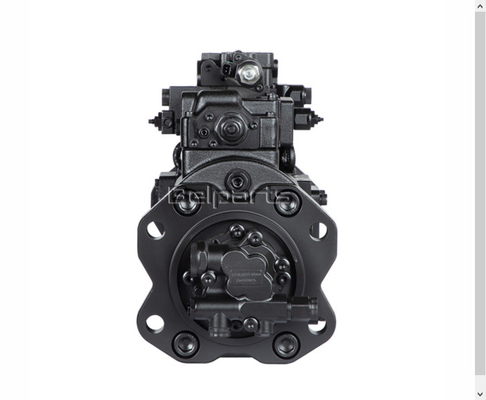

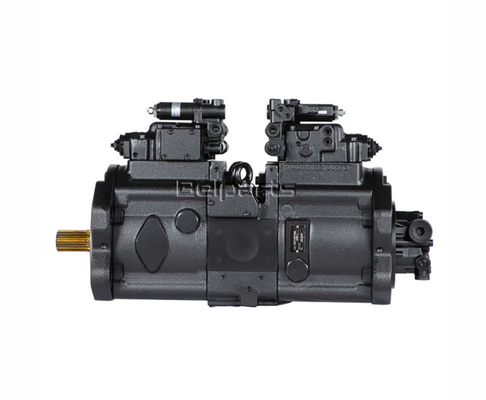

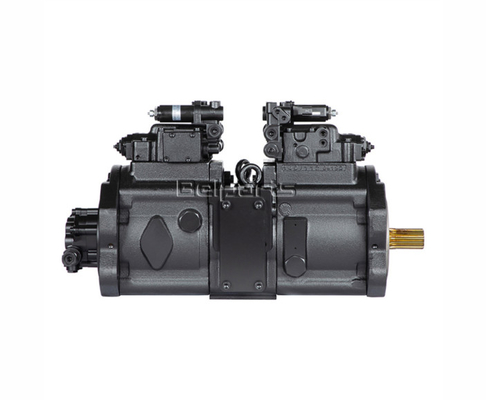

Belparts Excavator Hydraulic Pump For Kobelco SK330LC SK330-6E  LC10V00008F2  K3V112DTP-9TBR

Belparts Excavator Hydraulic Pump For Kobelco SK330LC SK330-6E LC10V00008F2 K3V112DTP-9TBR

  • High Light

    Belparts Excavator Hydraulic Pump

    ,

    SK330LC Excavator Hydraulic Pump

    ,

    K3V112DTP-9TBR Excavator Hydraulic Pump

  • Condition
    100%New
  • Warranty
    12month
  • Part Name
    Main Hydraulic Pump
  • Part Number
    LC10V00008F2 K3V112DTP
  • Availability
    In Stock
  • Place Of Origin
    Guangdong, China
  • Place of Origin
    Guangdong,China
  • Brand Name
    Belparts
  • Certification
    OEM
  • Model Number
    Kobelco SK330LC SK330-6E
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable price
  • Packaging Details
    Wooden packing
  • Delivery Time
    1-5days
  • Payment Terms
    T/T, Paypal and Alibaba Trade Assurance
  • Supply Ability
    1000pieces

Belparts Excavator Hydraulic Pump For Kobelco SK330LC SK330-6E LC10V00008F2 K3V112DTP-9TBR

Belparts Excavator Hydraulic Pump For Kobelco SK330LC SK330-6E LC10V00008F2 K3V112DTP-9TBR


Quick Detail of Excavator Hydraulic Pump

Material:Steel

Product Name: Excavator Main Hydraulic Pump

Applicable Industries:Machinery Repair Shops, Manufacturing Plant

Dimension(L*W*H):80*34*54cm

Part number:LC10V00008F2 K3V112DTP

Package Details:Export Wooden Box

Weight:160KG

Surface treatment:Heat resistance paint

Pressure:Standard, High Pressure



Specifications Of Excavator Hydraulic Pump

Product Name Excavator Hydraulic Pump
Oem No LC10V00008F2 K3V112DTP
Engine No Kobelco SK330LC SK330-6E
Packing Number 1
N.W/KG 150KG
G.W/KG 160KG
Packing Size 80*34*54cm
Related Oem LC10V00001F2
Pressure Standard, High Pressure



Features of Excavator Hydraulic Pump

1) It has high transmission efficiency, giving full play to the power and fuel economy of the engine.

2) The hydraulic system and hydraulic components have sufficient reliability under the action of large load changes and sharp vibration and impact.

3) Coordinate the light and vibration-resistant cooler to reduce the total heat generation of the system, so that the hydraulic oil temperature does not exceed 80 degrees, or the temperature rise does not exceed 45 degrees when the main engine continues to work.

4) The sealing performance of the hydraulic system is very good, and the oil filter and dustproof device are set up.

5) Hydraulic or electro hydraulic servo control device is adopted, so that the excavator can set up an automatic control system, thereby improving the technical performance of the excavator and reducing the labor intensity of the driver.







  • Made of aluminum alloy, high strength, corrosion resistance, light weight, suitable for operation in various environments.
  • The two-speed feature reduces the number of times of pressing, and the low-pressure chamber is quickly in a load-utilizing state, and immediately converts to high-pressure, shortening each operation cycle.
  • Equipped with a pressure regulating valve, which can adjust the control and set the working pressure.





Advantages Of Excavator Hydraulic Pump

1, The internal parts adopt Japanese Kawasaki molten copper technology

2, High durability, it can be used for hydraulic breaker

3, Every pump is tested before leaving the factory, Reject low-cost spot-check.



Why choose us:

24-hour online consultation and communication

Large stock of a single product

Product quality is guaranteed

Comparative advantage in product price comparison with other suppliers

Has the accurate data to follow the excavator brand part number inquiry, guarantees the product correct rate

Product delivery time is fast, according to customer needs for deliveryThe product is packed according to the customer’s requirement

Minimum 5 years experience in export cooperation, good at customer service

Professional excavator hydraulic system accessories 10 years of service experience



Our Services

Highest standard to suit western country operators' use

ISO quality control manufacturing

Free and efficient communication

Quick and professional response

Patient and responsible before-sale and after-sale services

Over 40 years experiences on metal fabrication, hydraulics apply and control and consultancy in Australia

World class quality at affordable price



Service

1) Material: All our products are used high quality genuiner raw material.

2) Inspection: We make a very strict inspection process before delivery.

3) Inventory: We have about 1000 pieces in stock, can provide you at once.

4) Price: We have steady in stock and we can offer competitive price.

5) Delivery time: We will deliver the goods within 1-3 days after received the payment.

6) Service: We have a professional team to offer professional service for you 24/7.

7) All the spare parts are 100% measured, 100% interchangeable.



Parts scheme

Belparts Excavator Hydraulic Pump For Kobelco SK330LC SK330-6E  LC10V00008F2  K3V112DTP-9TBR 0Belparts Excavator Hydraulic Pump For Kobelco SK330LC SK330-6E  LC10V00008F2  K3V112DTP-9TBR 1



List of spare parts

Pos. Part No Qty Parts name Comments
**. LC10V00001F1 [1] PUMP KOB -- Date used 04/27/1999 - 06/16/2000 Superseded by part number: LC10V00001F2
**. LC10V00001F2R [1] REMAN-HYD PUMP RAC SK330LC DYNAMIC ACERA EXCAVATOR ASN YC06U0101, Reman for New PN LC10V00001F1
**. LC10V00001F2C [1] CORE-HYDRAULIC PUMP RAC Return Number
1. LC10V00002F1 [1] Pump Assembly, Hydraulic -- See Figure 08-012, Remarks: SEE P. LC10V00002-1
2. YN10V00014F1 [1] PUMP KOB Assembly, Gear -- See Figure 08-023, Remarks: SEE P. YN10V00014-1 Superseded by part number: YN10V00014F2
2. YN10V00014F2R [1] REMAN-HYD PUMP RAC SK330LC DYNAMIC ACERA EXCAVATOR ASN YC06U0101, Assembly, Gear, Reman for New PN YN10V00014F1
2. YN10V00014F2C [1] CORE-HYDRAULIC PUMP RAC Return Number
3. LC10V01001F1 [2] VOLTAGE REGULATOR KOB Assembly, Voltage -- See Figure 08-013, Remarks: SEE P. LC10V01001-1 Superseded by part number: LC10V01001F2
4. YN35V00018F2 [2] SOLENOID VALVE KOB Assembly -- See Figure 08-037, Remarks: SEE P. YN35V00018-1
**. LC10V00001F2 [1] PUMP KOB Assembly, Hydraulic -- Date used 06/16/2000 - 05/25/2001
3. LC10V01001F2 [1] VOLTAGE REGULATOR KOB Assembly -- See Figure 08-013
**. LC10V00005F1 [1] PUMP KOB -- Date used 05/25/2001 - 07/15/2002 Superseded by part number: LC10V00005F2
**. LC10V00005F2R [1] REMAN-HYD PUMP KOB SK330LC DYNAMIC ACERA EXCAVATOR ASN YC06U0101, Reman for new PN LC10V00005F1
**. LC10V00005F2C [1] CORE-HYDRAULIC PUMP KOB Return Number
1. LC10V00008F1 [1] PUMP KOB Assembly, Hydraulic -- See Figure 08-039
3. LC10V01002F1 [2] REGULATOR KOB Assembly, Voltage -- See Figure 07-013
. . YN10V00008S005 [1] Cover, Guard -- Not Shown
. . ZS23C10016 [4] SCREW,Hex Socket Head, M10 x 16mm KOB M10x1.50x16mm -- Not Shown Superseded by part number: ZS28C10016
**. LC10V00005F2 [1] PUMP KOB Assembly, Hydraulic -- Date used 07/15/2002 - 02/10/2003
2. YN10V00014F2 [1] PUMP KOB Assembly, Gear -- See Figure 08-023
. . YN10V00018S005 [1] COVER KOB Guard -- Not Shown Superseded by part number: YN10V00023S009
**. LC10V00005F3 [1] PUMP KOB -- Date used 02/10/2003 - 03/01/2004 Superseded by part number: LC10V00018F1
**. LC10V00018F1R [1] REMAN-HYD PUMP KOB SK330LC (ASN YC06U0101), Reman For New P/N LC91Z00002D4-01
**. LC10V00018F1C [1] CORE-HYDRAULIC PUMP KOB Return Number
4. YB35V00003F1 [2] VALVE KOB Solenoid Assembly -- See Figure 08-038
**. LC10V00005F4 [1] PUMP KOB -- Date used 03/01/2004 - 01/16/2006 Superseded by part number: LC10V00018F1
1. LC10V00008F2 [1] Pump Assembly, Hydraulic -- See Figure 08-039 HYDRAULIC PUMP
3. LC10V01002F2 [2] REGULATOR KOB Assembly, Voltage -- See Figure 07-013
. . YN10V00023S009 [1] COVER KOB Cover -- Not Shown
. . ZS23C10020 [4] SCREW,Hex Socket Head, M10 x 20mm KOB M10x1.50x20mm -- Not Shown
**. LC10V00018F1 [1] PUMP KOB Assembly, Hydraulic -- Date used 01/16/2006 - UP
1. LC10V00024F1 [1] Pump Assembly, Hydraulic
3. LC10V01006F1 [2] REGULATOR KOB Assembly, Voltage



Pos. Part No Qty Parts name Comments
. . LC10V00008F2 [1] PUMP ASSEMBLY, HYDRAULIC HYDRAULIC PUMP
10. YN10V00003S702 [2] O-RING KOB
11. YX10V00003S012 [2] O-RING KOB
12. YN10V00020S012 [4] O-RING,3.1mm Thk x 144.4mm ID, 70 Duro KOB
13. YX10V00003S015 [18] O-RING,1.9mm Thk x 8.8mm ID, 75 Duro KOB
14. YT10V00003S710 [6] O-RING KOB
15. YN10V00020S015 [4] O-RING KOB
16. YT10V00003S708 [2] O-RING KOB
17. YN10V00032S775 [1] OIL SEAL KOB Superseded by part number: EG10V00004S774
111. 2437U420S111 [1] SHAFT KOB
113. YN10V00013S113 [1] SHAFT KOB
116. YN10V00020S116 [1] GEAR KOB
123. LC10V00002S123 [2] BEARING KOB
124. YN10V00011S124 [2] NEEDLE BEARING KOB
127. 2441U723S127 [4] SPACER KOB
141. NSS [1] NOT SOLD SEPARAT CON BLOCK, CYLINDER
151. NSS [18] NOT SOLD SEPARAT CON PISTON
152. NSS [18] NOT SOLD SEPARAT CON SHOE
153. 2437U213S153 [2] PLATE KOB Superseded by part number: LC10V00010S153
156. YN10V00005S156 [2] BUSHING KOB
157. 2437U213S157 [18] SPRING KOB
211. 2441U242S211 [2] PLATE KOB
212. NSS [2] NOT SOLD SEPARAT CON PLATE
214. NSS [2] NOT SOLD SEPARAT CON BUSHING
251. 2437U213S251 [2] PLATE KOB
261. 2437U420S261 [1] COVER KOB
271. 2437U213S271 [2] CASE KOB HOUSING
312. YN10V00020S312 [1] BLOCK KOB
313. NSS [1] NOT SOLD SEPARAT CON PLATE
314. NSS [1] NOT SOLD SEPARAT CON PLATE
325. YN10V00013S325 [1] COVER KOB
401. 2437U213S401 [8] SCREW KOB
406. ZS23C08020 [4] SCREW,Hex Socket Head, M8 x 20mm KOB
407. ZS23C06030 [3] SCREW,Hex Socket Head, M6 x 30mm KOB
466. 2441U667S466 [2] PLUG KOB 1/4" PF
468. 2441U436S469 [4] PLUG KOB
490. 2441U722S490 [27] PLUG KOB 1/16" NPTF
531. NSS [2] NOT SOLD SEPARAT CON PIN
532. 2437U213S532 [2] PISTON KOB
534. 2437U213S534 [2] STOP KOB
535. 2437U213S535 [2] STOP KOB
546. YN10V00013S546 [2] SPACER KOB Superseded by part number: YN10V00043S546
548. NSS [2] NOT SOLD SEPARAT CON PIN
789. ZD85P01800 [2] RING KOB Back-Up -- ID 18 x OD 22 x Th 1.25mm
792. ZD85G03500 [2] RING KOB Back-Up -- ID 35 x OD 40 x Th 1.25mm
806. ZN12C16010 [2] NUT KOB
808. ZN17C20012 [2] NUT KOB Superseded by part number: ZN18C20012
824. ZR16X04000 [2] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
885. 2441U723S885 [2] PIN KOB
886. ZP26D06014 [4] PIN KOB Roll -- OD 06 x 14mm Long
901. ZS91C01000 [2] BOLT KOB Eye -- M10x1.50x18mm
953. 2437U188S953 [2] CAP,M10 x 20mm KOB SCREW
954. 2437U213S954 [2] SCREW KOB
981. 2437U407S981 [1] LABEL KOB NAME PLATE - NO
983. 2437U407S983 [2] RIVET KOB
100. YN10V00003S011 [2] PISTON ASSY KOB Includes 151, 152
200. 2437U213S13 [1] REPAIR KIT KOB Includes 141, 313
300. 2437U213S14 [1] REPAIR KIT KOB Includes 141, 314
400. 2437U213S30 [2] REPAIR KIT KOB Includes 212, 214
500. 2437U213S530 [2] REPAIR KIT KOB Includes 631, 548
