GZ Yuexiang Engineering Machinery Co., Ltd. 86- 020-89853372 sales@yuexiangparts.com

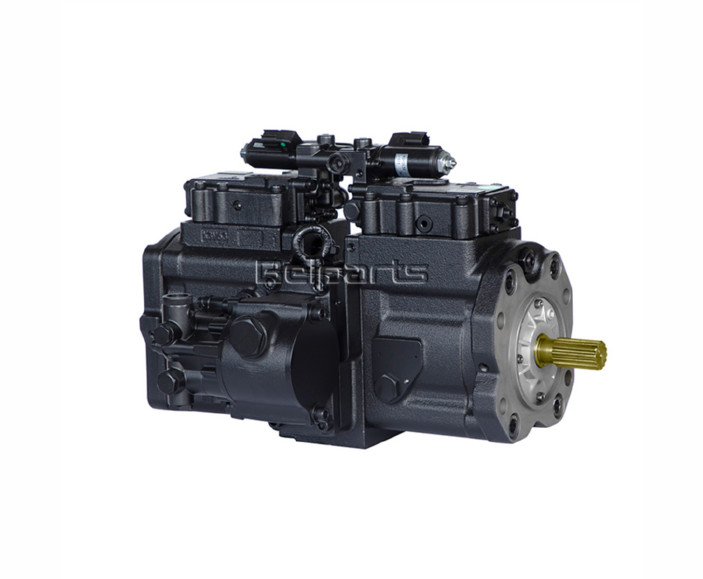

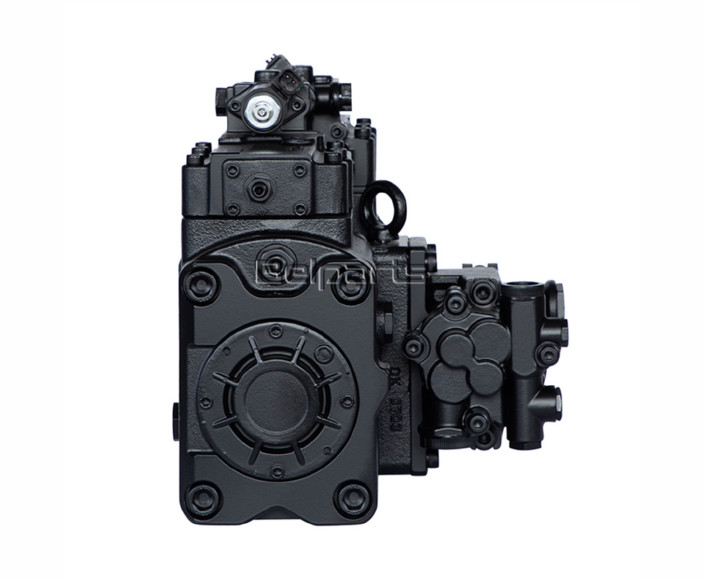

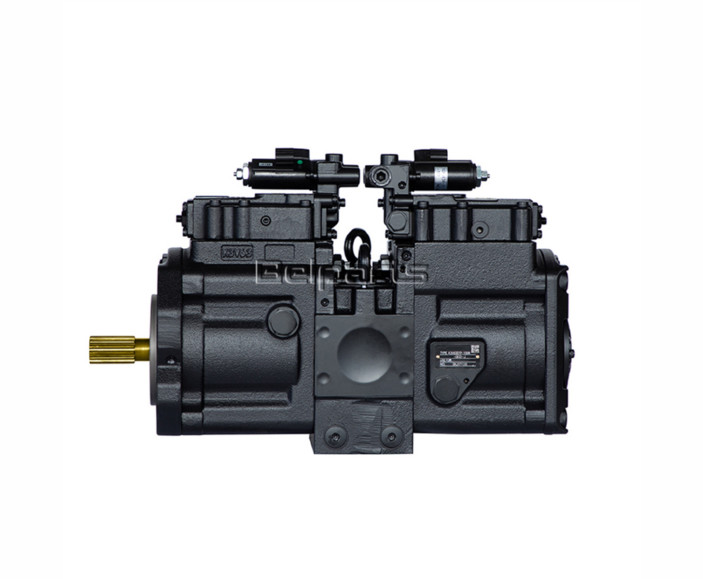

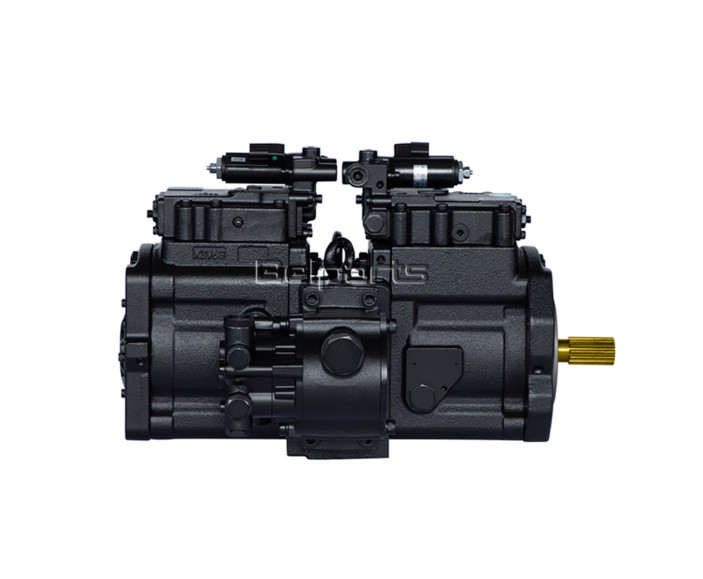

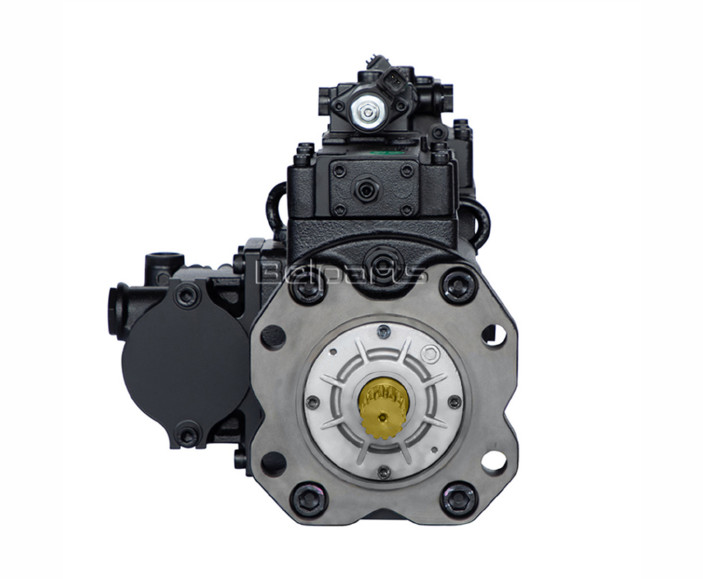

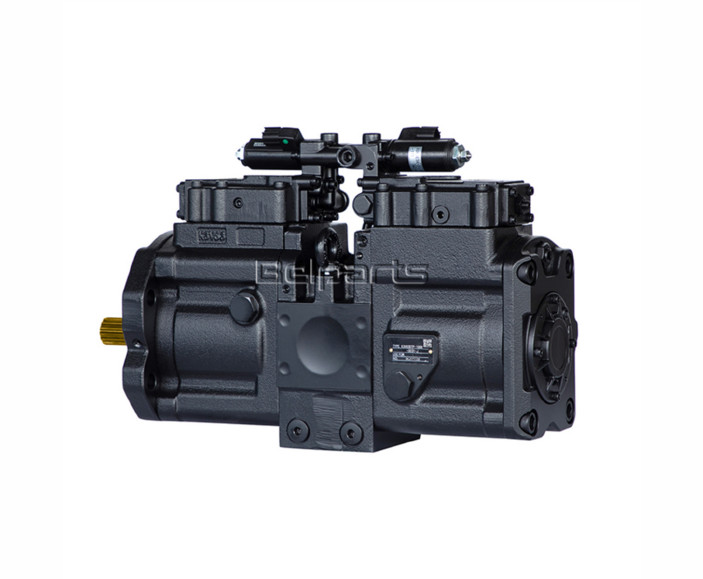

YX10V00003F1 K3V63DTP-0E01/0E02 Excavator Hydraulic Pump For Kobelco SK135SR  SK115SRDZ

YX10V00003F1 K3V63DTP-0E01/0E02 Excavator Hydraulic Pump For Kobelco SK135SR SK115SRDZ

  • High Light

    YX10V00003F1 Excavator Hydraulic Pump

    ,

    SK135SR Excavator Hydraulic Pump

    ,

    SK115SRDZ Excavator Hydraulic Pump

  • Condition
    100%New
  • Warranty
    12month
  • Part Name
    Main Hydraulic Pump
  • Part Number
    YX10V00003F1
  • Availability
    In Stock
  • Place Of Origin
    Guangdong, China
  • Place of Origin
    Guangdong,China
  • Brand Name
    Belparts
  • Certification
    OEM
  • Model Number
    Kobelco SK135SR SK115SRDZ ED150-1E
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable price
  • Packaging Details
    Wooden packing
  • Delivery Time
    1-5days
  • Payment Terms
    T/T, Paypal and Alibaba Trade Assurance
  • Supply Ability
    1000pieces

YX10V00003F1 K3V63DTP-0E01/0E02 Excavator Hydraulic Pump For Kobelco SK135SR SK115SRDZ

Belparts Excavator Hydraulic Pump For Kobelco SK135SR SK115SRDZ YX10V00003F1 K3V63DTP-0E01/0E02

Quick Detail of Excavator Hydraulic Pump

Material:Steel

Product Name: Excavator Main Hydraulic Pump

Applicable Industries:Machinery Repair Shops, Manufacturing Plant

Dimension(L*W*H):73*48*48

Part number:2437U516F1

Package Details:Export Wooden Box

Weight:110KG

Surface treatment:Heat resistance paint

Pressure:Standard, High Pressure



Specifications Of Excavator Hydraulic Pump

Product Name Excavator Hydraulic Pump
Oem No YX10V00003F1
Engine No Kobelco SK135SR SK115SRDZ ED150-1E
Packing Number 1
N.W/KG 100KG
G.W/KG 110KG
Packing Size 73*48*48
Related Oem YY10V00001F6R K3V63DTP-0E01/0E02 YY10V00001F6C YX10V00003F1
Pressure Standard, High Pressure



Features of Excavator Hydraulic Pump

1) It has high transmission efficiency, giving full play to the power and fuel economy of the engine.

2) The hydraulic system and hydraulic components have sufficient reliability under the action of large load changes and sharp vibration and impact.

3) Coordinate the light and vibration-resistant cooler to reduce the total heat generation of the system, so that the hydraulic oil temperature does not exceed 80 degrees, or the temperature rise does not exceed 45 degrees when the main engine continues to work.

4) The sealing performance of the hydraulic system is very good, and the oil filter and dustproof device are set up.

5) Hydraulic or electro hydraulic servo control device is adopted, so that the excavator can set up an automatic control system, thereby improving the technical performance of the excavator and reducing the labor intensity of the driver.







  • Made of aluminum alloy, high strength, corrosion resistance, light weight, suitable for operation in various environments.
  • The two-speed feature reduces the number of times of pressing, and the low-pressure chamber is quickly in a load-utilizing state, and immediately converts to high-pressure, shortening each operation cycle.
  • Equipped with a pressure regulating valve, which can adjust the control and set the working pressure.





Advantages Of Excavator Hydraulic Pump

1, The internal parts adopt Japanese Kawasaki molten copper technology

2, High durability, it can be used for hydraulic breaker

3, Every pump is tested before leaving the factory, Reject low-cost spot-check.



Why choose us:

24-hour online consultation and communication

Large stock of a single product

Product quality is guaranteed

Comparative advantage in product price comparison with other suppliers

Has the accurate data to follow the excavator brand part number inquiry, guarantees the product correct rate

Product delivery time is fast, according to customer needs for deliveryThe product is packed according to the customer’s requirement

Minimum 5 years experience in export cooperation, good at customer service

Professional excavator hydraulic system accessories 10 years of service experience



Our Services

Highest standard to suit western country operators' use

ISO quality control manufacturing

Free and efficient communication

Quick and professional response

Patient and responsible before-sale and after-sale services

Over 40 years experiences on metal fabrication, hydraulics apply and control and consultancy in Australia

World class quality at affordable price



Service

1) Material: All our products are used high quality genuiner raw material.

2) Inspection: We make a very strict inspection process before delivery.

3) Inventory: We have about 1000 pieces in stock, can provide you at once.

4) Price: We have steady in stock and we can offer competitive price.

5) Delivery time: We will deliver the goods within 1-3 days after received the payment.

6) Service: We have a professional team to offer professional service for you 24/7.

7) All the spare parts are 100% measured, 100% interchangeable.



Parts scheme



YX10V00003F1 K3V63DTP-0E01/0E02 Excavator Hydraulic Pump For Kobelco SK135SR  SK115SRDZ 0YX10V00003F1 K3V63DTP-0E01/0E02 Excavator Hydraulic Pump For Kobelco SK135SR  SK115SRDZ 1

List of spare parts

Pos. Part No Qty Parts name Comments
. . YY10V00001F1 [1] HYDRAULIC PUMP KOB Superseded by part number: YY10V00001F6, YT13E01083P1
. . YY10V00001F6R [1] REMAN-HYD PUMP KOB SK135SR ASN YY02-03001, SK135SRLC ASN YH02-01301, Reman for New P/N YY10V00001F1
. . YY10V00001F6C [1] CORE-HYDRAULIC PUMP KOB Return Number
1. YX10V00003F1 [1] HYDRAULIC PUMP KOB ASSY SEE P. YX10V00003,(Not serviced - Order next higher assembly pn)
. . YY10V00001F2 [1] PUMP KOB ASSY Superseded by part number: YY10V00001F6
. . YY10V00001F3 [1] PUMP KOB ASSY Superseded by part number: YY10V00001F6
3. YV46W00001F1 [1] CASE ASSY. KOB GEAR SEE P. YV46W00001 Superseded by part number: YX46W00001F3
2. YX10V01001F1 [2] REGULATOR KOB SEE P.YX10V01001 Superseded by part number: YX10V01001F2
4. YN35V00018F2 [2] SOLENOID VALVE KOB SEE P.YN35V00018(FOR F1 ONLY)
5. YX10V00004F1 [1] PUMP KOB GEAR SEE P.YX10V00004,(FOR F1,F2 ONLY) Superseded by part number: 77279971, YX10V00004F2
6. YB35V00003F1 [2] VALVE KOB SOLENOID SEE P. YB35V00003,(FOR F2,F3 ONLY)
7. YX10V00004F2 [1] PUMP KOB GEAR,(FOR F3 ONLY)



Pos. Part No Qty Parts name Comments
. . YX10V00003F1 [1] HYDRAULIC PUMP KOB ASSY (Not serviced - Order next higher assembly pn)
111. YX10V00003S111 [1] SHAFT KOB (FRONT)
113. YX10V00003S113 [1] SHAFT KOB (REAR)
116. YX10V00003S116 [1] GEAR KOB
123. YX10V00003S123 [2] ROLLER BEARING KOB
124. YW10V00005S124 [2] BEARING KOB NEEDLE
127. YW10V00003S127 [4] SPACER KOB
141. NSS [2] NOT SOLD SEPARAT CON BLOCK, CYLINDER
151. NSS [18] NOT SOLD SEPARAT CON PISTON
152. NSS [18] NOT SOLD SEPARAT CON SHOE
153. 2437U188S153 [2] PLATE KOB
156. YW10V00005S156 [2] BUSHING KOB
157. 2437U188S157 [18] SPRING KOB
211. 2437U188S211 [2] PLATE KOB SHOE
212. NSS [2] NOT SOLD SEPARAT CON PLATE
214. NSS [2] NOT SOLD SEPARAT CON BUSHING
251. 2437U188S251 [1] PLATE KOB
252. YX10V00003S252 [1] SUPPORT KOB
261. 2437U188S261 [1] COVER KOB SEAL
262. YX10V00003S262 [1] COVER KOB SEAL
271. 2437U188S271 [2] CASING KOB CASE
312. YX10V00003S312 [1] BLOCK KOB VALVE
313. NSS [1] NOT SOLD SEPARAT CON PLATE, VALVE
314. NSS [1] NOT SOLD SEPARAT CON PLATE. VALVE
401. 2437U188S401 [8] CAPSCREW KOB SCREW
406. ZS23C06016 [8] SCREW,Hex Socket Head, M6 x 16mm KOB M06x1.0x16mm Superseded by part number: ZS28C06016
466. 2441U667S466 [2] PLUG KOB 1/4" PF
467. 2441U436S468 [4] PLUG KOB
490. 2441U722S490 [15] PLUG KOB 1/16" NPTF
531. NSS [2] NOT SOLD SEPARAT CON PIN
532. YX10V00003S532 [2] PISTON KOB SERVO
534. YX10V00003S534 [2] STOP KOB
535. 2437U188S535 [2] STOP KOB
548. NSS [2] NOT SOLD SEPARAT CON PIN FEED BACK
702. ZD12G03000 [2] O-RING,29.40mm ID x 35.60mm OD x 3.10mm KOB ID 29.4 ± 0.29 x OD 35mm
710. ZD12G08500 [2] O-RING,84.40mm ID x 90.60mm OD x 3.10mm KOB ID 84.40 ± 0.73 x OD 90mm
711. ZD12G09500 [1] O-RING,3.1mm Thk x 94.4mm ID, 90 Duro KOB O-Ring -- ID 94.40 ± 0.81 x OD 100mm
717. ZD12G12000 [2] O-RING,3.1mm Thk x 119.4mm ID, 90 Duro KOB O-Ring -- ID 119.40 ± 0.98 x OD 125mm
719. ZD12G11500 [2] O-RING,114.40mm ID x 120.60mm OD x 3.10mm KOB ID 114.40 ± 0.94 x OD 120mm
724. ZD12P00800 [18] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
725. ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
728. ZD12P01800 [4] O-RING KOB ID 17.8mm x OD 20.2mm
732. ZD12P01600 [2] O-RING KOB ID 15.80 ± 0.20 x OD 20mm
774. YX10V00003S774 [1] OIL SEAL KOB Superseded by part number: YX10V00003S020
789. ZD85P01600 [2] RING KOB BACK UP
792. ZD85G03000 [2] BACK-UP RING KOB ID 30 x OD 35 x Th 1.25mm
808. ZN12C16010 [4] NUT KOB
824. ZR16X03500 [2] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
885. 2441U436S886 [2] PIN KOB
886. ZP26D06014 [4] PIN KOB Roll -- OD 06 x 14mm Long
901. ZS91C01000 [2] BOLT KOB Eye -- M10x1.50x18mm
953. 2437U188S953 [2] CAP,M10 x 20mm KOB SETSCREW
954. 2437U188S954 [2] SCREW KOB SETSCREW
981. YX10V00003S981 [1] NAME PLATE
983. 2437U407S983 [2] RIVET KOB PIN
. . 2437U188S530 [2] REPAIR KIT KOB CONSISTS OF REF 531X1. 548X1
. . YW10V00003S011 [2] PISTON ASSY KOB CONSISTS OF REF 151X9, 152X9
. . YX10V00003R200 [1] REPAIR KIT KOB CONSISTS OF REF 141X1, 313X1
. . YX10V00003R300 [1] REPAIR KIT KOB CONSISTS OF REF 141X1, 314X1
. . YX10V00003R400 [2] REPAIR KIT KOB CONSISTS OF REF 212X1, 214X1
