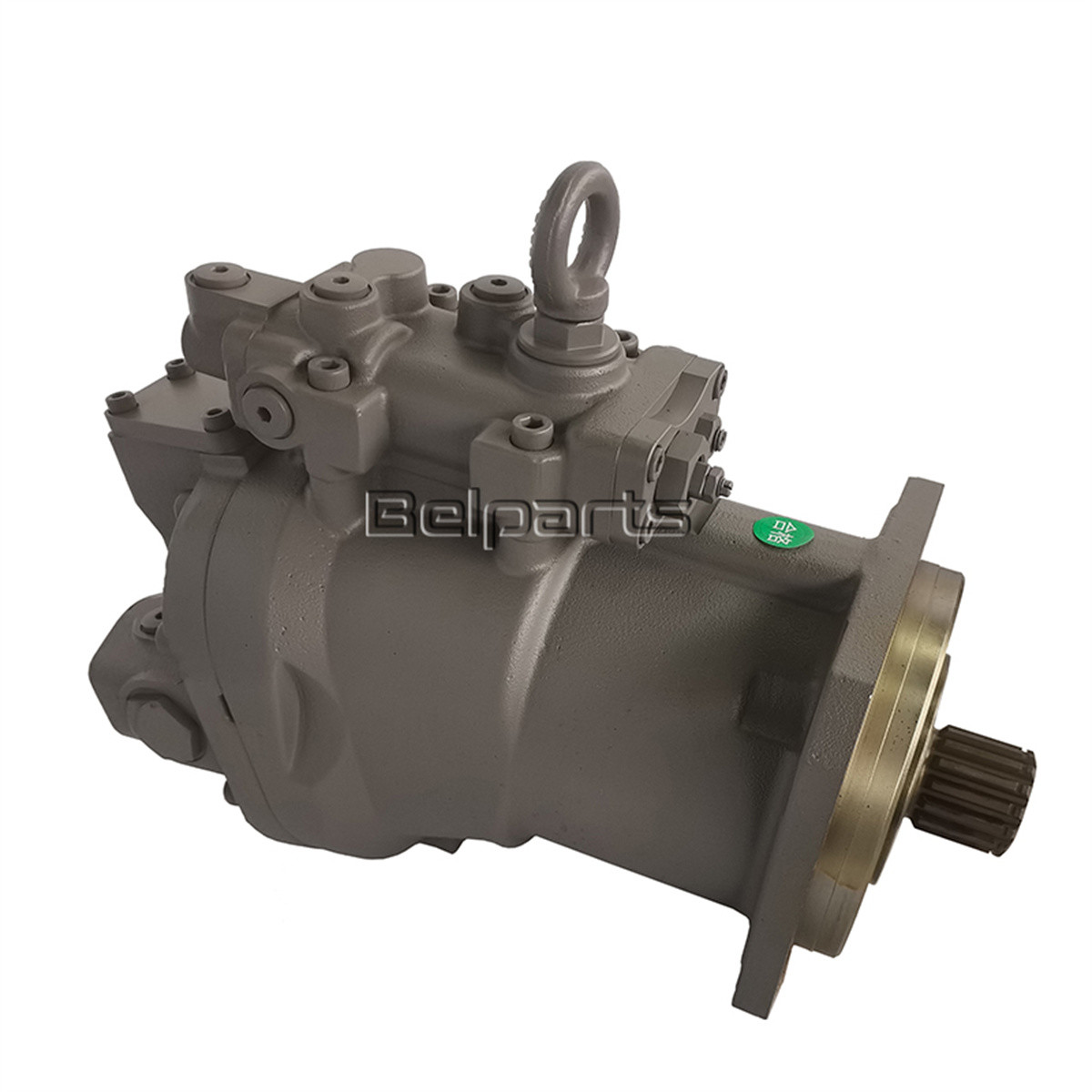

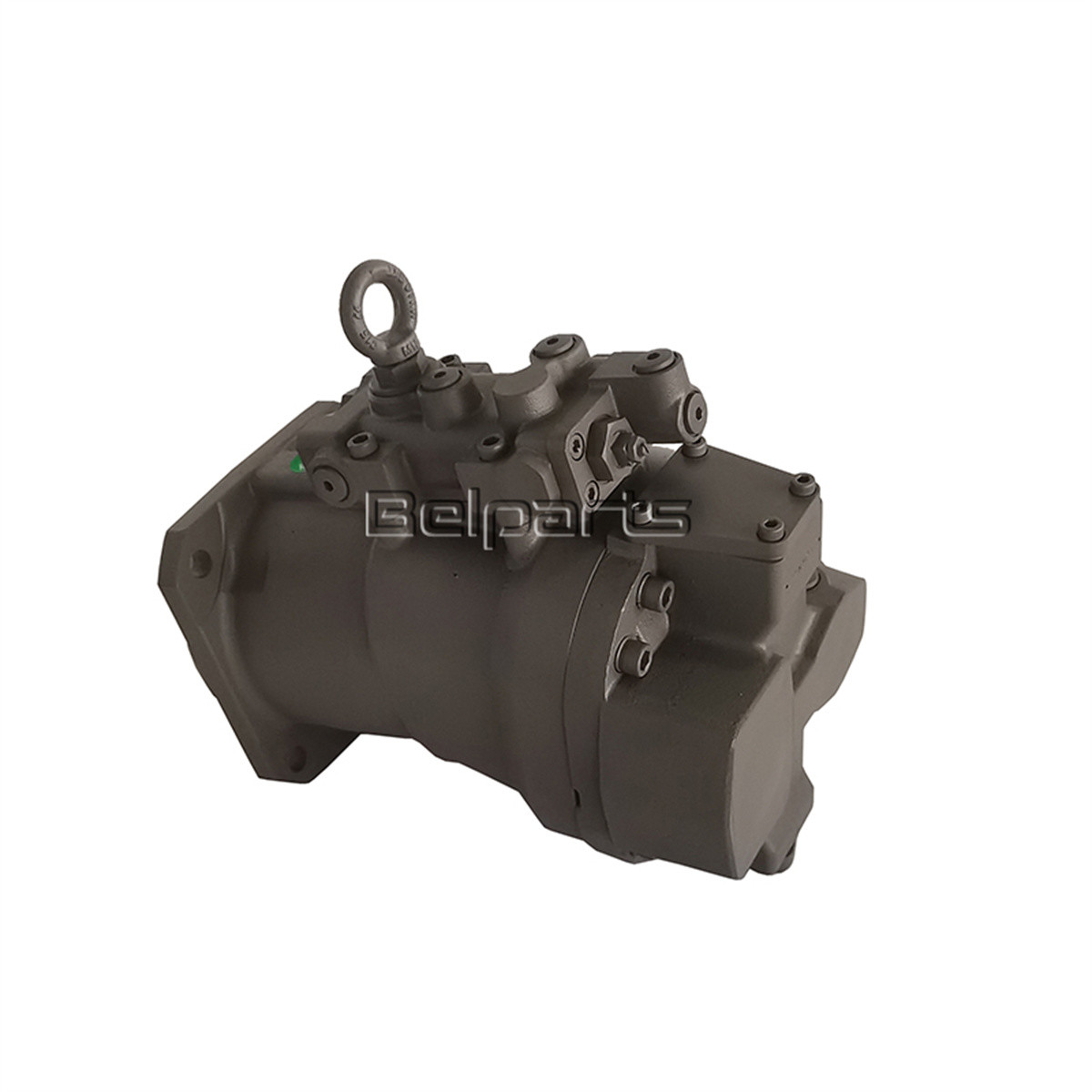

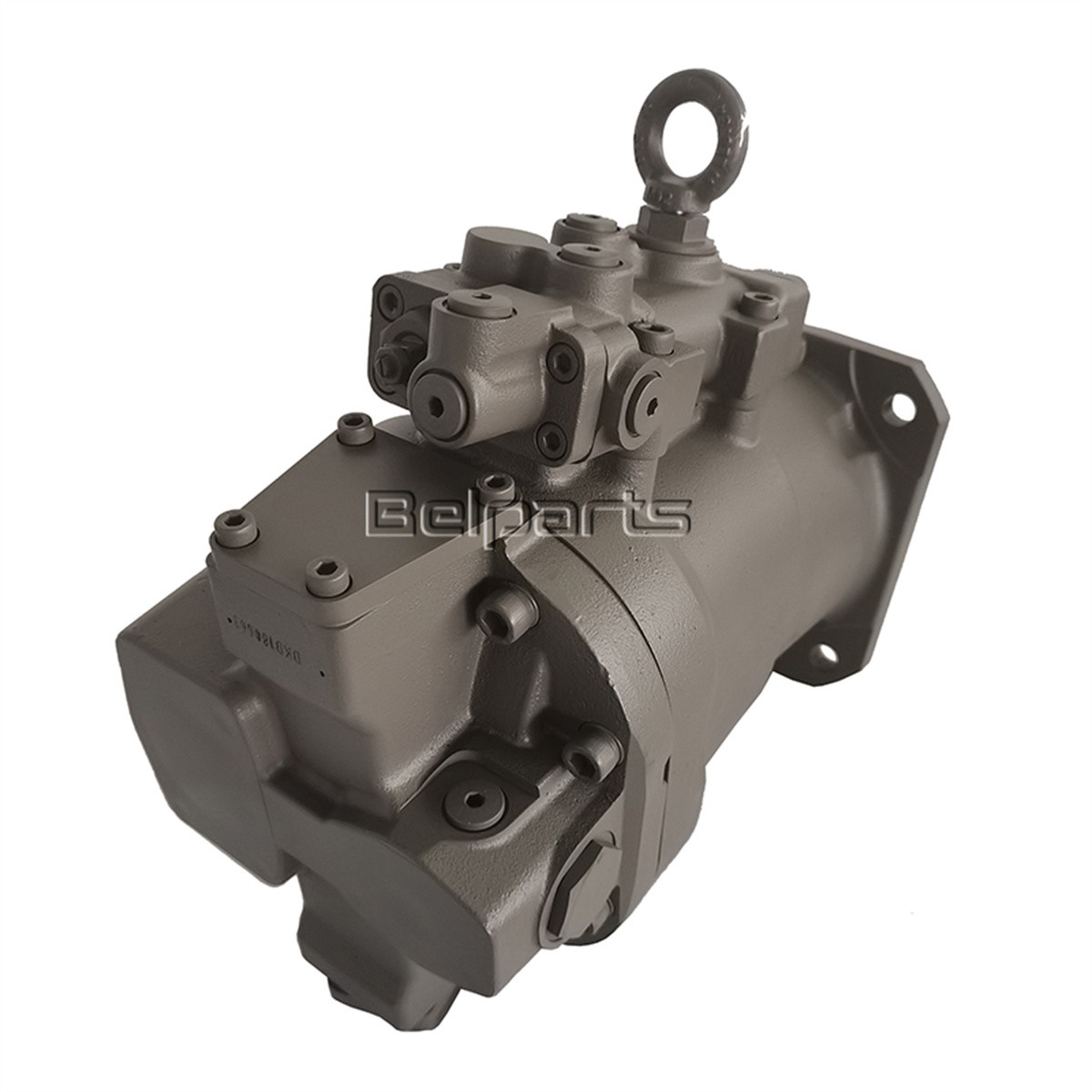

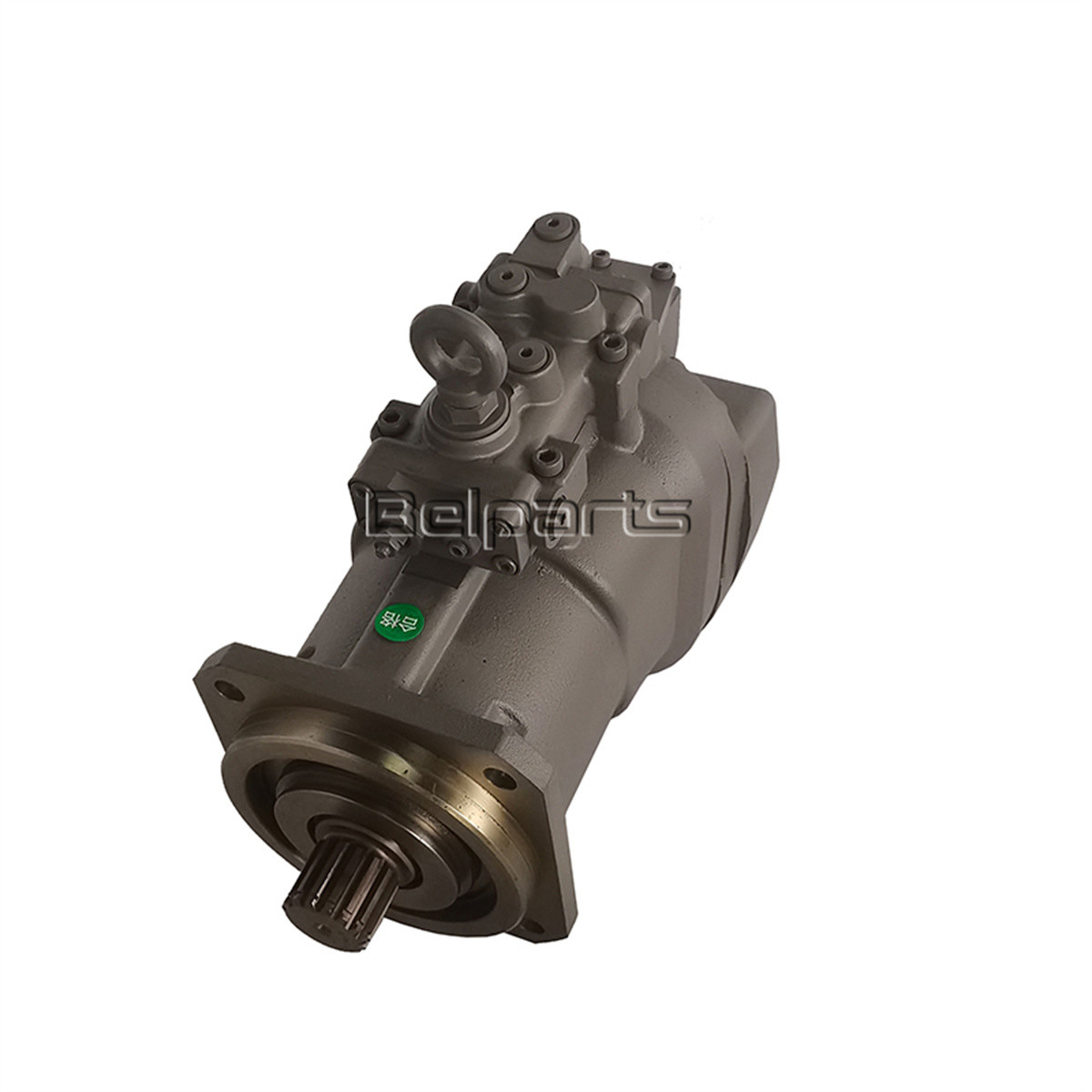

Product description
| Appliion | Crawler excavator |
| Part name | Excavator pump |
| Model | ZX330-3 |
| Part number | 9257308 9257126 |
| Pump Model | HPV145 |
| Warranty | 12month |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as require |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9257308 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| 9257126 | PUMP DEVICE (FOR TRANSPORTATION) | 1 | ||
| 02 | 1033049 | . CASING; GEAR | 1 | |
| 04 | 3104554 | . GEAR; CENTER | 1 | |
| 05 | 3081085 | . SHAFT; CENTER | 1 | |
| 08 | 4395453 | . BRG.; BALL | 1 | |
| 09 | 4395457 | . BRG.; BALL | 1 | |
| 10 | 4191219 | . RING; RETAINING | 1 | |
| 11 | 4179833 | . SEAL; OIL | 1 | |
| 12 | 3033593 | . COVER; T.MISSION | 1 | |
| 13 | 4179834 | . O-RING | 1 | |
| 14 | 991733 | . RING; RETAINING | 1 | |
| 18 | M341030 | . BOLT; SOCKET | 2 | |
| 19 | 9217993 | . PUMP; GEAR | 1 | |
| 20 | 984054 | . WASHER; SPRING | 2 | |
| 22 | 4114402 | . WASHER | 2 | |
| 23 | 4191974 | . ADAPTER | 1 | |
| 23A | 4506418 | .. O-RING | 1 | |
| 28 | 3104555 | . GEAR; DRIVE | 2 | |
| 29 | 991345 | . RING; RETAINING | 2 | |
| 32 | 9257309 | . PUMP; UNIT (FOR ASSEMBLY OF MACHINE) | 2 | |
| 32 | 9260886 | . PUMP; UNIT (FOR TRANSPORTATION) | 2 | |
| 35 | J901645 | . BOLT | 8 | |
| 36 | 4126090 | . WASHER; SEAL | 4 | |
| 37 | A590916 | . WASHER; SPRING | 4 | |
| 42 | 4379582 | . CAP | 1 | |
| 43 | 4646199 | . ADAPTER | 1 | |
| 44 | 94-0649 | . ELBOW | 1 | |
| 45 | 4645330 | . PLUG | 1 | |
| 50 | 4438889 | . PIPE | 2 | |
| 52 | 4438888 | . PIPE | 1 | |
| 54 | 4203485 | . FITTING; PIPE | 1 | |
| 54A | 957366 | .. O-RING | 1 | |
| 55 | 3089617 | . PIPE | 1 | |
| 56 | 3089618 | . PIPE | 1 | |
| 57 | 4118499 | . FITTING; PIPE | 4 | |
| 57A | 957366 | .. O-RING | 1 | |
| 58 | 4293950 | . ELBOW; S | 5 | |
| 58A | 957366 | .. O-RING | 1 | |
| 59 | 4179843 | . CLAMP | 2 | |
| 60 | J900830 | . BOLT | 1 | |
| 61 | M500807 | . NUT | 1 | |
| 62 | A590908 | . WASHER; SPRING | 1 | |
| 63 | 4242263 | . GAUGE; LEVEL | 1 | |
| 64 | 4242262 | . PIPE | 1 | |
| 65 | M340816 | . BOLT; SOCKET | 2 | |
| 66 | 9742779 | . PACKING | 1 | |
| 67 | . NAME-PLATE | 1 | ||
| 68 | M492564 | . SCREW; DRIVE | 2 | |
| 74 | 4646894 | . COUPLING | 1 | |
| 74A | 4659040 | .. HUB | 1 | |
| 74B | 4183170 | .. SCREW; SET | 2 | |
| 74C | 4101345 | .. PIN; SPRING | 12 | |
| 74D | 4655136 | .. INSERT | 4 | |
| 74E | 4216949 | .. BOLT; SOCKET | 4 | |
| 74F | 4655135 | .. INSERT | 4 | |
| 74G | 4216948 | .. BOLT; SOCKET | 4 | |
| 74H | 4655134 | .. ELEMENT | 1 | |
| 81 | 4092534 | . PLUG | 1 | |
| 81A | 4509180 | .. O-RING | 1 | |
| 100 | 4471487 | KIT; SEAL | 1 |
Why choose us:
24-hour online consultation and communiion
Large stock of a single product
Product quality is guaranteed
Comparative advantage in product price comparison with other suppliers
Has the accurate data to follow the excavator brand part number inquiry, guarantees the product correct rate
Product delivery time is fast, according to customer needs for deliveryThe product is packed according to the customer’s requirement
Minimum 5 years experience in export cooperation, good at customer service
Professional excavator hydraulic system accessories 10 years of service experience
1 . How do I contact you?
You can add me on WhatsApp: +86 189 9845 5434,Or send me an email: rayhan@belparts-china.com
2 . How long can I enjoy the warranty period?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How do I pay?
You can complete the payment through PaPal, T/T and other methods.
4 . When will get the items after I place order?
Once we receive your payment, we will arrange delivery within 24 hours; if there is no stock, we will tell you before payment.
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts. If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
