GZ Yuexiang Engineering Machinery Co., Ltd. 86- 020-89853372 sales@yuexiangparts.com

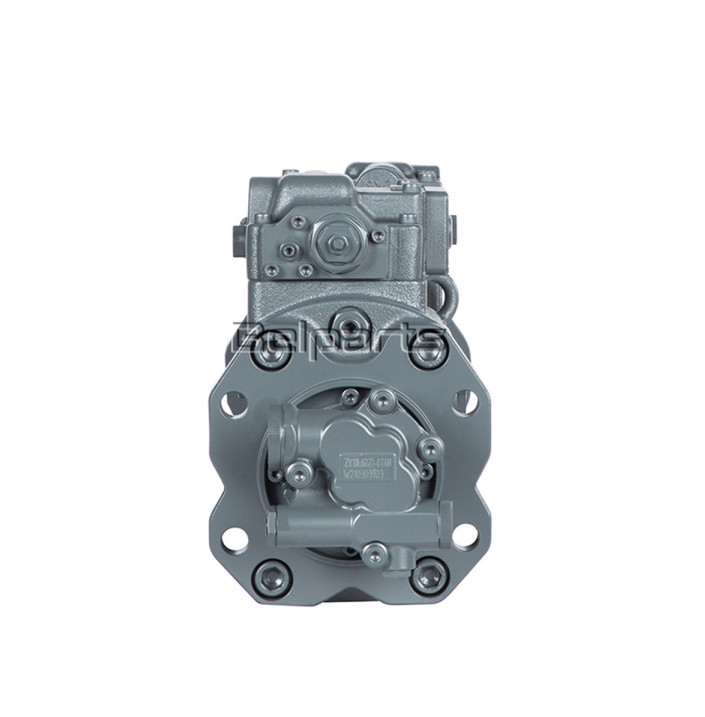

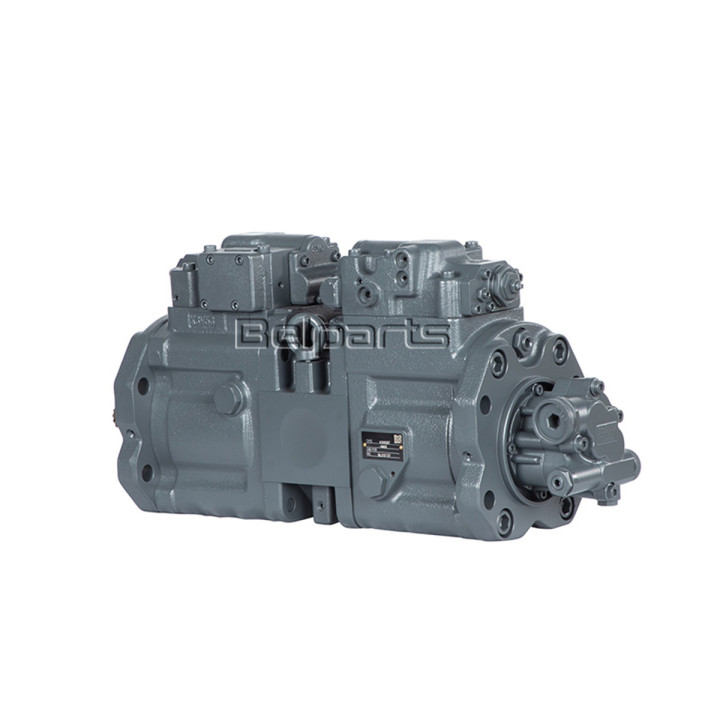

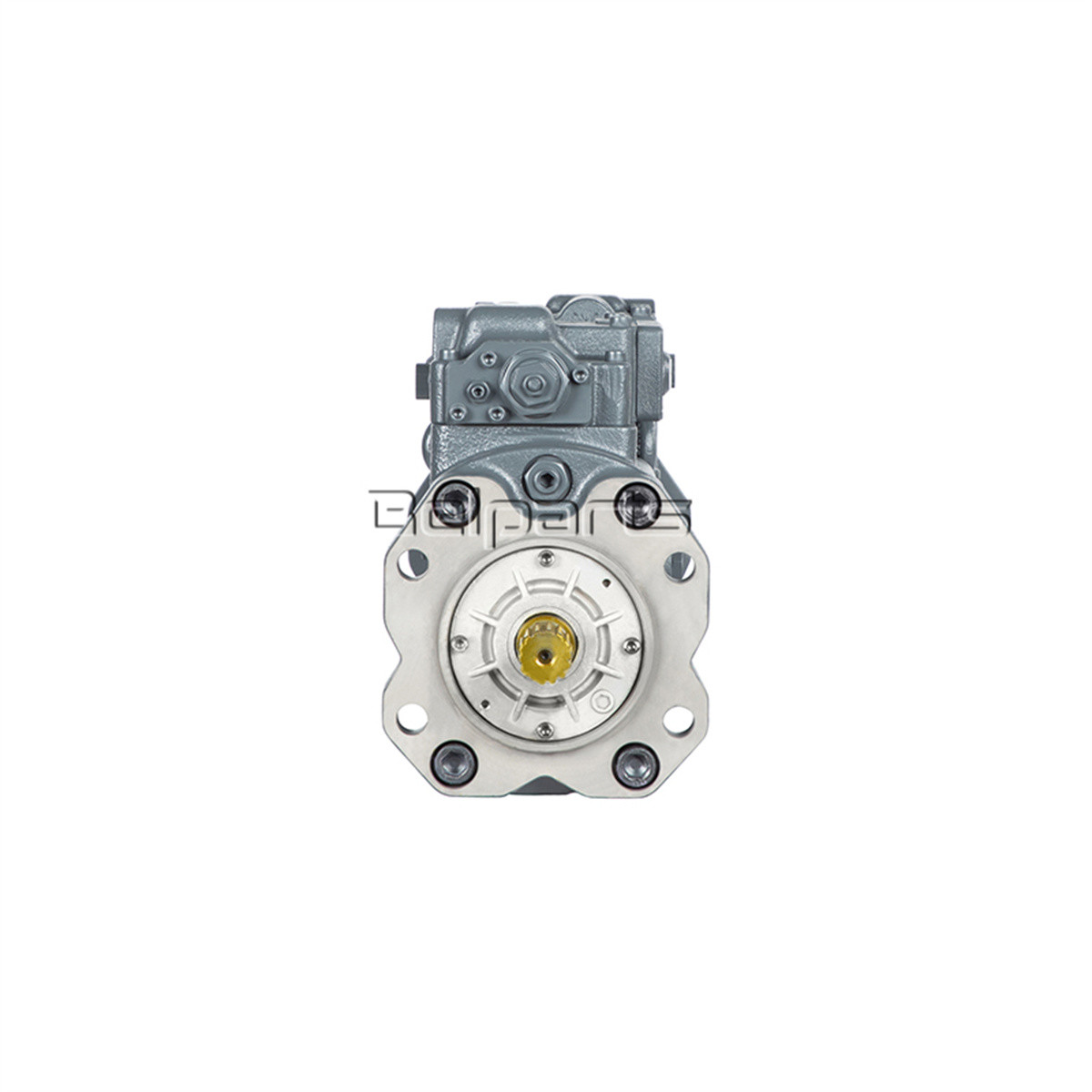

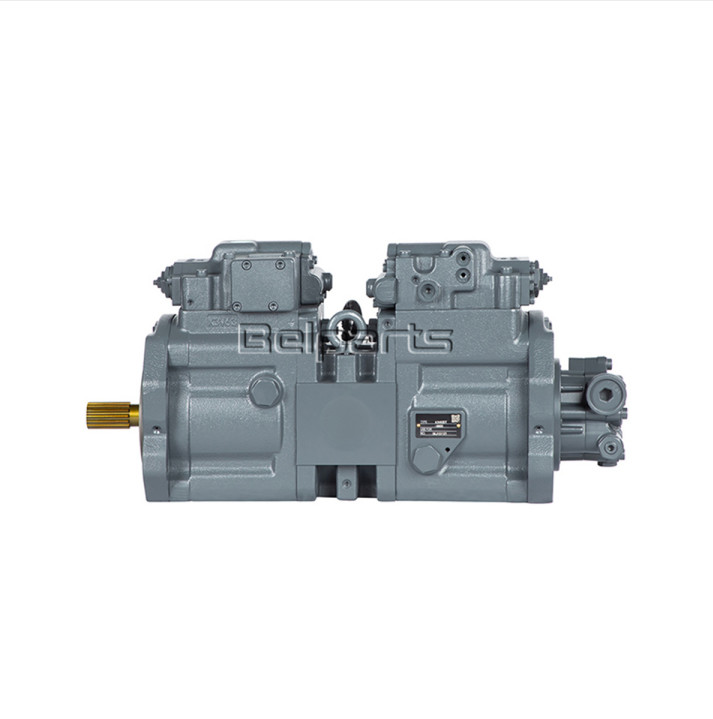

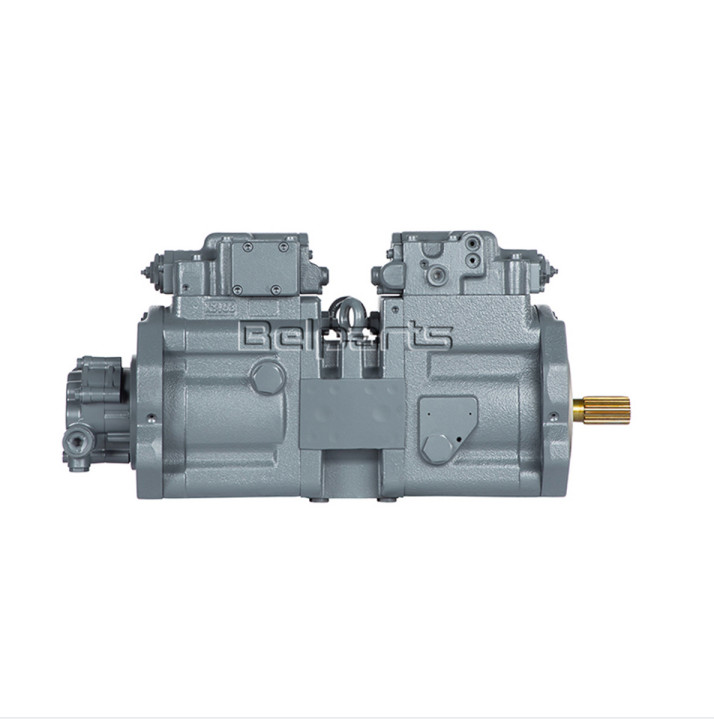

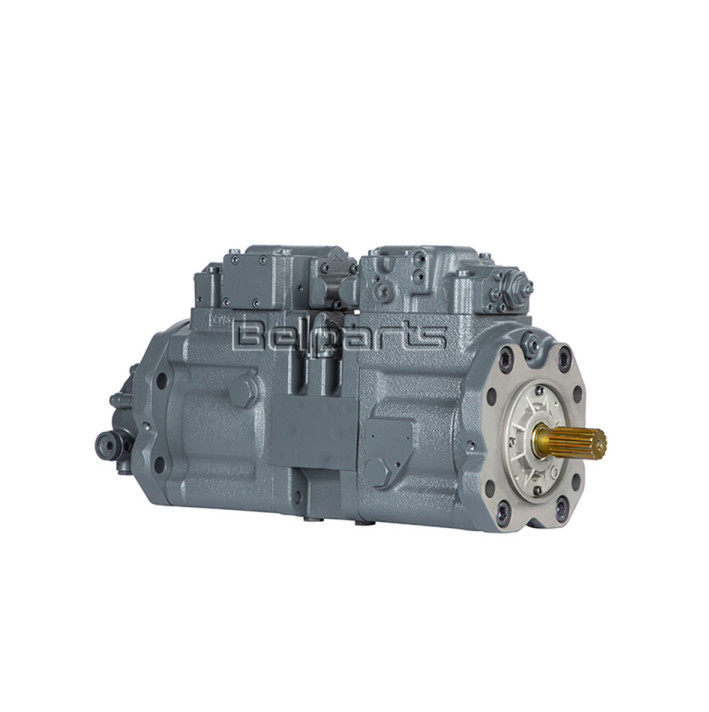

Belparts Excavator Hydraulic Pump For Kobelco SK130 SK140 2437U516F1 K3V63DT-9N00

Belparts Excavator Hydraulic Pump For Kobelco SK130 SK140 2437U516F1 K3V63DT-9N00

  • High Light

    SK130 Excavator Hydraulic Pump

    ,

    SK140 Excavator Hydraulic Pump

    ,

    K3V63DT-9N00 Excavator Hydraulic Pump

  • Condition
    100%New
  • Warranty
    12month
  • Part Name
    Main Hydraulic Pump
  • Part Number
    2437U516F1
  • Availability
    In Stock
  • Place Of Origin
    Guangdong, China
  • Place of Origin
    Guangdong,China
  • Brand Name
    Belparts
  • Certification
    OEM
  • Model Number
    SK130
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiable price
  • Packaging Details
    Wooden packing
  • Delivery Time
    1-5days
  • Payment Terms
    T/T, Paypal and Alibaba Trade Assurance
  • Supply Ability
    1000pieces

Belparts Excavator Hydraulic Pump For Kobelco SK130 SK140 2437U516F1 K3V63DT-9N00

Belparts Excavator Hydraulic Pump For Kobelco SK130 SK140 2437U516F1 Bomba hidráulica K3V63DT-9N00

Quick Detail of Excavator Hydraulic Pump

Material:Steel

Product Name: Excavator Main Hydraulic Pump

Applicable Industries:Machinery Repair Shops, Manufacturing Plant

Dimension(L*W*H):77*35*45

Part number:2437U516F1

Package Details:Export Wooden Box

Weight:100KG

Surface treatment:Heat resistance paint

Pressure:Standard, High Pressure



Specifications Of Excavator Hydraulic Pump

Product Name Excavator Hydraulic Pump
Oem No 2437U516F1
Engine No SK130
Packing Number 1
N.W/KG 95KG
G.W/KG 100KG
Packing Size 77*35*45
Related Oem 2437U509F1 2437U412F4 2436U2944F1
Pressure Standard, High Pressure



Features of Excavator Hydraulic Pump

1) It has high transmission efficiency, giving full play to the power and fuel economy of the engine.

2) The hydraulic system and hydraulic components have sufficient reliability under the action of large load changes and sharp vibration and impact.

3) Coordinate the light and vibration-resistant cooler to reduce the total heat generation of the system, so that the hydraulic oil temperature does not exceed 80 degrees, or the temperature rise does not exceed 45 degrees when the main engine continues to work.

4) The sealing performance of the hydraulic system is very good, and the oil filter and dustproof device are set up.

5) Hydraulic or electro hydraulic servo control device is adopted, so that the excavator can set up an automatic control system, thereby improving the technical performance of the excavator and reducing the labor intensity of the driver.







  • Made of aluminum alloy, high strength, corrosion resistance, light weight, suitable for operation in various environments.
  • The two-speed feature reduces the number of times of pressing, and the low-pressure chamber is quickly in a load-utilizing state, and immediately converts to high-pressure, shortening each operation cycle.
  • Equipped with a pressure regulating valve, which can adjust the control and set the working pressure.





Advantages Of Excavator Hydraulic Pump

1, The internal parts adopt Japanese Kawasaki molten copper technology

2, High durability, it can be used for hydraulic breaker

3, Every pump is tested before leaving the factory, Reject low-cost spot-check.



Why choose us:

24-hour online consultation and communication

Large stock of a single product

Product quality is guaranteed

Comparative advantage in product price comparison with other suppliers

Has the accurate data to follow the excavator brand part number inquiry, guarantees the product correct rate

Product delivery time is fast, according to customer needs for deliveryThe product is packed according to the customer’s requirement

Minimum 5 years experience in export cooperation, good at customer service

Professional excavator hydraulic system accessories 10 years of service experience



Our Services

Highest standard to suit western country operators' use

ISO quality control manufacturing

Free and efficient communication

Quick and professional response

Patient and responsible before-sale and after-sale services

Over 40 years experiences on metal fabrication, hydraulics apply and control and consultancy in Australia

World class quality at affordable price



Service

1) Material: All our products are used high quality genuiner raw material.

2) Inspection: We make a very strict inspection process before delivery.

3) Inventory: We have about 1000 pieces in stock, can provide you at once.

4) Price: We have steady in stock and we can offer competitive price.

5) Delivery time: We will deliver the goods within 1-3 days after received the payment.

6) Service: We have a professional team to offer professional service for you 24/7.

7) All the spare parts are 100% measured, 100% interchangeable.



Parts scheme

Belparts Excavator Hydraulic Pump For Kobelco SK130 SK140 2437U516F1 K3V63DT-9N00 0

Belparts Excavator Hydraulic Pump For Kobelco SK130 SK140 2437U516F1 K3V63DT-9N00 1

List of spare parts



Pos. Part No Qty Parts name Comments
. . 2437U516F1 [1] PUMP ASSY
111. 2437U188S111 [1] SHAFT KOB (F)
113. 2437U412S113 [1] SHAFT KOB (R)
114. 2437U188S114 [1] COUPLING KOB
123. 2437U188S123 [2] BEARING KOB
124. 2437U188S124 [2] BEARING KOB Superseded by part number: YW10V00005S124
127. 2441U478S5 [4] SPACER KOB Superseded by part number: YW10V00003S127
141. NSS [2] NOT SOLD SEPARAT CON BLOCK, CYLINDER
151. NSS [18] NOT SOLD SEPARAT CON PISTON
152. NSS [18] NOT SOLD SEPARAT CON SHOE
153. 2437U188S153 [2] PLATE KOB
156. 2437U188S156 [2] BUSHING KOB Superseded by part number: YW10V00005S156
157. 2437U188S157 [18] SPRING KOB
158. 2437U188S158 [2] THRUST RING KOB
211. 2437U188S211 [2] PLATE KOB SHOE
212. NSS [2] NOT SOLD SEPARAT CON PLATE
214. NSS [2] NOT SOLD SEPARAT CON BUSHING
251. 2437U188S251 [2] PLATE KOB RETAINER
261. 2437U188S261 [1] COVER KOB SEAL
263. 2437U188S263 [1] COVER KOB
271. 2437U188S271 [2] CASING KOB CASE
312. 2437U188S312 [1] BLOCK KOB VALVE
313. NSS [1] NOT SOLD SEPARAT CON PLATE, VALVE
314. NSS [1] NOT SOLD SEPARAT CON PLATE, VALVE
401. 2437U188S401 [8] CAPSCREW KOB SCREW
406. ZS23C06016 [4] SCREW,Hex Socket Head, M6 x 16mm KOB M06x1.0x16mm Superseded by part number: ZS28C06016
407. ZS23C06020 [4] SCREW,Hex Socket Head, M6 x 20mm KOB M06x1.0x20mm Superseded by part number: ZS28C06020
466. 2441U667S466 [2] PLUG KOB 1/4" PF
467. 2441U436S468 [3] PLUG KOB
490. 2441U722S490 [15] PLUG KOB 1/16" NPTF
531. NSS [2] NOT SOLD SEPARAT CON LEVER
532. 2437U188S532 [2] PISTON KOB PISTON
534. 2437U188S534 [2] POPPET KOB STOPPER
535. 2437U188S535 [2] STOP KOB
548. NSS [2] NOT SOLD SEPARAT CON PIN
702. ZD12G03000 [2] O-RING,29.40mm ID x 35.60mm OD x 3.10mm KOB ID 29.4 ± 0.29 x OD 35mm
710. ZD12G08500 [2] O-RING,84.40mm ID x 90.60mm OD x 3.10mm KOB ID 84.40 ± 0.73 x OD 90mm
717. ZD12G12000 [2] O-RING,3.1mm Thk x 119.4mm ID, 90 Duro KOB O-Ring -- ID 119.40 ± 0.98 x OD 125mm
719. ZD12G11500 [2] O-RING,114.40mm ID x 120.60mm OD x 3.10mm KOB ID 114.40 ± 0.94 x OD 120mm
724. ZD12P00800 [18] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
725. ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
728. ZD12P01800 [3] O-RING KOB ID 17.8mm x OD 20.2mm
732. ZD12P01600 [2] O-RING KOB ID 15.80 ± 0.20 x OD 20mm
774. 2441U478S26 [1] OIL SEAL KOB Superseded by part number: 2441U122-24
789. ZD85P01600 [2] RING KOB BACK UP
792. ZD85G03000 [2] BACK-UP RING KOB ID 30 x OD 35 x Th 1.25mm
808. ZN11C16010 [4] NUT KOB M16x2.0mm
824. ZR16X03500 [2] RING KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
885. 2441U436S886 [2] PIN KOB
886. ZP26D06014 [4] PIN KOB Roll -- OD 06 x 14mm Long
901. ZS91C01000 [2] BOLT KOB Eye -- M10x1.50x18mm
953. 2437U188S953 [2] CAP,M10 x 20mm KOB SETSCREW
954. 2437U188S954 [2] SCREW KOB SET
981. 2437U407S981 [1] LABEL KOB NAME PLATE
983. 2437U407S983 [2] RIVET KOB
