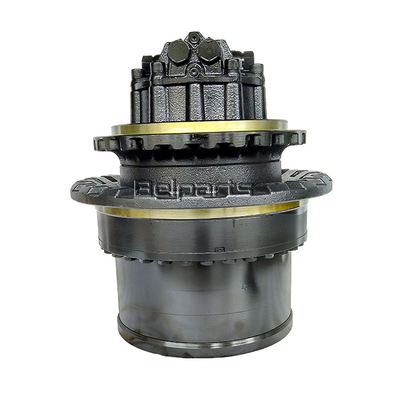

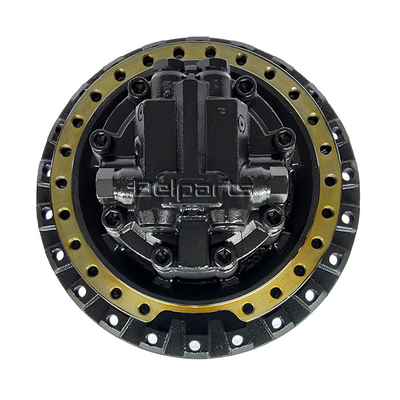

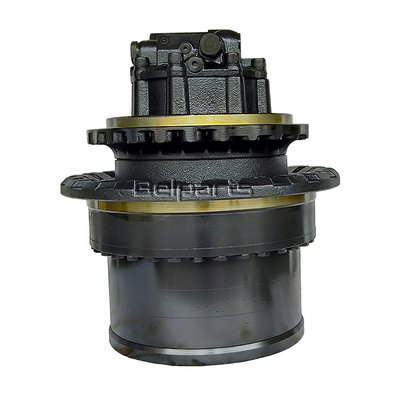

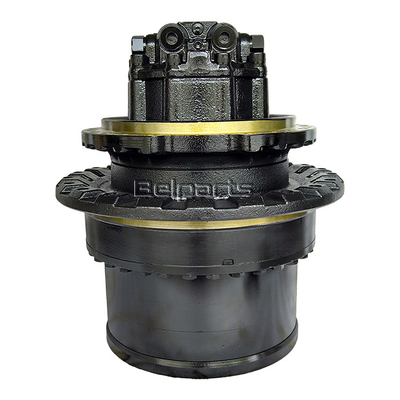

Belparts Excavator Spare Parts Travel Motor Assy ZX270-3 Final Drive Assy 9150848
Production Description
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 9150848 | MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| (9156041) | MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 1019564 | . CASING; MOTOR | 1 |
| 04 | 2031327 | . DISC; DRIVING | 1 |
| 06 | 4199108 | . BRG.; ROL. | 1 |
| 07 | 4199072 | . BRG.; ROL. | 1 |
| 08 | 4227550 | . SPACER | 1 |
| 09 | 4191665 | . NUT; BRG. | 1 |
| 11 | 4191666 | . SEAL; OIL | 1 |
| 12 | 4038529 | . RING; RETAINING | 1 |
| 14 | 2022744 | . ROTOR | 1 |
| 17 | 8051275 | . PISTON | 7 |
| 19 | 3078298 | . SHAFT; CENTER | 1 |
| 20 | 4194362 | . SPRING; COMPRES. | 1 |
| 21 | 4198956 | . PIN | 1 |
| 24 | 3036457 | . PLATE; FRICTION | 4 |
| 25 | 3036456 | . PLATE | 5 |
| 26 | 4193996 | . SPACER | 1 |
| 28 | 3078190 | . PISTON | 1 |
| 29 | 4252401 | . D-RING | 1 |
| 30 | 4269474 | . D-RING | 1 |
| 31 | 3054505 | . SPRING; DISC | 1 |
| 33 | 4269473 | . O-RING | 1 |
| 34 | 4506415 | . O-RING | 1 |
| 37 | 9157762 | . VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 |
| 37 | (9158391) | . VALVE; BRAKE (FOR TRANSPORTATION) | 1 |
| 38 | M341850 | . BOLT; SOCKET | 4 |
| 40 | 2035236 | . PLATE | 1 |
| 42 | 4364104 | . PIN; KNOCK | 2 |
| 44 | 2033787 | . VALVE | 1 |
| 46 | 4234628 | . BUSHING | 1 |
| 48 | 2040803 | . LINK | 1 |
| 49 | 4255238 | . PLUG | 2 |
| 51 | 4262561 | . BOLT; REAMER | 1 |
| 53 | 9098902 | . PISTON; SERVO | 1 |
| 55 | 4260308 | . RING; PISTON | 2 |
| 57 | 4265579 | . O-RING | 1 |
| 61 | 9134112 | . PLUG | 1 |
| 61A | 4506418 | .. O-RING | 1 |
| 63 | 9134109 | . PLUG | 1 |
| 63A | 4506408 | .. O-RING | 1 |
| 64 | 4364922 | . COVER | 1 |
| 65 | M341225 | . BOLT; SOCKET | 4 |
1. Consist of built-in variable displacement piston motor, multi-disc brake, planetary gearbox, and functional valve block.
2. The drives feature high working efficiency, long life, great reliability, compact design, high working pressure and Hi-low speed switch control.
3. The -rotation type travel drives not only can be directly
4. installed inside the crawler or wheel, but also can be used in road header or milling machine for power turning drives.
5. The drives adopt our patented technology and design experience. The Dimensions and technical performance of the drives conform to Nebtesco, KYB, Nachi, and TONGMYUNG. So our drives can also be used for replacement.
Hot Products
Excavator Travel Motor, Final Drive----Machinery model available:
EX/ZX: EX200-2,EX220-2,EX120-5, EX200-5,EX220-5,EX400-5,ZAXIS 200-3, ZAXIS 210-3, ZAXIS 240-3, ZAXIS 270-3, ZAXIS 330-3, ZAXIS 360-3 ZAXIS 110, ZAXIS 120, ZX200-6
KOBEL: Sk200-3, SK200-5, SK135RS, SK70RS, SK60,SK120-5, SK200-8, SK260-8, SK130-8, SK200-6, SK30,SK45,SK80,SK50,SK120,SK60,SK75UR,SK07,SK09,SK100,SK210,SK220,SK380,SK310,SK450,SK230,SK260,SK280, SK250,SK320,SK330,SK360
Ka-to: HD250SE-2,HD250-5/7,KD400SE-2,HD400SEN2,HD400-5/7 HD450-5/7,HD510,HD512,HD550-5/7,HD700-2/5,HD700-7,HD770-1,HD770-2,HD800-5,HD800-7,HD820-1/2/3,HD880,HD850,HD900-5/7,HD1023, HD1250-5,HD1430, HD900-7
Vol: EC55,EC60,EC70,EC75,EC90,EC110,EC120,EC130,EC140, EC160,EC210B,EC240B,EC240B,EC260B,EC280,EC290B,EC320,EC360B,EC380,EC420,EC460B
Dae-woo: DH215-5, DH200-5-7, DH150LC-7, DH258LC-7, DH55-5, S60, SOLAR 130, SOLAR140,SOLAR160, DH220-2 DH220-3 DH220-5 DH225-7 DH280-3 DH320 DH320-2/3 DH450 DH130-7 DH280
SU-MI-TO-MO: SH55,SH60,SH75,SH90,SH100,SH120-1/2/3/5,SH160,SH180,SH200-1/A3 SH220 SH300-2, SH120A2/A3,SH200A2/A3, SH210A5, SH240A3, SH360A5
Hyundi: R110-7, R160-7, R215-7, R225-7, R225lc-7, R350-7, R110-9, R215-9, R275lc-9
R55,R60,R75,R110,R130,R210LC-7,R215,R220LC-5,R225,R290,R300,R305,R360LC,R362,R375,R330LC,R450LC-6
PC: PC60-6, PC200-6, PC220-6, PC200-7,PC220-7, PC360-7, PC200-8, PC210-8, PC240-8, PC260,PC280,PC300,PC320,PC360,PC380,PC400,PC420,PC450-7
E320, E325C, E315C, E330C, E315D, E320D, E325D, E330D, E360D, E70B, E120B, E200B, E320B, E330B
