KOMATSU PC10-6 PC10-7 PC10 EXCAVATOR SWING GEARBOX 20N-60-46500 SWING REDUCTION GEAR
|
Product name |
Swing Gearbox |
|
Brand |
KOMATSU |
|
Model: |
DX160 |
|
Part number: |
20N-60-46500 |
|
Weight |
34KG |
|
Package |
39*39*57 |

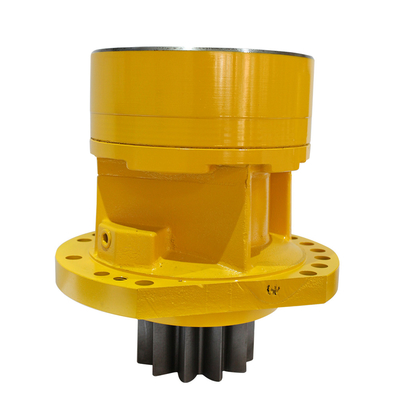

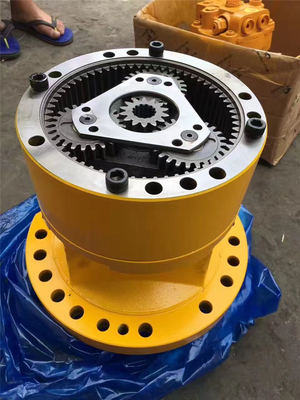

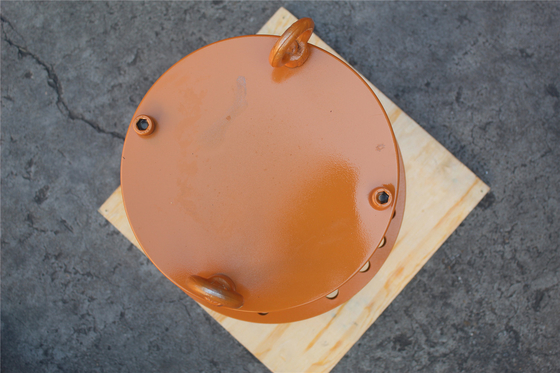

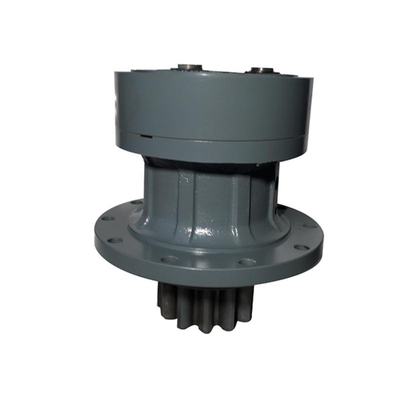

The Pictures
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 20N-60-46500 | MOTOR ASS'Y,SWING | 1 | |
| 1 | 20N-60-46501 | MOTOR ASS'Y,SWING | 1 | |
| 1 | 20N-60-73110 | HOUSING,BEARING | 1 | |
| 2 | 20N-60-46600 | GEAR ASS'Y,PINION | 1 | |
| 3 | 20N-60-46275 | Bearing | 1 | |
| 4 | 20N-60-46630 | Spacer | 1 | |
| 5 | 20N-60-46165 | O-ring | 1 | |
| 6 | 20N-60-46115 | RING,BACK UP | 1 | |
| 7 | 20N-60-46286 | RING,RETAINER | 1 | |
| 8 | 20N-60-26295 | Ring | 1 | |
| 9 | 20N-60-46155 | O-ring | 1 | |
| 10 | 01252-41240 | BOLT,(TM8072-123) | 4 | |
| 11 | 01602-21236 | WASHER,SPRING (WITHOUT TOWING WINCH) | 4 | |
| 12 | 20N-60-46255 | Bearing | 1 | |
| 13 | 20N-60-16120 | RING,SEAL | 2 | |
| 14 | 20N-60-16240 | PLATE,VALVE | 1 | |
| 15 | 20N-60-16170 | RING,SEAL | 1 | |
| 16 | 20M-60-26330 | Valve | 1 | |
| 17 | 20N-60-16250 | Plate | 1 | |
| 18 | 20N-60-16260 | Spring | 2 | |
| 19 | 20N-60-16190 | SEAL,INNER | 1 | |
| 20 | 20N-60-16270 | Pin | 2 | |
| 21 | 20N-60-16180 | SEAL,OUTER | 1 | |
| 22 | 20N-60-46350 | VALVE,DRIVE | 1 | |
| 23 | 20N-60-46365 | GEROLER | 1 | |
| 23 | 20N-60-46360 | GEROLER | 1 | |
| 24 | 20N-60-16310 | VALVE,DRIVE | 1 | |
| 25 | 20N-60-16160 | RING,SEAL | 3 | |
| 26 | 20N-60-16330 | Ball | 2 | |
| 27 | 20N-60-16340 | Plug | 2 | |
| 28 | 20N-60-16220 | O-ring | 2 | |
| 29 | 20N-60-16320 | HOUSING,VALVE | 1 | |
| 30 | 20N-60-16230 | Plug | 1 | |
| 31 | 20N-60-16210 | O-ring | 1 | |
| 32 | FF7822-61330 | Bolt | 4 | |
| 33 | 20N-60-46315 | Flange | 1 | |
| 34 | 20N-60-46145 | O-ring | 1 |
