EXCAVATOR DX160 SWING GEARBOX K1007357B SWING GEAR REDUCTION FOR DOOSAN
|
Product name |
Swing Gearbox |
|
Brand |
DOOSAN EXCAVATOR |
|
Model: |
DX160 |
|
Part number: |
K1007357B |
|
Weight |
100KG |
|
Package |
39*39*57 |

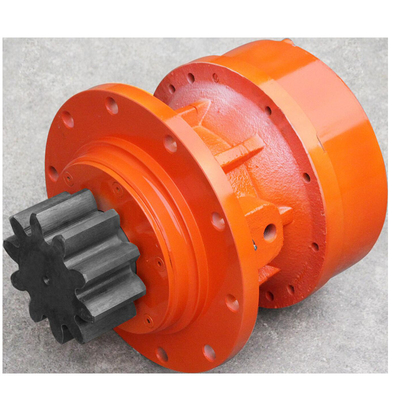

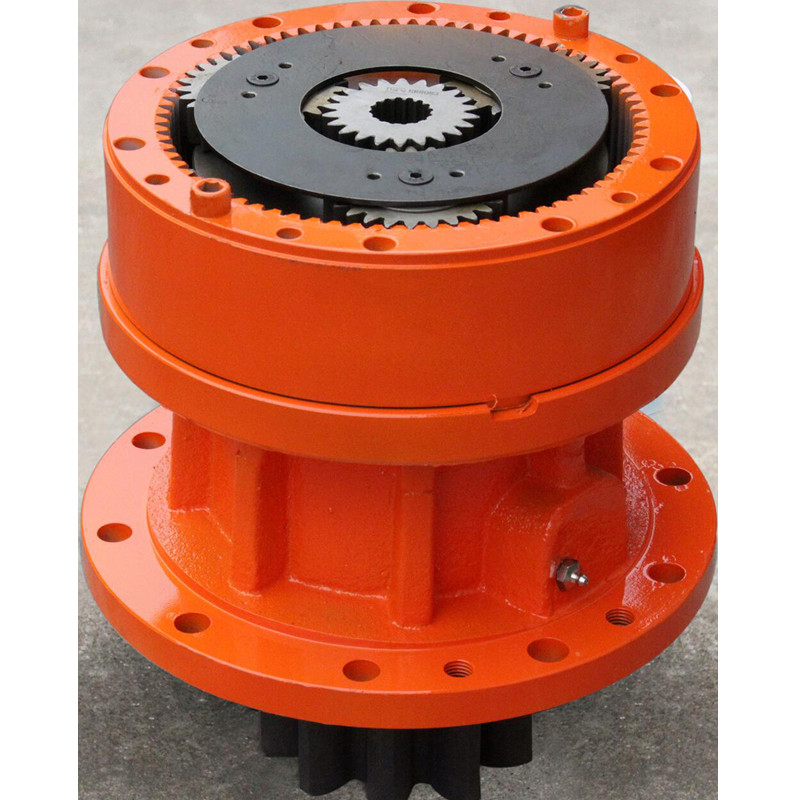

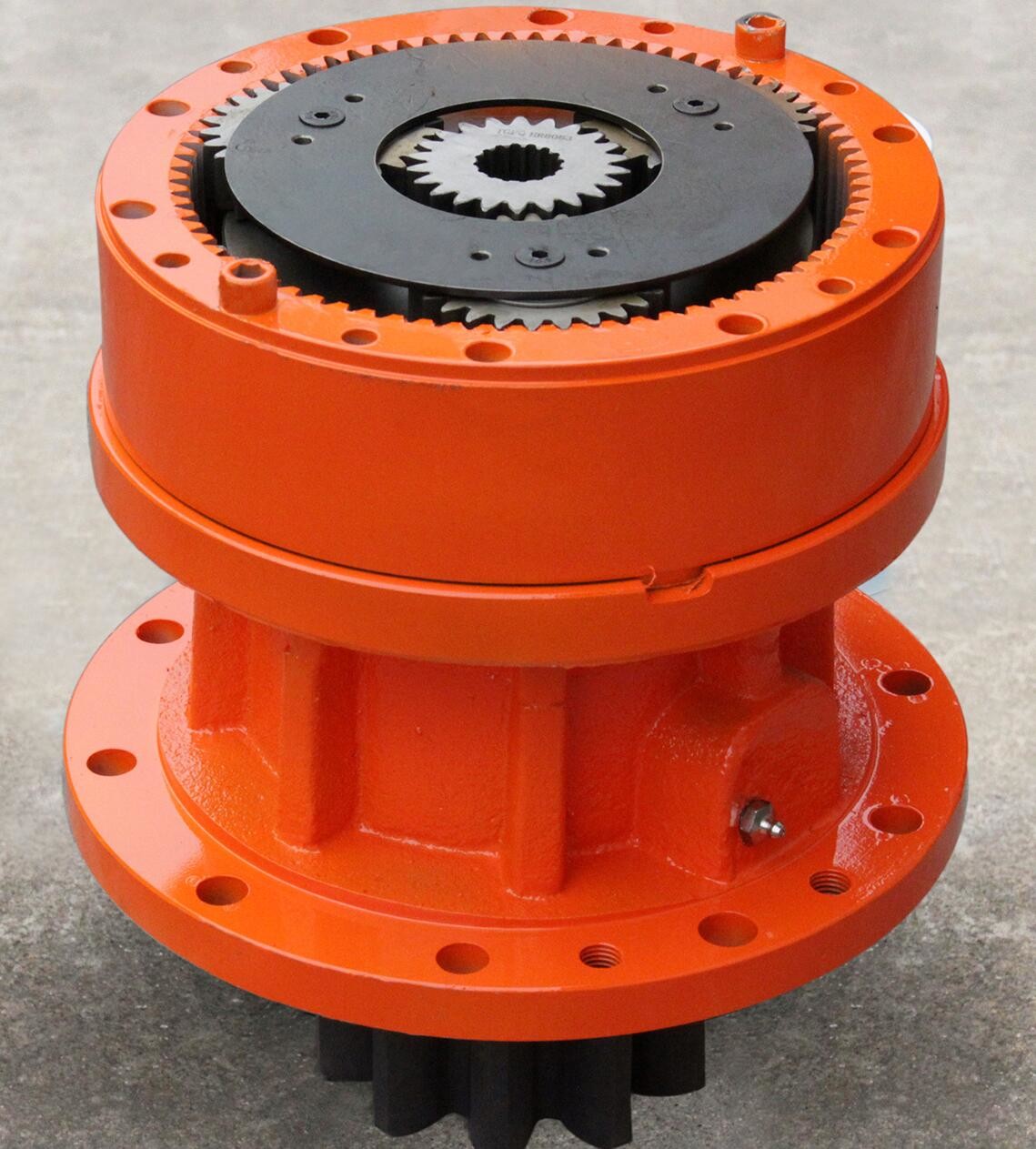

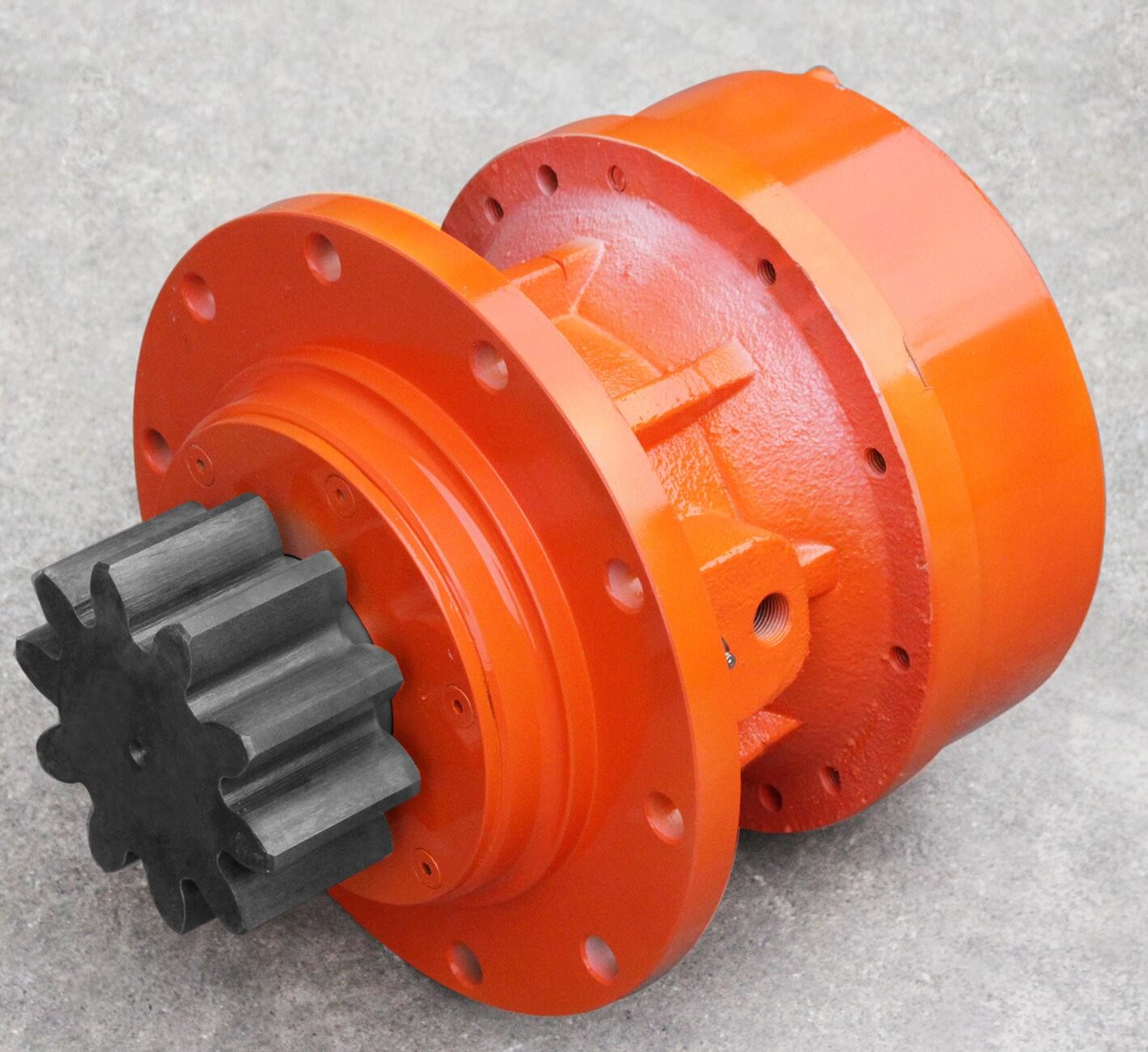

The Pictures
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | K1007357B | GEAR, REDUCTION | 130 kg | 1 | |
| 1 | 402-00017 | CASING | 28 kg | 1 | |
| 2 | 405-00006 | SHAFT, DRIVE | 14 kg | 1 | |
| 3 | 104-00019 | GEAR, RING | 13 kg | 1 | |
| 4 | 404-00063 | GEAR, PLANET NO.2 | 1 kg | 4 | |
| 5 | 404-00064 | GEAR, SUN NO.2 | 2 kg | 1 | |
| 6 | 404-00065 | GEAR, PLANET NO.1 | 1 kg | 3 | |
| 7 | 404-00066 | GEAR, SUN NO.1 | 1 kg | 1 | |
| 8 | 230-00017 | CARRIER NO.2 | 6 kg | 1 | |
| 9 | 230-00018 | CARRIER NO.1 | 3 kg | 1 | |
| 10 | 123-00094 | PIN ASS'Y NO.2 | 4 | ||
| 11 | 123-00095 | PIN ASS'Y NO.1 | 3 | ||
| 12 | 2114-1594 | T/WASHER NO.3(=2114-1594P) | 13 | ||
| 13 | 2114-1592 | WASHER, THRUST(A) | 2 | ||
| 14 | 119-00003 | BAR, LEVEL | 1 | ||
| 15 | 182-00009 | PIPE, OIL LEVEL GAUGE | 1 | ||
| 16 | 123-00096 | PIN, KNOCK | 2 | ||
| 17 | 2109-1041 | SPH.ROLLER BEARING(=2109-1041P) | 4 kg | 1 | |
| 18 | 2109-1042 | CYL.ROLLER BRG.(=2109-1042P) | 2 kg | 1 | |
| 19 | S2216873 | BOLT, HEX SOCKET | 10 | ||
| 20 | 180-00179 | SEAL, OIL | 1 | ||
| 21 | 2181-1116D4 | PLUG, RECHECK | 97123-04111 | 1 | |
| 22 | 2181-1116D2 | PLUG, RECHECK | 2 | ||
| 23 | S5740890 | PIN-SPRING CL | 3 | ||
| 24 | S6500300 | RING, RETAINING | 4 | ||
| 25 | S6500650 | RING, RETAINING | 1 | ||
| 26 | 115-00037 | RING, NILOS | 1 | ||
| 27 | S5740890 | PIN-SPRING CL | 4 | ||
| 28 | 191-00167 | PLATE, SUPPORT | 1 kg | 2 | |
| 29 | S3453116 | BOLT, SCREW | 1 kg | 6 |
