MINI EXCAVATOR EX60 SWING GEARBOX 4199040 SWING REDUCTION GEAR FOR HITACHI
|
Product name |
Swing Gearbox |
|
Brand |
HITACHI EXCAVATOR |
|
Model: |
EX60 |
|
Part number: |
4199040 |
|
Weight |
78KG |
|
Package |
34*34*48 |

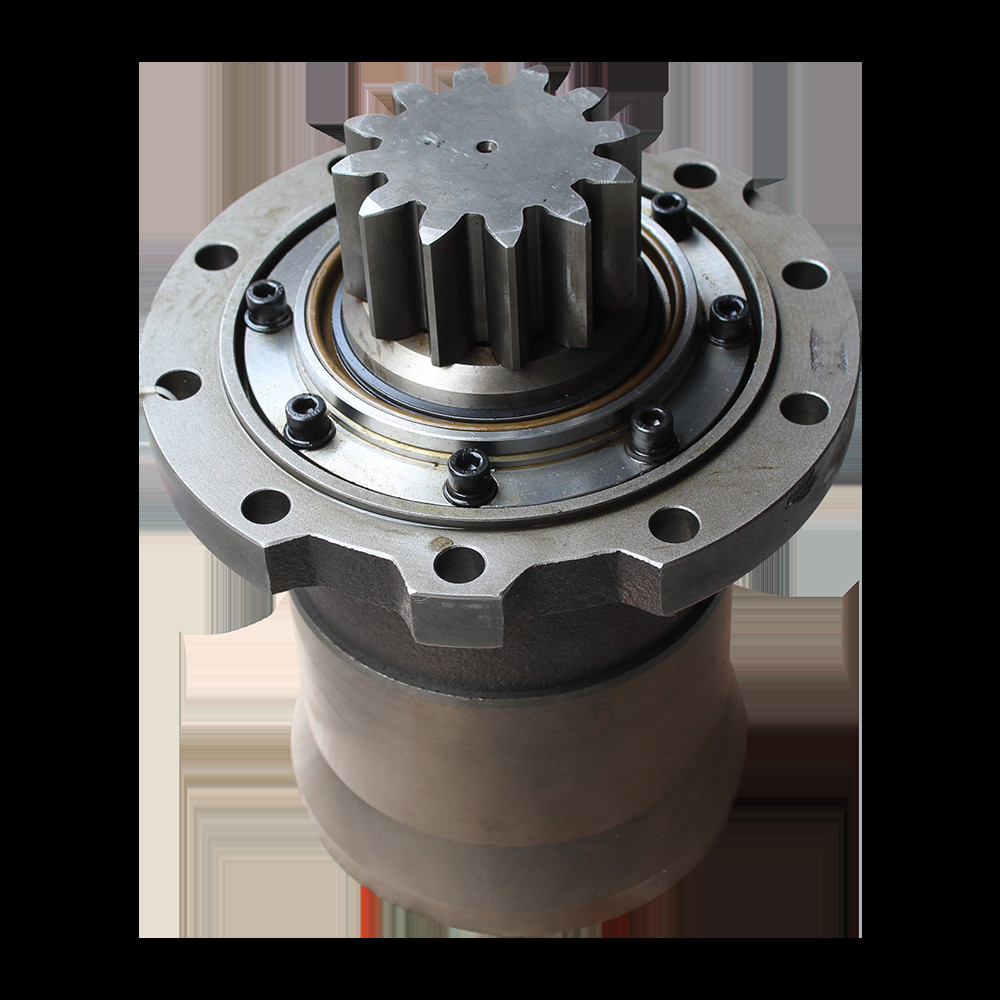

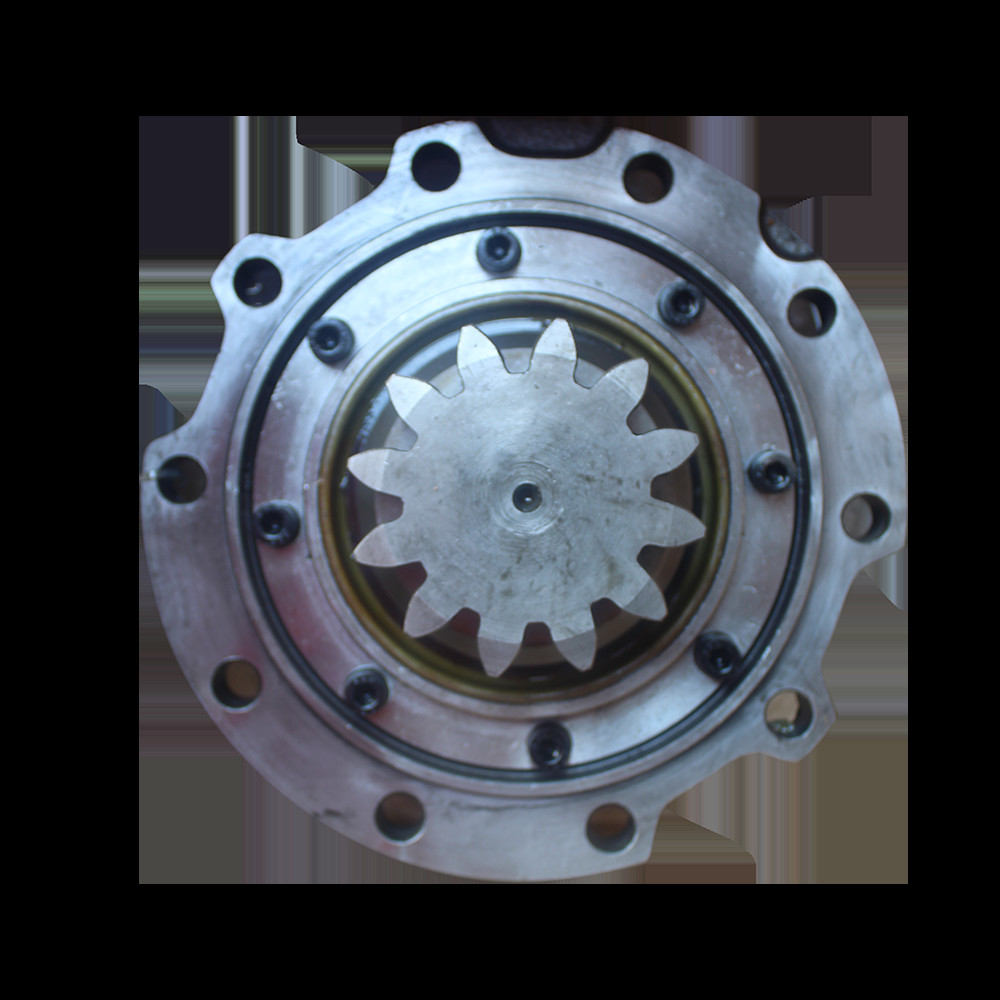

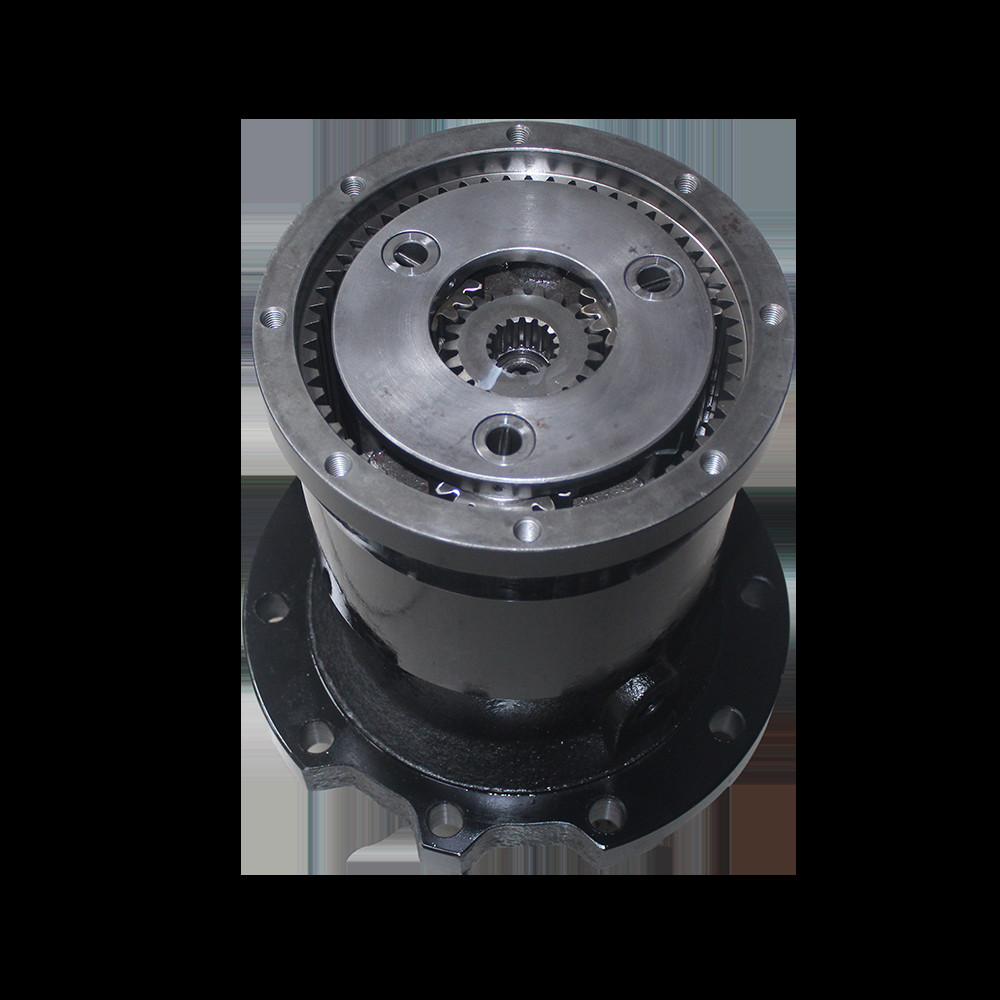

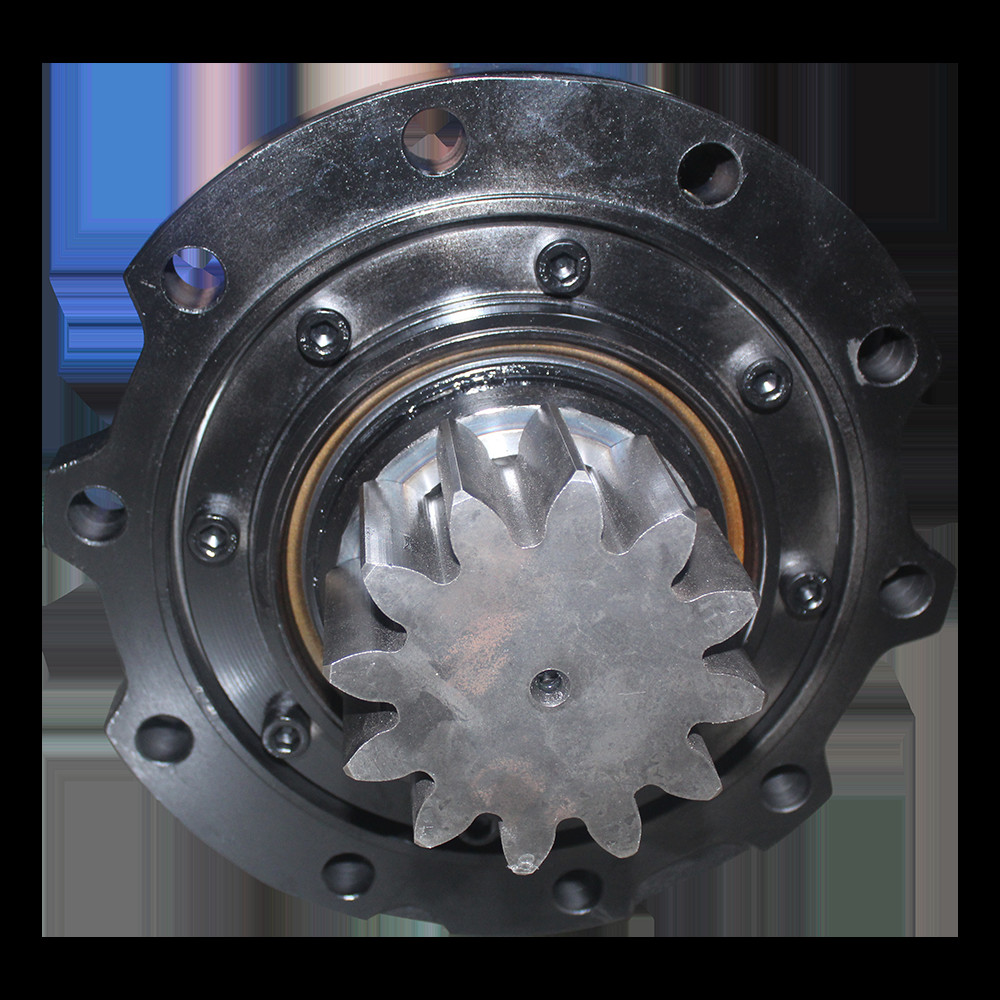

The Pictures
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 4199040 | MOTOR; OIL | 1 | ||
| 1 | 0329601 | . | ||
| 2 | 0329602 | . COVER ASS'Y | ||
| 2A | .. COVER | 1 | ||
| 2B | .. PLUG | 2 | ||
| 2C | .. PISTON | 2 | ||
| 3 | 0329603 | . SHAFT | ||
| 4 | 0329604 | . BLOCK; CYL. ASS'Y | ||
| 4A | .. BLOCK; CYL. | 1 | ||
| 4B | .. PLATE | 1 | ||
| 4C | .. PISTON | |||
| 7 | 0329605 | . PLATE ASS'Y | 1 | |
| 7A | .. PLATE | 1 | ||
| 7B | .. HOLDER | 1 | ||
| 9 | 0329606 | . PLATE; THRUST | ||
| 10 | 0329607 | . | ||
| 11 | 0329608 | . BRG.; BALL | ||
| 12 | 0329609 | . BRG.; NEEDLE | ||
| 13 | 0329610 | . RACE; INNER | ||
| 14 | 0329611 | . COLLOR | ||
| 15 | 0329612 | . SPRING | ||
| 16 | 0329613 | . SEAT; SPRING | ||
| 17 | 0311313 | . PIN | ||
| 20 | 0311314 | . PIN | ||
| 21 | 0311315 | . PLUG | ||
| 22 | 0329614 | . RING; RETAINING | ||
| 23 | 0329615 | . RING; RETAINING | ||
| 24 | 0329616 | . RING; RETAINING | ||
| 25 | 0311318 | . BOLT; SOCKET | ||
| 27 | 0311319 | . PLUG | ||
| 28 | . PLUG | 1 | ||
| 29 | 0158821 | . SEAL; OIL | ||
| 30 | 0329617 | . O-RING | ||
| 31 | A811090 | . O-RING | 1 | |
| 32 | 957366 | . O-RING | 2 | |
| 33 | . NAME-PLATE | 1 | ||
| 34 | . SCREW; DRIVE | 2 | ||
| 35 | . PLUG | 1 | ||
| 36 | 0329618 | . PISTON | ||
| 37 | 0329619 | . COLLOR | ||
| 38 | 0329620 | . PLATE; FRICTION | ||
| 39 | 0329621 | . PLATE; DISK | ||
| 41 | 0329622 | . SPRING | ||
| 42 | 0310015 | . O-RING | ||
| 43 | 0329623 | . O-RING | 1 | |
| 44 | 4506408 | . O-RING | 1 | |
| 45 | . PLUG | 2 | ||
| 46 | 0311326 | . FILTER | ||
| 48 | 94-2011 | . PLUG | 2 | |
| 49 | 0311327 | . BALL; STEEL | ||
| 50 | 0311328 | . SPRING | ||
| 51 | 0311329 | . GUIDE; SPRING | ||
| 52 | 0311330 | . ORIFICE | ||
| 53 | 0311331 | . WASHER | ||
| 54 | 0311332 | . HOUSING | ||
| 55 | 0311333 | . SCREW; SET | ||
| 56 | 0311334 | . VALVE | ||
| 57 | 0311335 | . SPRING | ||
| 58 | 0311336 | . PLUG | 2 | |
| 59 | 4509180 | . O-RING | 3 | |
| 60 | 0111711 | . POPPET | ||
| 61 | 0224411 | . PLUG | ||
| 62 | 0111715 | . O-RING | ||
| 63 | 0311337 | . SPRING | ||
| 64 | 4216817 | . VALVE; RELIEF | 2 | |
| 65 | 0329624 | . O-RING | ||
| 66 | 0311339 | . WASHER | ||
| 67 | 0159710 | . PLUG | ||
| 68 | 0111809 | . O-RING | ||
| 70 | 0311340 | . SPRING | ||
| 71 | 0311341 | . PLUG | ||
| 72 | 4140470 | . O-RING | 2 | |
| 73 | . PLUG | 2 |
