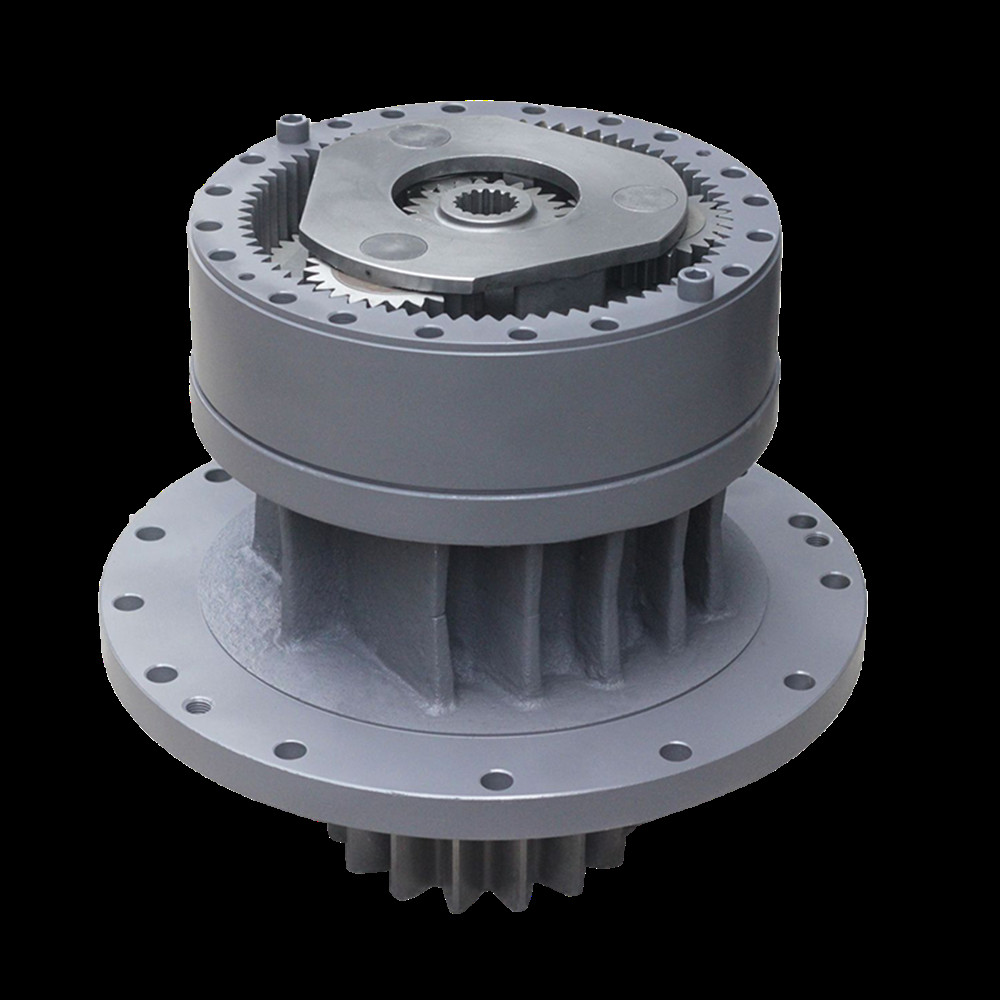

Mini excavator EC300 swing gearbox VOE 14231304 Swing Reduction Gearbox Assembly
|
Product name |
Swing Gearbox |
|
Brand |
EXCAVATOR |
|
Model: |
EC300 |
|
Part number: |
VOE 14231304 |
|
Weight |
260KG |
|
Package |
61*61*69 |

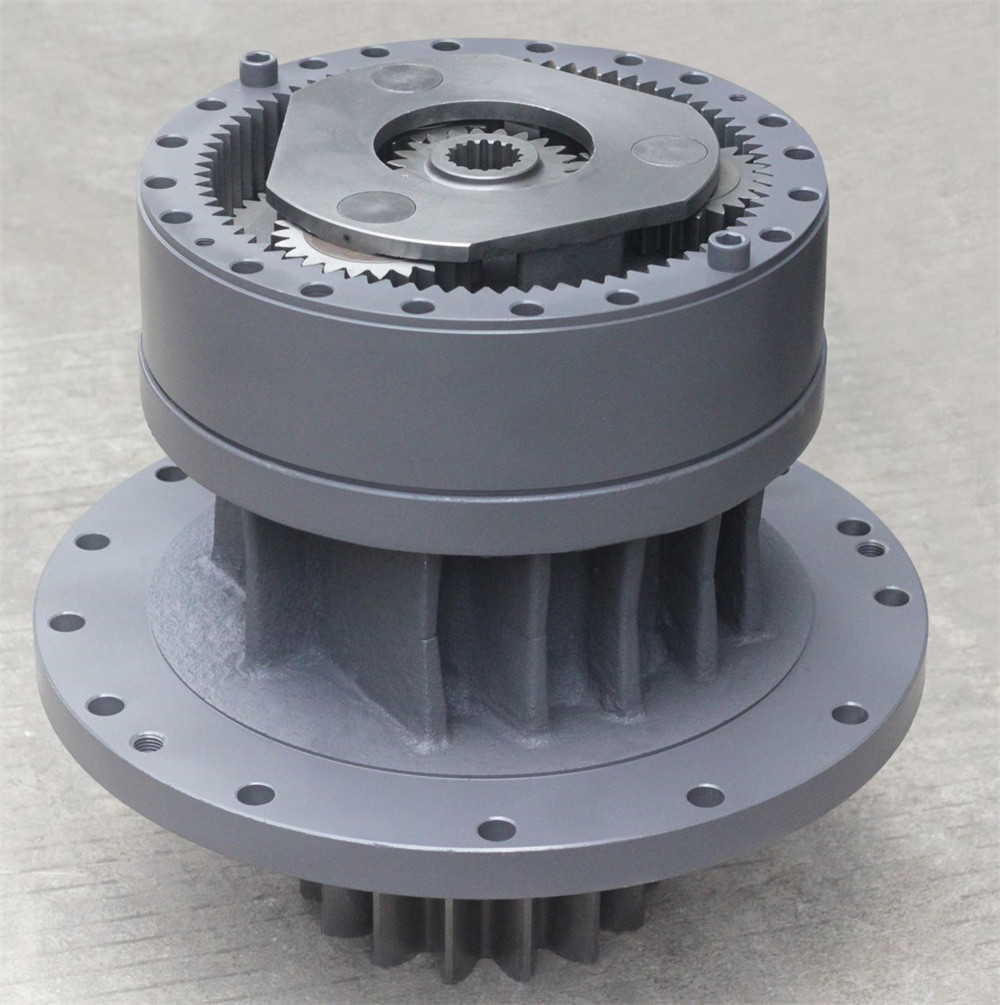

The Pictures

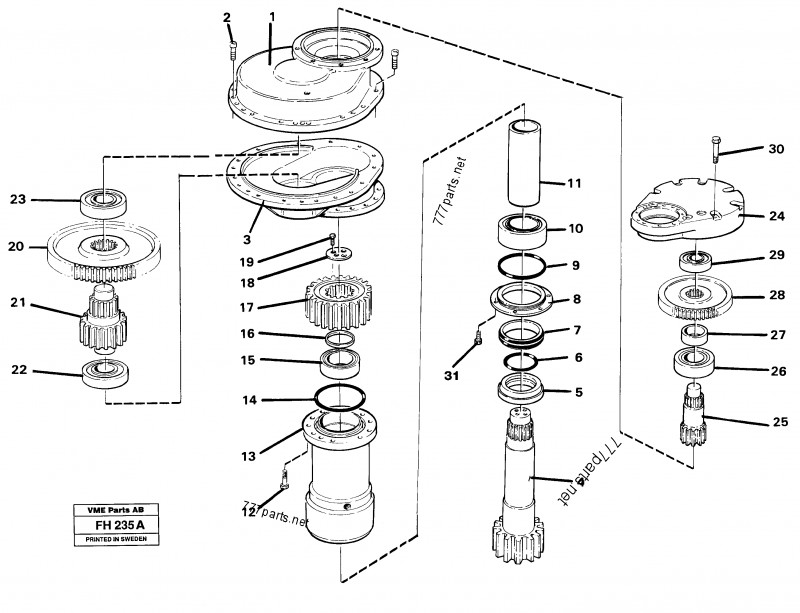

| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| VOE 14231304 | Swg Gearbox | 1 | ||
| 1 | VOE 14230666 | Gear Housing | 1 | |
| 2 | VOE 959259 | Allen Hd Screw more | 19 | |
| 3 | VOE 14230665 | Gear Housing | 1 | |
| 4 | VOE 14230662 | Swg Pin Shaft | 1 | |
| 5 | VOE 14231644 | Spacer | 1 | |
| 6 | VOE 925263 | O-ring more | 1 | |
| 7 | VOE 14025523 | Face Sealing | 1 | |
| 8 | VOE 14230663 | Cap | 1 | |
| 9 | VOE 925276 | O-ring more | 1 | |
| 10 | VOE 14013588 | Roller Bearing | 1 | |
| 11 | VOE 14230664 | Spacer | 1 | |
| 12 | VOE 970976
Replace: VOE 13970976
|
Hexagon screw more | 11 | |
| 13 | VOE 14230667 | Bearing Housing | 1 | |
| 14 | VOE 925280 | O-ring | 1 | |
| 15 | VOE 14013580 | Roller Bearing | 1 | |
| 16 | VOE 14230668 | Spacer Ring | 1 | |
| 17 | VOE 14230669 | Gear | 1 | |
| 18 | VOE 14054402 | Washer | 1 | |
| 19 | VOE 955368
Replace: VOE 14014636
|
Hexagon screw more | 2 | |
| 20 | VOE 14230671 | Gear | 1 | |
| 21 | VOE 14230670 | Gear | 1 | |
| 22 | VOE 6241672 | Roller Bearing | 1 | |
| 23 | VOE 6241672 | Roller Bearing | 1 | |
| 24 | VOE 14233060 | Gear Housing | 1 | |
| 25 | VOE 14040086 | Gear | 1 | |
| 26 | VOE 14013561 | Roller Bearing | 1 | |
| 27 | VOE 14054403 | Spacer Sleeve | 1 | |
| 28 | VOE 14040083 | Gear | 1 | |
| 29 | VOE 14013633 | Roller Bearing | 1 | |
| 30 | VOE 970980
Replace: VOE 13970980
|
Hexagon screw more | 8 | |
| 31 | VOE 13970948 | Hexagon screw more | 6 |
