Belparts Excavator Hydraulic Pump Parts E320C E320D 272-6955 hydraulic gear pump
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | 100%New | Warranty | 2000hours |
|---|---|---|---|
| Part Name | Excavator Hydraulic Gear Pump | Parts Number | 272-6955 |
| Type | SBS120 | Availability | In Stock |
| Highlight | Belparts Excavator Hydraulic Pump Parts,E320D Excavator Hydraulic Pump Parts,272-6955 Excavator Hydraulic Pump Parts |
||
Product Description

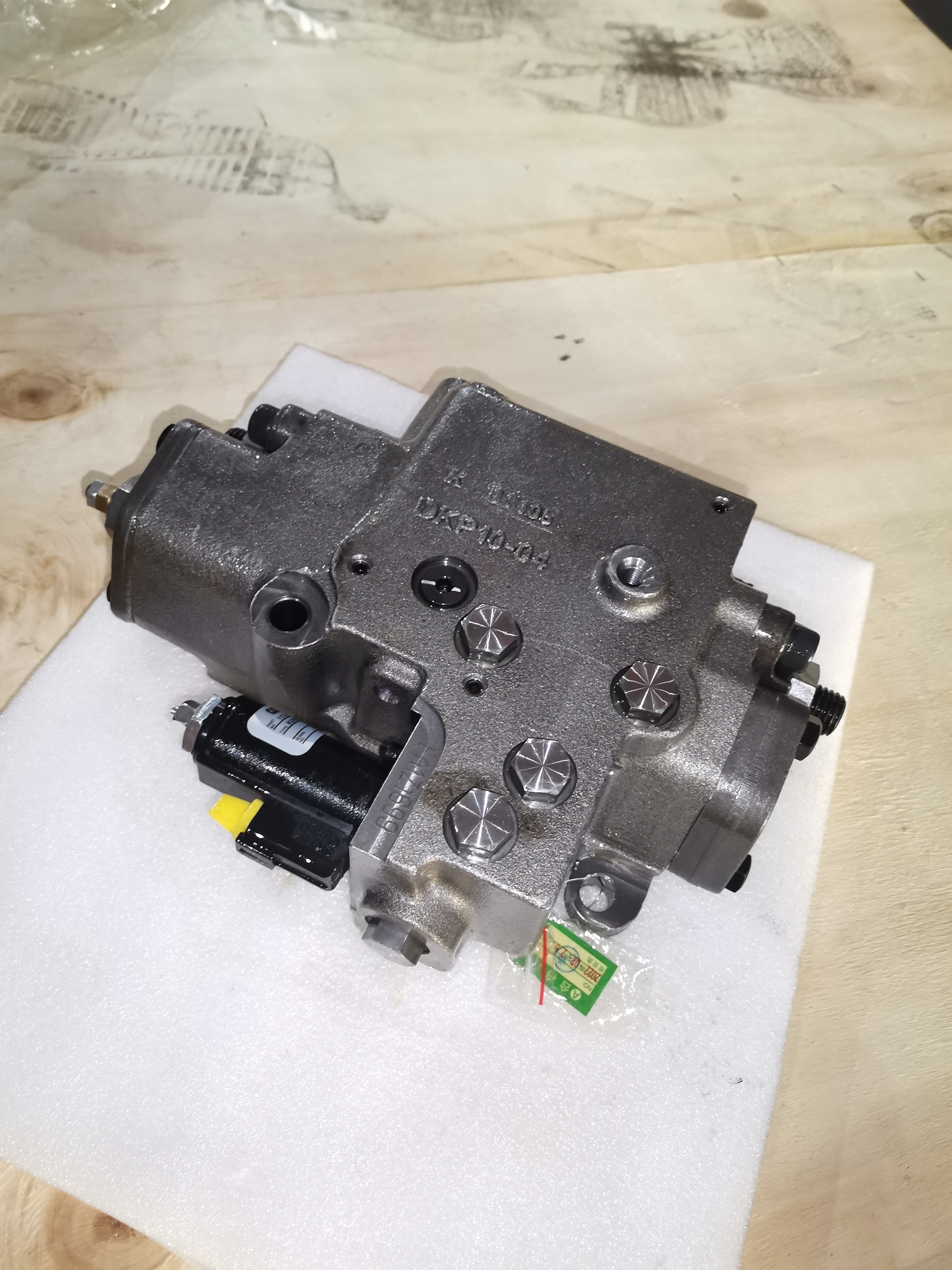

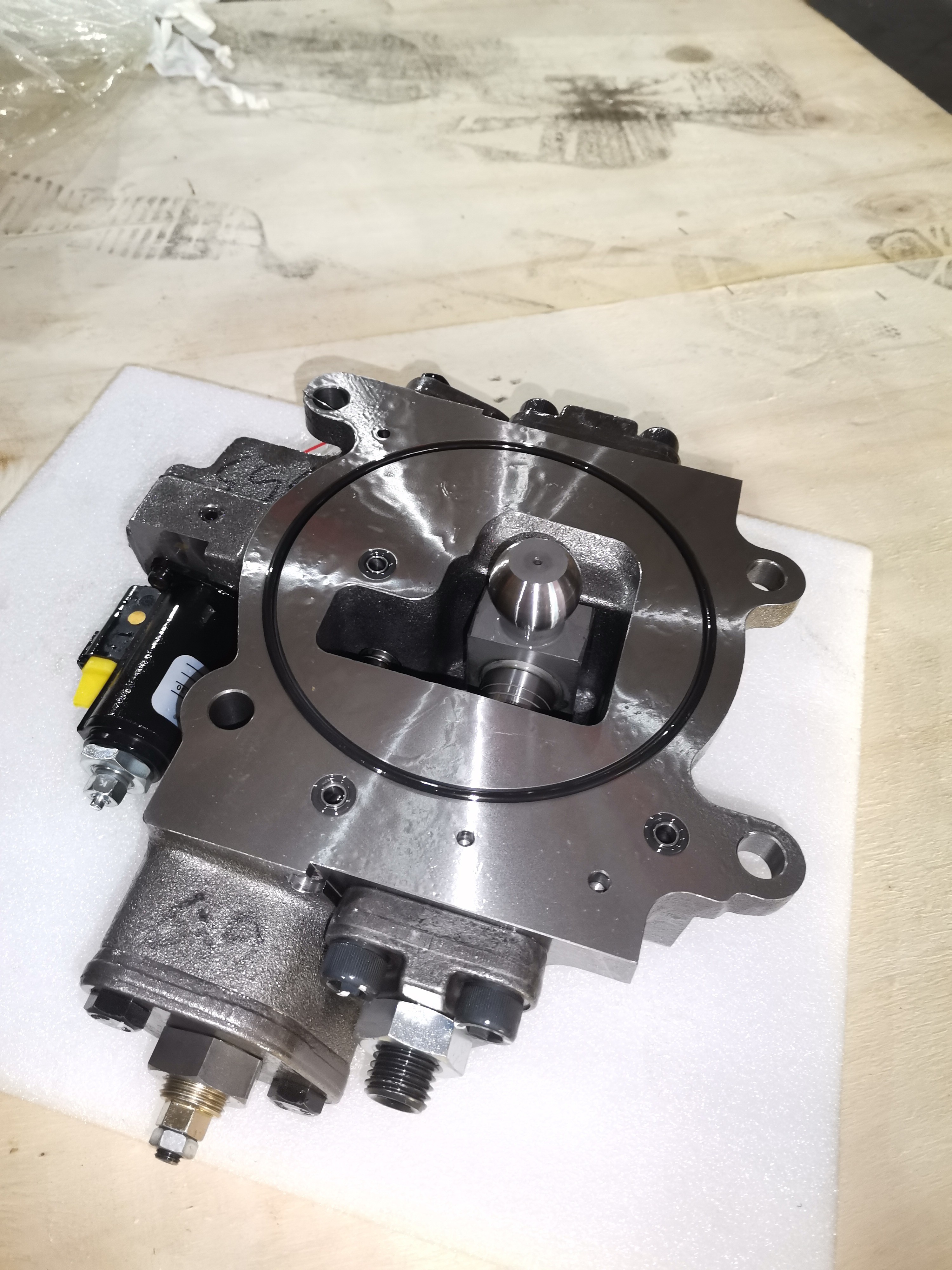

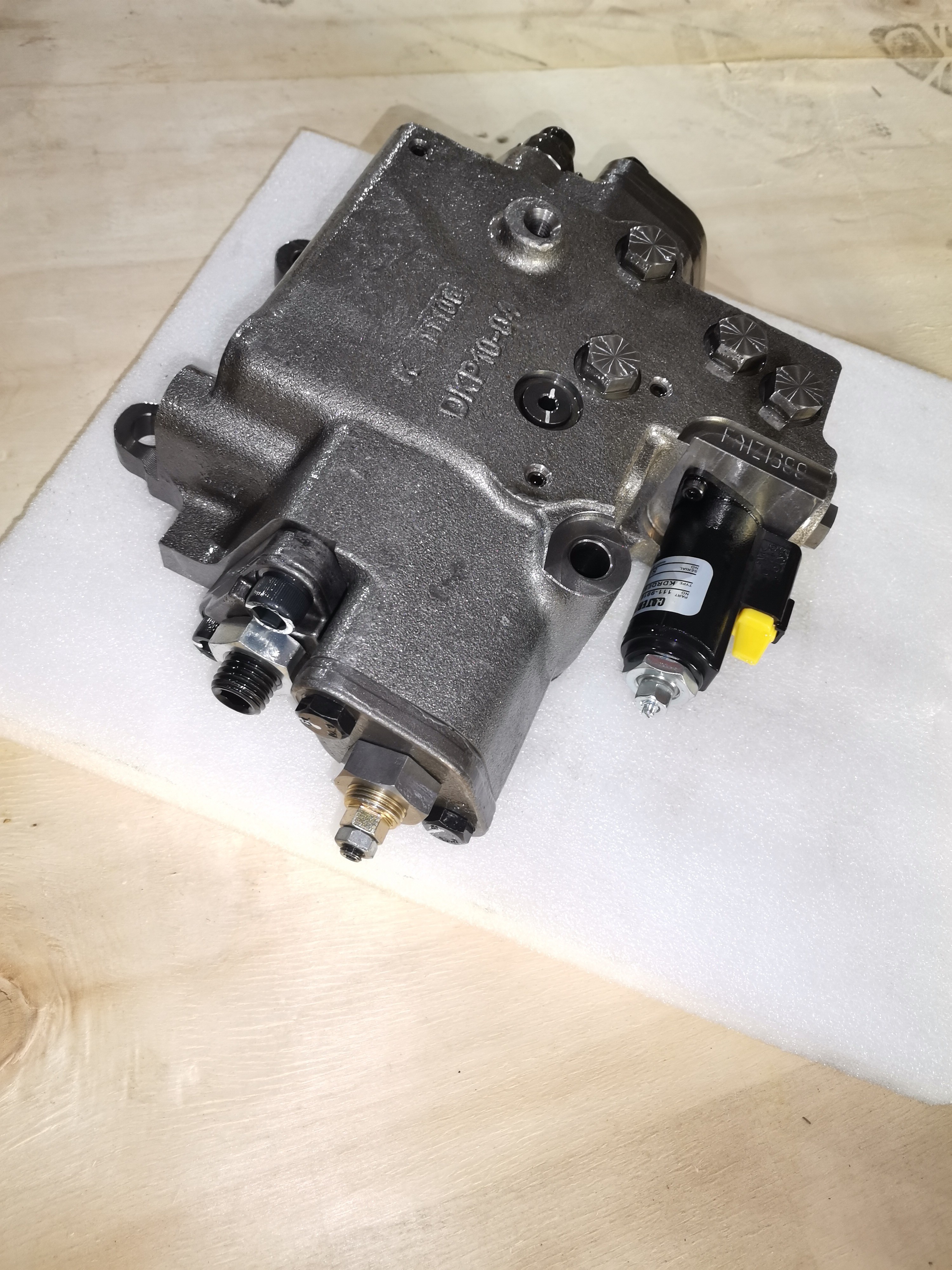

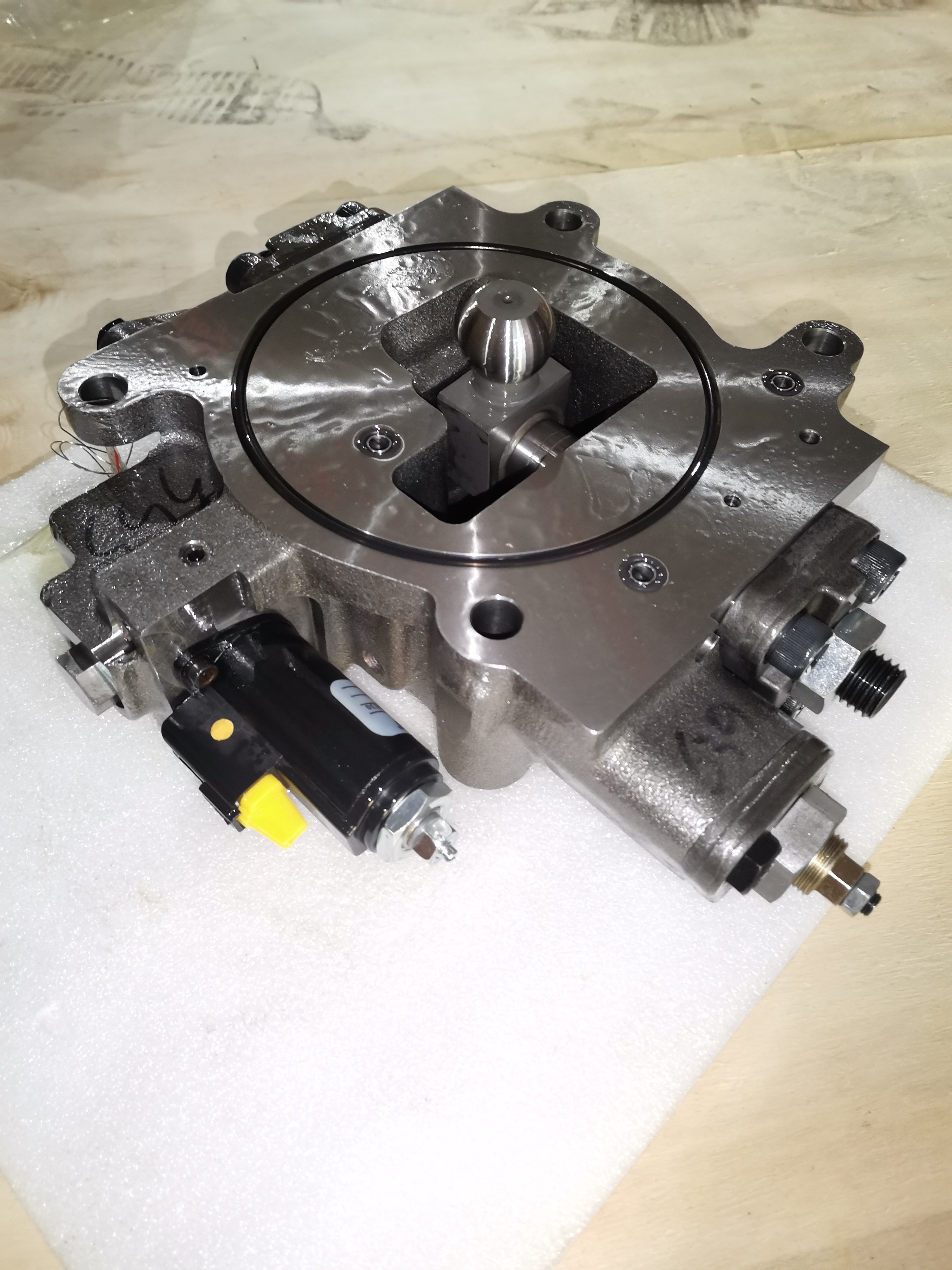

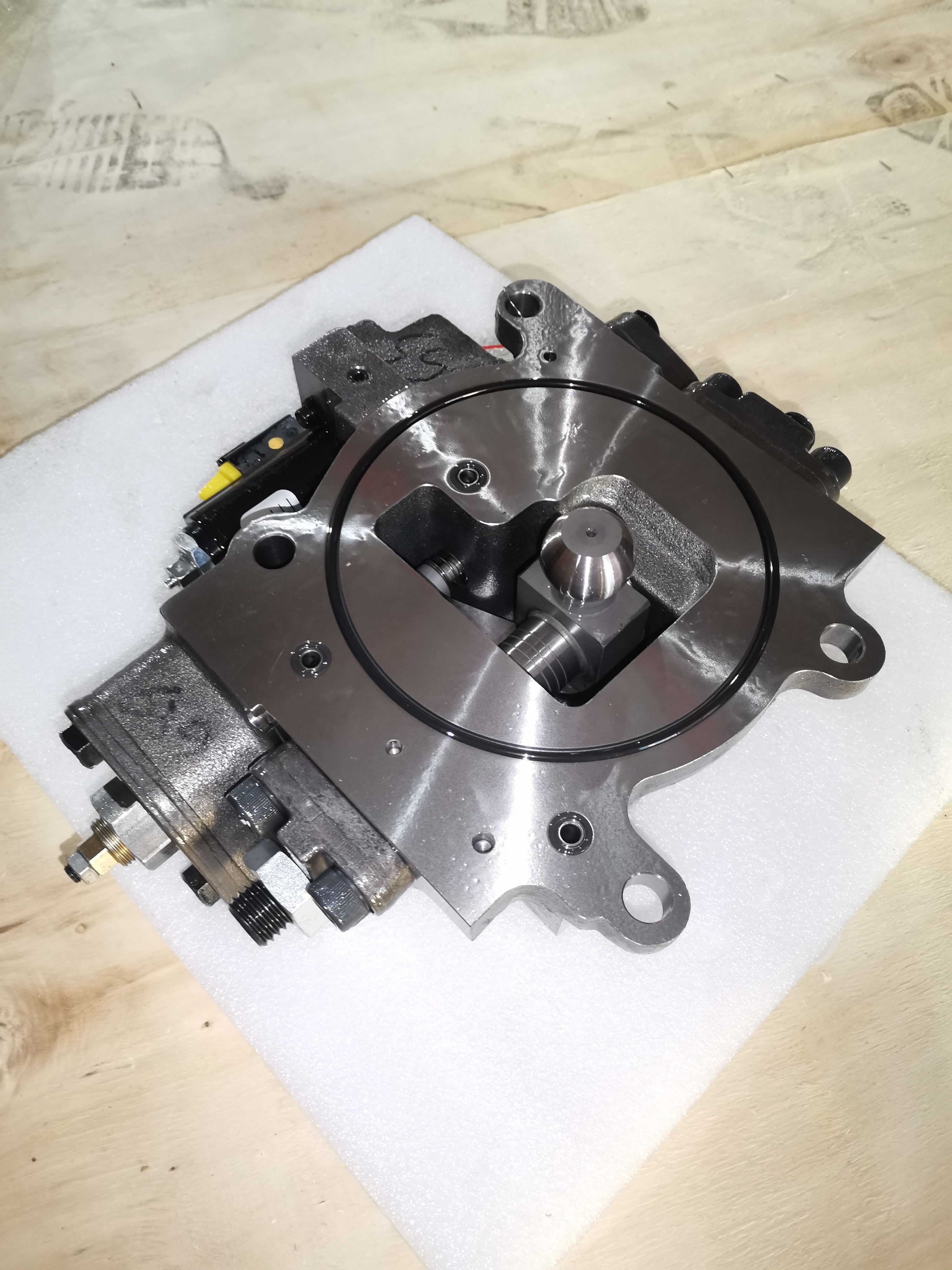

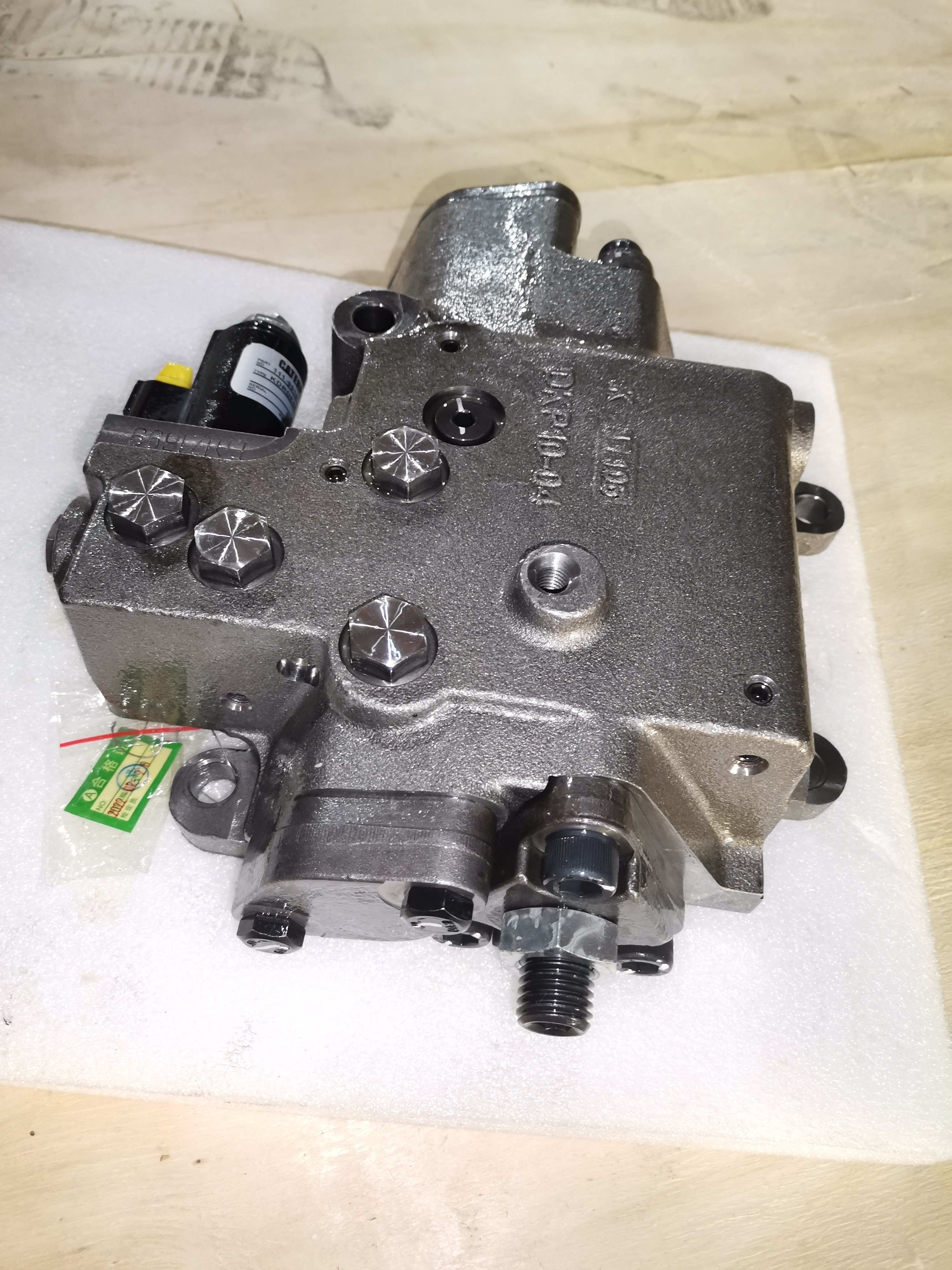

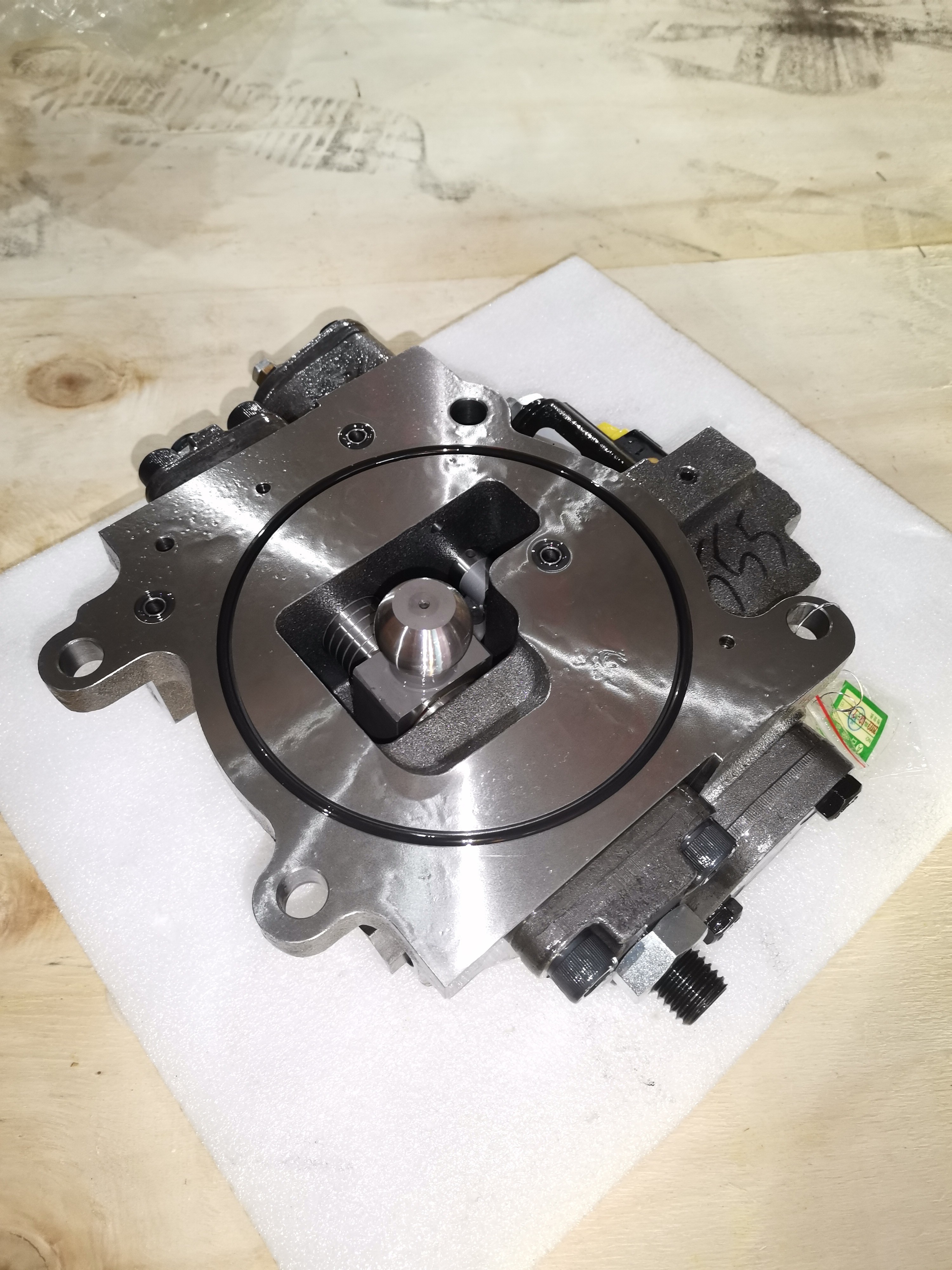

Belparts Excavator Hydraulic Pump Parts E320C E320D 272-6955 hydraulic gear pump
Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Remark |
|---|---|---|---|---|
| 1. | 4I-1022 | [2] | ORIFICE | |
| 2. | 7Y-4215 | [2] | SPACER | |
| 3. | 096-3983 | [1] | RING-RETAINING | |
| 4. | 118-4057 | [18] | SPRING | |
| 5. | 126-2016 J | [1] | PUMP GP-GEAR (PILOT) | |
| 9T-0835 | [1] | RING-RETAINING | ||
| 6. | 129-7859 | [2] | SET-BEARING | |
| 7. | 129-7863 | [1] | COVER | |
| 8. | 129-7921 | [2] | RING-RETAINING | |
| 9. | 129-7927 | [2] | BEARING | |
| 10. | 129-7979 | [4] | DOWEL | |
| 11. | 150-5782 | [2] | COVER | |
| 12. | 173-3427 | [2] | GUIDE-BALL | |
| 13. | 173-3473 | [2] | PLATE | |
| 14. | 173-3496 | [1] | BARREL AS | |
| (INCLUDES VALVE PLATE) | ||||
| 15. | 173-3498 | [1] | BARREL AS | |
| (INCLUDES VALVE PLATE) | ||||
| 16. | 177-2470 | [1] | COVER | |
| 17. | 177-2471 | [1] | COVER | |
| 18. | 179-9763 | [1] | FLANGE | |
| 19. | 191-5709 | [2] | PISTON AS | |
| 20. | 192-0573 | [4] | PIN-DOWEL | |
| 21. | 189-9763 | [8] | SEAL-O-RING | |
| 22. | 200-3333 | [1] | HEAD-PUMP | |
| 23. | 200-3334 | [1] | COVER | |
| 24. | 225-4543 | [1] | SHAFT-DRIVE | |
| 25. | 225-4544 | [1] | SHAFT-DRIVEN | |
| 26. | 129-7854 | [1] | ||
| 27. | 129-7857 | [1] | GASKET | |
| 28. | 129-7855 | [1] | GASKET | |
| 29. | 129-7925 | [1] | SEAL-LIP TYPE | |
| 30. | 242-6801 | [2] | SWASHPLATE AS | |
| (EACH INCLUDES) | ||||
| 094-1875 | [1] | DOWEL | ||
| 173-3428 | [1] | BUSHING | ||
| 242-6803 | [2] | PIN-DOWEL | ||
| 31. | 242-6804 | [4] | BEARING | |
| 32. | 247-8920 | [2] | ORIFICE | |
| 33. | 247-8782 | [1] | BODY | |
| 34. | 256-0093 Y | [1] | HEAD GP-PUMP (DRIVE)(DRIVE) | |
| 35. | 256-0096 Y | [1] | HEAD GP-PUMP (DRIVEN)(DRIVEN) | |
| 37. | 094-1875 | [6] | DOWEL | |
| 38. | 094-1882 | [16] | PLUG | |
| 39. | 095-0946 | [2] | RING-RETAINING | |
| 41. | 096-3944 | [1] | SEAL-O-RING | |
| 42. | 273-8314 | [1] | SEAL-O-RING | |
| 43. | 190-4896 | [2] | PLUG | |
| 44. | 193-1736 | [4] | SEAL-O-RING | |
| 45. | 3K-0360 | [2] | SEAL-O-RING | |
| 46. | 7M-8485 | [2] | SEAL-O-RING | |
| 47. | 7X-2557 M | [1] | BOLT (M16X2X140-MM) | |
| 48. | 8J-4645 | [2] | PLUG (STRAIGHT THREAD O-RING) | |
| 49. | 273-8315 | [2] | SEAL-O-RING | |
| 50. | 8T-4136 M | [18] | BOLT (M10X1.5X25-MM) | |
| 51. | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) | |
| 52. | 8T-4139 M | [10] | BOLT (M12X1.75X30-MM) | |
| 53. | 8T-4140 M | [4] | BOLT (M16X2X60-MM) | |
| 54. | 8T-4175 M | [2] | BOLT (M16X2X90-MM) | |
| 55. | 8T-4176 M | [2] | BOLT (M12X1.75X90-MM) | |
| 56. | 8T-4192 M | [10] | BOLT (M12X1.75X25-MM) | |
| 57. | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) | |
| 58. | 9S-4185 | [2] | PLUG (3/4-16-THD) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 250-2503 J | [1] | KIT-SEAL (PILOT GEAR PUMP) | ||
| (INCLUDES 2 GASKETS, LIP SEAL, SEAL & RETAINING RING) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
Product Description
| Appliion | Excavator |
| Quality | High Guarantee |
| Model | E320C E320D |
| Package | Standard Packing at Normal |
| Warranty | 1 Year |
| Payment term | T/T,, PayPal, Trade Assurance |
| Delivery | 5 days after the payment received |
| Shipment | by sea, by air, by express or as requi |
FAQ
1 . How do I contact you?
You can add me on WhatsApp: +86 189 9845 5434,Or send me an email: rayhan@belparts-china.com
2 . How long can I enjoy the warranty period?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How do I pay?
You can complete the payment through PaPal, T/T and other methods.
4 . When will get the items after I place order?
Once we receive your payment, we will arrange delivery within 24 hours; if there is no stock, we will tell you before payment.
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts. If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
