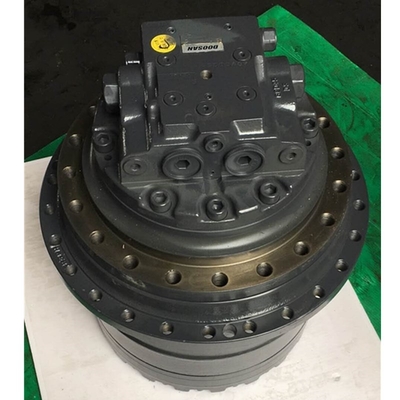

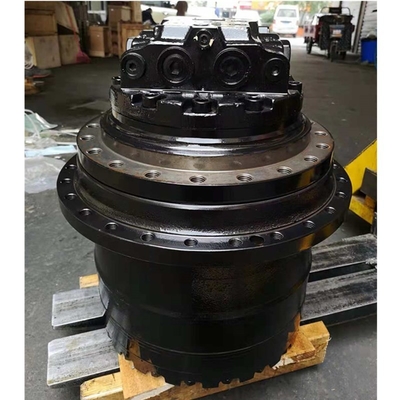

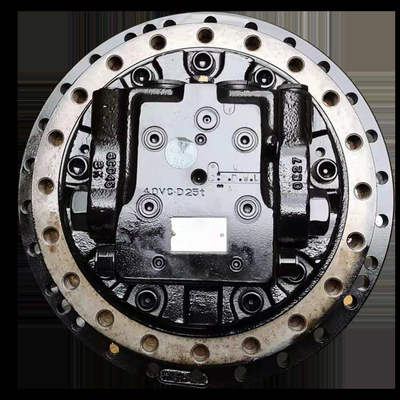

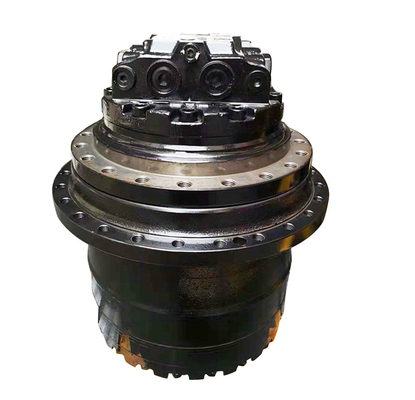

Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan

Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan

  • High Light

    DX255LC Excavator Travel Motor

    ,

    K1011413A Excavator Travel Motor

    ,

    Excavator Final Drive

  • Product Name
    Hydraulic Travel Motor
  • Warranty
    12 Months
  • MOQ
    1pcs
  • Part Number
    K1011413A
  • Model
    DX255LC
  • Brand
    Doosan
  • Appliion
    Excavator
  • Material
    Steel
  • Place of Origin
    China
  • Brand Name
    Belparts
  • Model Number
    DX255LC
  • Certifiion
    OEM
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable Price
  • Packaging Details
    Standard Shipping Package
  • Delivery Time
    2-3 days
  • Payment Terms
    L/C, T/T, Paypal, Alibaba Trade Assurance
  • Supply Ability
    1000 pieces/month

Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan

Excavator travel motor final drive DX255LC K1011413A hydraulic motors for doosan



Production Description


Company Name
Guangzhou Belparts Engineering Machinery LTD.
Brand
Doosan
Spare Parts Name
Hydraulic final drive
Model
DX255LC
Part number
K1011413A
Warranty
12 Months
MOQ
1pcs
Delivery Terms
After payment 3-7days
Payment Terms
L/C, T/T, Paypal, Alibaba Trade Assurance



Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 0Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 1

Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 2

Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 3

Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 4

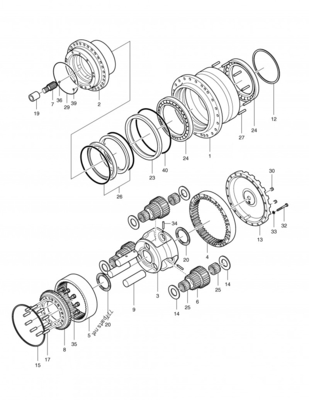

List of spare parts

# Part No Part Name Comment Qty. Price request
- K1011413A DEVICE, TRAVEL 321 kg 2
RL K9004992 REAR FLANGE ASS'Y   1
RL1 K9004993 KIT, REAR FLANGE 31 kg / 330*330*200 1
201 *NA00460 FLANGE, REAR   1
223 *NA01176 SPOOL, MAIN HE4D01720E 1
RL2 1.416-00026 STOPPER ASS'Y   2
294 *NA01233 STOPPER   1
295 *NA01176 SPOOL, MAIN HE4D01720E 1
296 *NA01182 SPRING SIS 1
224 1.181-00059 PLUG, FOR MAIN   2
228 1.131-00058 SPRING, FOR MAIN   2
279 S8000321 O-RING   2
226 1.181-00067 PLUG, CHECK   2
227 1.420-00013 VALVE, CHECK   2
230 1.129-00006 SPRING, CHECK   2
234 S8002731 O-RING   2
221 2181-1890D4 PLUG, RECHECK PF1/2 1
238 S8000181 O-RING 1BP18 1
252 2181-1116D2 PLUG, RECHECK   2
253 2181-1890D2 PLUG, SP PF1/4 2
244 2181-1116D1 PLUG, RECHECK 97123-01111 5
268 S6250182 BALL, STEEL   2
242 1.420-00014 VALVE, REDUCING   1
272 1.427-00031 SEAT, VALVE REDUCING   1
276 1.115-00141 RING, REDUCING   1
275 1.131-00062 SPRING, REDUCING VALVE   1
218 1.427-00029 VALVE, SEAT T-TYPE   1
219 1.420-00009 VALVE, T-TYPE   1
220 1.131-00041 SPRING, T-TYPE   1
222 1.115-00139 RING, T-TYPE 100A2022-00 1
233 S8000091 O-RING 1BP9 1
263 422-00031 VALVE, TWO SPEED   1
264 K9001047 PLUG   1
265 S8000111 O-RING 1BP11 3
266 1.131-00099 SPRING, TWO SPEED   1
241 S5700891 PIN, PARALLEL   2
282 S2221471 BOLT, HEX SOCKET   9
297 1.415-00005 ORIFICE   1
M K9004999 MOTOR PART   1
M1 1.441-00291 KIT, CYL'D BLOCK & PISTON 10 kg 1
104 *NA00073 BLOCK, CYL'D   1
110 1.114-00305 WASHER   2
114 1.129-00019 SPRING, FOR CYL'D   1
145 S6510700 RING, RETAINING   1
M11 1.409-00231 PISTON ASS'Y 3 kg 1 SET
151 1.109-00135 BEARING, ROLLER   6
107 1.412-00093 PLATE, RETAINER   1
108 1.148-00016 BALL, THRUST   1
M2 K9005000 PISTON ASS'Y   1
163 1.131-00042 SPRING   1
102 1.405-00022 SHAFT, MAIN 4 kg 1
103 K9005001 PLATE, SWASH 5 kg 1
109 1.412-00203 PLATE, TIMING 1 kg 1
115 1.412-00061 PLATE, FRICTION   3
116 1.412-00072 PLATE, MATING   4
112 K9005002 PISTON, PARKING 5 kg 1
113 1.131-00055 SPRING, P/PISTON   9
132 1.180-00631 SEAL, OIL   1
149 1.109-00147 BEARING, BALL   1
150 1.109-00026 BEARING, BALL   1
139 S8002101 O-RING   1
178 S8011951 O-RING   1
181 S5701242 PIN, PARALLEL   2
167 1.540-00006 PIVOT   2
R1 K9005003 RELIEF VALVE ASS'Y HE3D02505C 2
301 1.429-00037 SEAT   1
302 *NA00890 PLUNGER HE4D02504B 1
303 *NA00996 ROD SIS 1
304 *NA00796 PISTON SIS 1
305 *NA00079 BODY HE4D01468C 1
306 *NA00843 PLUG SIS 1
307 *NA01182 SPRING SIS 1
308 *NA01133 SHIM 1.10 mm 1
309 S8000181 O-RING 1BP18 1
310 S8000181 O-RING 1BP18 1
311 S8060181 BACK UP RING(GN04080A0)JI 1BP18 1
900 2401-9082K O-RING KIT, TRAVEL MOTOR   1 KIT

We can supply huge stock for excavator spare parts(Various parts)



1) Engine parts:pison liner kits,main&con rod bearings,valves,cyclinder gasket kit,plunger/delivery valve,nozzle,cylinder block,cylinder head,crankshaft,camshaft,starting motor,oil/water/feed pump,fan blade,Turbocharger and so on.



2)Hydraulic parts:hydraulic pump assy,hydraulic pump parts(biock ass'y ,plate valve,guide retainer,retainer shoe,piston sub ass"y,cradle ass"y



3) Undercarriage parts:Chassis part,track link ass"y,track shoe,sprocket,track roller,carrier roller,front idler,bucket,Oil cylinder assy and so on.



4) Cooling system:radiator assy,oil cooker assy,shroud,aftercooler assy,condenser assy,water tank assy,air conditioner,air compressor assy and son on.





Hot Products




Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 5







Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 6Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 7



Advantages:


1. Original /OEM /After Market quality and competitive price.


2. Professional work team and quick service.


3. Strong and standard package.


4. Fast and safe delivery.


5. Long export experience


6. Wholesale price for Construction Machinery Spare Parts.



Factory




Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 8Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 9Excavator Travel Motor Final Drive DX255LC K1011413A Hydraulic Motors For Doosan 10



FAQ


1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.



2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.



3. How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.



4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.



5. How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.



6. What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
